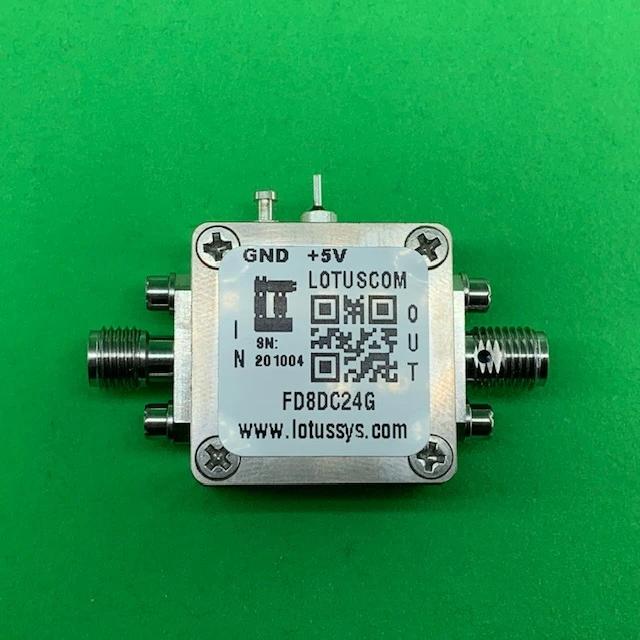

  • Frequency Divider/Prescaler Divide by 8 (DC to 24 GHz) FD8DC24G

    Part Number: FD8DC24G is a Divide by M=8 Frequency divider with input frequency range from frequency DC to 24 GHz with a single +5 DC Supply. The low additive SSB Phase Noise of -154 dBc/Hz at 100 kHz offset helps the user maintains good system noise performance.

    Enclosure is using RF Design Kit 6UDD6W6H41SMAA2 with dimension 0.9375"x0.9375x0.48".

    SKU#: AK28-002D.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

    1 item left


    • Frequency Range: DC to 24 GHz
    • Divider by M: (M=8)
    • Operating Temperature -40 to +85C
    • Input Power Range: Min. -15 dBm, Max. +10 dBm
    • Supply current (Icc) typical 81 mA
    • Supply Voltage Vcc=+5 V
    • High Quality Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB (very low loss and high thermal performance)
    • ROHS Compliant


    • Microwave Radio
    • Test Instrumentation
    • Communication/Software Defined Radio/Ham Radio


    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FD8DC24G Datasheet
