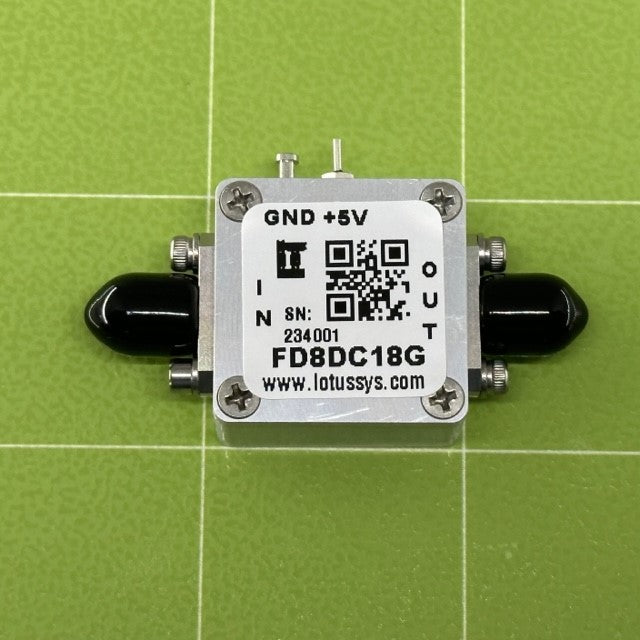

Frequency Divider/Prescaler Divide by 8 (DC to 18 GHz) FD8DC18G

Frequency Divider/Prescaler Divide by 8 (DC to 18 GHz) FD8DC18G

Frequency Divider/Prescaler Divide by 8 (DC to 18 GHz) FD8DC18G

Frequency Divider/Prescaler Divide by 8 (DC to 18 GHz) FD8DC18G

$ 229.00 USD

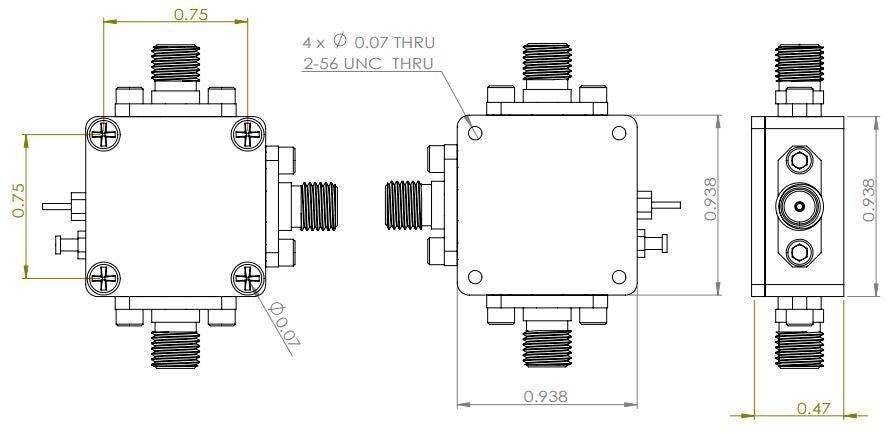

Part Number#: FD8DC18G is a Divide by M=8 Frequency divider with input frequency range from frequency DC to 18 GHz with a single +5 DC Supply. The low additive SSB Phase Noise of -150 dBc/Hz at 100 kHz offset helps the user maintains good system noise performance. Enclosure is using RF Design Kit 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59".

Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.

SKU#: AK20-002F.

Collections: Frequency Divider

Features

Frequency Range: DC to 18 GHz
Divide by M: (M=8)
Operating Temperature -40 to +85C
Input Power Range: Min. -15 dBm, Max. +10 dBm
Supply current (Icc) typical 103 mA
Supply Voltage Vcc=+5 V
High Quality Stainless Steel SMA Female Connector
High Quality Rogers RO4350 RF PCB
ROHS Compliant

Applications

Microwave Radio
Test Instrumentation
Satellite Communication/Software Defined Radio/Ham Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

FD8DC18G Datasheet
