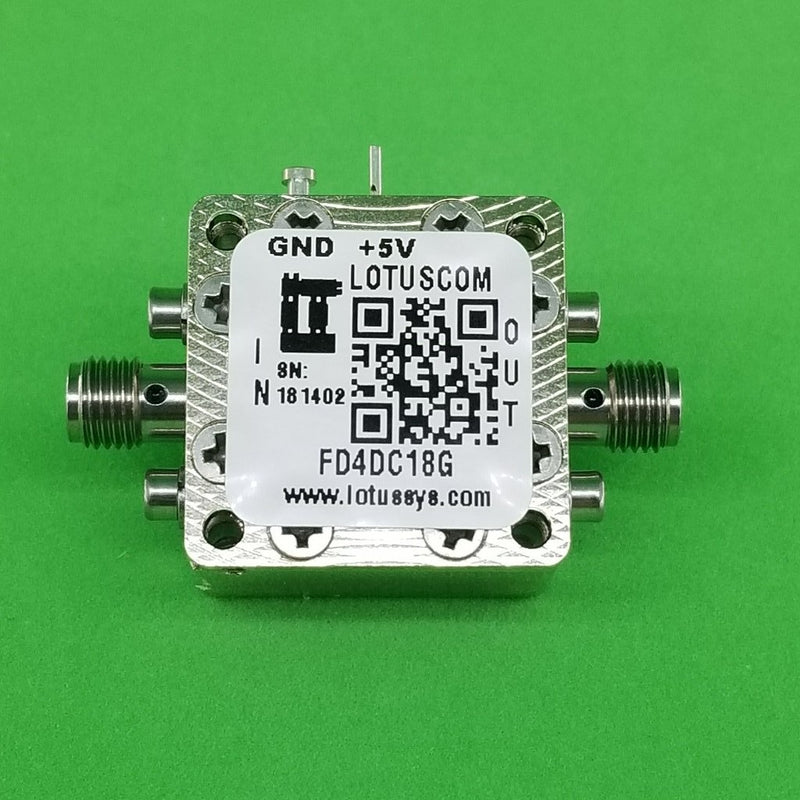

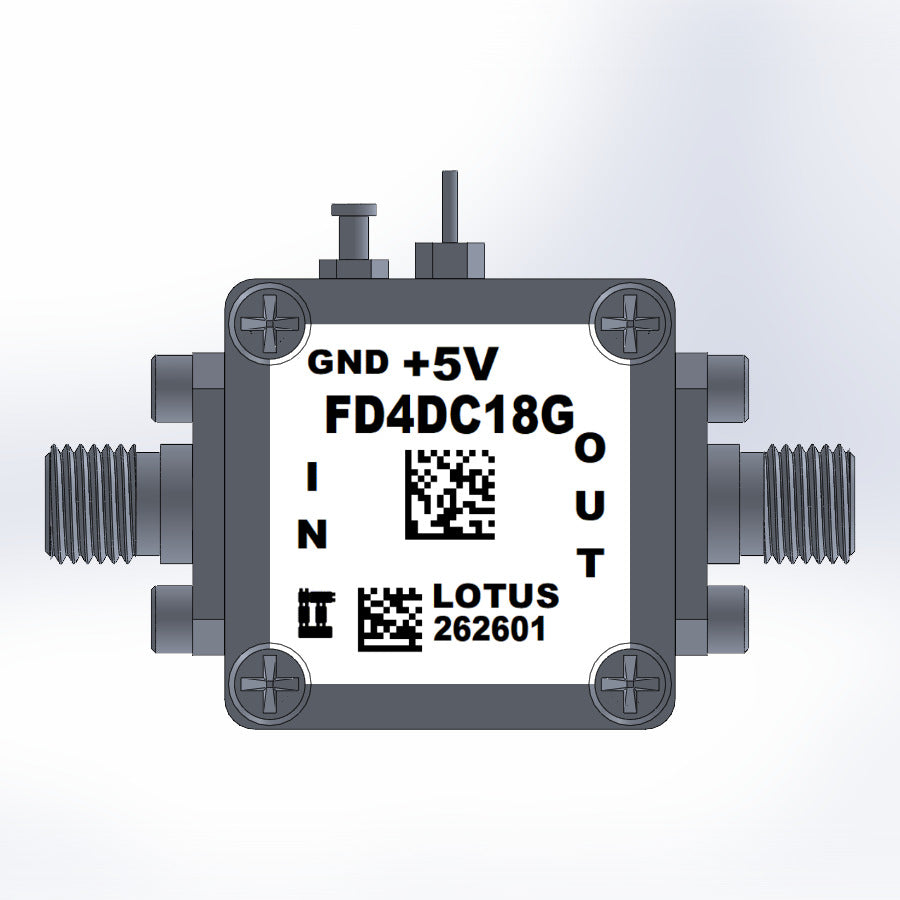

  • Frequency Divider/Prescaler Divide by 4 (DC to 18 GHz) FD4DC18G

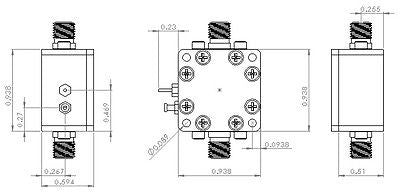

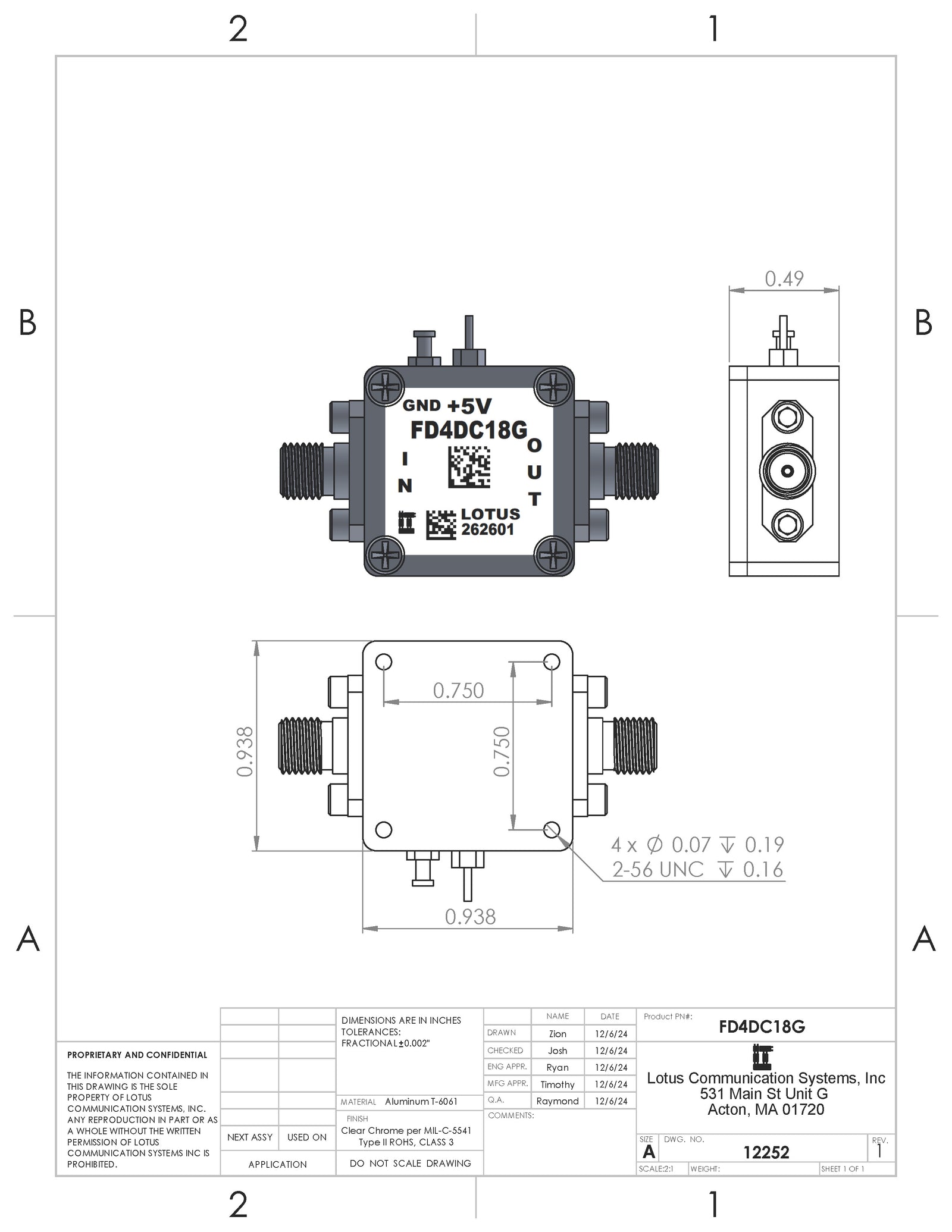

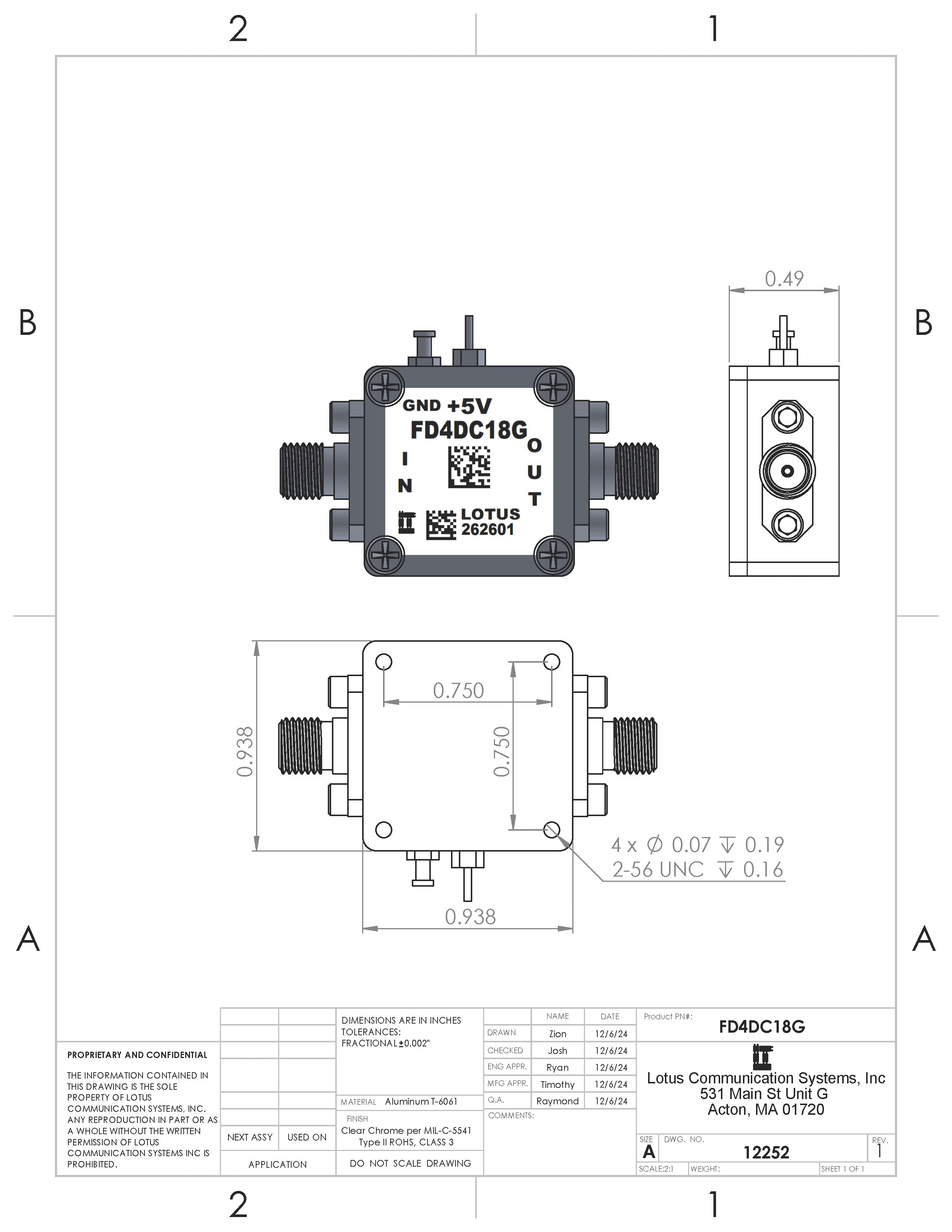

    Part Number: FD4DC18G is a Divide by M=4 Frequency divider with input frequency range from frequency DC to 18 GHz with a single +5 DC Supply. The low additive SSB Phase Noise of -150 dBc/Hz at 100 kHz offset helps the user maintains good system noise performance. Enclosure is using RF Design Kit 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59".

    Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.

    SKU#: AK20-002E.

    7 items left

    Features

    • Frequency Range: DC to 18 GHz
    • Divide by M: (M=4)
    • Operating Temperature -40 to +85C
    • Input Power Range: Min. -15 dBm, Max. +10 dBm
    • Supply current (Icc) typical 96 mA
    • Supply Voltage Vcc=+5 V
    • High Quality Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Microwave Radio
    • Test Instrumentation
    • Satellite Communication/Software Defined Radio/Ham Radio

    Resources

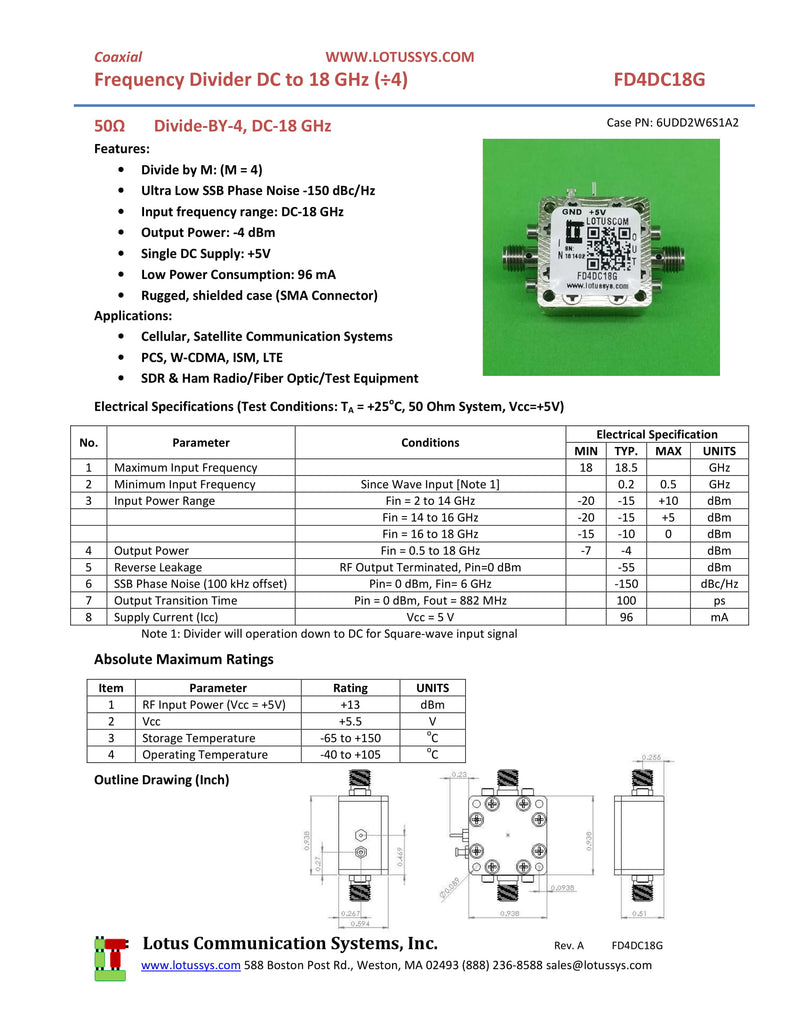

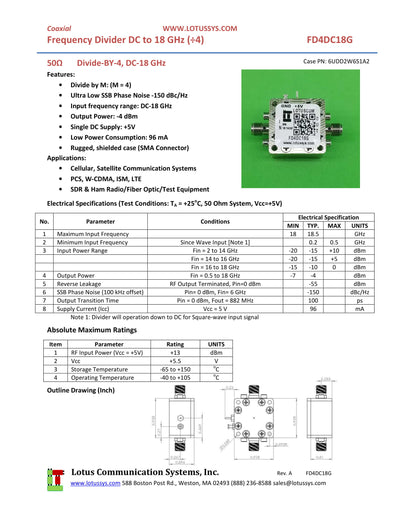

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FD4DC18G Datasheet
