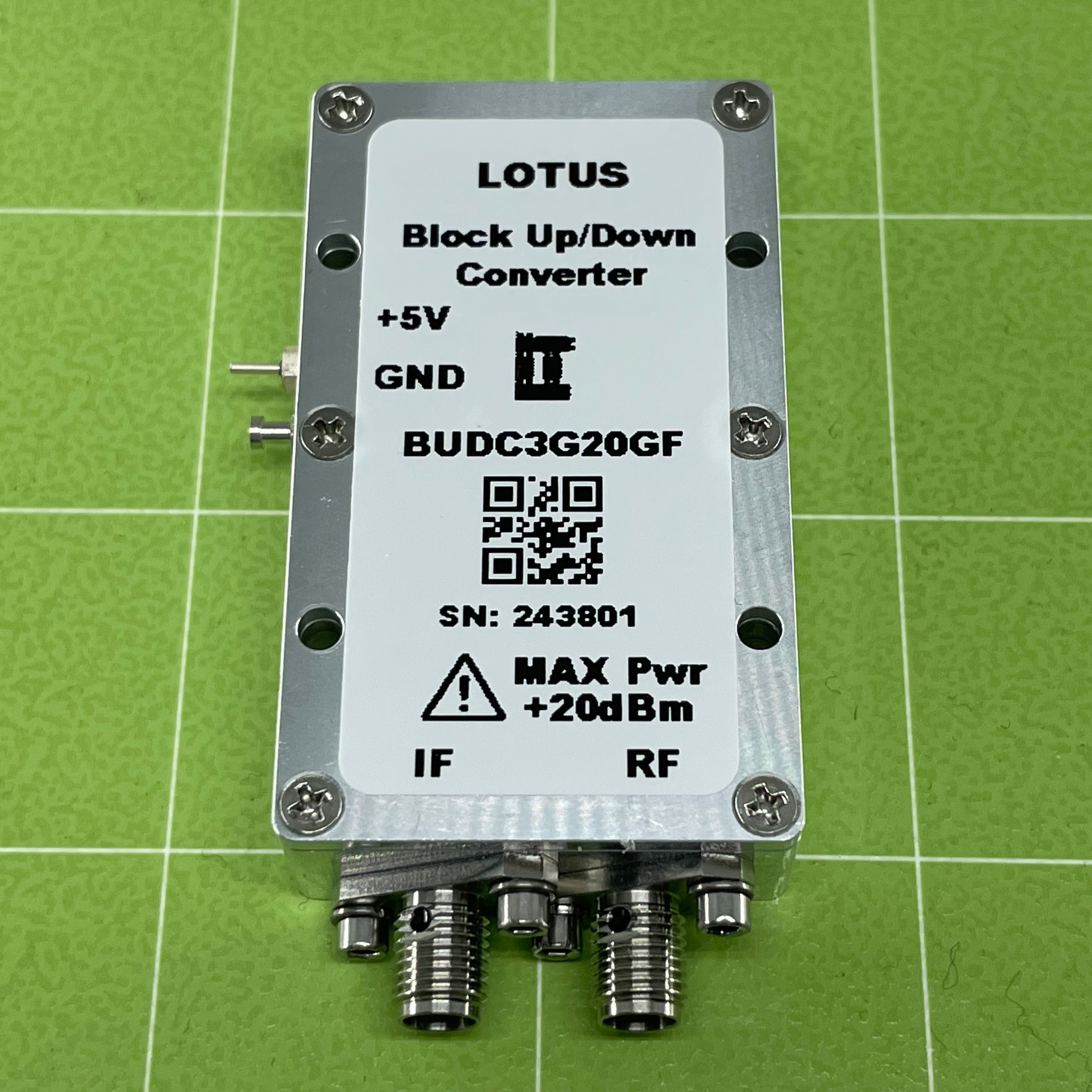

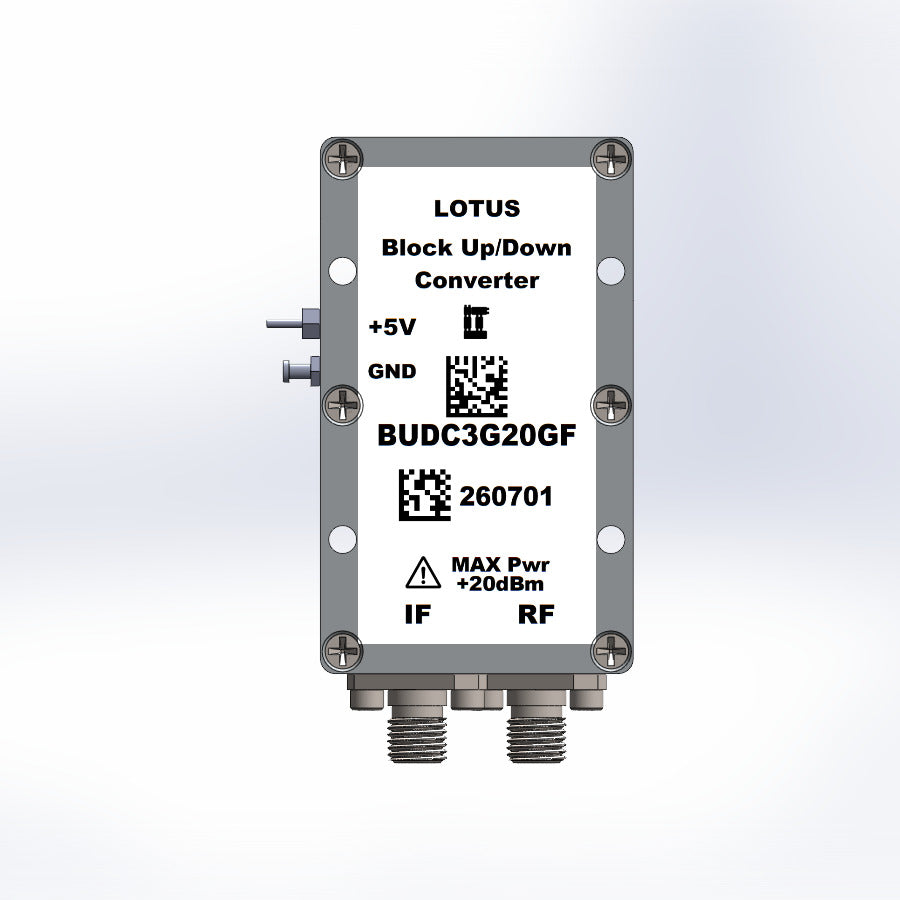

Block Up/Down Converter 3G~20GHz w/ Fixed LO
$ 2,706.00 USD

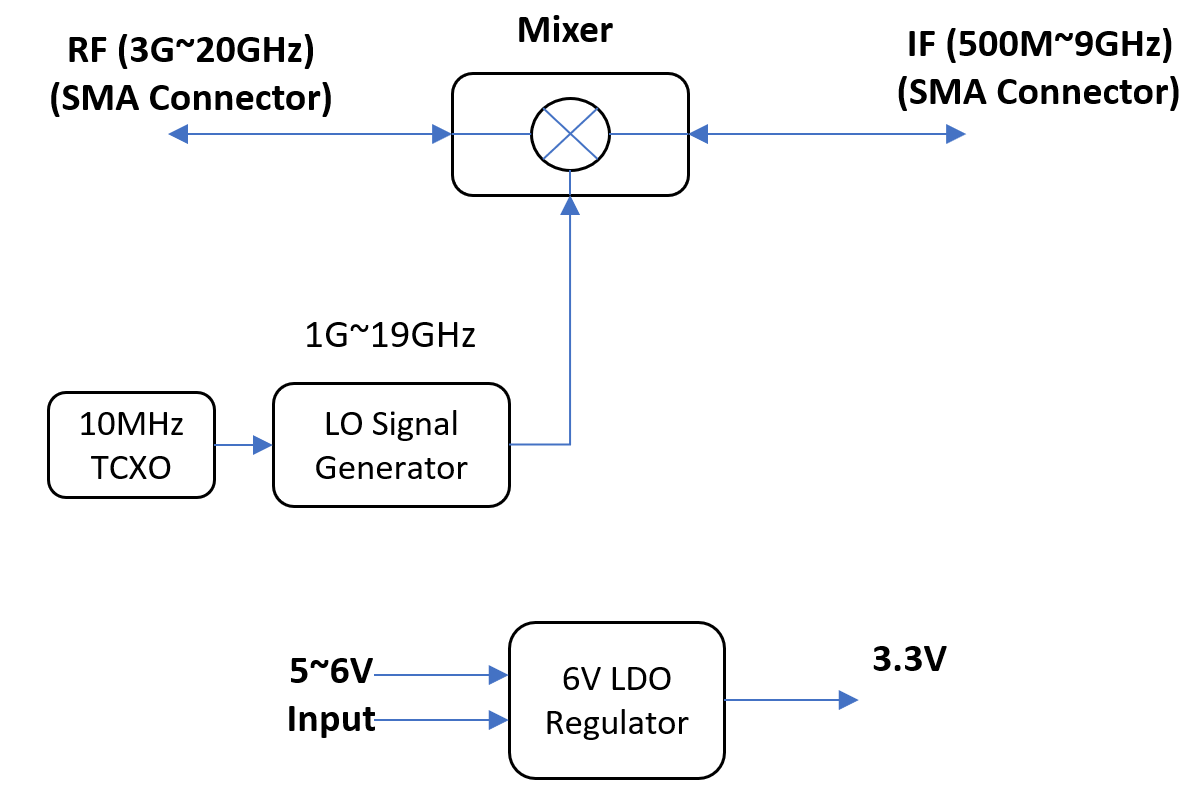

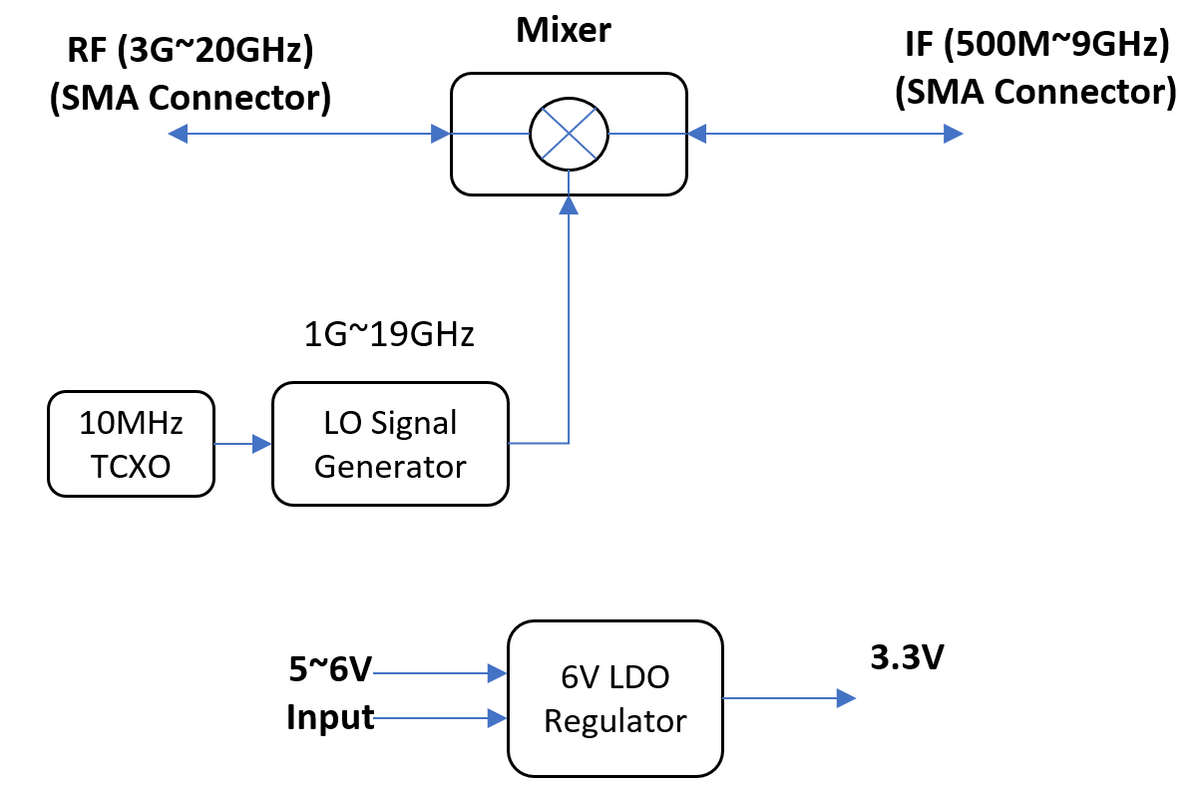

Part Number: BUDC3G20GF is a software defined block up/down converter. RF frequency range is 3GHz to 20GHz and IF frequency range is 500MHz to 9GHz. An Integrated low phase noise LO support LO frequencies from 1GHz to 19GHz.

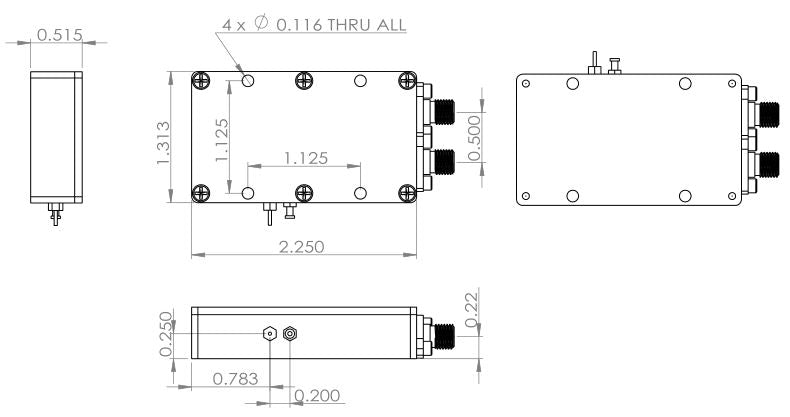

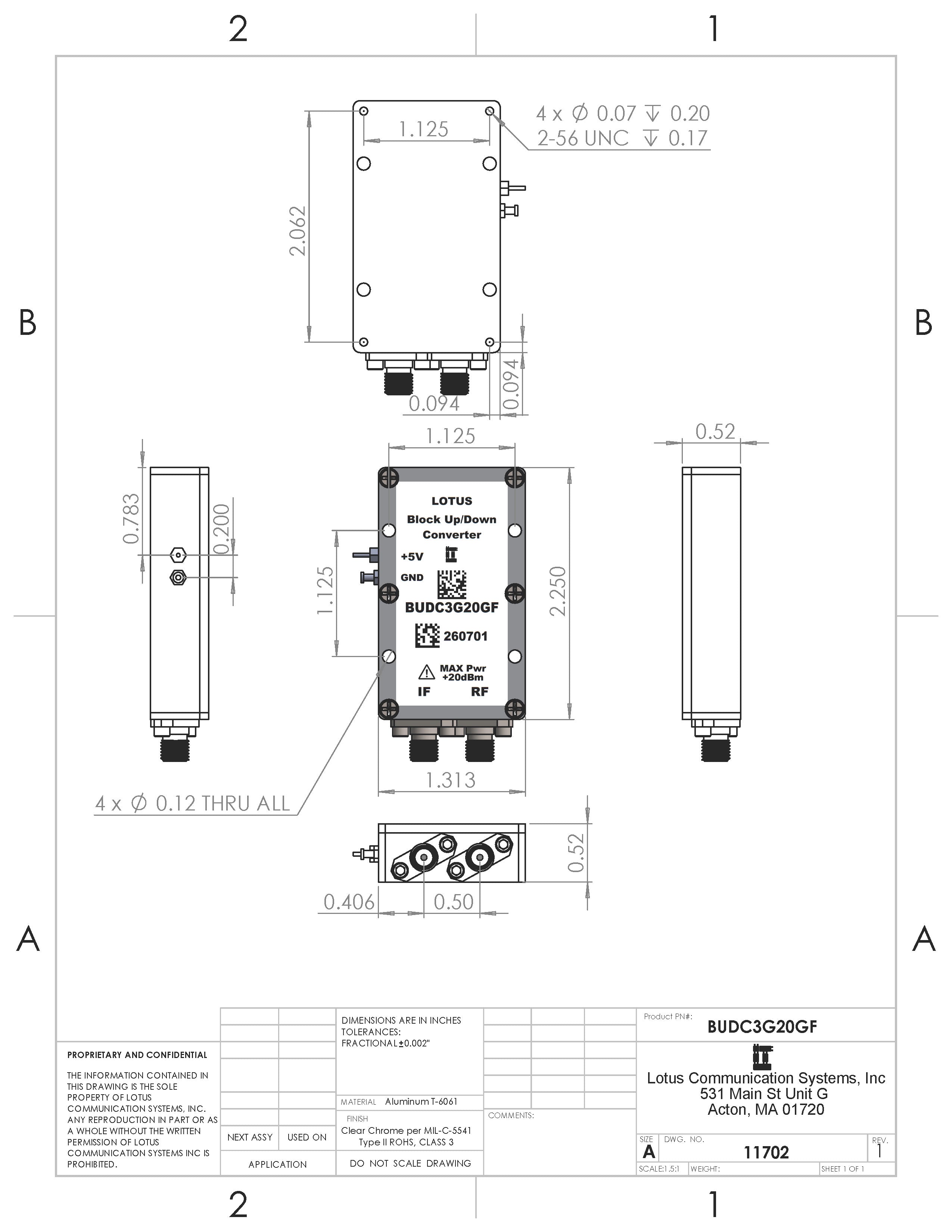

It has 12.0dB conversion loss at 17GHz with low LO‐RF leakage <30dBm. It can be powered by +5~6V terminal with 235mA current draw. It has dimension of 2.25”x1.313”x0.52”.
The converter has broad applications and can be used to extend spectrum analyzer measurement range to 20GHz. SKU#: AK20-022R.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Up-conversion or Down-conversion
- RF Frequency 3GHz to 20 GHz
- IF Frequency 500MHz to 9 GHz
- Integrated LO (no External Reference/LO needed)
- Fixed LO Frequency (1G~19GHz)
- Low LO‐RF Leakage: <‐30dBm
- Power by USB‐C or +5~6V Terminal/235mA current
- Operating Temperature: ‐40C to +60C
- ROHS Compliant
Applications
- Microwave Transceivers/Point-to-Point Microwave
- Test Instrument
- Satellite Block Up/Down Conversion
- C, X and Ku Band RADAR
- Software Defined Radio/Ham Radio
Resources (PDF Datasheet)
BUDC3G20GF Datasheet
