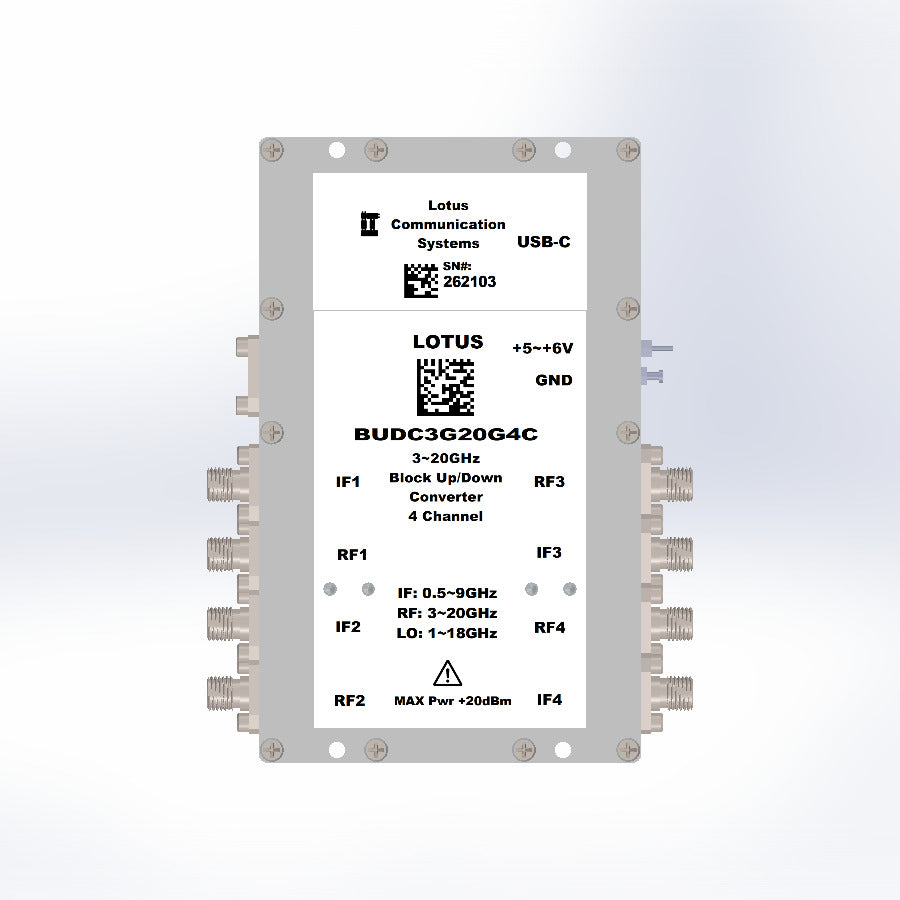

4 CH Bock Up/Down Converter 3G~20GHz RF
$ 5,998.00 USD
Part Number: BUDC3G20G4C is a 4 Channel Phase Coherent 3G~20 GHz block up/down converter that can be used for up conversion or down conversion. RF frequency range is 3GHz to 20GHz and IF frequency range is 500MHz to 9GHz. The integrated low phase noise LO supports LO frequencies from 1GHz to 18GHz.

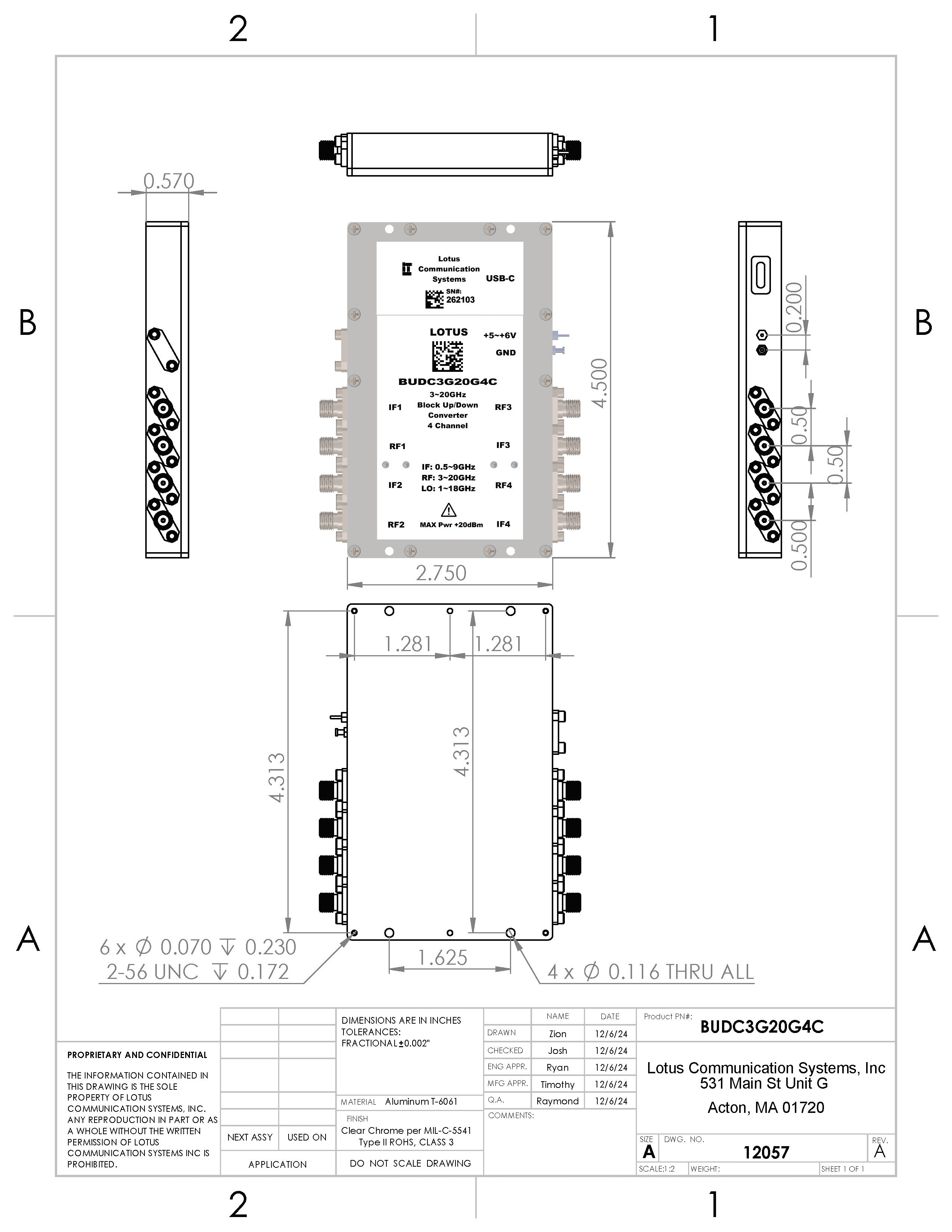

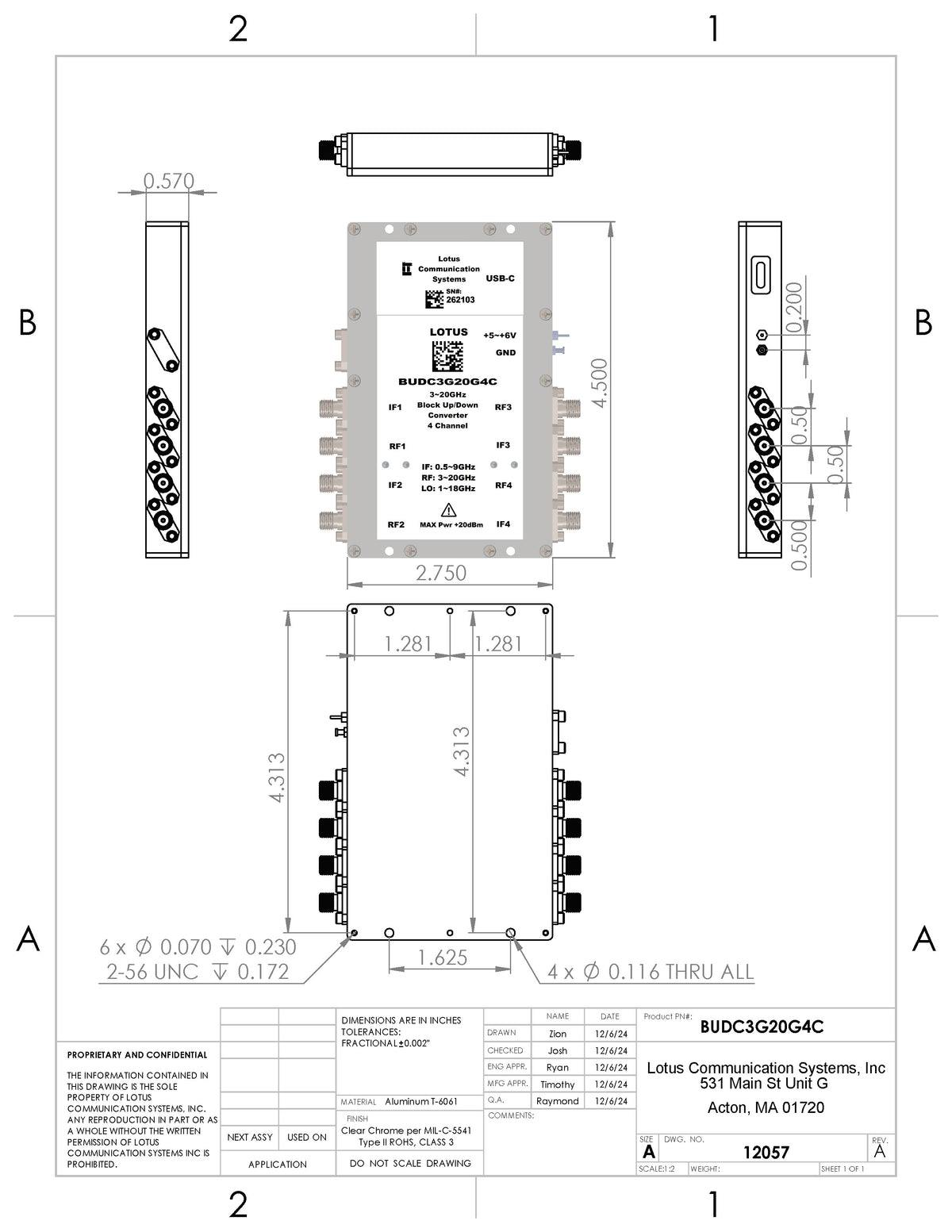

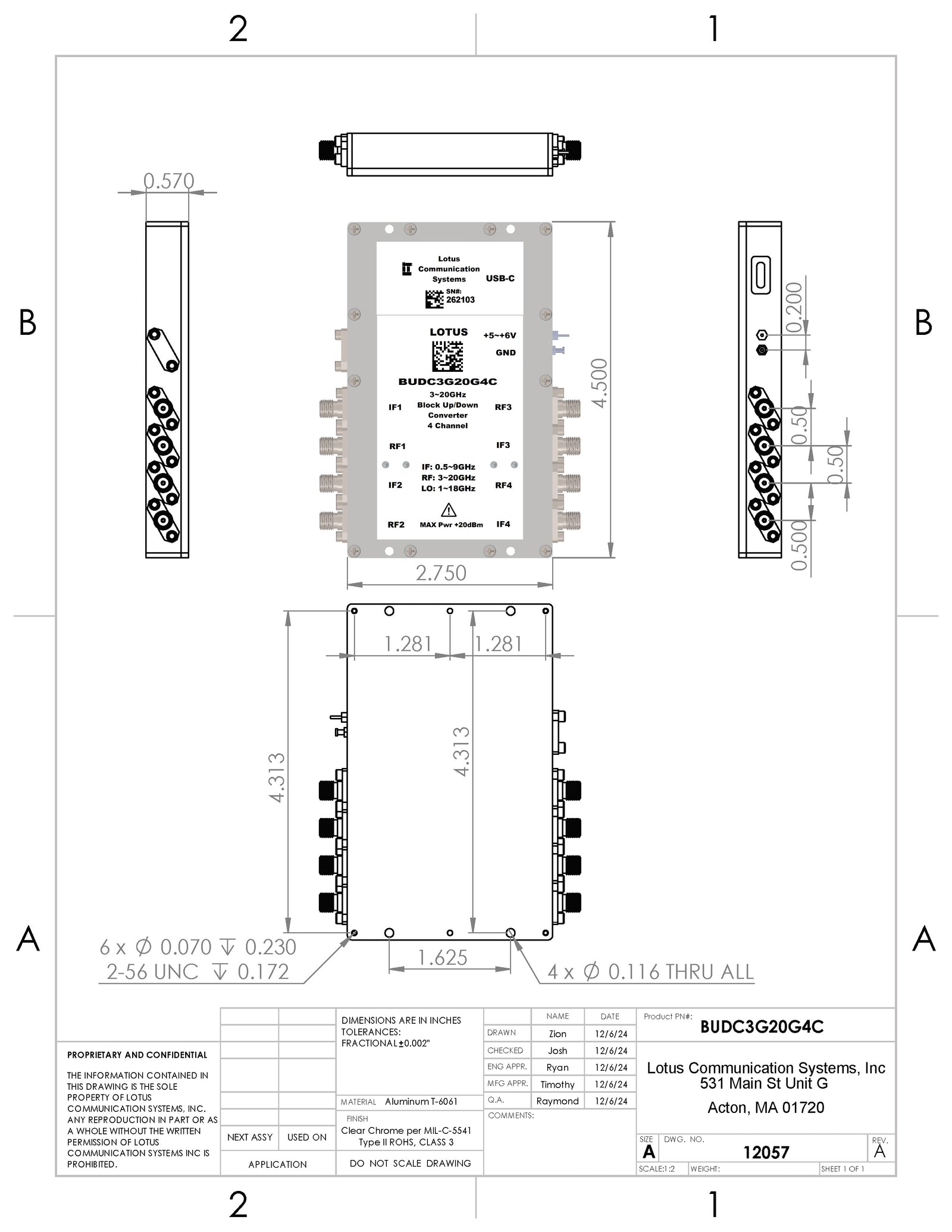

It has 12.0dB conversion loss at 17GHz with low LO-RF leakage <30dBm. It can be powered either by USB-C or +5~6V terminal with 820mA current draw. It has dimension of 2.75”x4.5”x0.57”.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
Features
- Up-conversion or Down-conversion
- 4 Channel Phase Coherent (Share same LO)
- RF Frequency 3GHz to 20 GHz
- IF Frequency 500MHz to 9 GHz
- Integrated LO (no External Reference/LO needed)
- Software Programmable LO Frequency (1G~18GHz)
- Power by USB‐C or +5~6V Terminal/810mA current
- Operating Temperature: ‐40C to +60C
- ROHS Compliant
Applications
- Test Instrumentation
- Satellite Block Up/Down Conversion
- Wireless and Optical Communication
Resources (PDF Datasheet)
BUDC3G20G4C Datasheet
