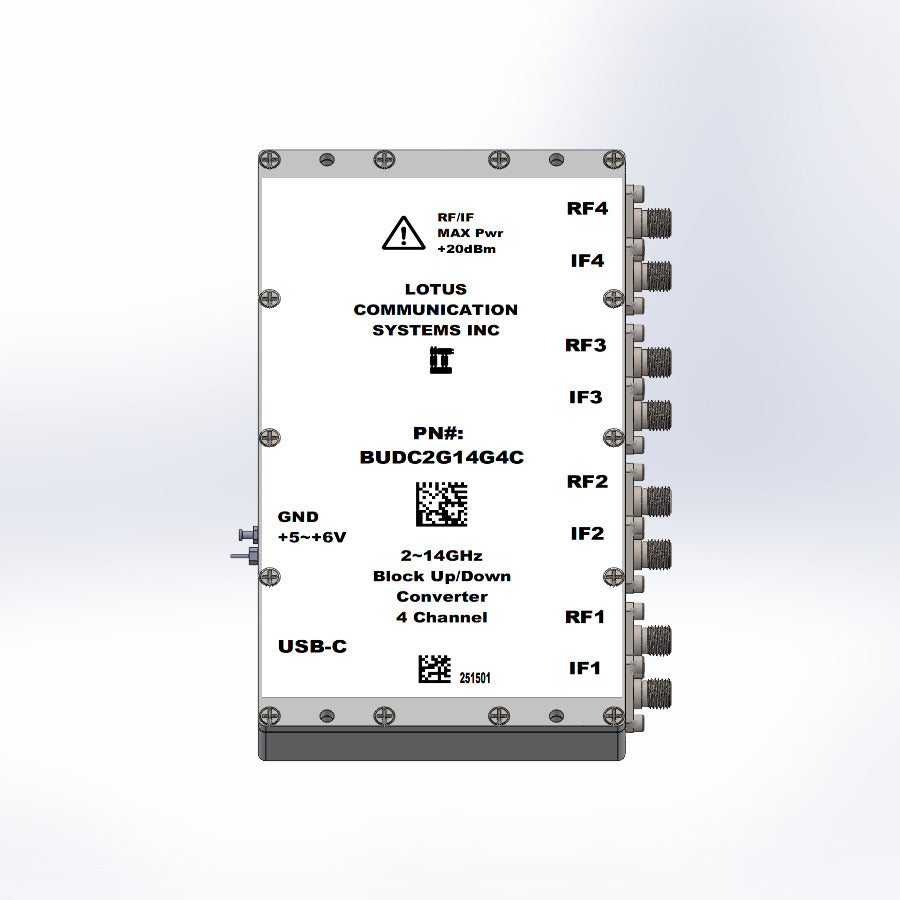

4 Channel Phase Coherent Block Up/Down Converter 2G~14GHz BUDC2G14G4C
$ 5,608.00 USD

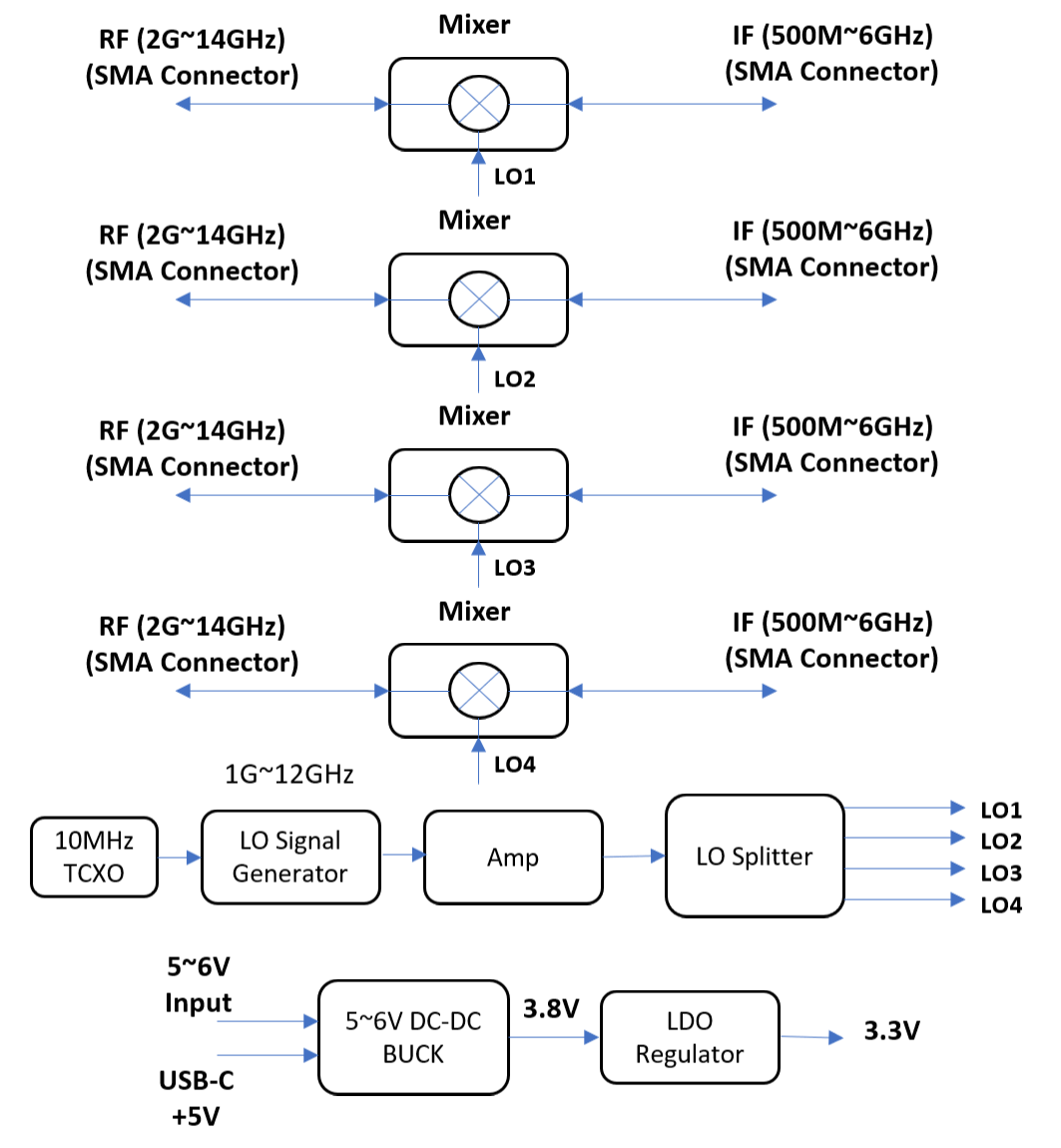

Part Number: BUDC2G14G4C is a software defined block up/down converter. RF frequency range is 2GHz to 14GHz and IF frequency range is 500MHz to 6GHz. The integrated low phase noise LO supports LO frequencies from 1GHz to 12GHz.

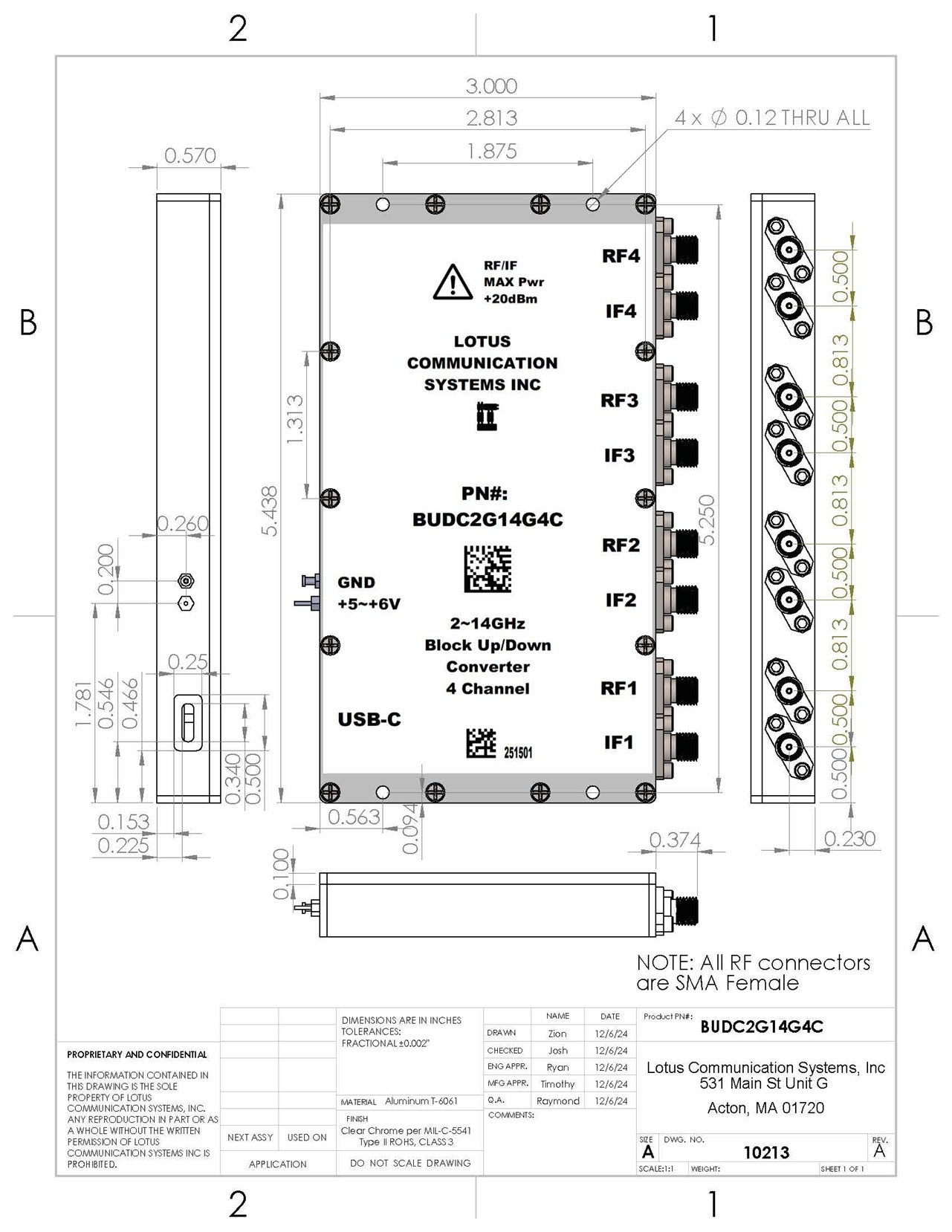

It has 8.0dB conversion loss at 5.8GHz with low LO‐RF leakage <30dBm, and can be powered either by USB‐C or +5~6V terminal with 600mA current draw. The enclosure has the dimension of 5.438”x3.0”x0.57”.
The converter has broad applications and can be used to extend spectrum analyzer measurement range to 14GHz. SKU#: QTR03_C3A.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Up-conversion or Down-conversion
- 4 Channel Phase Coherent (Share same LO)
- RF Frequency 2GHz to 14 GHz
- IF Frequency 500MHz to 6 GHz
- Integrated LO (no External Reference/LO needed)
- Software Programmable LO Frequency (1G~12GHz)
- Low LO‐RF Leakage: <‐30dBm
- Power by USB‐C or +5~6V Terminal/600mA current
- Operating Temperature: ‐40C to +60C
- ROHS Compliant
Applications
- Spectrum Analyzer Frequency Extension
- Test Instrumentation
- Satellite Block Up/Down Conversion
- Wireless and Optical Communication
Resources (PDF Datasheet)
BUDC2G14G4C Datasheet
Operational Manual
Windows GUI Control SW
Self-Executable GUI SW Download
