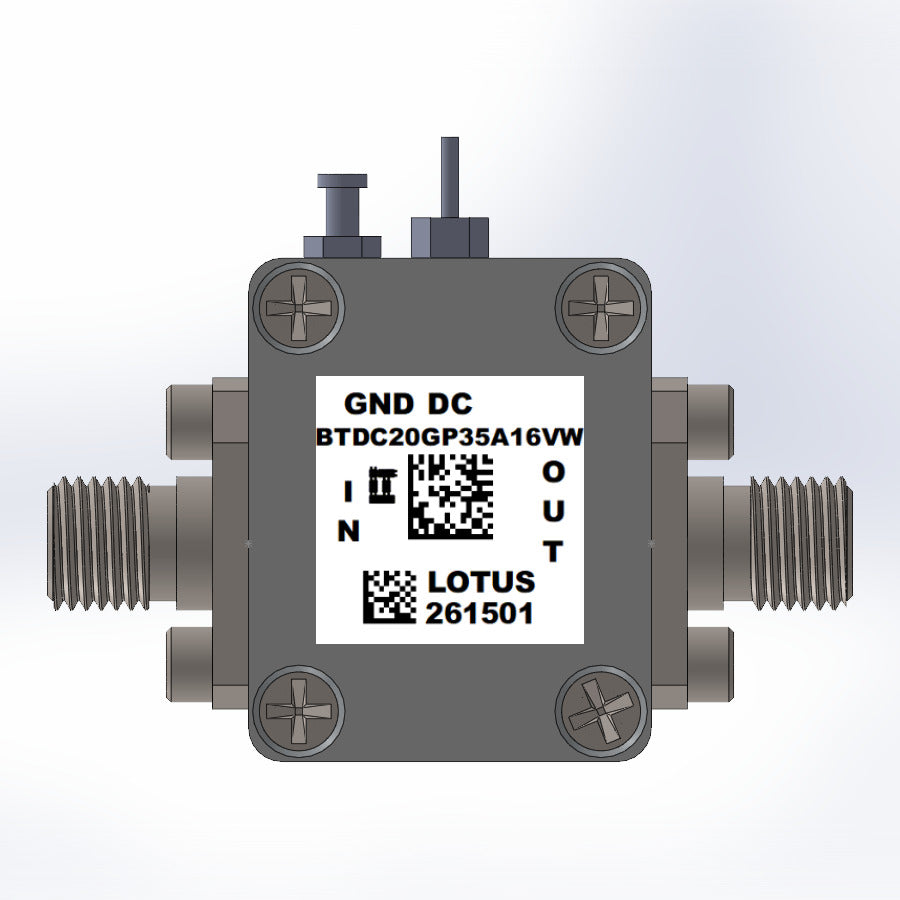

Bias Tee DC~20GHz 0.35A 16V
$ 98.00 USD - $ 188.00 USD
Part Number: BTDC20GP35A16V is 50Ω Broadband Bias-T DC~20GHz under $100. Maximum current is 0.35A and maximum voltage is 16V DC.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
Features
- Broadband Performance DC~20GHz
- DC Current: 0.35A
- DC Voltage: 16VDC
- Low DCR and excellent current handling
- Insertion Loss 1.0dB typ.
- Stainless Steel SMA Female Connector
- ROHS Compliant
- EMI Shield (& Weatherproof) Option Available PN#: BTDC20GP35A16VW
Applications
- Test Instrumentation
- Biasing Amplifiers
- Modulators driven with high frequency data patterns
- SDR & Ham Radio
Resources (PDF Datasheet)
BTDC20GP35A16V Datasheet
