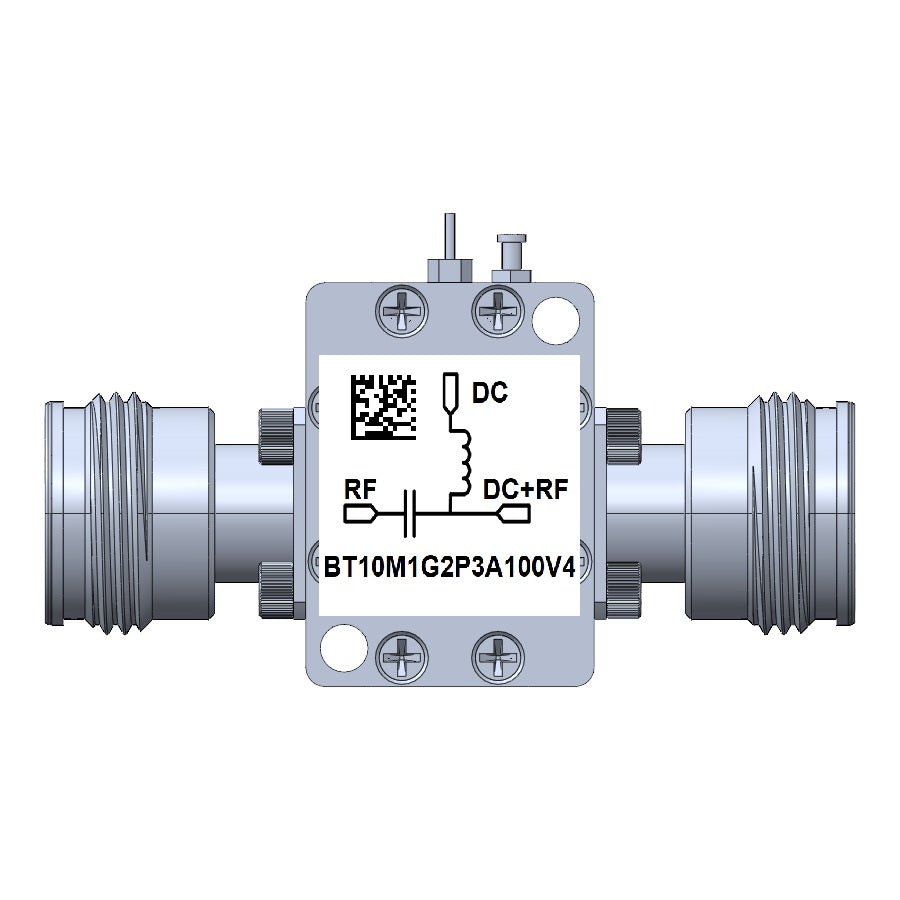

Bias Tee 4.3-10 Broadband 10M-1GHz (Max. 2.3A 100V DC)
$ 233.00 USD
PN: BT10M1G2P3A100V4 is a broadband 50Ω Bias-T from 10 MHz to 1GHz. It has two 4.3-10 Female Connectors. It can handle maximum current 2.3A and 100V DC.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
Features
- Broadband Performance 10 MHz to 1 GHz
- < 0.4dB Insertion Loss
- Low DCR and excellent current handling
- Ideal for high current bias Tee applications
- Two Female 4.3-10 Connectors (Type-N connector also available)
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Test Instrumentation
- Biasing Amplifiers
- Modulators driven with high frequency data patterns
- General Purpose Wireless
Resources (PDF Datasheet)
BT10M1G2P3A100V Datasheet
