Attenuator 10dB Attenuation (0~8 GHz) 0.5 Watts

Attenuator 10dB Attenuation (0~8 GHz) 0.5 Watts

Attenuator 10dB Attenuation (0~8 GHz) 0.5 Watts

Attenuator 10dB Attenuation (0~8 GHz) 0.5 Watts

$ 79.00 USD

Part Number: ATT8G10D0P5W Precision RF Attenuator - 10dB Attenuation.

Enclosure dimension is 0.9375"x0.75x0.48".

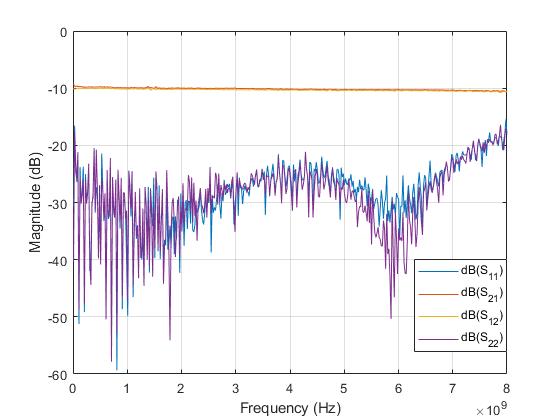

S-Parameter of the Part measured on VNA (from DC to 8 GHz) is shown.

Operating Temperature: -45 ~ +85°C
Operating Freq. Range: DC to 8 GHz
RF Power Input: 0.5 Watt CW
Attenuation Accuracy: +/-0.25 dB
High Quality Stainless Steel SMA Female Connector

Applications

Microwave Radio
Ham Radio
Transmitters/Receivers/SDR
Test Instrumentation

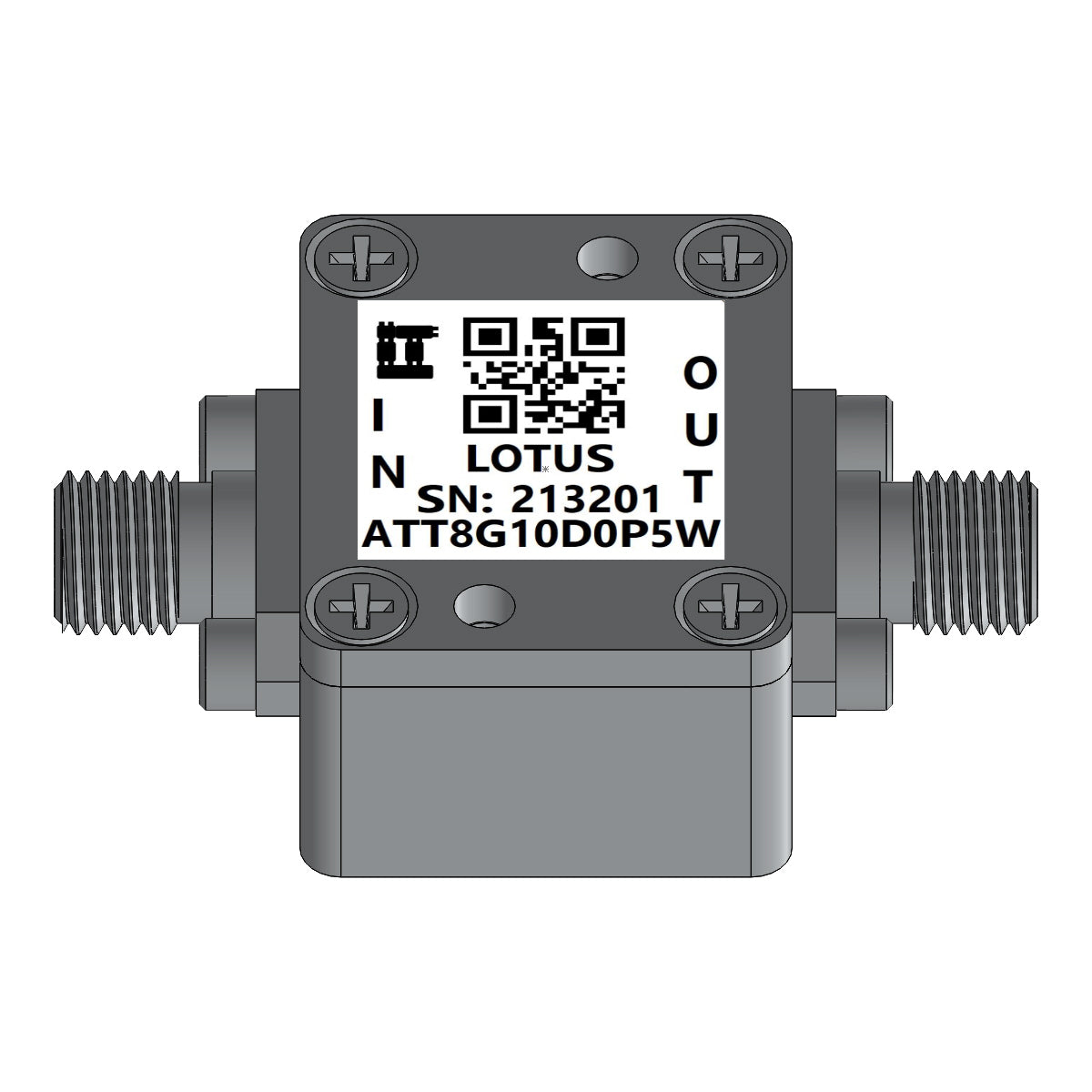

This Attenuator Module includes the RF Enclosure as shown in picture.

Click https://cdn.shopify.com/s/files/1/1592/7469/files/ATT8G10D0P5W.pdf to see detailed specification.

Proudly MADE IN USA.

Collections: Fixed Attenuator
