  • RF Enclosure Kit for 0.062"/1.6mm PCB (size 3/4"X9/16") Passive SMA Connector

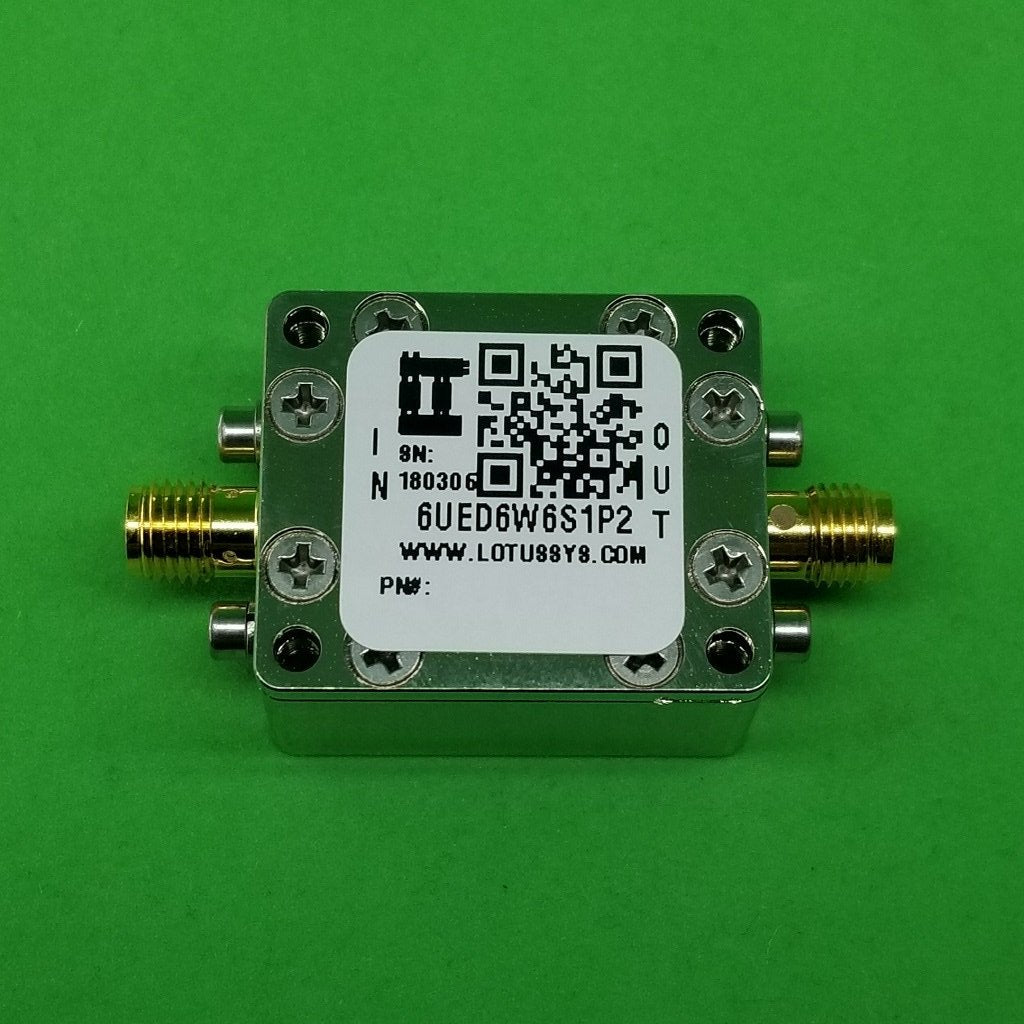

    RF Designer Kit is for RF prototyping with PCB size of the Rogers PCB (RO4350) or FR4 3/4"x9/16"x0.062"(or 1.6mm). Part Number: 6UED6W6S1P2.

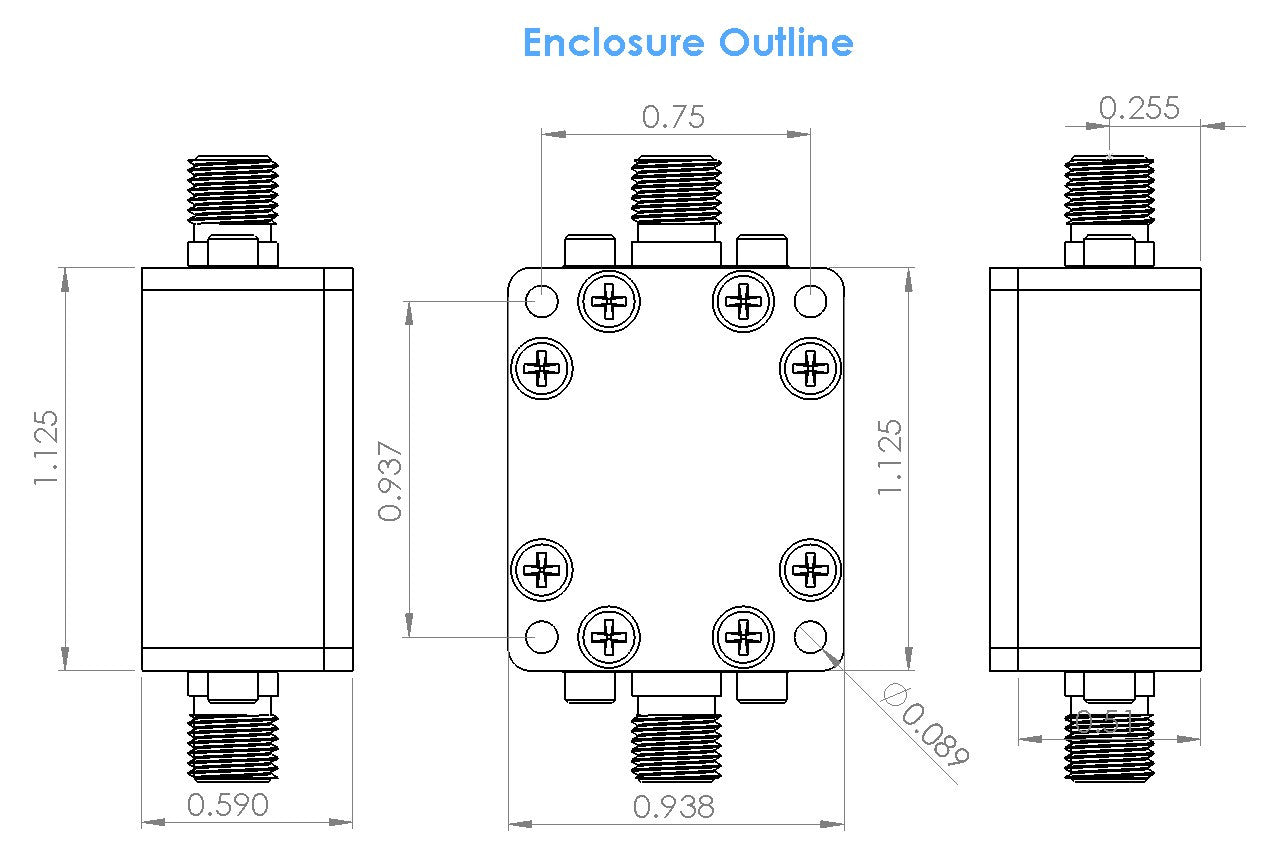

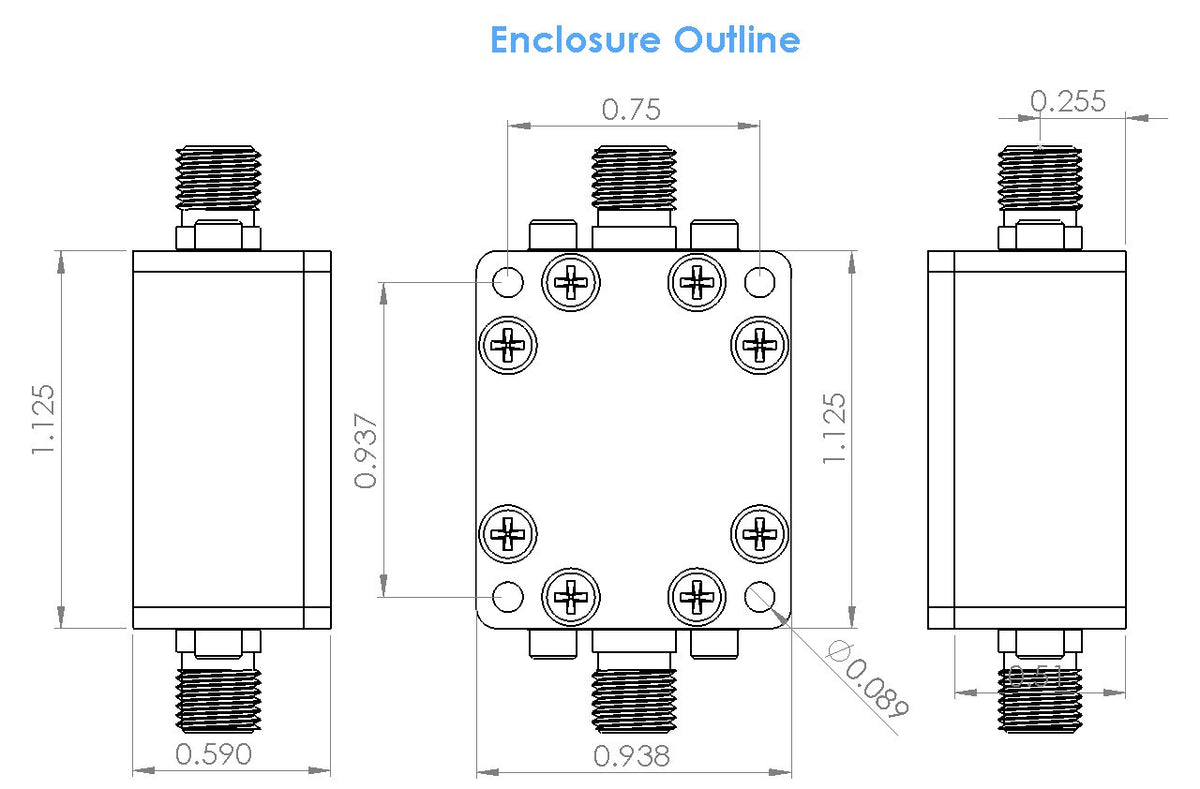

    RF Housing Size: 6Ux5U (1-1/8"x15/16"). Each U is 3/16". Housing height: 0.59". The PCB mounting hole spacing is 9/16" and 3/8" respectively.  PCB Inside Clearance to Enclosure Cover is 0.26". This Enclosure is ideal to hold Passive PCB circuit (e.g., Filter, DC Block, Attenuator etc.). SKU#: AK16-001L.

    RF Kit include (PCB is not included):

    • All CNC Machined Housing and Cover, 1 ea
    • SMA 2-Hole Flange Jack Receptacle Connector, 0.083", 0.012" Pin, 2 ea
    • #2-56x3/16 SHCS, 4 for SMA Connector
    • #2 Washer for SMA Connector, 4 ea
    • #2-56x5/32 SHCS, 4 for PCB
    • #2-56x3/16 Flat Head Screw (for Cover), 8 ea

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

    29 items left

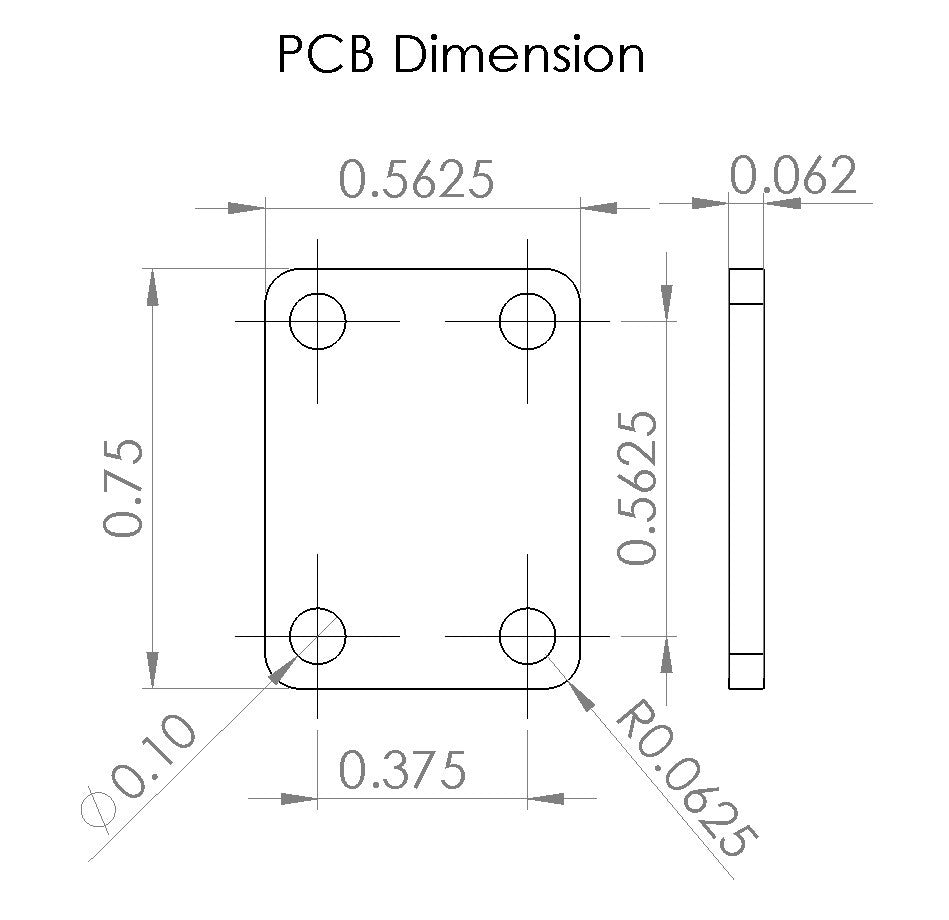

    • Hold PCB Size 3/4"x9/16"x0.020" (or 0.5mm)
    • All CNC Machined Surface for Superior Finish and Minimize RF Leakage
    • 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
    • 3/16" Wall Thickness for Strong Mechanical Strength
    • Two SMA Connector
    • Electroless Nickel Plating per MIL-C-26074, ASTMB 733
    • Professional Zebra Ultimate Label for Outdoor Usage
    • Proudly MADE IN USA (Material & Labor)
    • ROHS Compliant


    • Cell
    • Microwave Radio
    • Test Instrumentation
    • SDR & Ham Radio
