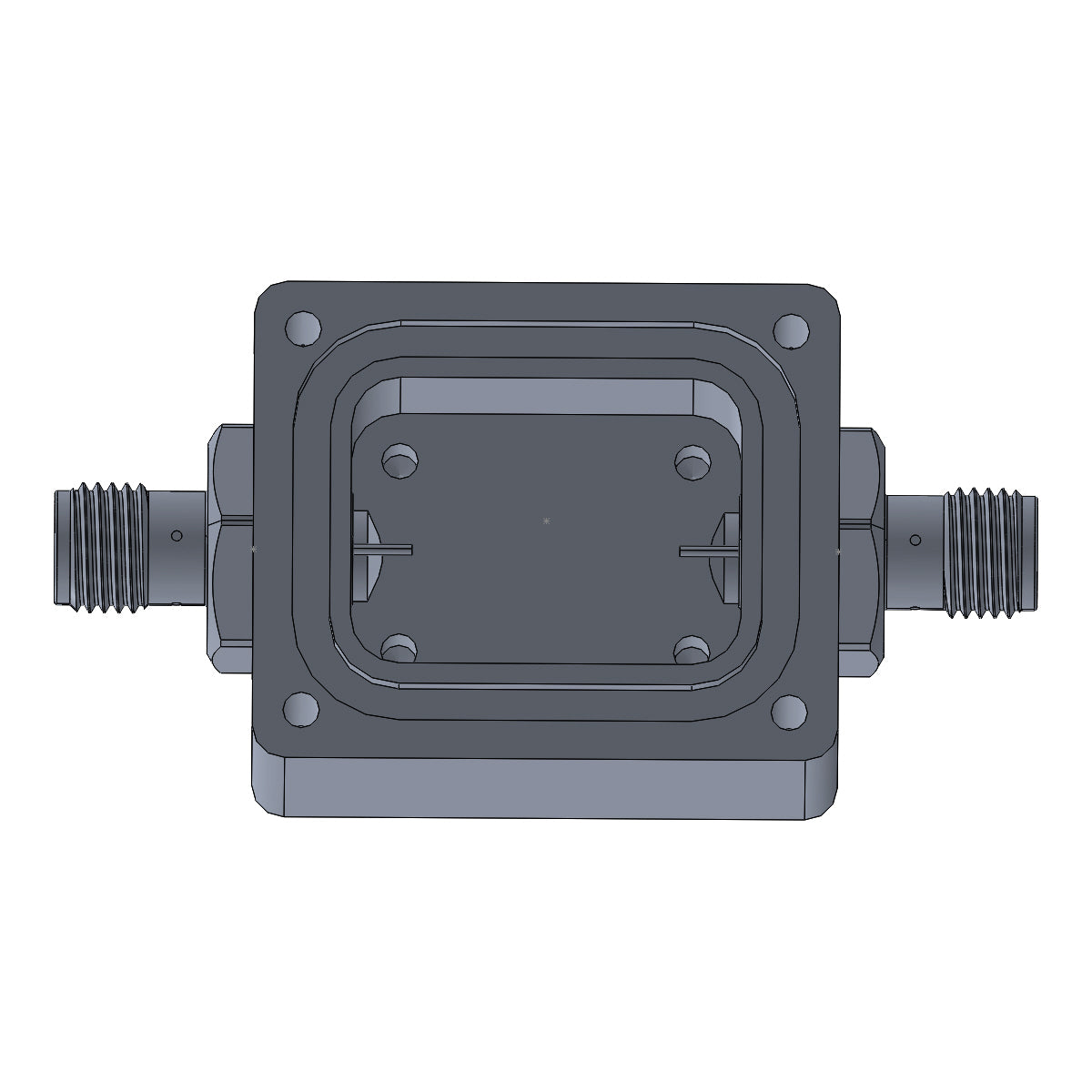

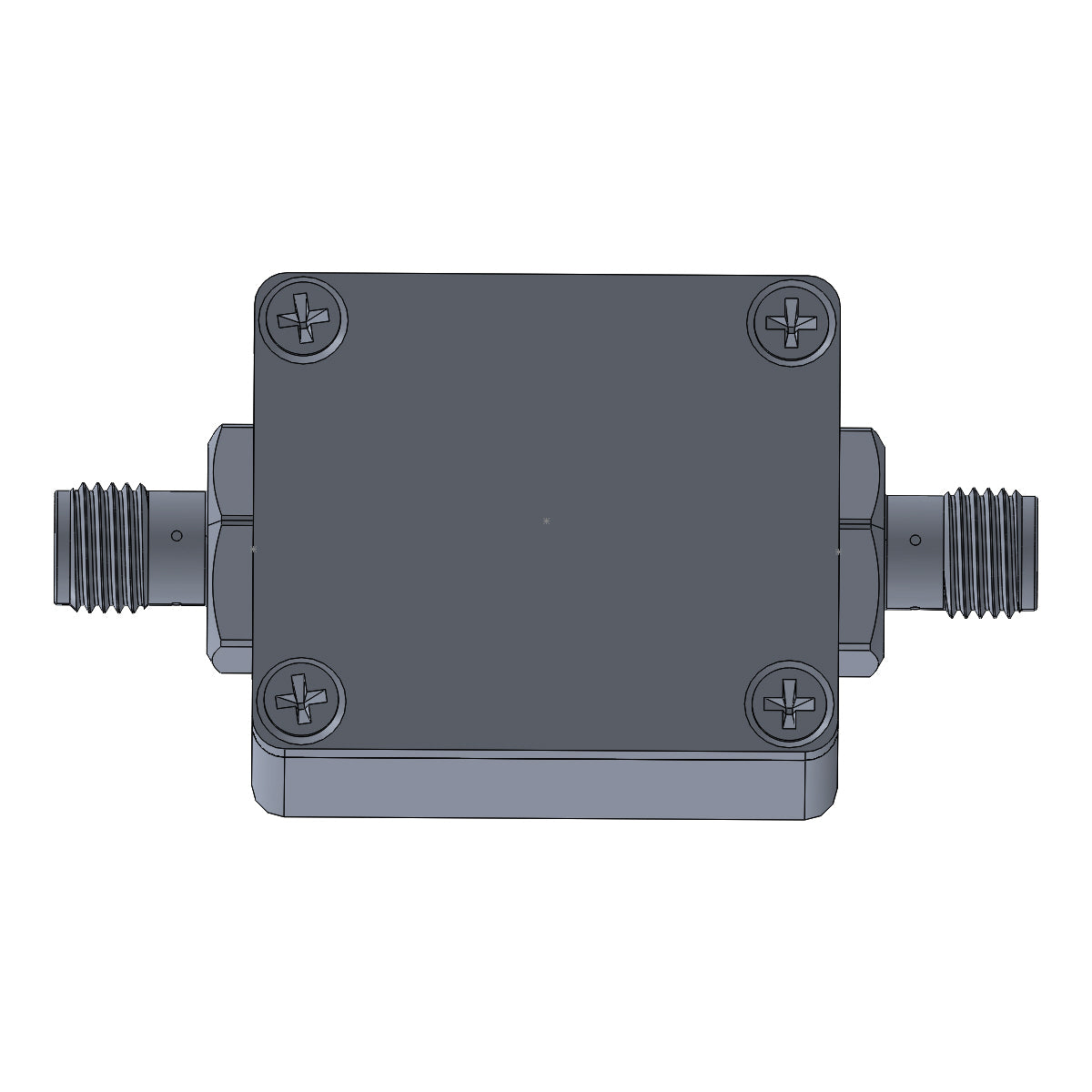

  • 6UED4W6H52SMAP2W Enclosure Kit for 0.040"/1mm PCB (size 3/4"x9/16") 2 SMA 0.6" Height

    Part Number: 6UED4W6H52SMAP2W is RF Designer Kit for prototyping with PCB size of the Rogers PCB (RO4350 or FR4) 3/4"x9/16"x0.04"(or 1mm).

    The Enclosure will work for Eurocircuits RF Pool 4 Layer PCB.

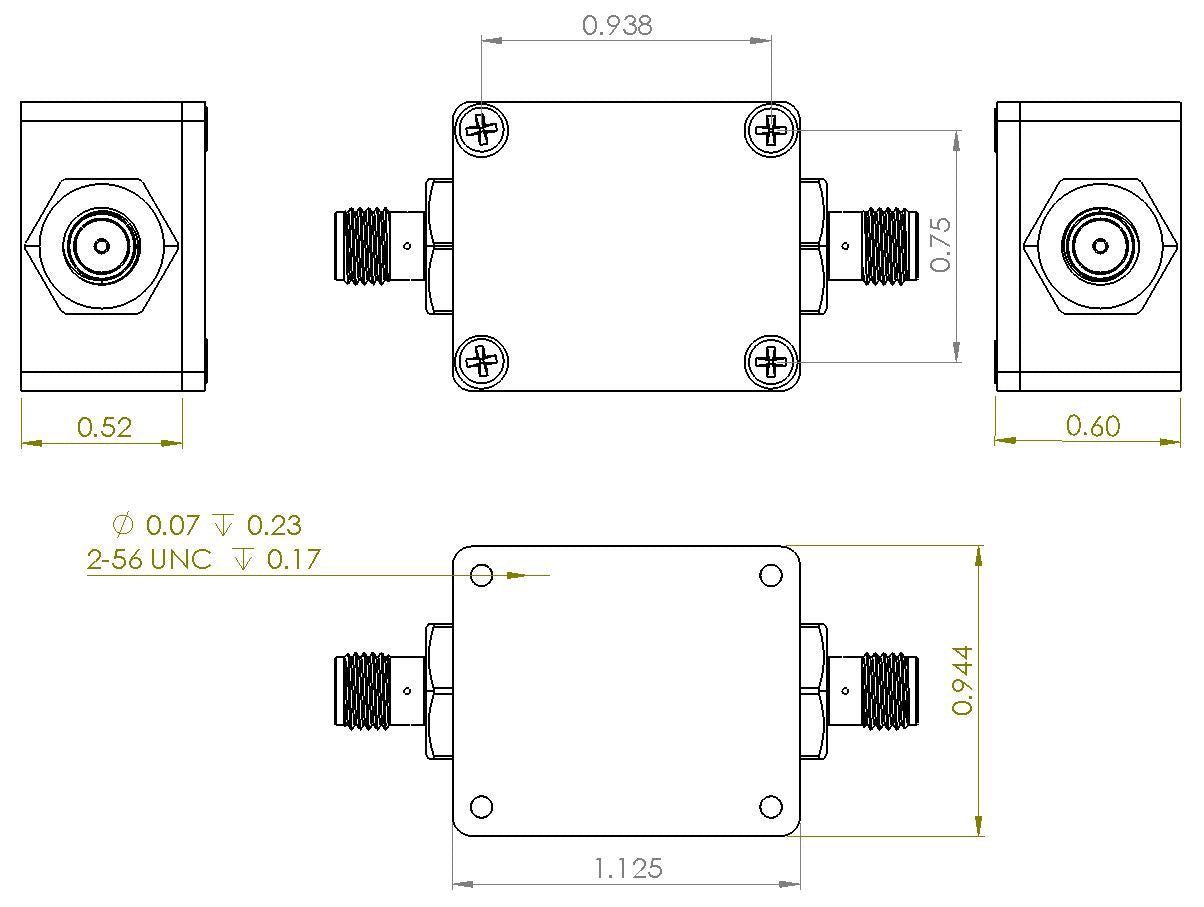

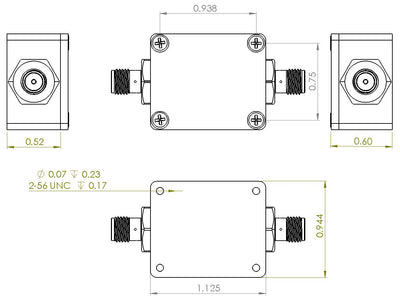

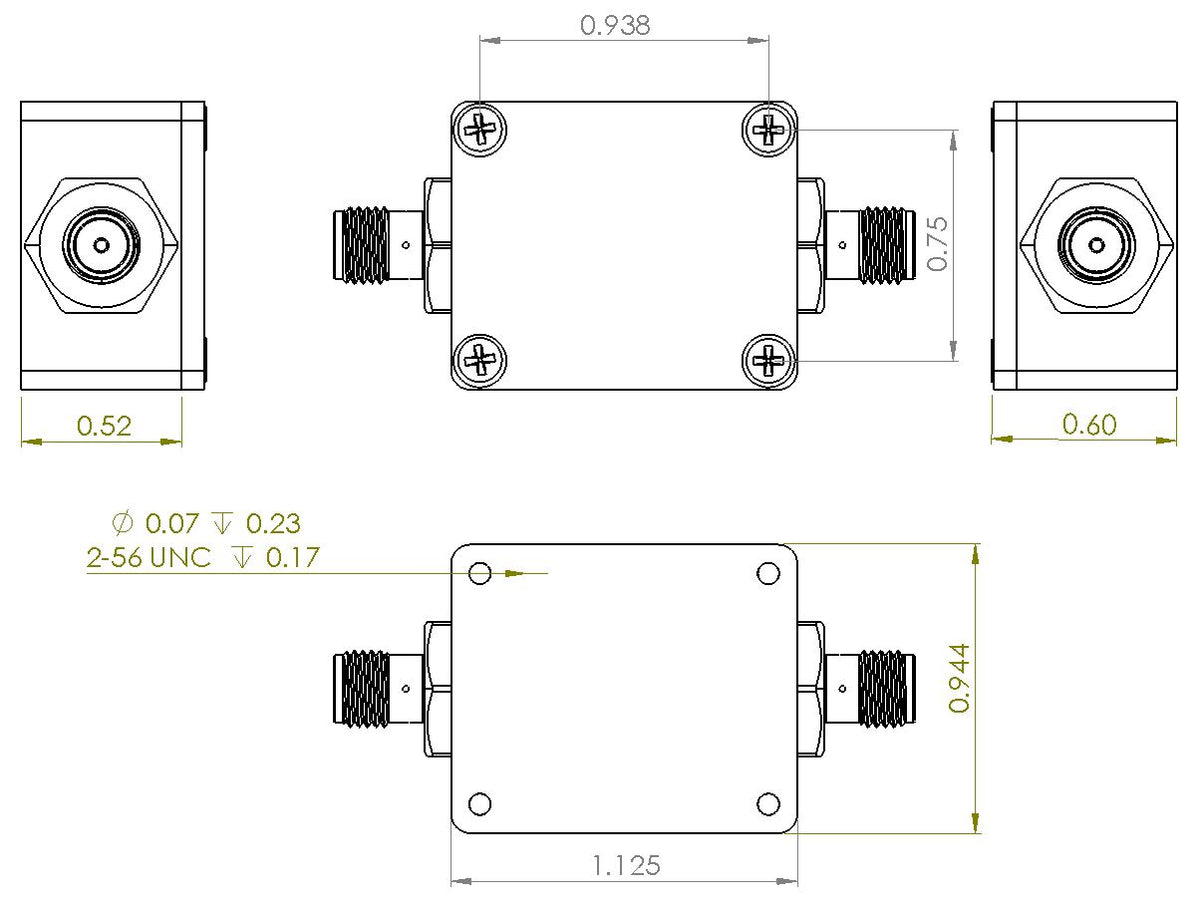

    RF Housing Size: 6Ux5U (1-1/8"x15/16"). Each U is 3/16". Housing height: 0.52" (without Cover). The PCB mounting hole spacing is 9/16" and 3/8" respectively. PCB Inside Clearance to Enclosure Cover is 0.26". SK#: AK20-015G.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, Massachusetts.

    RF Kit include (PCB is not included):

    • All CNC Machined Housing and Cover, 1 ea
    • IP67 SMA Screw on Connector, 0.020" Pin, 2 Female
    • 2-56x5/32" SHCS, 4 for PCB
    • 2-56x3/16" Flat Head Screw (for Cover), 4 ea
    • Elastic Conductive EMI Shield Gasket, 1 ea
    21 items left

    Features

    • Hold PCB Size 3/4"x9/16"x0.04" (or 1mm)
    • Clearance from PCB top to Enclosure Cover (0.26")
    • All CNC Machined Surface for Superior Finish and Minimize RF Leakage
    • 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
    • 3/16" Wall Thickness for Strong Mechanical Strength
    • Two Female SMA
    • Chromate Plating per MIL‐C‐5541 Type II
    • Professional Zebra Ultimate Label for Outdoor Usage
    • Proudly MADE IN USA (Material & Labor)
    • ROHS Compliant

    Applications

    • Cell
    • Microwave Radio
    • Test Instrumentation
    • SDR & Ham Radio

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png 6UED4W6H52SMAP2W  Datasheet
