Part Number: 6UED2W6H52SMAP2W is RF Designer Kit for prototyping with PCB size of the PCB 3/4"x9/16"x0.02"(or 0.5mm).
The Enclosure will work for Eurocircuits RF Pool 2 Layer PCB.

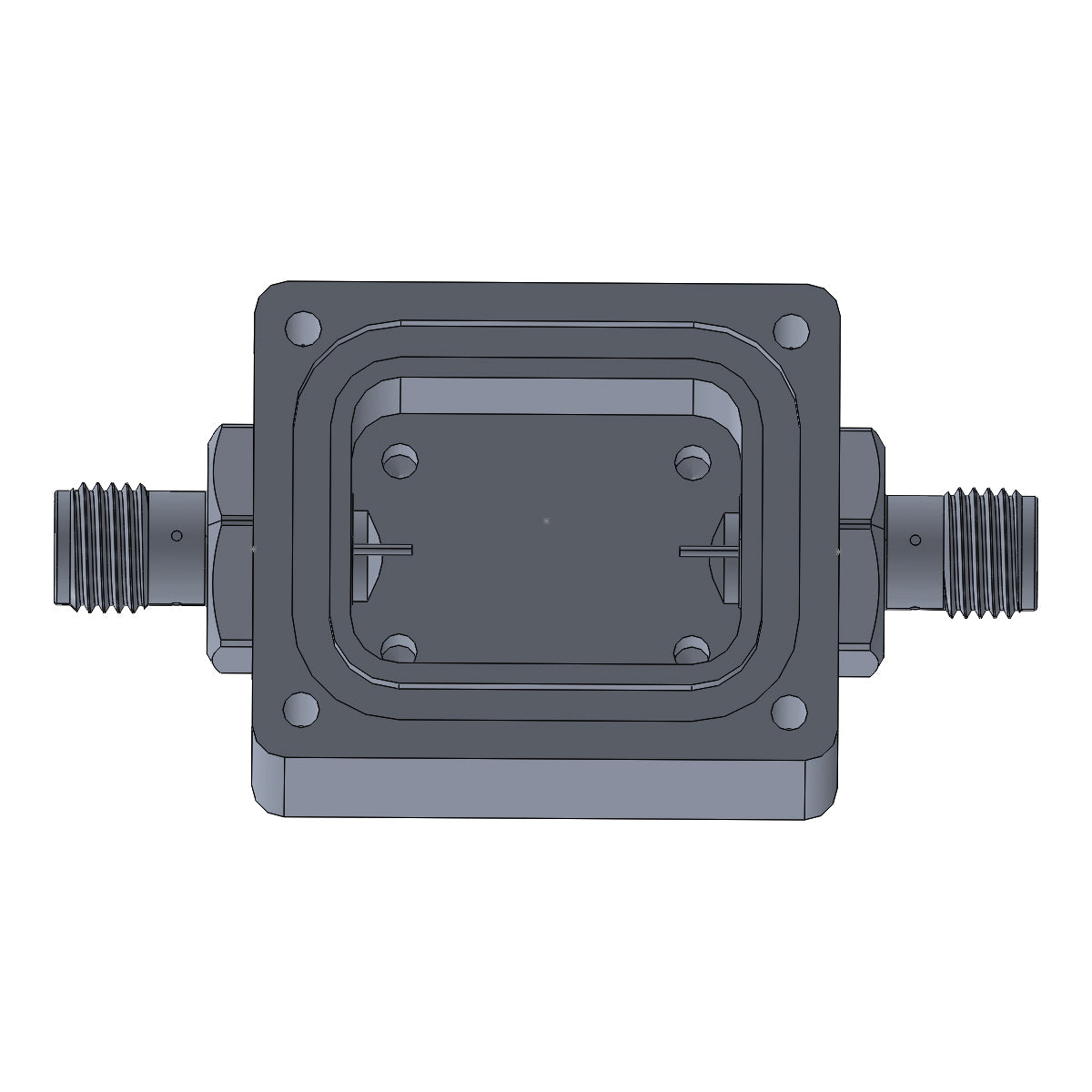

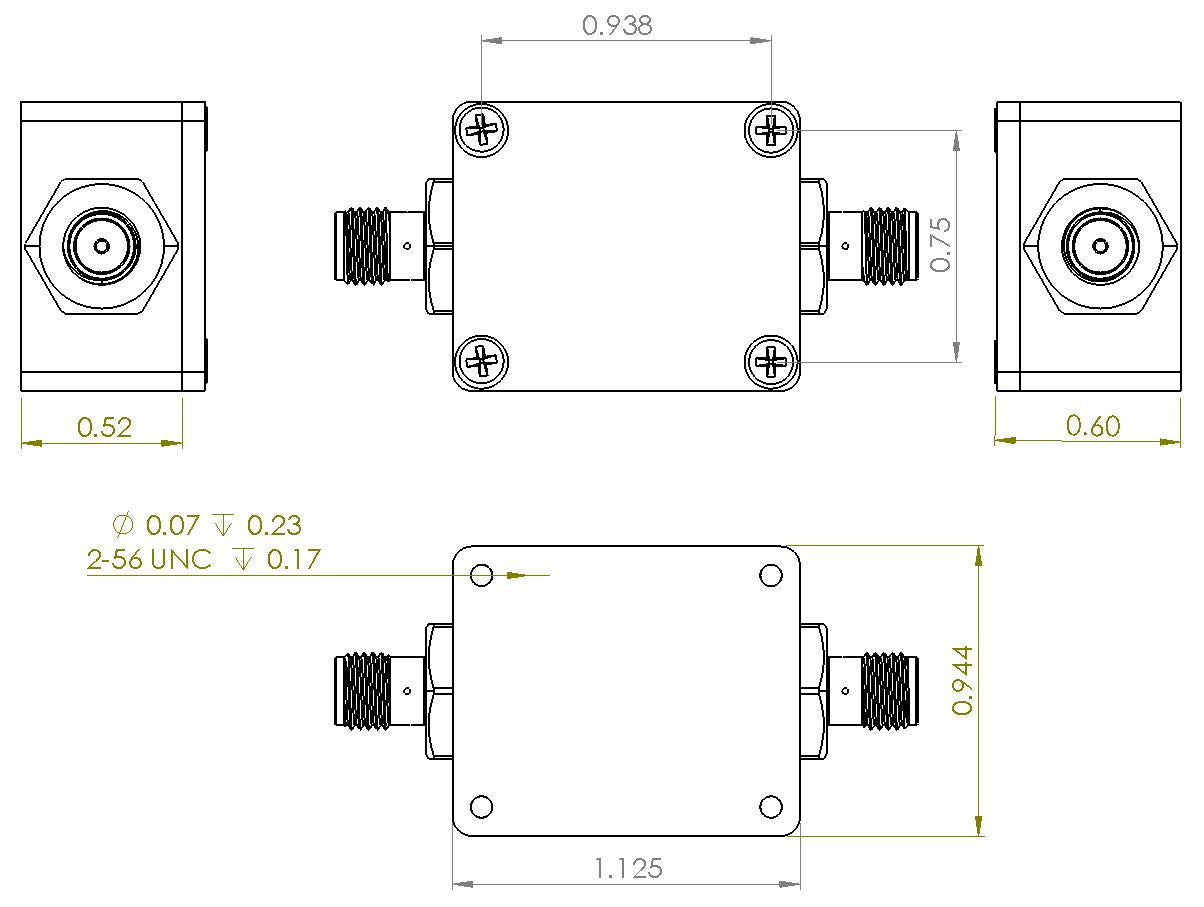

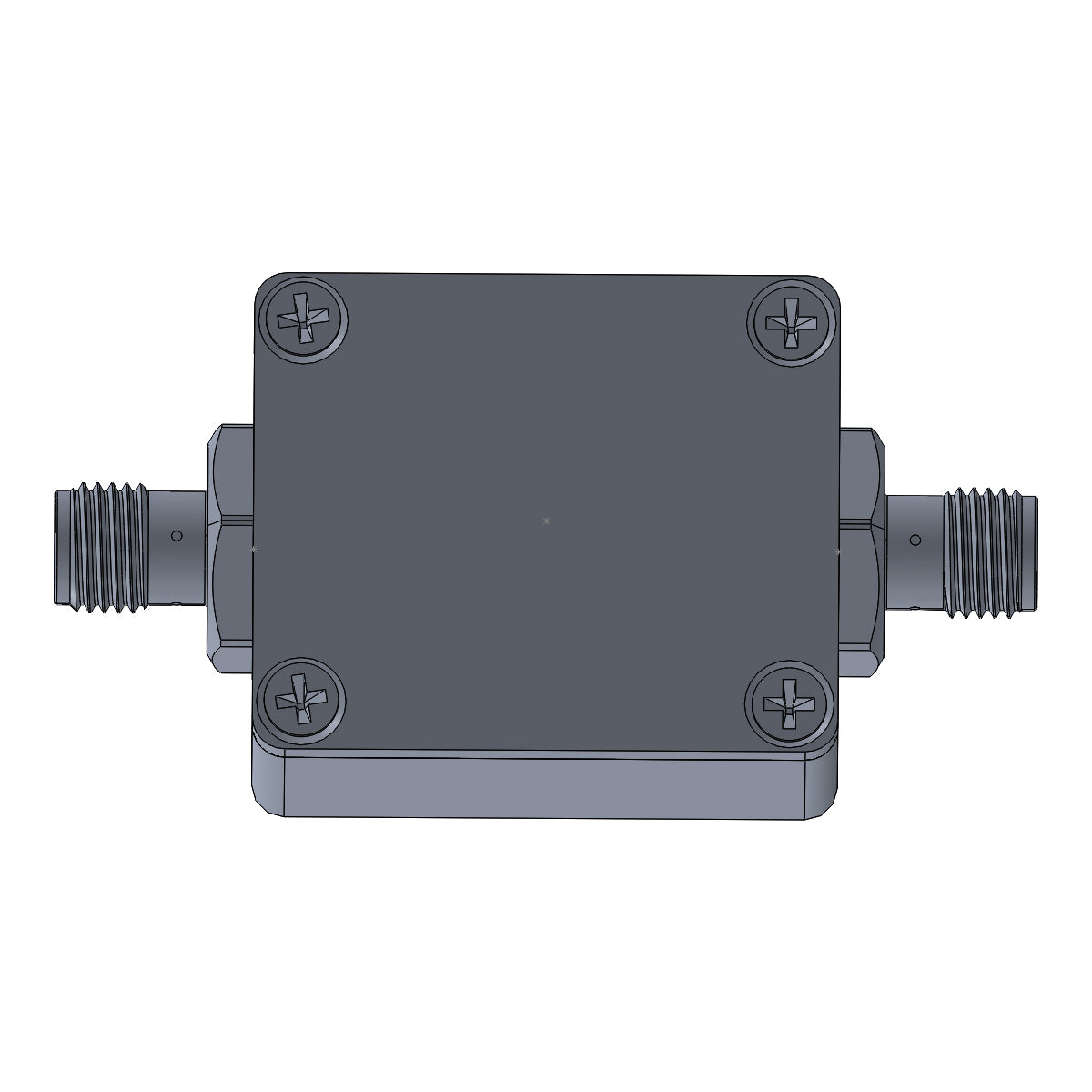

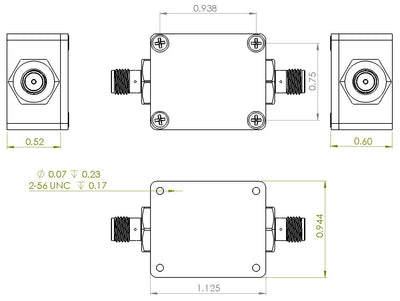

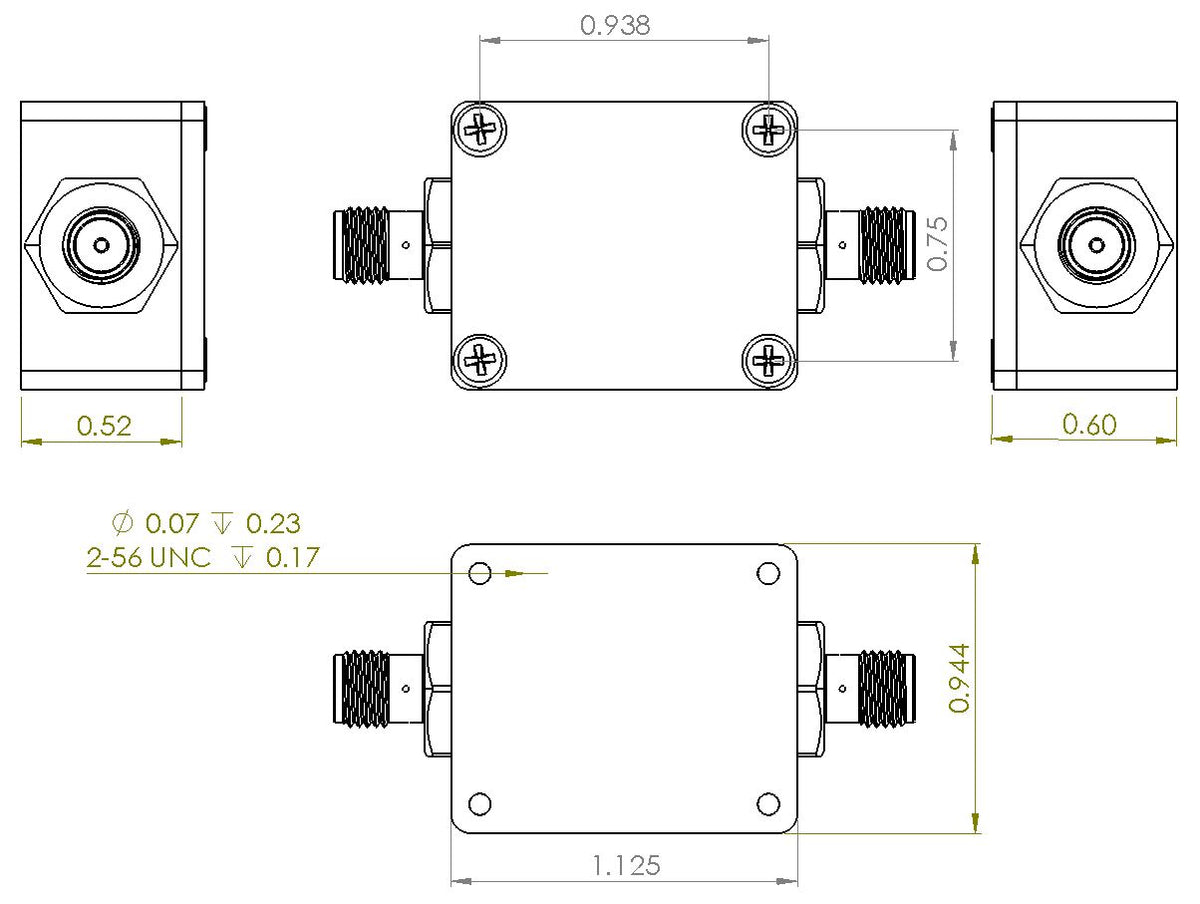

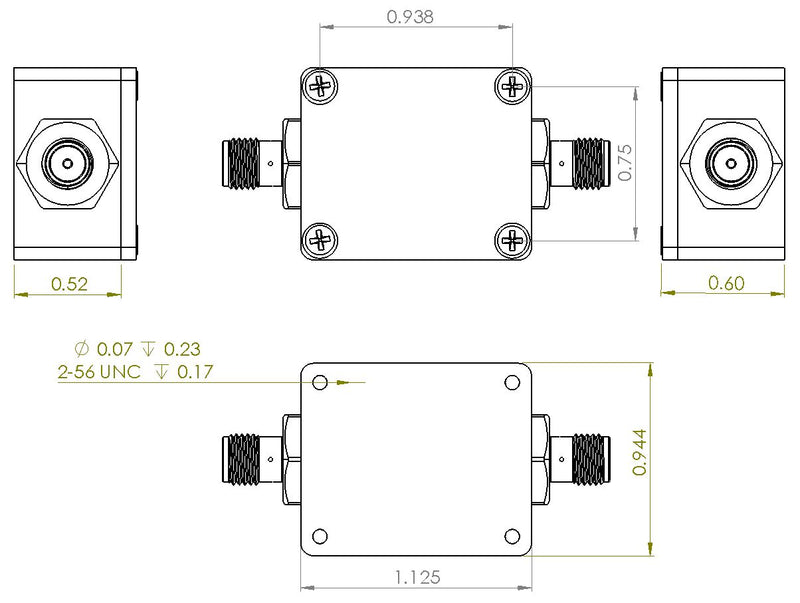

RF Housing Size: 6Ux5U (1-1/8"x15/16"). Each U is 3/16". Housing height: 0.52" (without Cover). The PCB mounting hole spacing is 9/16" and 3/8" respectively. PCB Inside Clearance to Enclosure Cover is 0.26". SKU#: AK20-015C.
Proudly Made in USA by Lotus Communication Systems, INC. in Weston, Massachusetts.
RF Kit include (PCB is not included):
- All CNC Machined Housing and Cover, 1 ea
- IP67 SMA Screw on Connector, 0.020" Pin, 2 Female
- 2-56x5/32" SHCS, 4 for PCB
- 2-56x3/16" Flat Head Screw (for Cover), 4 ea
- Elastic Conductive EMI Shield Gasket, 1 ea
