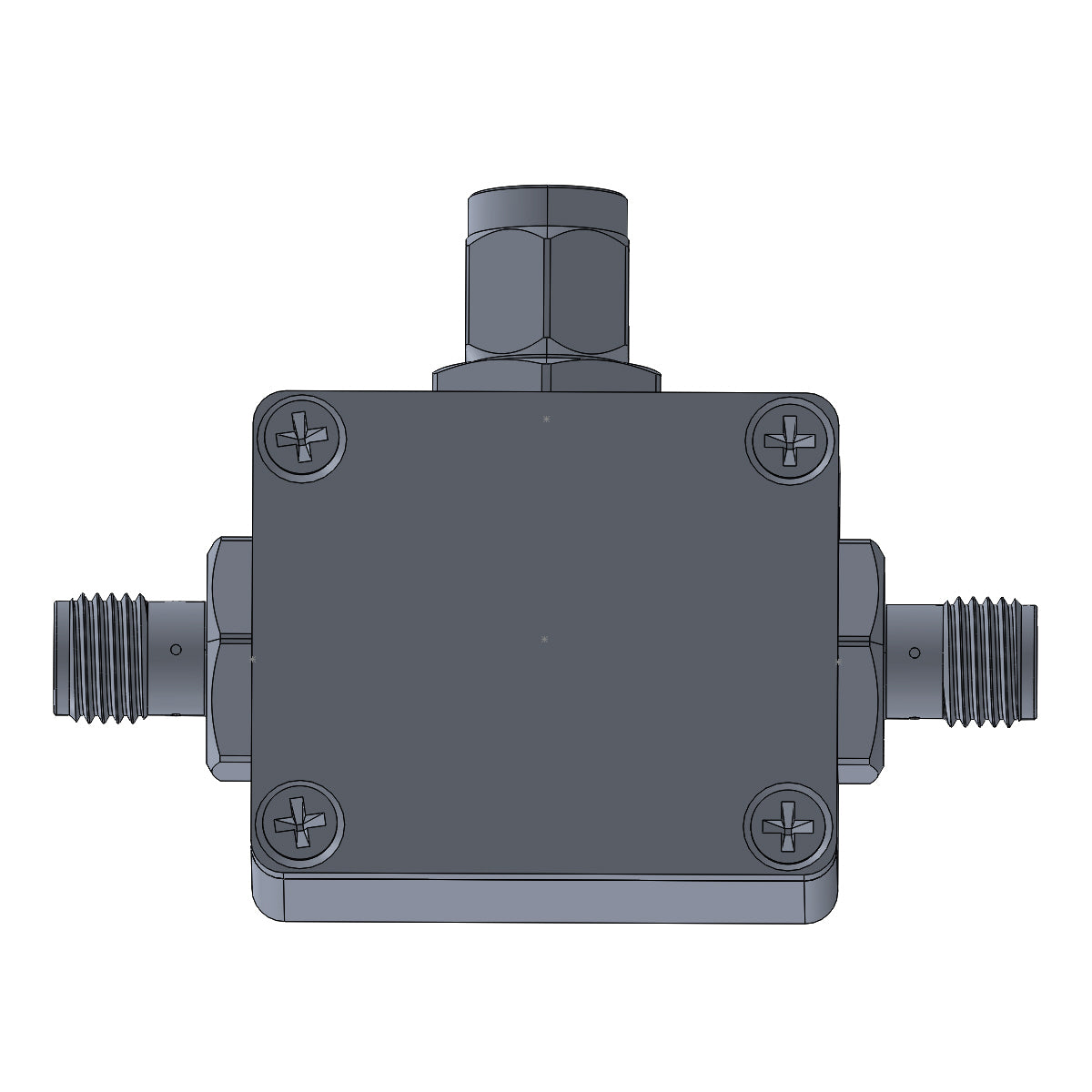

  • 6UED2W6H52SMAA3W Enclosure Kit for 0.02"/0.5mm PCB (size 3/4"x9/16") 3 SMA Active 0.6" Height

    Part Number: 6UED2W6H52SMAA3W is RF Designer Kit for prototyping with PCB size of 3/4"x9/16"x0.02"(or 0.5mm).

    The Enclosure will work for Eurocircuits RF Pool 2 Layer PCB.

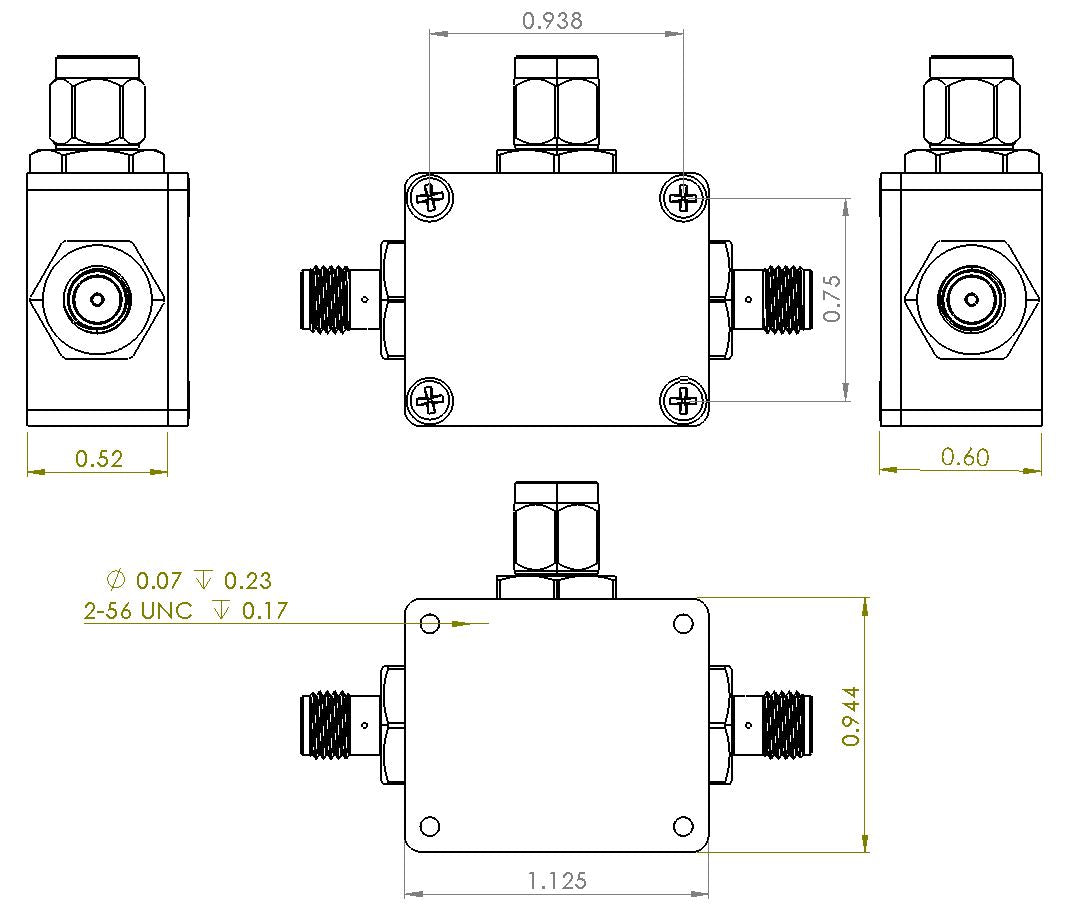

    RF Housing Size: 6Ux5U (1-1/8"x15/16"). Each U is 3/16". Housing height: 0.52" (without Cover). The PCB mounting hole spacing is 9/16" and 3/8" respectively. PCB Inside Clearance to Enclosure Cover is 0.26". SK#: AK20-015F.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, Massachusetts.

    RF Kit include (PCB is not included):

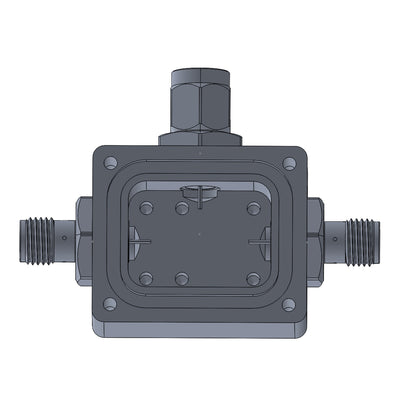

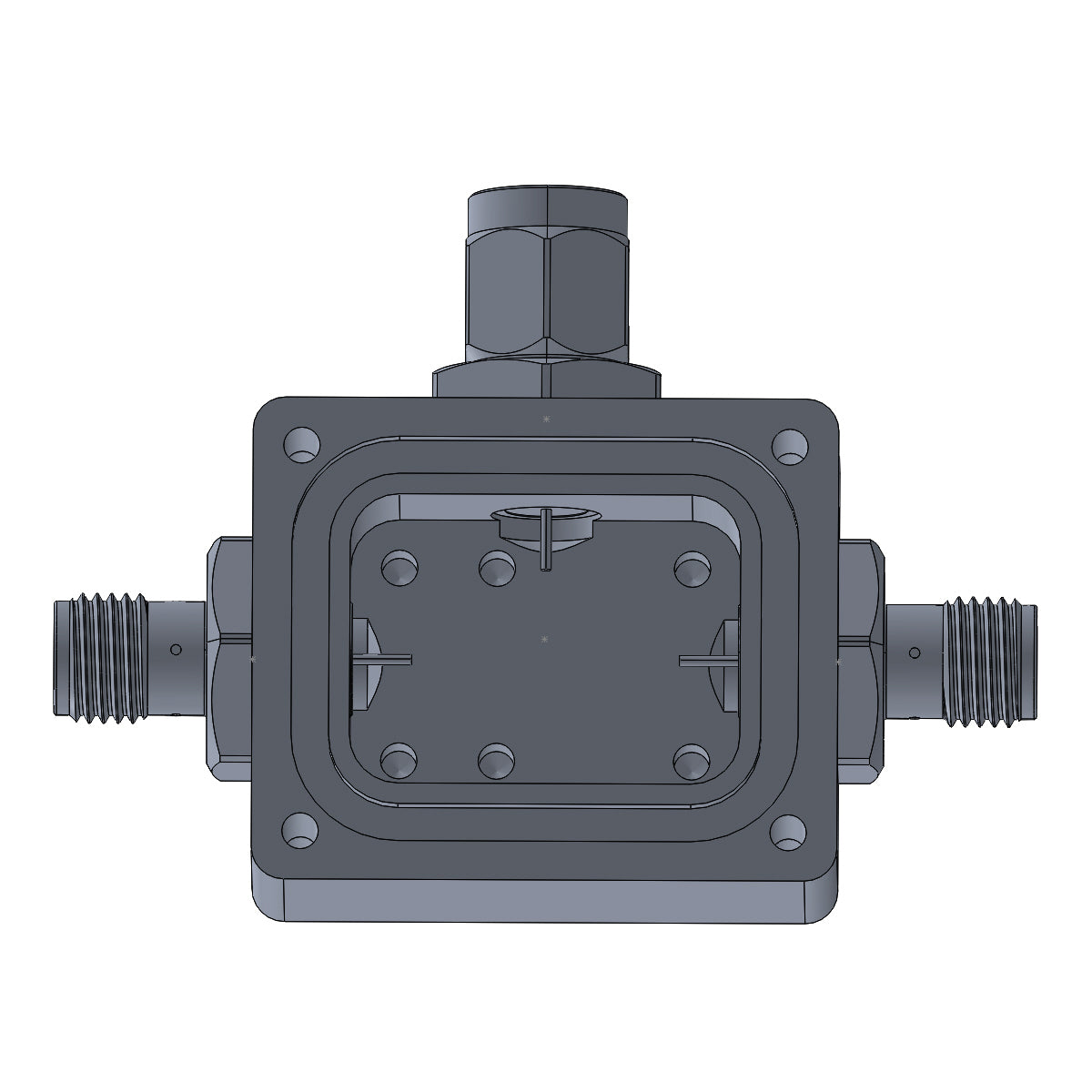

    • All CNC Machined Housing and Cover, 1 ea
    • IP67 SMA Screw on Connector, 0.020" Pin, 2 Female, 1 Male
    • 2-56x5/32" SHCS, 4 for PCB
    • 2-56x3/16" Flat Head Screw (for Cover), 4 ea
    • Elastic Conductive EMI Shield Gasket, 1 ea

    Features

    • Hold PCB Size 3/4"x9/16"x0.02" (or 0.5mm)
    • Clearance from PCB top to Enclosure Cover (0.26")
    • All CNC Machined Surface for Superior Finish and Minimize RF Leakage
    • 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
    • 3/16" Wall Thickness for Strong Mechanical Strength
    • Two Female SMA and one Male SMA Connectors
    • Electroless Nickel Plating per MIL-C-26074, ASTMB 733
    • Professional Zebra Ultimate Label for Outdoor Usage
    • Proudly MADE IN USA (Material & Labor)
    • ROHS Compliant

    Applications

    • Cell
    • Microwave Radio
    • Test Instrumentation
    • SDR & Ham Radio

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png 6UED2W6H52SMAA3W  Datasheet
