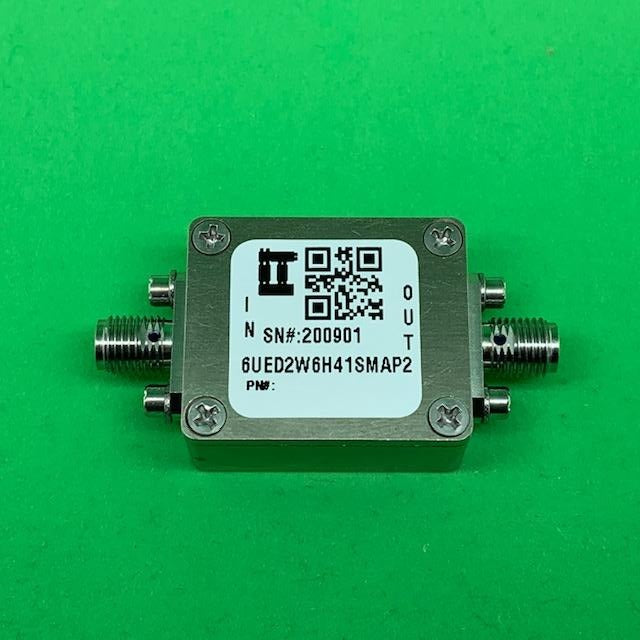

RF Enclosure Kit for 0.020"/0.5mm PCB (size 3/4"X9/16") Passive SMA Connector 0.41" Height

95 items left

RF Designer Kit is for RF prototyping with PCB size of the Rogers PCB (RO4350 or FR4) 9/16"x9/16"x0.02"(or 0.5mm). Part Number: 6UED2W6H41SMAP2.

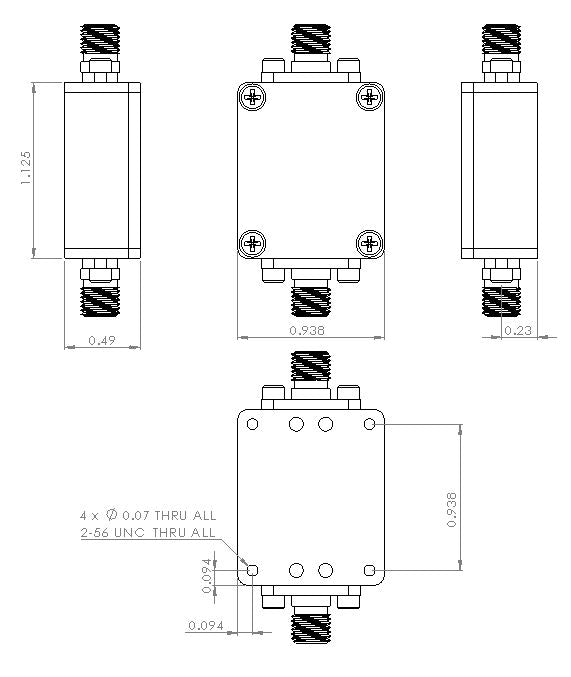

RF Housing Size: 6Ux5U (1-1/8"x15/16"). Each U is 3/16". Housing height: 0.48". The PCB mounting hole spacing is 9/16" and 3/8" respectively. PCB Inside Clearance to Enclosure Cover is 0.19". This Enclosure is ideal to hold Passive PCB circuit (e.g., Filter, DC Block etc.). SKU#: AK20_008F.

RF Kit include (PCB is not included):

  • All CNC Machined Housing and Cover, 1 ea
  • SMA 2-Hole Flange Jack Receptacle Connector, 0.086", 0.012" Pin, 2 ea
  • 2-56x3/16" SHCS, 4 for SMA Connector
  • 2-56x5/32" SHCS, 4 for PCB
  • 2-56x3/16" Flat Head Screw (for Cover), 4 ea

Features

  • Hold PCB Size 9/16"x9/16"x0.02" (or 0.5mm)
  • All CNC Machined Surface for Superior Finish and Minimize RF Leakage
  • 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
  • 3/16" Wall Thickness for Strong Mechanical Strength
  • Two SMA Connectors
  • Electroless Nickel Plating per MIL-C-26074, ASTMB 733
  • Professional Zebra Ultimate Label for Outdoor Usage
  • Proudly MADE IN USA (Material & Labor)
  • ROHS Compliant

Applications

  • Cell
  • Microwave Radio
  • Test Instrumentation
  • SDR & Ham Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png 6UED2W6H41SMAP2 Datasheet
