  • 6UED2W6H41SMAA1 Enclosure Kit for 0.02"/0.5mm PCB (size 3/4"x9/16") 1 SMA Active 0.48" Height

    Part Number: 6UED2W6H41SMAA1 is RF Designer Kit is for RF prototyping with PCB size of the Rogers PCB (RO4350 or FR4) 3/4"x9/16"x0.062"(or 1.6mm) for 1 Port.

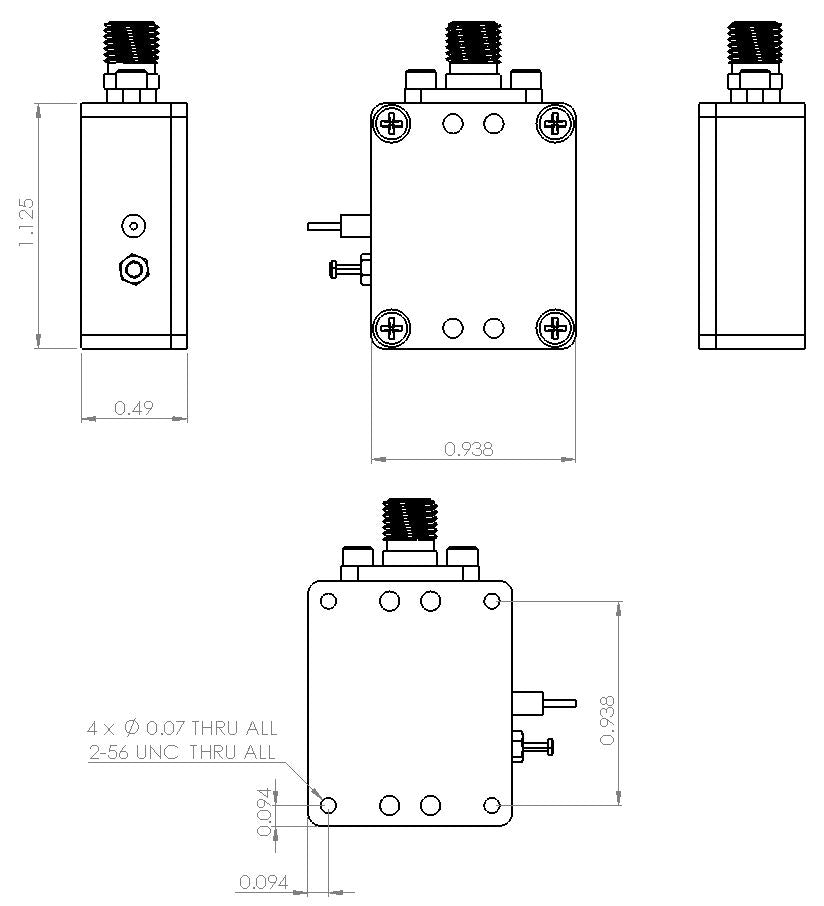

    RF Housing Size: 6Ux5U (1-1/8"x15/16"). Each U is 3/16". Housing height: 0.41" (without Cover). The PCB mounting hole spacing is 0.563" and 0.375" respectively. PCB Inside Clearance to Enclosure Cover is 0.19". SKU#: AK20-011KT.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, Massachusetts.

    RF Kit include (PCB is not included):

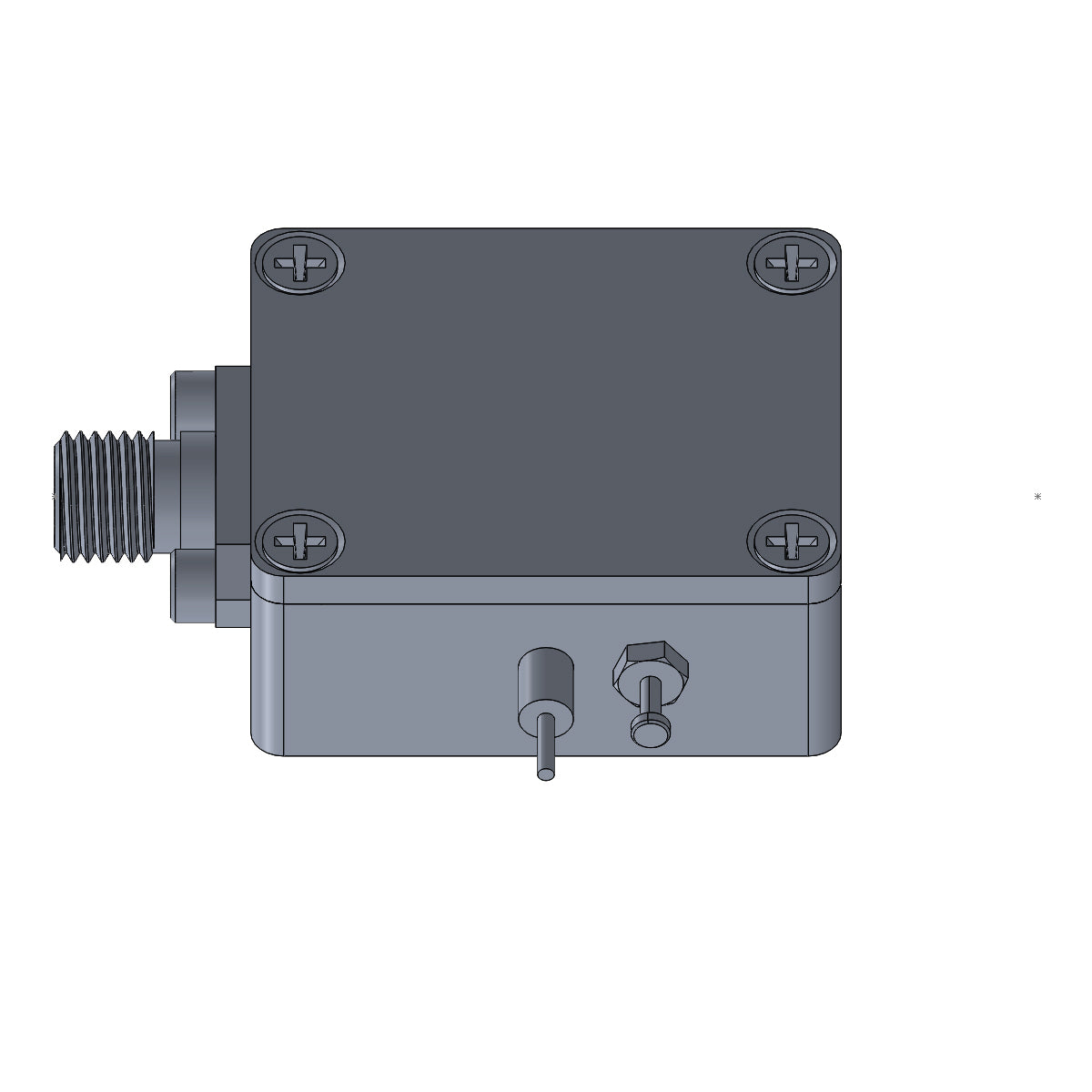

    • All CNC Machined Housing and Cover, 1 ea
    • SMA 2-Hole Flange Jack Receptacle Connector, 0.086", 0.012" Pin, 1 ea
    • EMI Feedthrough Cap #2-56, 100V/5A, 1ea
    • Ground Solder Terminal #2-56, 1 ea
    • 2-56x3/16" SHCS, 6 for SMA Connector
    • 2-56x5/32" SHCS, 6 for PCB
    • 2-56x3/16" Flat Head Screw (for Cover), 4 ea

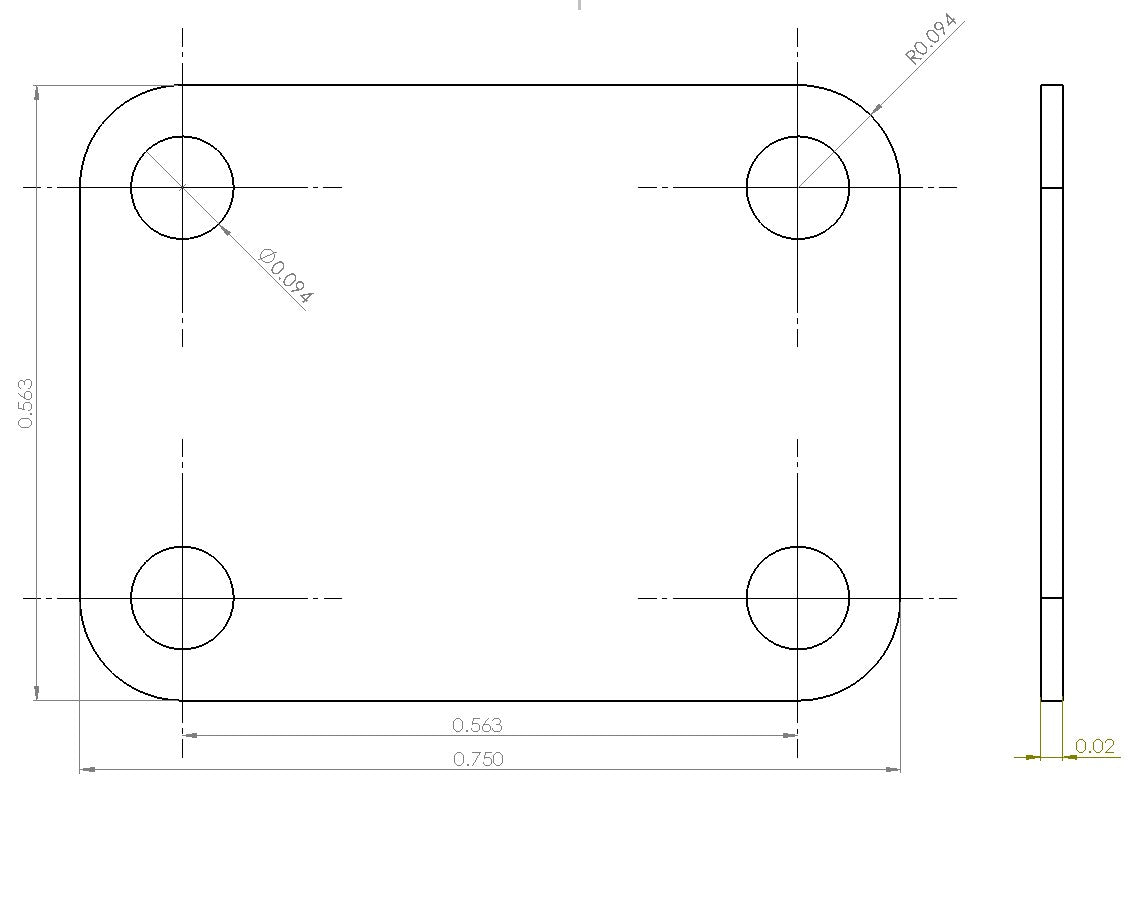

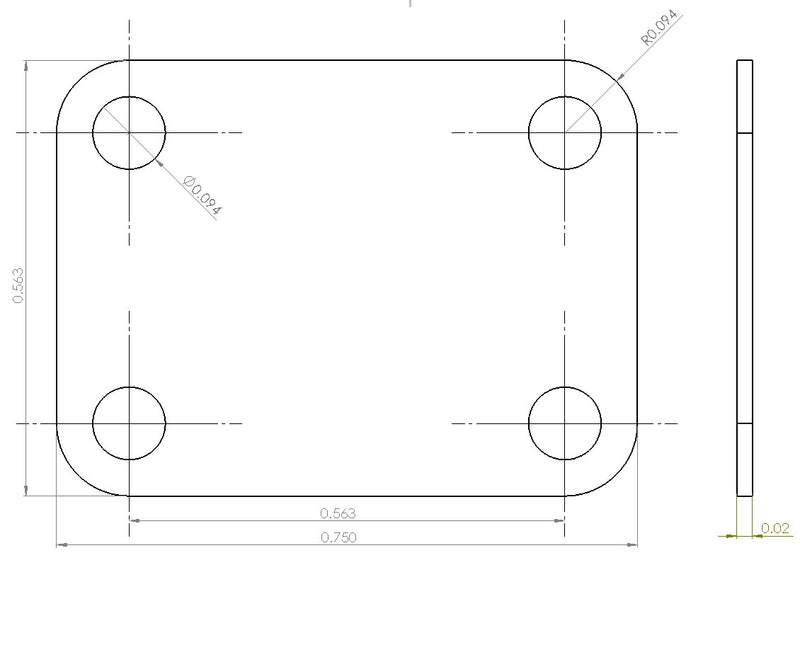

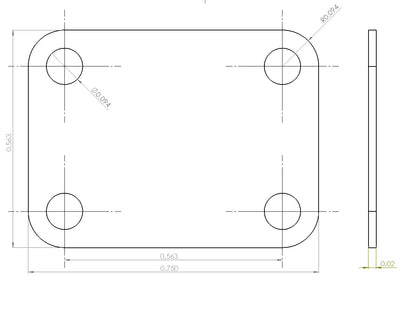

    • Hold PCB Size 3/4"x9/16"x0.02" (or 0.5mm)
    • Clearance from PCB top to Enclosure Cover (0.19")
    • All CNC Machined Surface for Superior Finish and Minimize RF Leakage
    • 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
    • 3/16" Wall Thickness for Strong Mechanical Strength
    • One SMA Connector
    • Electroless Nickel Plating per MIL-C-26074, ASTMB 733
    • Professional Zebra Ultimate Label for Outdoor Usage
    • Proudly MADE IN USA (Material & Labor)
    • ROHS Compliant
