RF Enclosure Kit for 0.062" PCB (size 9/16"X9/16") Active 2.92mm Connector

30 items left

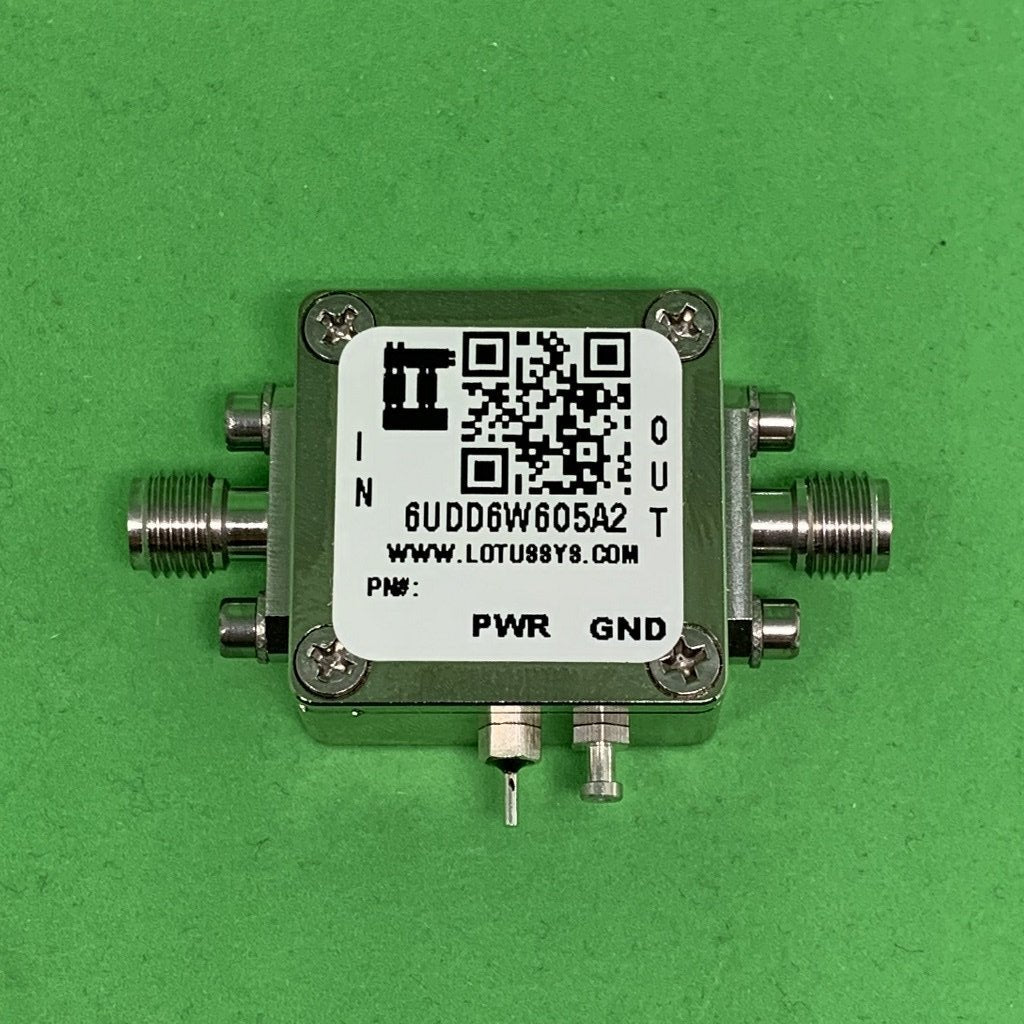

Part Number: 6UDD6W6O5A2 is RF Designer Kit is for RF prototyping with PCB size of the Rogers PCB (RO4350) or FR4 9/16"x9/16"x0.062".

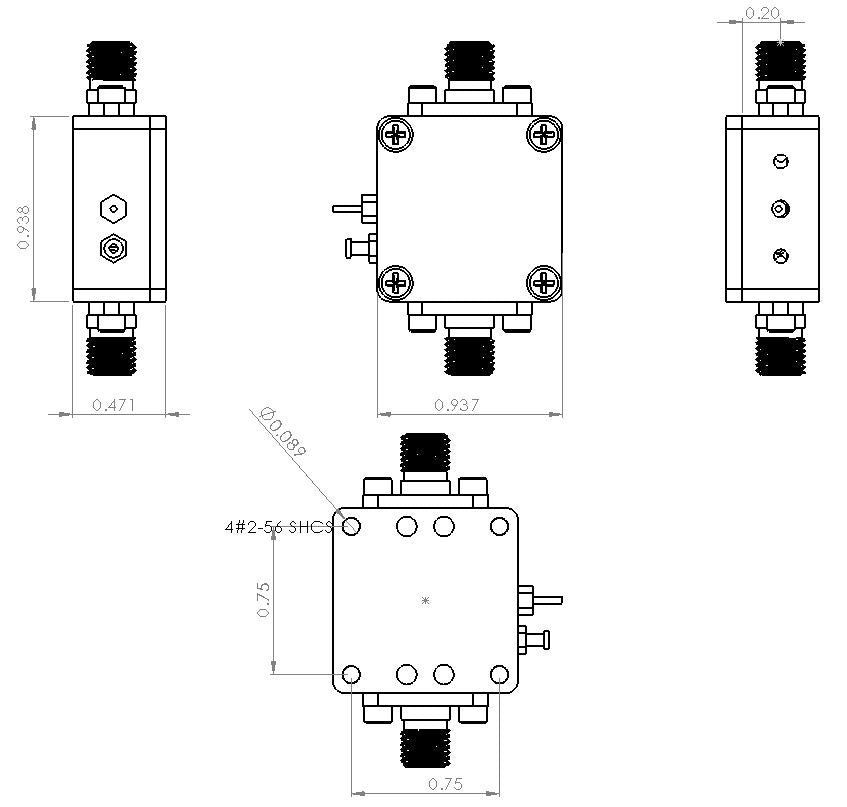

RF Housing Size: 5Ux5U (15/16"x15/16").  Each U is 3/16". Housing height: 0.47". The PCB mounting hole spacing is 0.375" and 0.375" respectively. PCB Inside Clearance to Enclosure Cover is 0.20". The EMI Feedthrough for Power is on the center of PCB with pin size 0.032". This Enclosure is ideal to hold Active PCB circuit (e.g., LNA, Mixer etc.). SKU#: AK20_004I.

RF Kit include (PCB is not included):

  • All CNC Machined Housing and Cover, 1 ea
  • 2.92mm 2-Hole Flange Jack Receptacle Connector, 0.083", 0.012" Pin, 2 ea
  • EMI Feedthrough Cap 4-40, 100V/10A, 1ea
  • Ground Solder Terminal 4-40, 1 ea
  • 2-56x3/16 SHCS, 4 for SMA Connector
  • 2-56x5/32 SHCS, 4 for PCB
  • 2-56x3/16 Flat Head Screw (for Cover), 4 ea

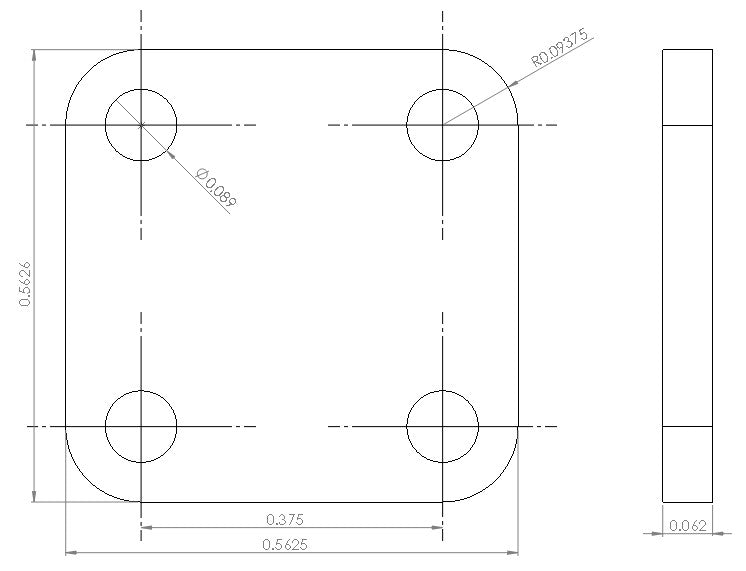

  • Hold PCB Size 9/16"x9/16"x0.062"
  • All CNC Machined Surface for Superior Finish and Minimize RF Leakage
  • 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
  • 3/16" Wall Thickness for Strong Mechanical Strength
  • Two Female 2.92mm Connector Frequency Range DC-40 GHz
  • Electroless Nickel Plating per MIL-C-26074, ASTMB 733
  • Professional Zebra Ultimate Label for Outdoor Usage
  • Proudly MADE IN USA (Material & Labor)
  • ROHS Compliant


  • Cell
  • Microwave Radio
  • Test Instrumentation
  • SDR & Ham Radio
