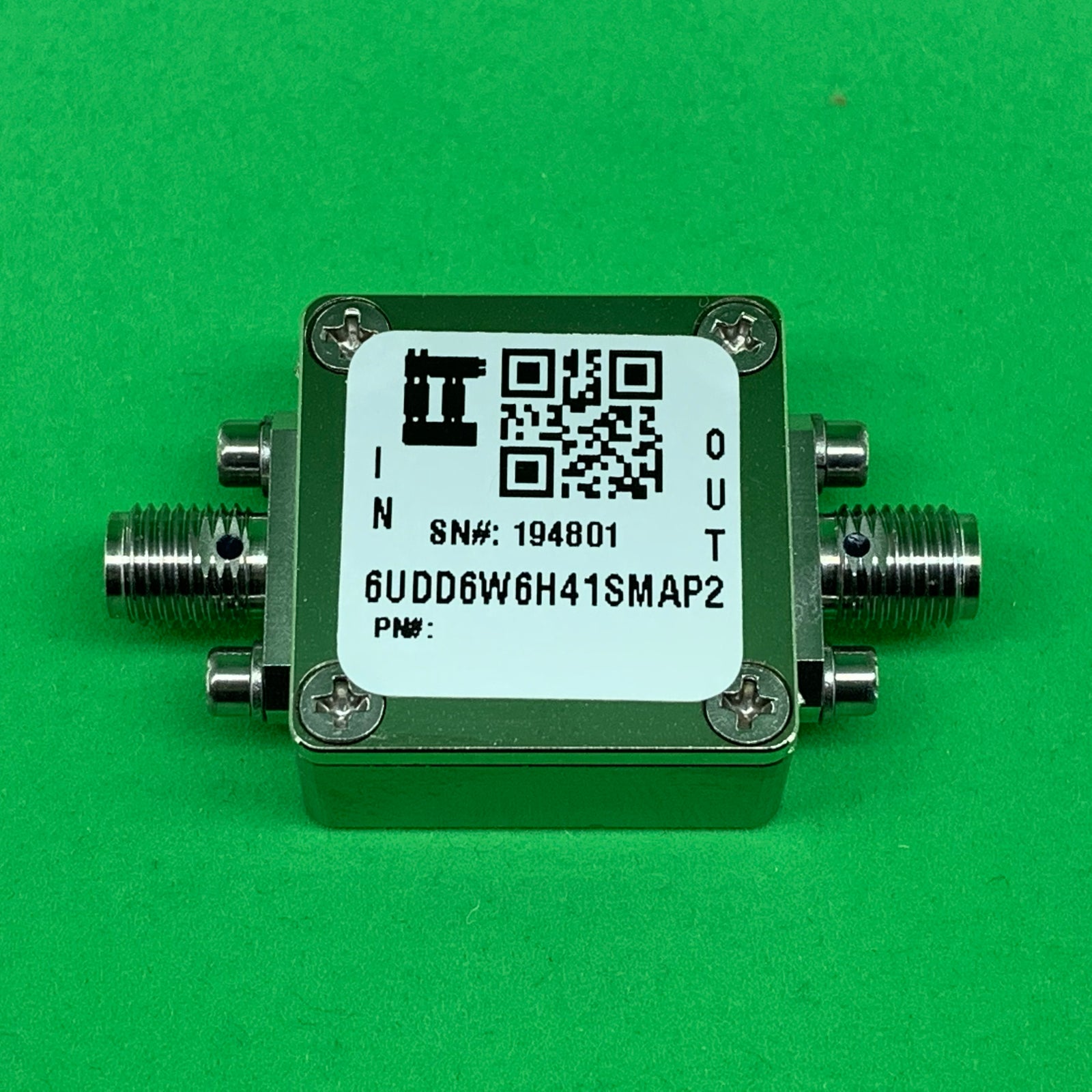

RF Enclosure Kit for 0.062"/1.6mm PCB (9/16"X9/16") Passive SMA Connector 0.41" Height
$ 98.00 USD
Part Number: 6UDD6W6H41SMAP2 is RF Designer Kit for RF prototyping with PCB size of the Rogers PCB (RO4350 or FR4) 9/16"x9/16"x0.062"(or 1.6mm).
RF Housing Size: 5Ux5U (15/16"x15/16"). Each U is 3/16". Housing height: 0.59". The PCB mounting hole spacing is 0.375" and 0.375" respectively. PCB Inside Clearance to Enclosure Cover is 0.19". This Enclosure is ideal to hold Passive PCB circuit (e.g., Filter, DC Block etc.). SKU#: AK20-008N.
RF Kit include (PCB is not included):
- All CNC Machined Housing and Cover, 1 ea
- SMA 2-Hole Flange Jack Receptacle Connector, 0.086", 0.012" Pin, 2 ea
- 2-56x3/16 SHCS, 4 for SMA Connector
- 2-56x5/32 SHCS, 4 for PCB
- 2-56x3/16 Flat Head Screw (for Cover), 4 ea
Features

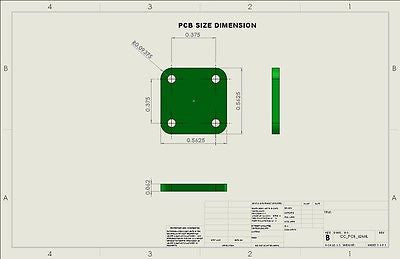

- Hold PCB Size 9/16"x9/16"x0.062" (or 1.6mm)
- All CNC Machined Surface for Superior Finish and Minimize RF Leakage

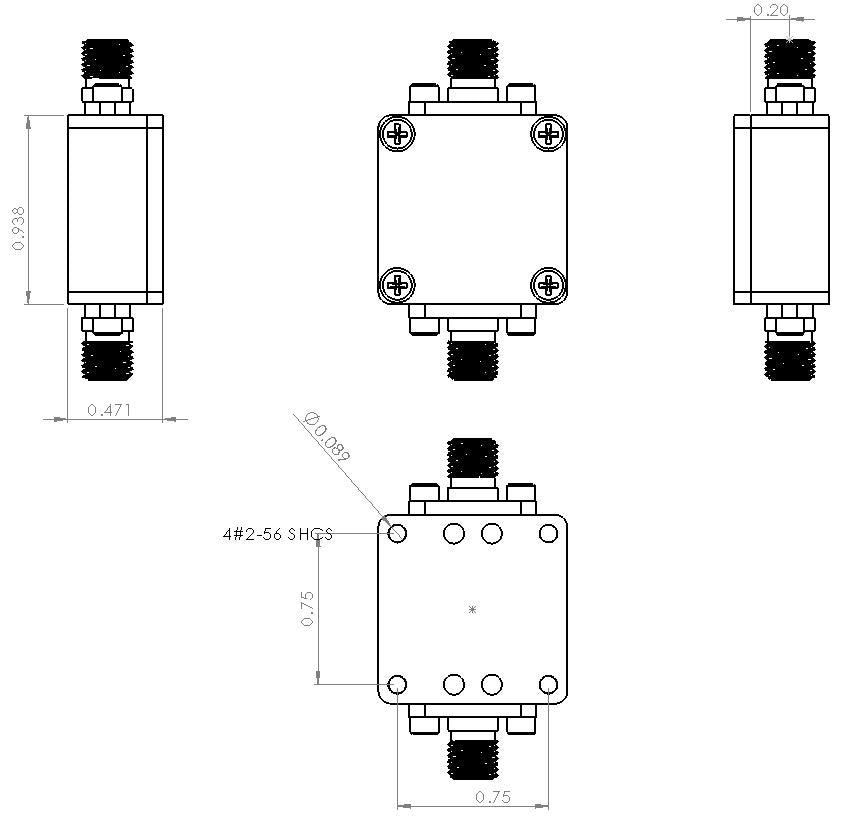

- 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
- 3/16" Wall Thickness for Strong Mechanical Strength
- Two SMA Connector
- Electroless Nickel Plating per MIL-C-26074, ASTMB 733
- Professional Zebra Ultimate Label for Outdoor Usage
- Proudly MADE IN USA (Material & Labor)
- ROHS Compliant
Applications
- Cell
- Microwave Radio
- Test Instrumentation
- SDR & Ham Radio
