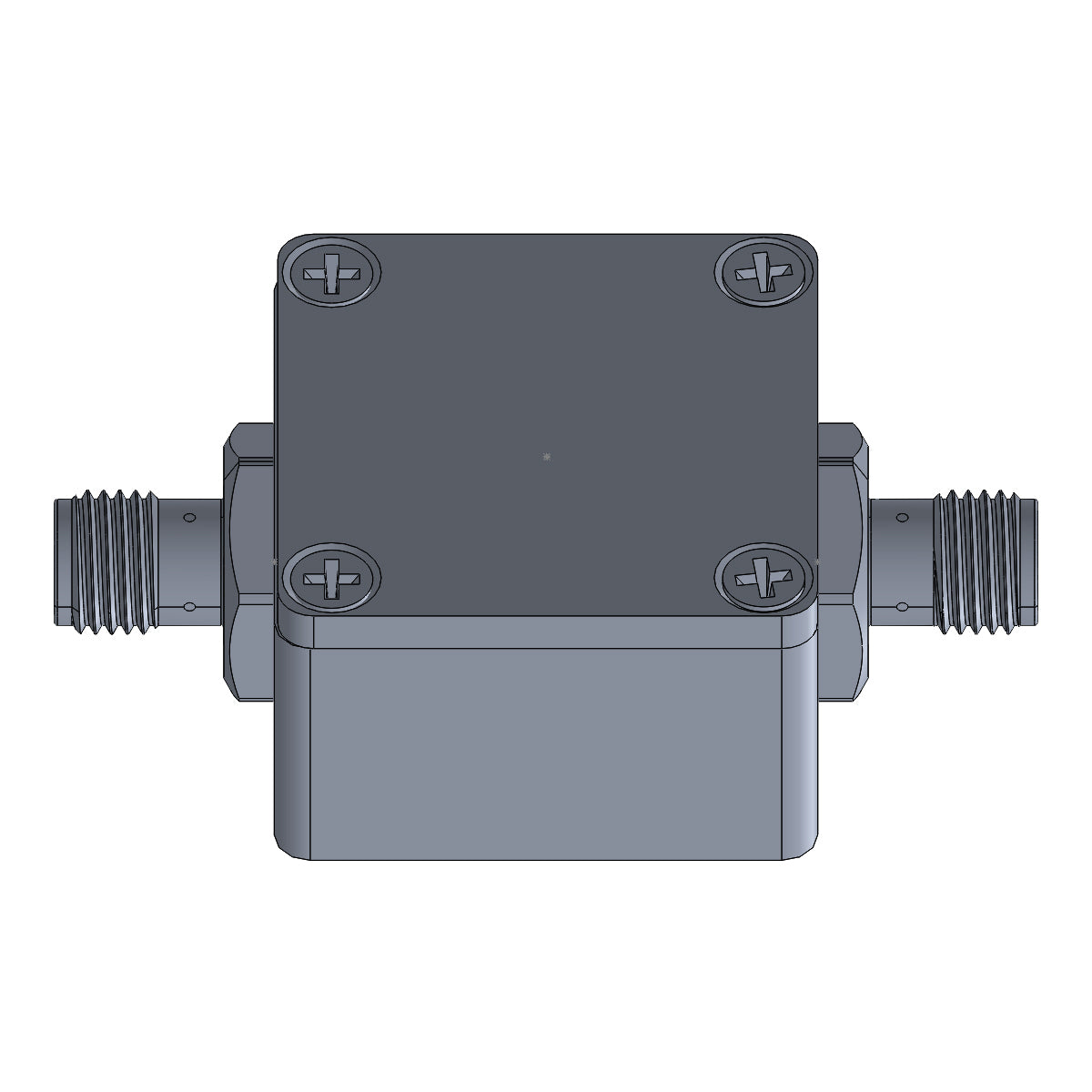

6UDD4W6H52SMAP2W Enclosure Kit for 0.040"/1mm PCB (size 0.5625"x0.5625") 2 SMA 0.6" Height

Part Number: 6UDD4W6H52SMAP2W is RF Designer Kit for prototyping with PCB size of the Rogers PCB (RO4350 or FR4) 9/16"x9/16"x0.04"(or 1mm).

The Enclosure will work for Eurocirsuits RF Pool 4 Layer PCB.

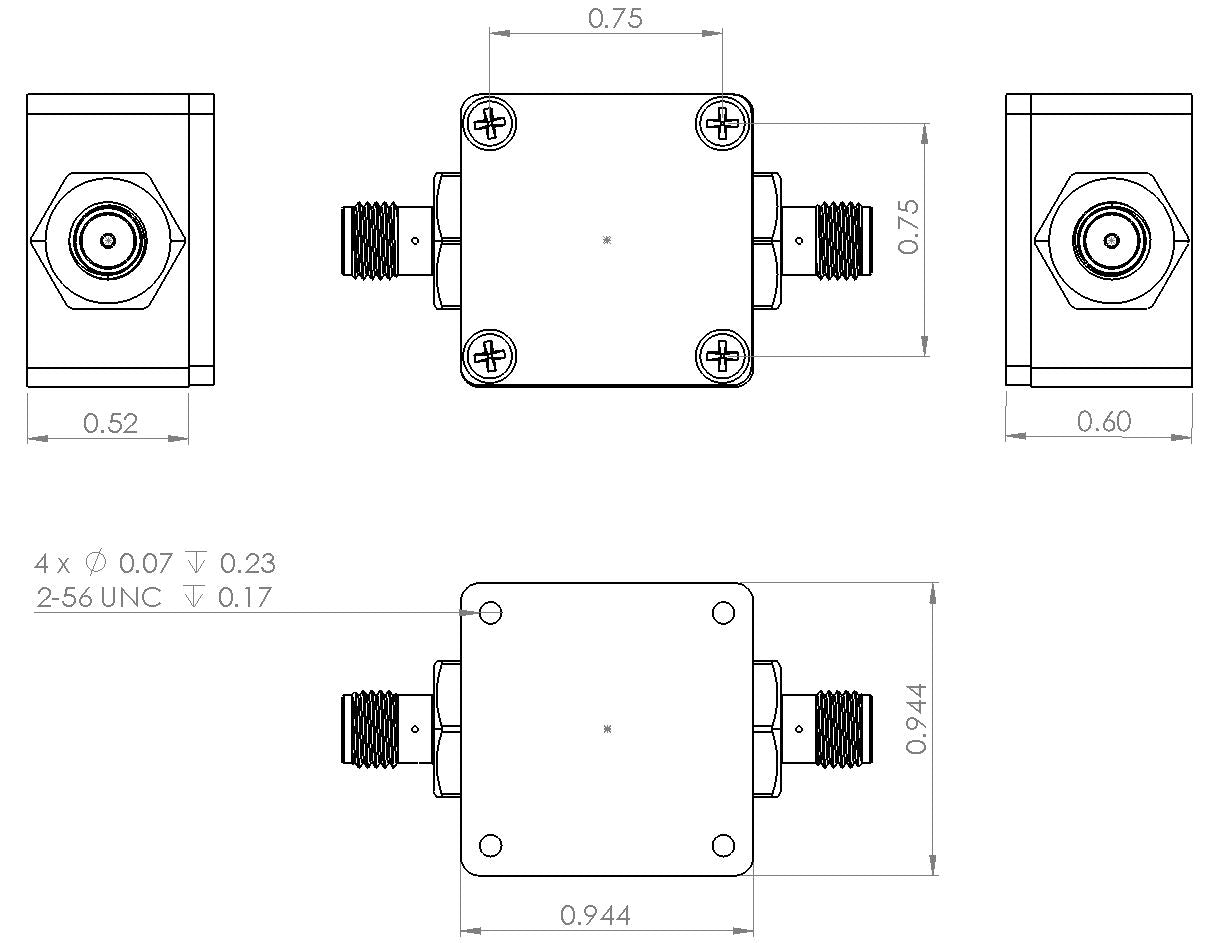

RF Housing Size: 5Ux5U (15/16"x15/16"). Each U is 3/16". Housing height: 0.52" (without Cover). The PCB mounting hole spacing is 0.375" and 0.375" respectively. PCB Inside Clearance to Enclosure Cover is 0.26". SKU#: AK20-015AB.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, Massachusetts.

RF Kit include (PCB is not included):

  • All CNC Machined Housing and Cover, 1 ea
  • IP67 SMA Screw on Connector, 0.020" Pin, 2 Female
  • 2-56x5/32" SHCS, 4 for PCB
  • 2-56x3/16" Flat Head Screw (for Cover), 4 ea
  • Elastic Conductive EMI Shield Gasket, 1 ea


  • Hold PCB Size 9/16"x9/16"x0.04" (or 1mm)
  • Clearance from PCB top to Enclosure Cover (0.26")

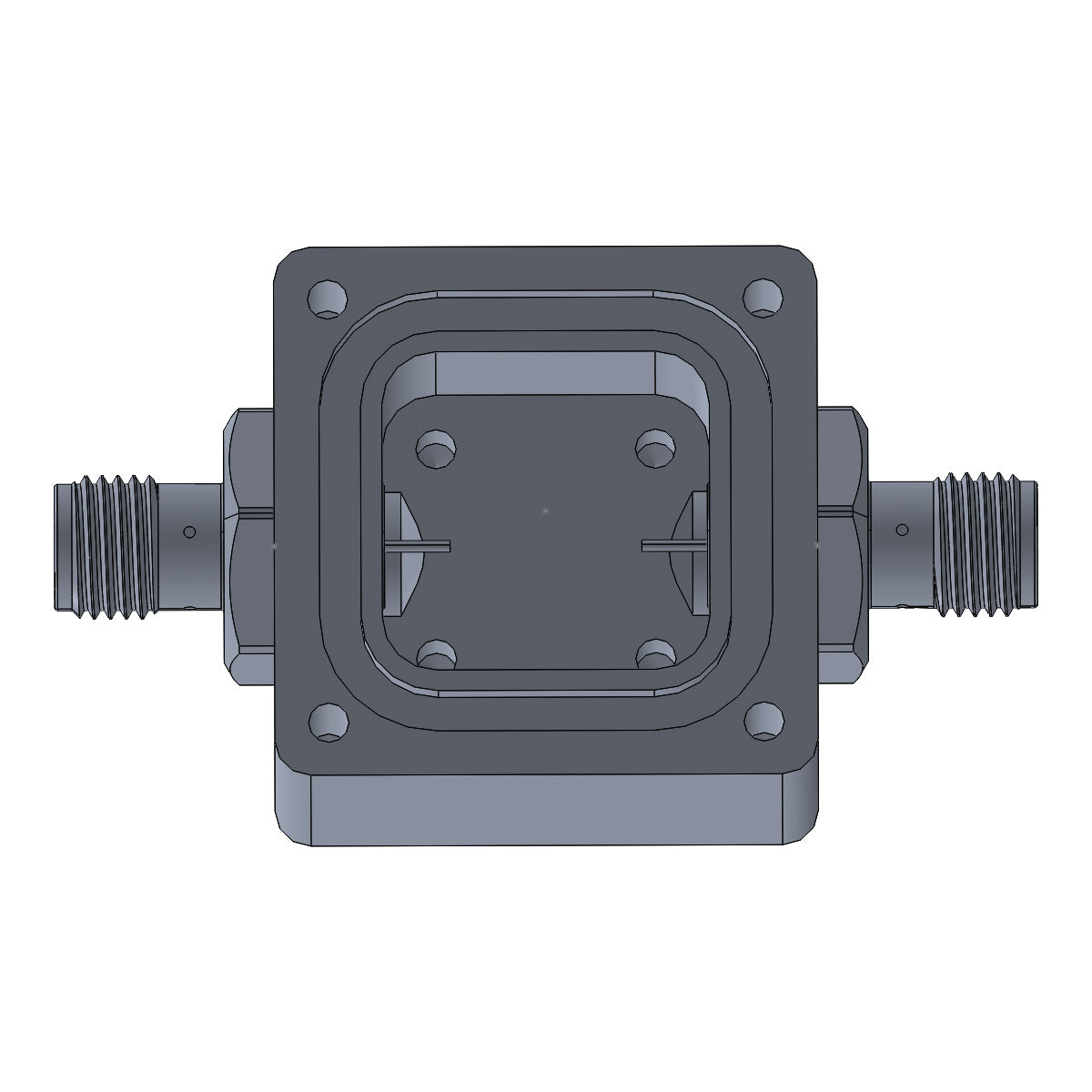

  • All CNC Machined Surface for Superior Finish and Minimize RF Leakage
  • 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
  • 3/16" Wall Thickness for Strong Mechanical Strength
  • Two Female SMA
  • Electroless Nickel Plating per MIL-C-26074, ASTMB 733
  • Professional Zebra Ultimate Label for Outdoor Usage
  • Proudly MADE IN USA (Material & Labor)
  • ROHS Compliant


  • Cell
  • Microwave Radio
  • Test Instrumentation
  • SDR & Ham Radio
