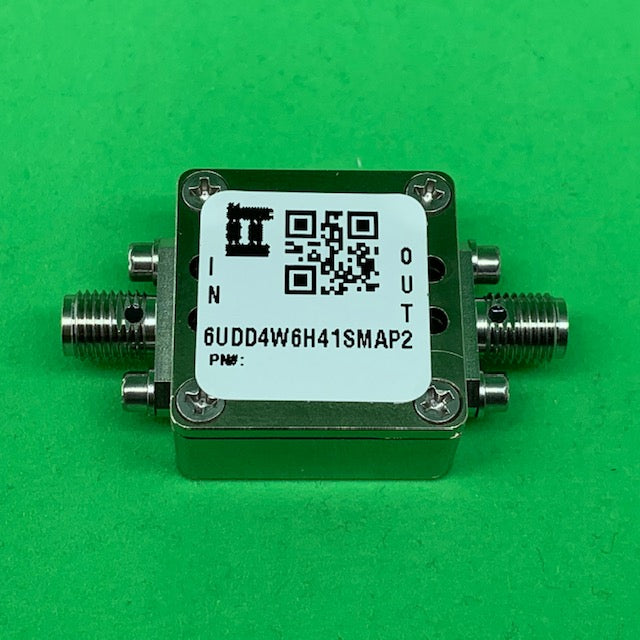

RF Enclosure Kit for 0.042"/1mm PCB (9/16"X9/16") Passive SMA Connector 0.41" Height

72 items left

RF Designer Kit is for RF prototyping with PCB size of the Rogers PCB (RO4350 or FR4) 9/16"x9/16"x0.042"(or 1mm). Part Number: 6UDD4W6H41SMAP2.

This enclosure is compatible to Eurocircuits RF Pool of 4 Layer PCB with 0.042" PCB Thickness.

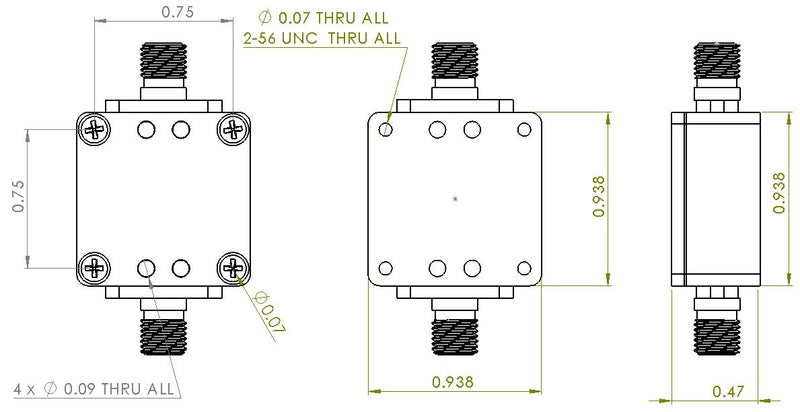

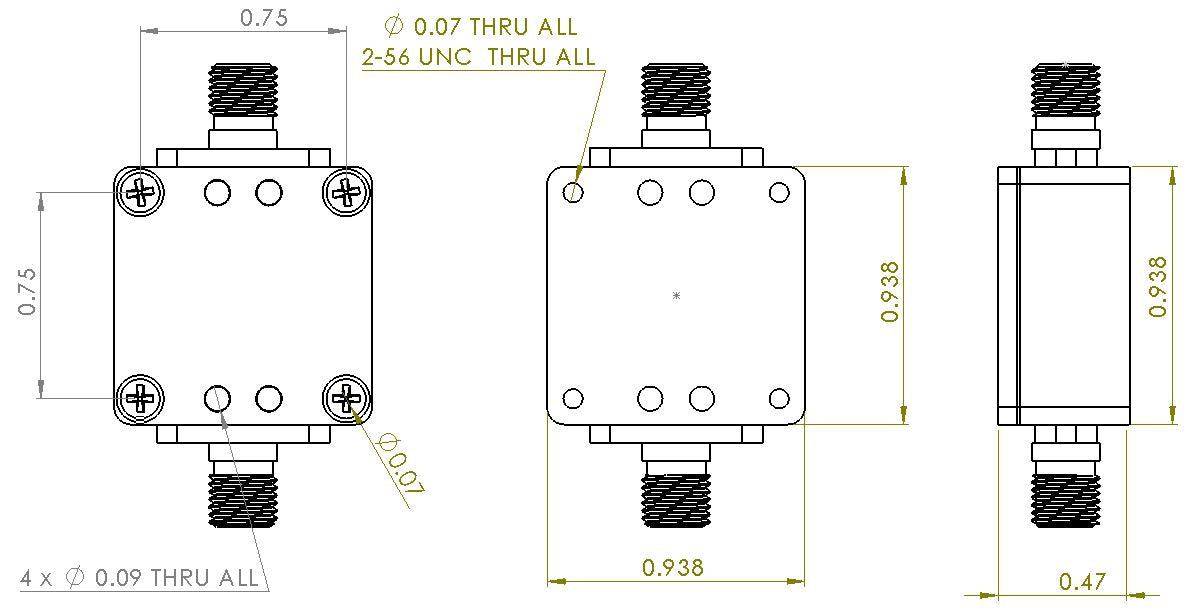

RF Housing Size: 5Ux5U (15/16"x15/16"). Each U is 3/16". Housing height: 0.48". The PCB mounting hole spacing is 0.375" and 0.375" respectively. PCB Inside Clearance to Enclosure Cover is 0.18". This Enclosure is ideal to hold Passive PCB circuit (e.g., Filter, DC Block etc.). SKU#: AK20-010C.

RF Kit include (PCB is not included):

  • All CNC Machined Housing and Cover, 1 ea
  • SMA 2-Hole Flange Jack Receptacle Connector, 0.086", 0.012" Pin, 2 ea
  • 2-56x3/16" SHCS, 4 for SMA Connector
  • 2-56x5/32" SHCS, 4 for PCB
  • 2-56x3/16" Flat Head Screw (for Cover), 8 ea

Features

  • Hold PCB Size 9/16"x9/16"x0.042" (or 1mm)
  • All CNC Machined Surface for Superior Finish and Minimize RF Leakage
  • 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
  • 3/16" Wall Thickness for Strong Mechanical Strength
  • Two SMA Connector
  • Electroless Nickel Plating per MIL-C-26074, ASTMB 733
  • Professional Zebra Ultimate Label for Outdoor Usage
  • Proudly MADE IN USA (Material & Labor)
  • ROHS Compliant

Applications

  • Cell
  • Microwave Radio
  • Test Instrumentation
  • SDR & Ham Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png 6UDD4W6H41SMAP2 Datasheet
