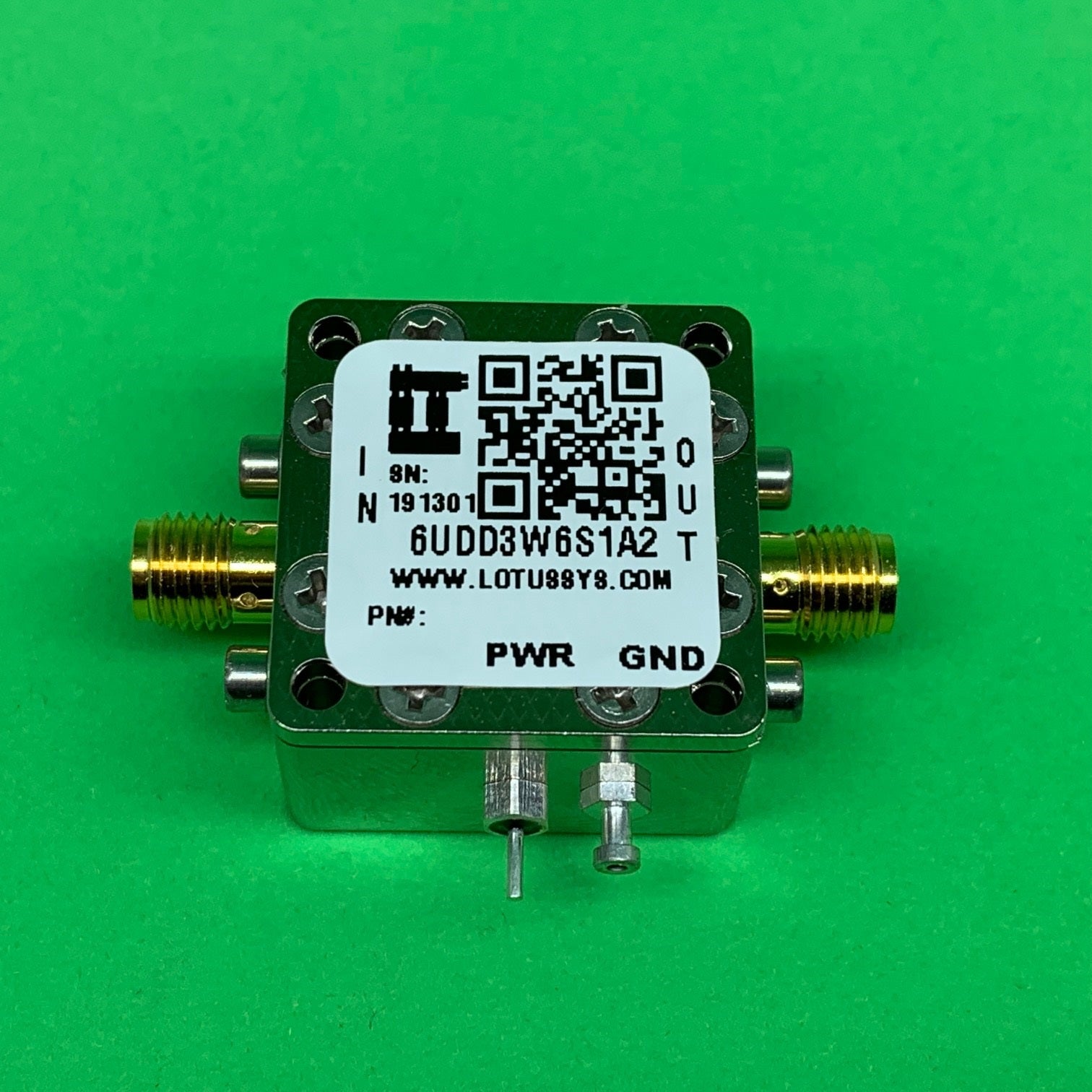

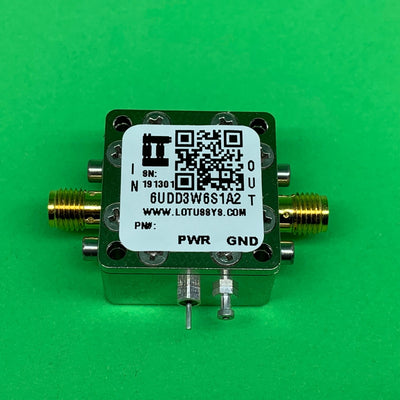

RF Enclosure Kit for 0.030"/0.8mm PCB with 0.5625"X0.5625" Board (Active)

20 items left

RF Designer Kit is for RF prototyping with size of the Rogers PCB (RO4350) or FR4 9/16"x9/16"x0.03"(or 0.8mm). Part Number:6UDD3W6S1A2.

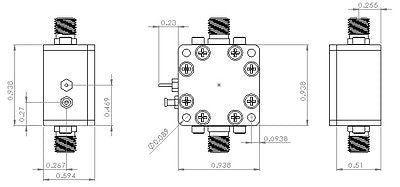

RF Housing Size: 5Ux5U (15/16"x15/16").  Each U is 3/16". Housing height: 0.59".

Advantages of this RF Kit:

1). All CNC machined surface for superior finish and minimizing RF leakage.

2). 4 Installation hole to mount kit to a back board with #2 Socket Head Cap Screw.

3). Cover plate screw spacing is <= 3 wall thickness to minimize RF leakage.

4). 0.1875" wall thickness for mechanical strength.

5). SMA Connector frequency range DC-24GHz.

     SMA Connector Part Number: Santron 1206-63-PJ.

6). Professional Zebra Ultimate Label for Labeling

7).ElectrolessNickel Plated per MIL-C-26074, ASTMB 733

8). Proudly MADE IN USA (Material & Labor).

RF Kit include:

  • All CNC Machined Housing and Cover, 1 ea
  • SMA 2-Hole Flange Jack Receptacle Connector, 0.083", 0.012" Pin, 2 ea, Frequency DC-24GHz.
  • EMI Feedthrough Cap 4-40, 100V/10A, 1ea
  • Ground Solder Terminal 4-40, 1 ea
  • 2-56x3/16 SHCS (for SMA Connector), 4 ea
  • 2-56x5/32 Pan Head Screw (for mounting PCB), 4 ea
  • 2-56x3/16 Flat Head Screw (for Cover), 8 ea

PCB Size (PCB is not included):

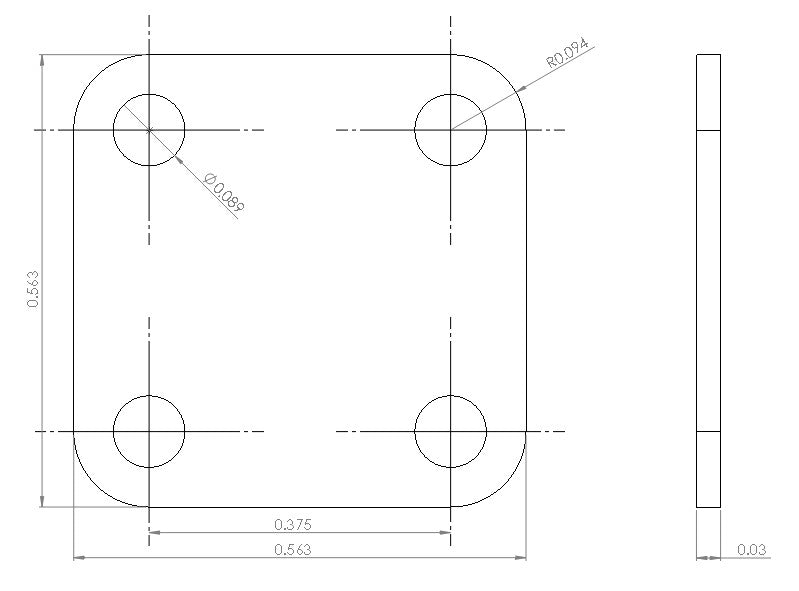

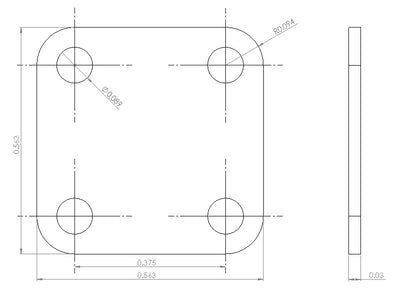

PCB Size is 9/16"x9/16"x0.03"(or 0.8mm) (3Ux3U).  Each U is 3/16". The PCB mounting hole spacing is 0.375" and 0.375" respectively.

This Enclosure is ideal to hold Active PCB circuit (e.g., LNA, Mixer etc.).  The EMI Feedthrough for Power is on the center of PCB with pin size 0.032".
