6UDD2W6S1P2

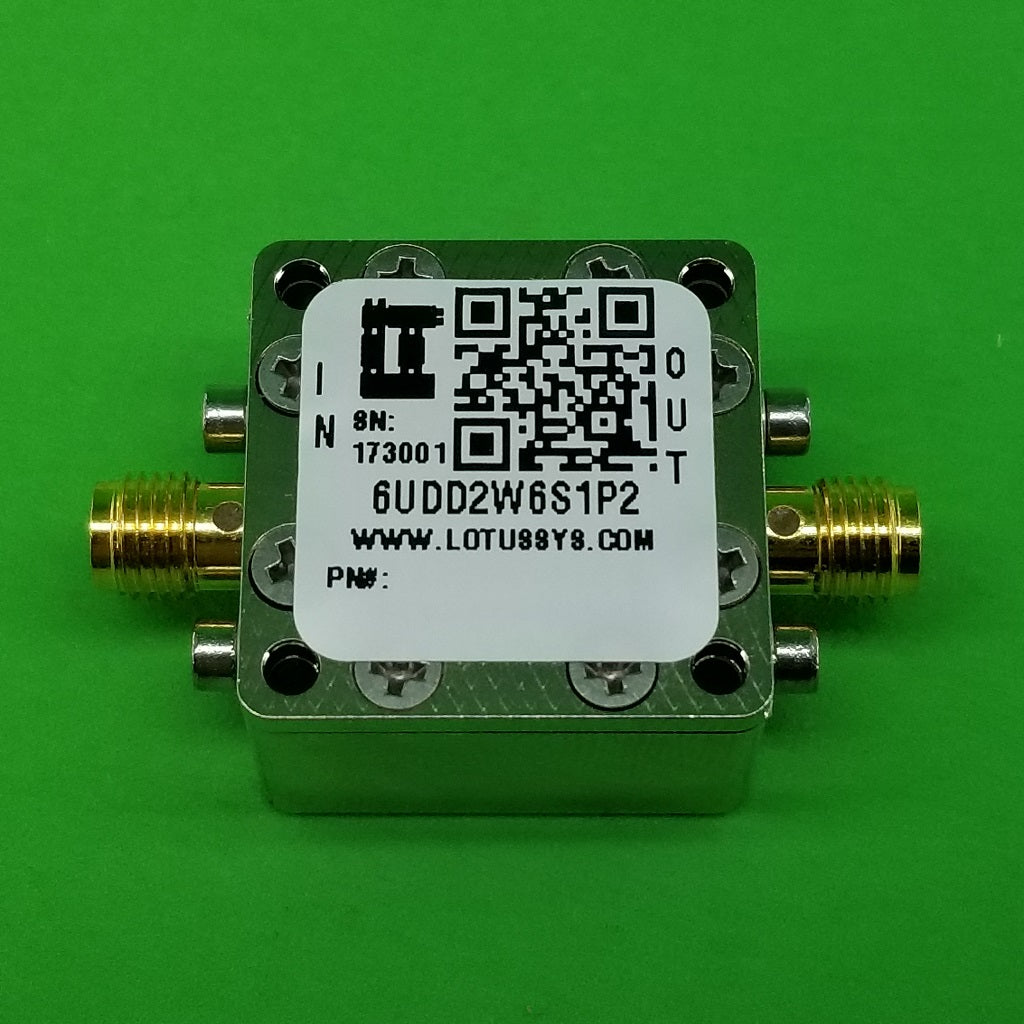

RF Enclosure Kit for 0.020"/0.5mm PCB (size 9/16"X9/16") Passive SMA Connector

RF Designer Kit is for RF prototyping with PCB size of the Rogers PCB (RO4350) or FR4 9/16"x9/16"x0.02"(or 0.5mm). Part Number: 6UDD2W6S1P2.

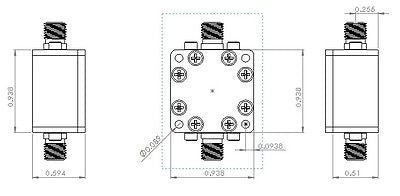

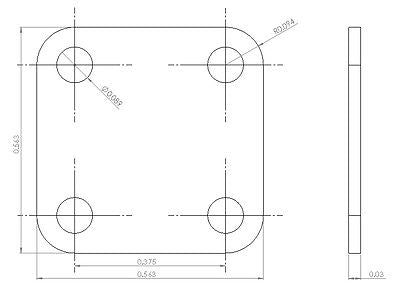

RF Housing Size: 5Ux5U (15/16"x15/16"). Each U is 3/16". Housing height: 0.59". The PCB mounting hole spacing is 0.375" and 0.375" respectively. PCB Inside Clearance to Enclosure Cover is 0.26".  This Enclosure is ideal to hold Passive PCB circuit (e.g., Filter, DC Block etc.). SKU#: AK20_003O.

RF Kit include (PCB is not included):

  • All CNC Machined Housing and Cover, 1 ea
  • SMA 2-Hole Flange Jack Receptacle Connector, 0.083", 0.012" Pin, 2 ea
  • 2-56x3/16 SHCS, 4 for SMA Connector
  • 2-56x5/32 SHCS, 4 for PCB
  • 2-56x3/16 Flat Head Screw (for Cover), 8 ea

Features

  • Hold PCB Size 9/16"x9/16"x0.020" (or 0.5mm)
  • All CNC Machined Surface for Superior Finish and Minimize RF Leakage
  • 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
  • 3/16" Wall Thickness for Strong Mechanical Strength
  • Two SMA Connector
  • Electroless Nickel Plating per MIL-C-26074, ASTMB 733
  • Professional Zebra Ultimate Label for Outdoor Usage
  • Proudly MADE IN USA (Material & Labor)
  • ROHS Compliant

Applications

  • Cell
  • Microwave Radio
  • Test Instrumentation
  • SDR & Ham Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png 6UDD2W6S1P2 Datasheet
