AK20_007Q

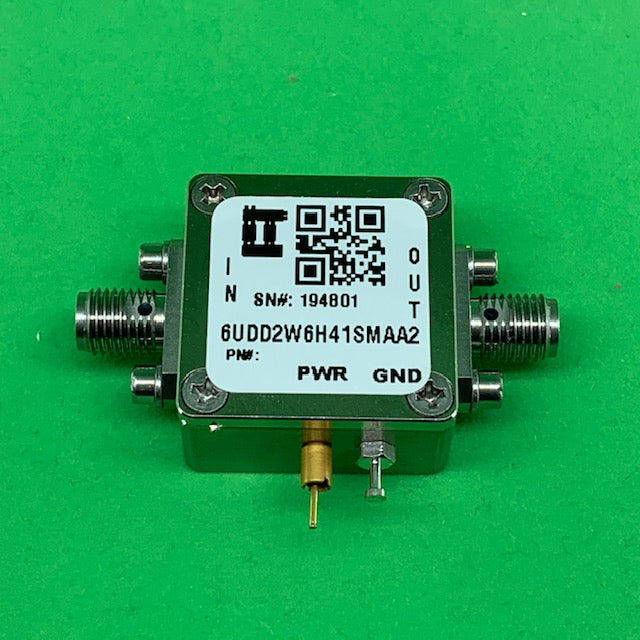

RF Enclosure Kit for 0.020"/0.5mm PCB (size 9/16"x9/16") 2 SMA Active 0.41" Height

RF Designer Kit is for RF prototyping with PCB size of the Rogers PCB (RO4350 or FR4) 9/16"x9/16"x0.020"(or 0.5mm). Part Number: 6UDD2W6H41SMAA2.

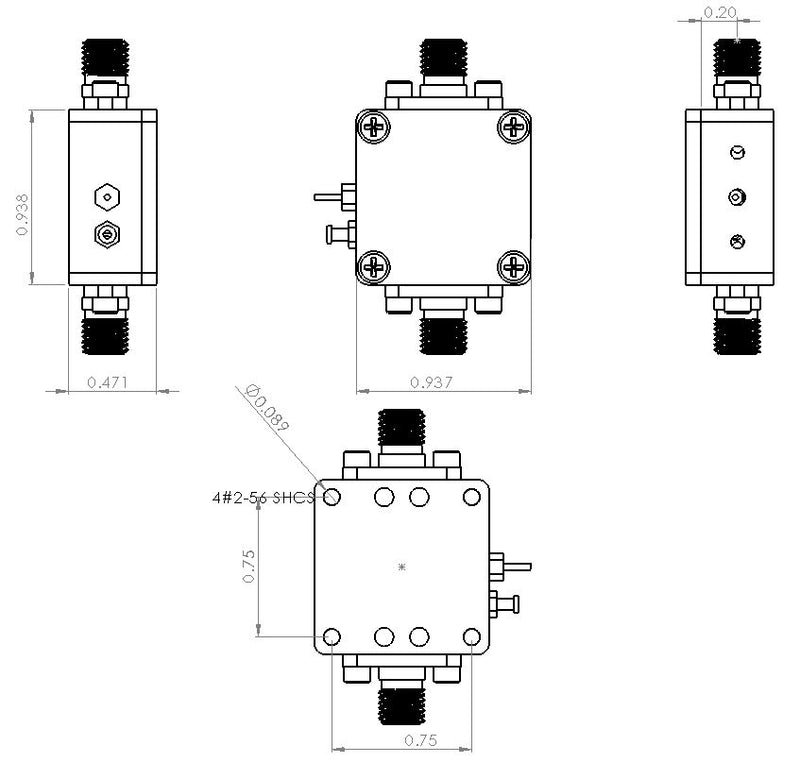

RF Housing Size: 5Ux5U (15/16"x15/16"). Each U is 3/16". Housing height: 0.41" (without Cover). The PCB mounting hole spacing is 0.375" and 0.375" respectively. PCB Inside Clearance to Enclosure Cover is 0.19". (e.g., LNA, Frequency Conversion Circuits etc.). SKU#: AK20_007Q.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, Massachusetts.

RF Kit include (PCB is not included):

  • All CNC Machined Housing and Cover, 1 ea
  • SMA 2-Hole Flange Jack Receptacle Connector, 0.086", 0.012" Pin, 2 ea
  • EMI Feedthrough Cap #2-56, 100V/5A, 1ea
  • Ground Solder Terminal #2-56, 1 ea
  • 2-56x3/16 SHCS, 4 for SMA Connector
  • 2-56x5/32 SHCS, 4 for PCB
  • 2-56x3/16 Flat Head Screw (for Cover), 4 ea

Features

  • Hold PCB Size 9/16"x9/16"x0.020" (or 0.5mm)
  • Clearance from PCB top to Enclosure Cover (0.19")
  • All CNC Machined Surface for Superior Finish and Minimize RF Leakage
  • 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
  • 3/16" Wall Thickness for Strong Mechanical Strength
  • Two SMA Connectors
  • Electroless Nickel Plating per MIL-C-26074, ASTMB 733
  • Professional Zebra Ultimate Label for Outdoor Usage
  • Proudly MADE IN USA (Material & Labor)
  • ROHS Compliant

Applications

  • Cell
  • Microwave Radio
  • Test Instrumentation
  • SDR & Ham Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png 6UDD2W6H41SMAA2 Datasheet
