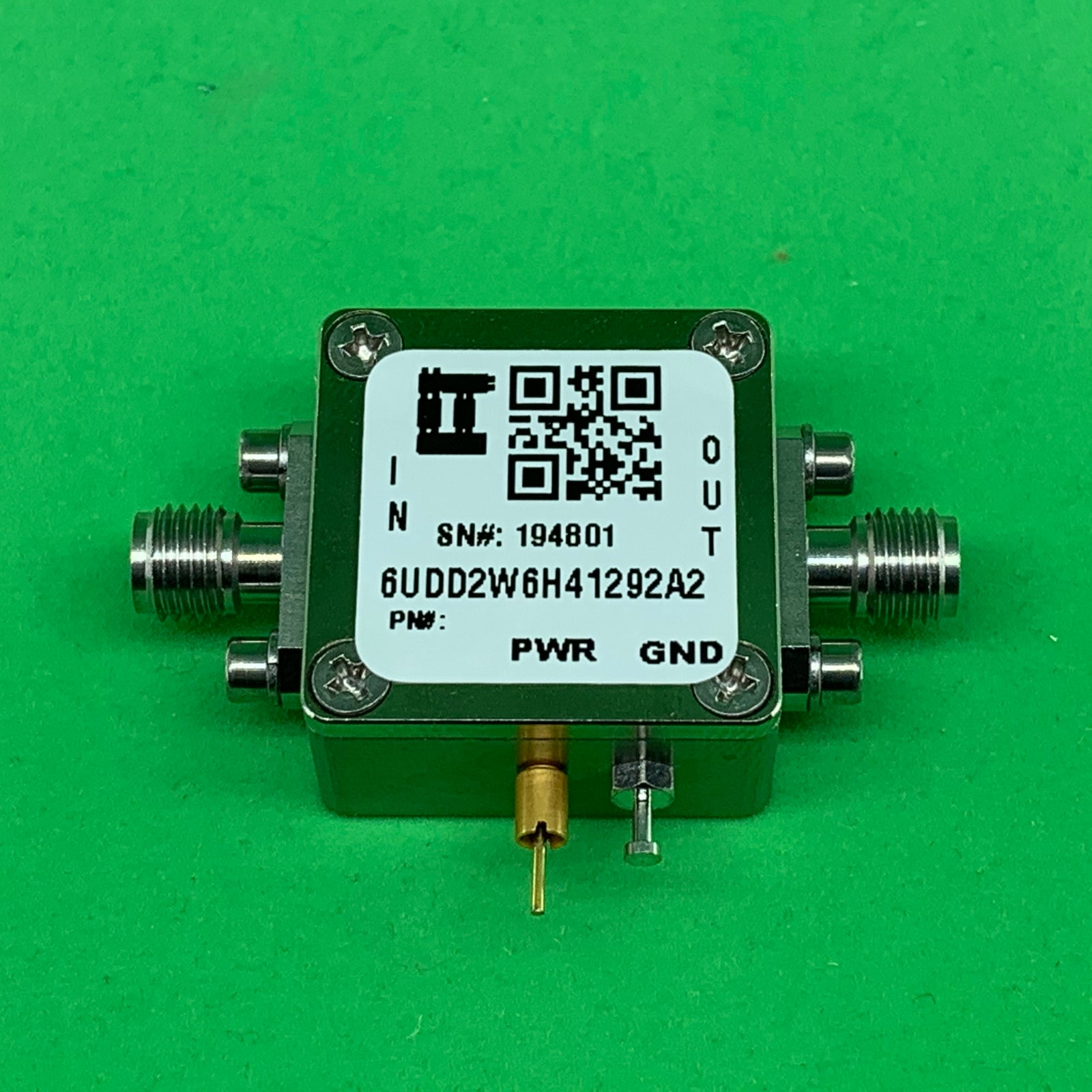

  • RF Enclosure Kit for 0.020"/0.5mm PCB (size 9/16"X9/16") Active 2.92mm Connector 0.41" Height

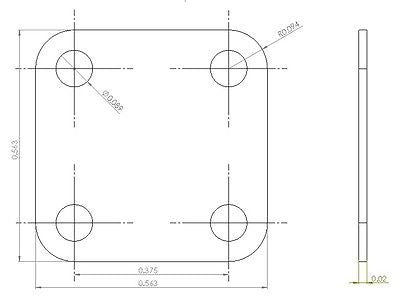

    RF Designer Kit is for RF prototyping with PCB size of the Rogers PCB (RO4350 or FR4) 9/16"x9/16"x0.02"(or 0.5mm). Part Number: 6UDD2W6H41292A2.

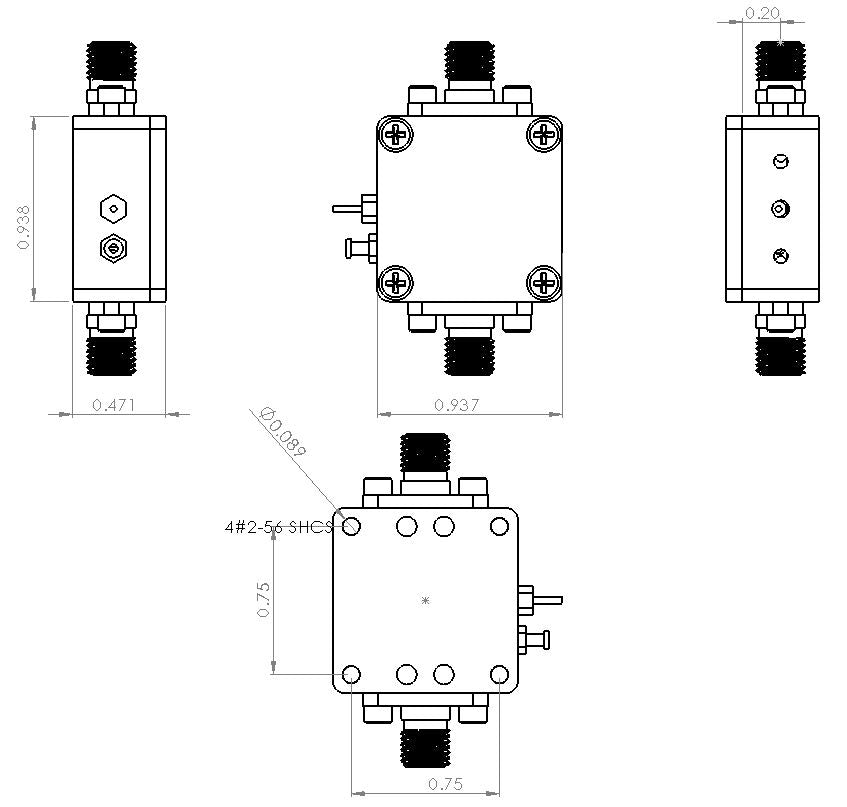

    RF Housing Size: 5Ux5U (15/16"x15/16").  Each U is 3/16". Housing height: 0.41" (without cover). The PCB mounting hole spacing is 0.375" and 0.375" respectively. PCB Inside Clearance to Enclosure Cover is 0.19". This Enclosure is ideal to hold Active PCB circuit (e.g., LNA, Mixer etc.). SKU#: AK20_007Q.

    RF Kit include (PCB is not included):

    • All CNC Machined Housing and Cover, 1 ea
    • 2.92mm 2-Hole Flange Jack Receptacle Connector, 0.083", 0.012" Pin, 2 ea
    • EMI Feedthrough Cap 2-56, 100V/5A, 1ea
    • Ground Solder Terminal 2-56, 1 ea
    • 2-56x3/16 SHCS, 4 for SMA Connector
    • 2-56x5/32 SHCS, 4 for PCB
    • 2-56x3/16 Flat Head Screw (for Cover), 4 ea

    Features

    • Hold PCB Size 9/16"x9/16"x0.020" (or 0.5mm)
    • All CNC Machined Surface for Superior Finsh and Minimize RF Leakage
    • 4 Installation Holes to Mount Kit to Back Board with #2 SHCS
    • 3/16" Wall Thickness for Strong Mechanical Strength
    • Two Female 2.92mm Connector Frequency Range DC-40 GHz
    • Electroless Nickel Plating per MIL-C-26074, ASTMB 733
    • Professional Zebra Ultimate Label for Outdoor Usage
    • Proudly MADE IN USA (Material & Labor)
    • ROHS Compliant

    Applications

    • Cell
    • Microwave Radio
    • Test Instrumentation
    • SDR & Ham Radio
