$ 2,500.00 USD

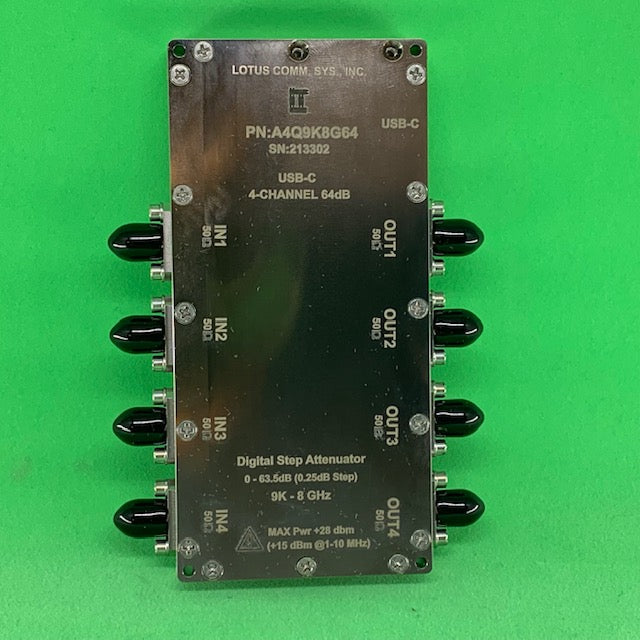

Part Number: A4Q9K8G64 is a general purpose, four channel programmable attenuator suitable for wide range of signal level control applications from 9K to 8 GHz. The Attenuator provides 0 to 63.5 dB attenuation in 0.25 dB steps.

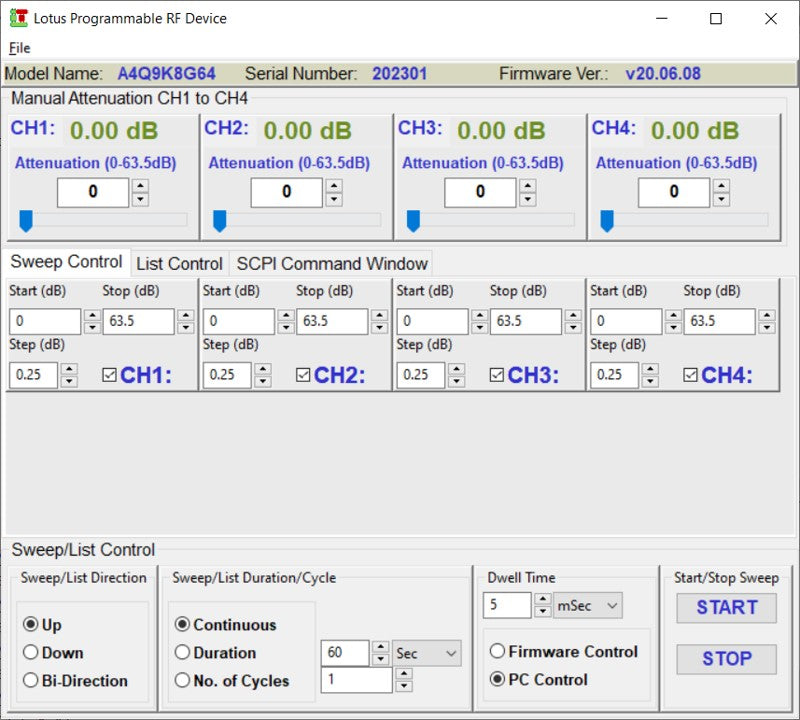

The Attenuator is housed in an ultra-compact and rugged enclosure with four SMA Female connectors. The attenuator can be controlled via USB. Full software supported with our user-friendly GUI application for Windows and Linux.
It uses USB Type C connector for power and control.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Digital Step Attenuator User Manual
Self-Executable GUI SW Download
