4 Channel 128 dB Programmable Attenuator (USB-C), 0.25 dB Step, 9K-8GHz

2 items left

Part Number: A4Q9K8G128 is a general purpose, four channel programmable attenuator suitable for wide range of signal level control applications from 9K to 8 GHz.  The Attenuator provides 0 to 127 dB attenuation in 0.25 dB steps.

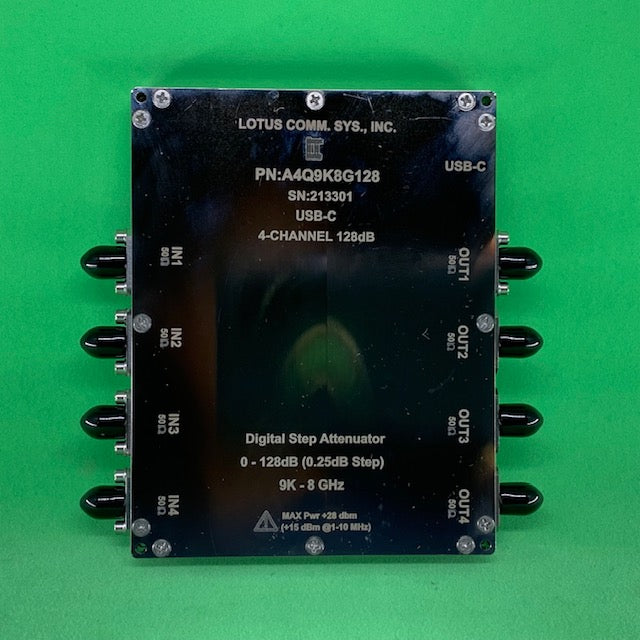

The Attenuator is housed in an ultra-compact and rugged enclosure with four SMA Female connectors.  The attenuator can be controlled via USB. Full software supported with our user-friendly GUI application for Windows and Linux.

It uses USB Type C connector for power and control.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).


  • Four Channels
  • Frequency Range: 9K to 8G Hz
  • Wide Attenuation Range: 127 dB
  • Fine Attenuation Resolution: 0.25 dB
  • Short Attenuation Transition Time (500 ns)
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • Electronless Nickel Plating and Permanent Laser Marking
  • USB Control
  • ROHS Compliant


  • Test Instrumentation
  • Automated Test Equipment
  • General Purpose Wireless
  • Radar & VSAT
  • SDR & Ham Radio

Resources (Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.pngA4Q9K8G128 Datasheet

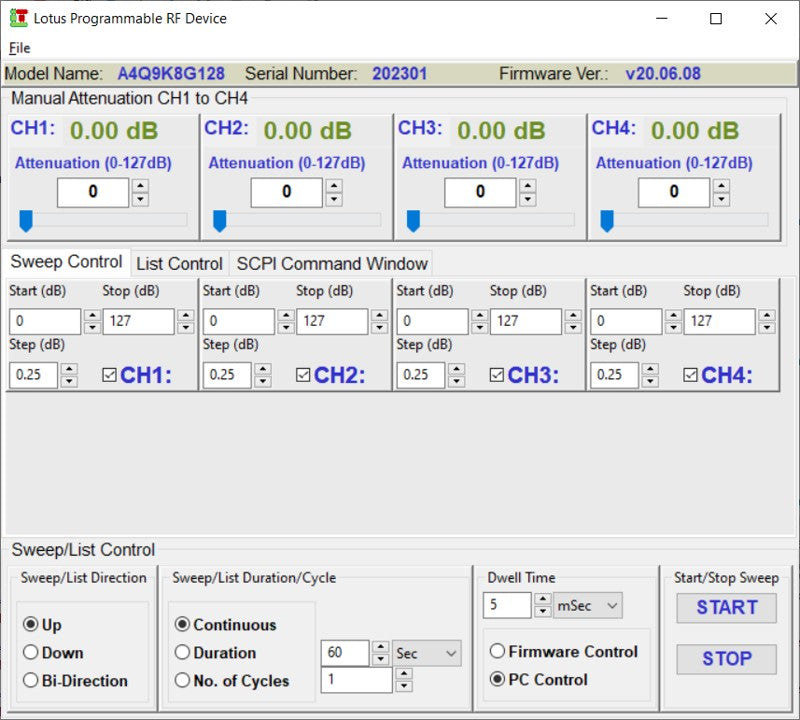

Windows/Linux GUI Control SW

Self-Executable GUI SW Download
