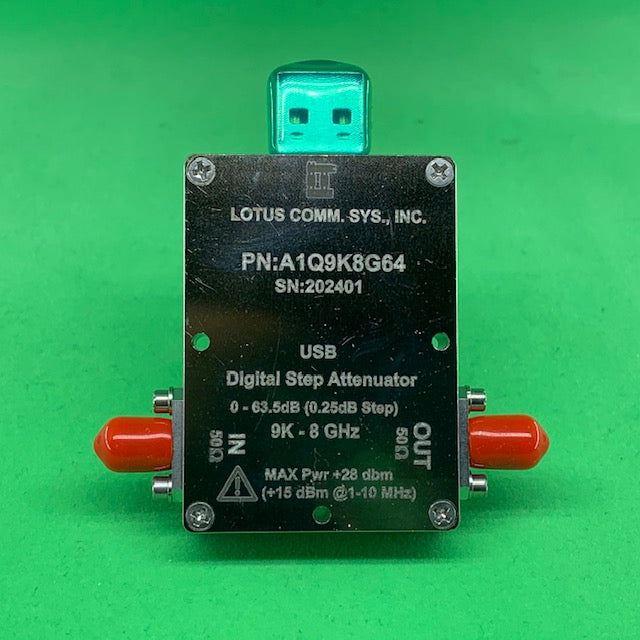

Part Number: A1Q9K8G64 is a general purpose, single channel programmable attenuator suitable for wide range of signal level control applications from 9K to 8 GHz. The Attenuator provides 0 to 63.5 dB attenuation in 0.25 dB steps.
The Attenuator is housed in an ultra-compact and rugged enclosure with two SMA Female connectors. The attenuator can be controlled via USB. Full software supported with our user-friendly GUI application for Windows and Linux.
It uses USB Type A connector for connection. Control Software is included in USB Stick. SKU#: AK20-014H.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
