Bias Tee Broadband 10 MHz to 18 GHz (Max. 270mA) 50V DC

Bias Tee Broadband 10 MHz to 18 GHz (Max. 270mA) 50V DC

Bias Tee Broadband 10 MHz to 18 GHz (Max. 270mA) 50V DC

Bias Tee Broadband 10 MHz to 18 GHz (Max. 270mA) 50V DC

$ 169.00 USD

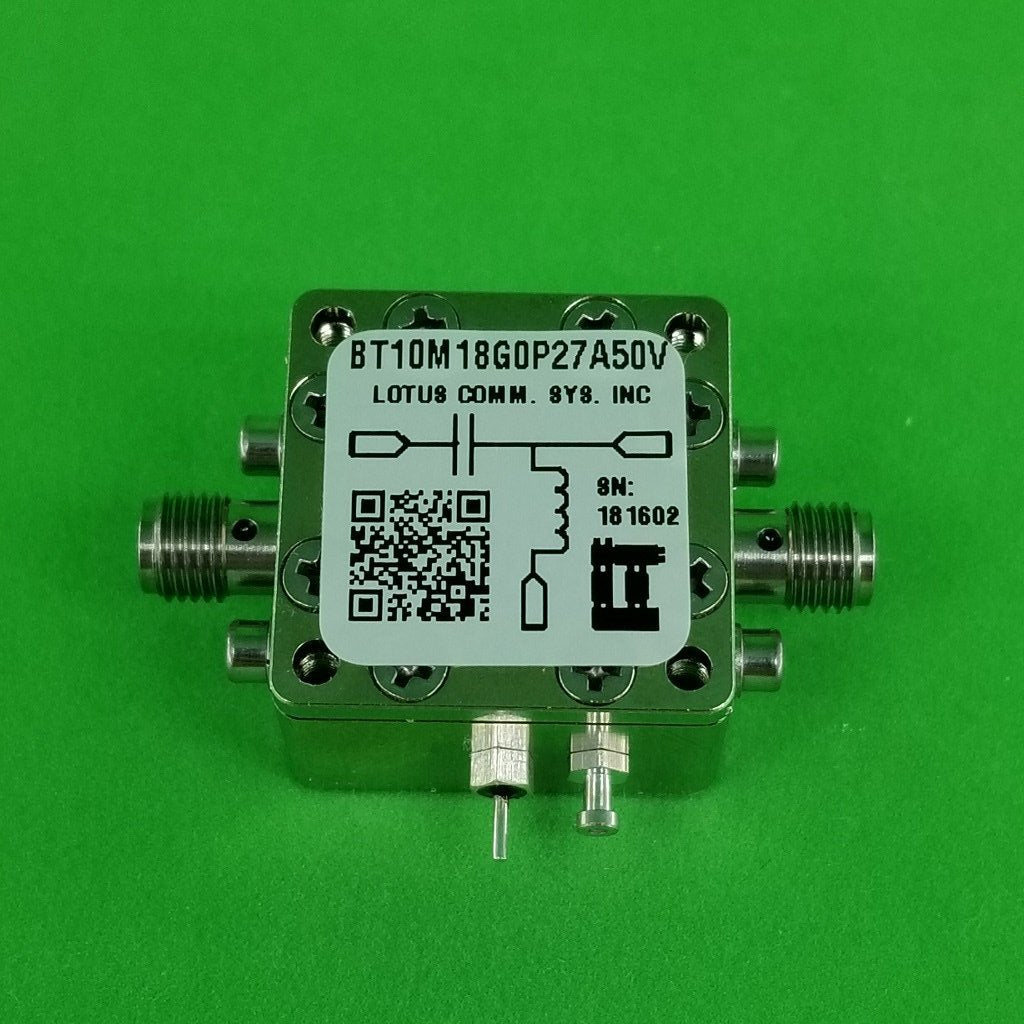

PN#:BT10M18G0P27A50V is 50Ω Broadband Bias Tee 10 MHz to 18 GHz. It covers 10 MHz to 18 GHz and can handle maximum 270mA current and 50V DC.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20-002M.

Collections: SMA Broadband Bias Tees

Features

Broadband Performance 10 MHz to 18 GHz
Use resonance-free conical inductor
High quality stainless steel SMA female connector
High quality RO4350 RF PCB (very low loss and high thermal performance)
Maximum Current: 270mA, Maximum DC Voltage: 50V
ROHS Compliant

Applications

Biasing Amplifiers/RF circuits
Biasing Lasers
Modulators driven with high frequency data patterns
Test Instrumentation
SDR & Ham Radio

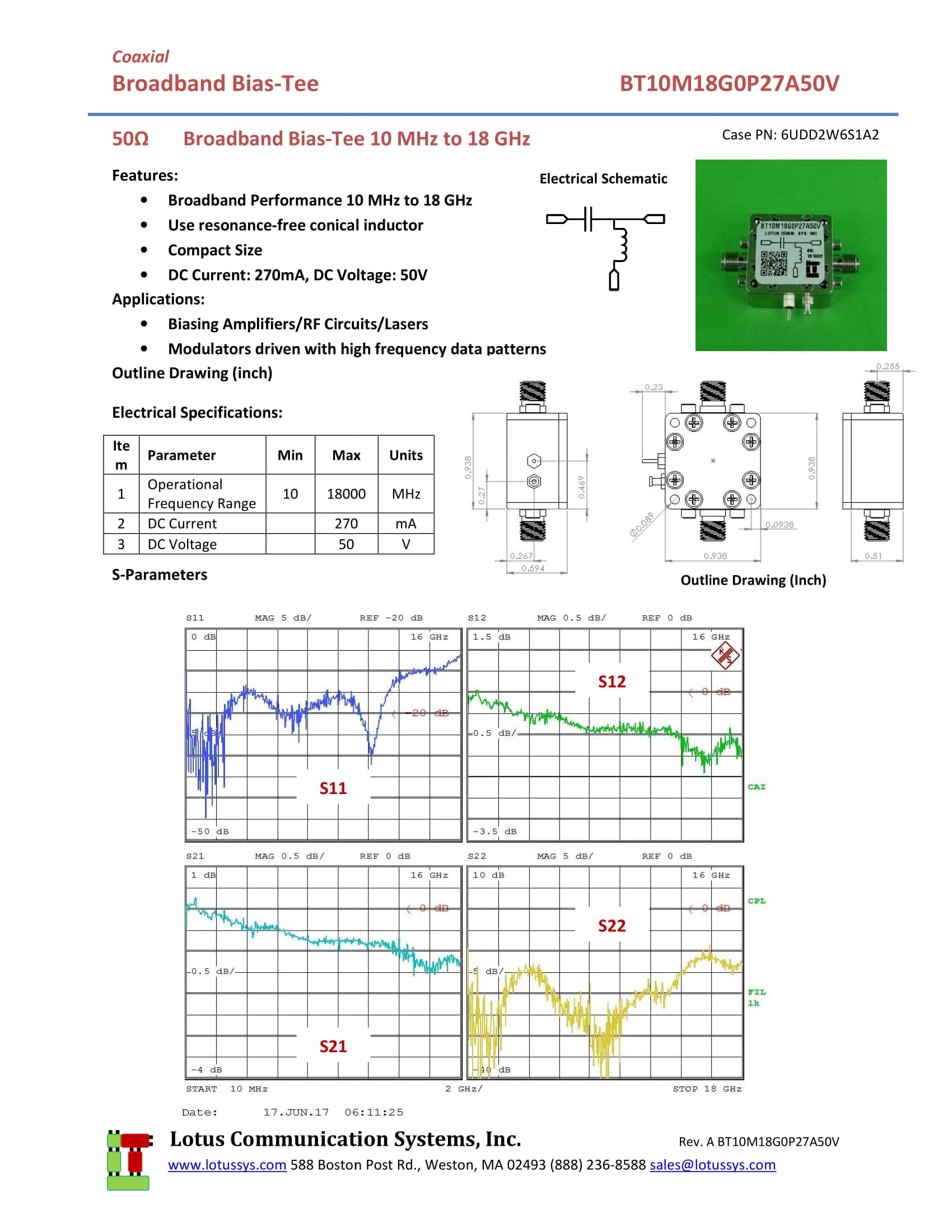

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

BT10M18G0P27A50V Datasheet
