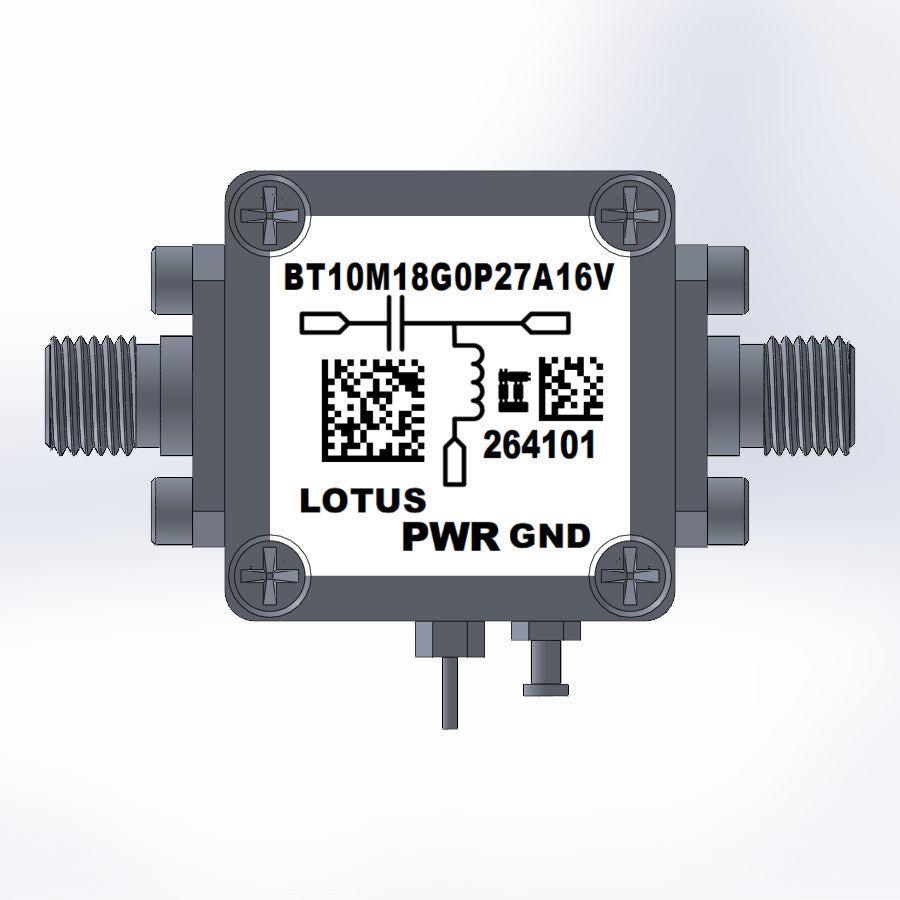

Bias Tee Broadband 10 MHz to 18 GHz (Max. 270mA) 16V DC

2 items left

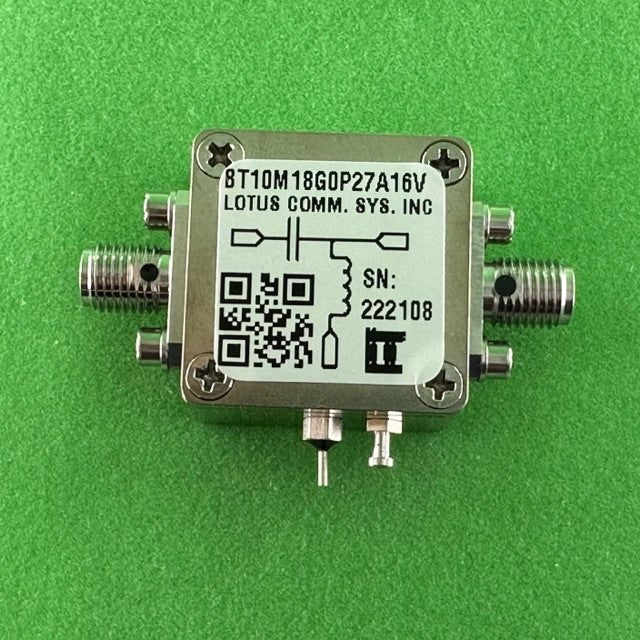

50Ω Broadband Bias Tee 10 MHz to 18 GHz (Model Num.: BT10M18G0P27A16V). It covers 10 MHz to 18 GHz and can handle maximum 270mA current and 16V DC.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20_002M.


  • Broadband Performance 10 MHz to 18 GHz
  • Use resonance-free conical inductor
  • High quality stainless steel SMA female connector
  • High quality RO4350 RF PCB (very low loss and high thermal performance)
  • Maximum Current: 270mA, Maximum DC Voltage: 16V
  • ROHS Compliant


  • Biasing Amplifiers/RF circuits
  • Biasing Lasers
  • Modulators driven with high frequency data patterns
  • Test Instrumentation
  • SDR & Ham Radio

Resources (PDF Datasheet) BT10M18G0P27A16V Datasheet
