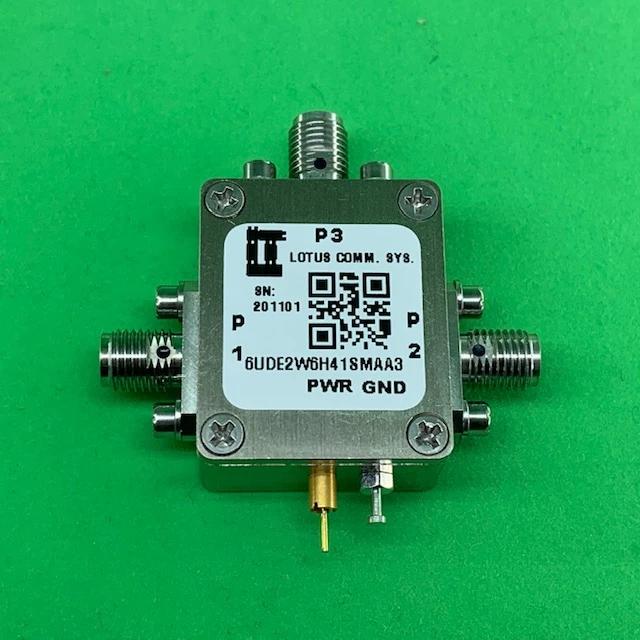

6UDE2W6H41SMAA3 Enclosure Kit for 0.020"/0.5mm PCB (size 0.5625"x0.75") 3 SMA Active 0.48" Height

RF Designer Kit is for RF prototyping with PCB size of the Rogers PCB (RO4350 or FR4) 9/16"x3/4"x0.020"(or 0.5mm) for 3 Ports. Part Number: 6UDE2W6H41SMAA3.

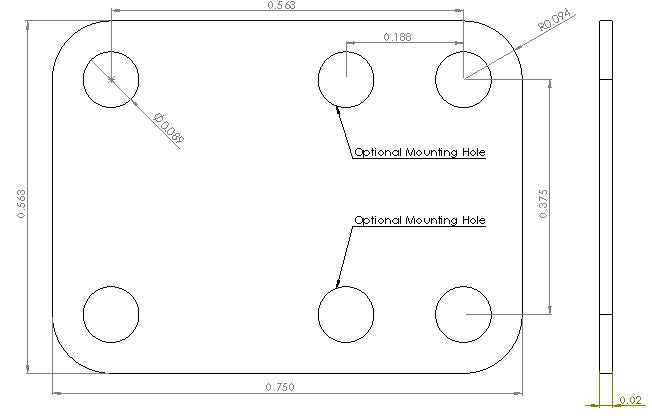

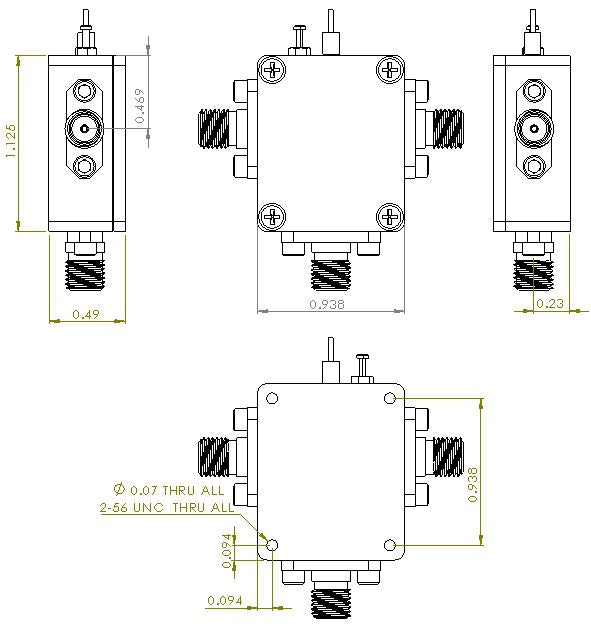

RF Housing Size: 5Ux6U (15/16"x1-1/8"). Each U is 3/16". Housing height: 0.41" (without Cover). The PCB mounting hole spacing is 0.375" and 0.563" respectively. PCB Inside Clearance to Enclosure Cover is 0.19". (e.g., Mixer, Frequency Conversion Circuits etc.). SKU#: AK20-007M.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, Massachusetts.

RF Kit include (PCB is not included):

• All CNC Machined Housing and Cover, 1 ea
• SMA 2-Hole Flange Jack Receptacle Connector, 0.086", 0.012" Pin, 3 ea
• EMI Feedthrough Cap #2-56, 100V/5A, 1ea
• Ground Solder Terminal #2-56, 1 ea
• 2-56x3/16" SHCS, 6 for SMA Connector
• 2-56x5/32" SHCS, 6 for PCB
• 2-56x3/16" Flat Head Screw (for Cover), 4 ea
