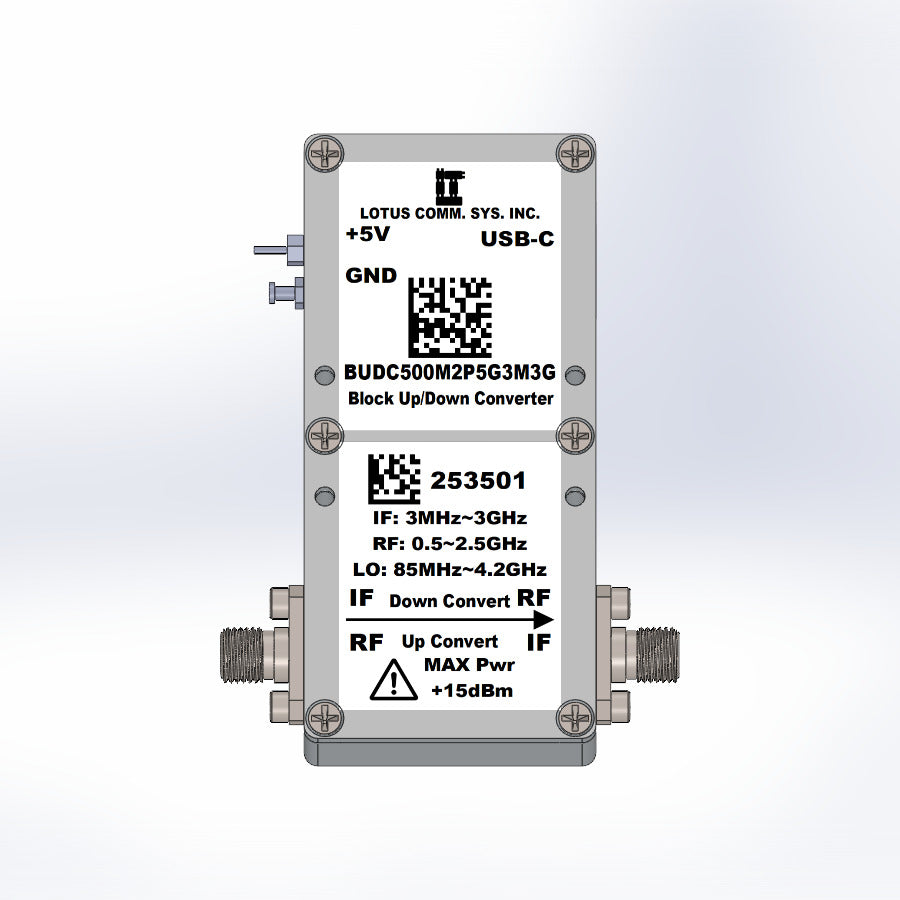

Block Up/Down Converter RF: 0.5~2.5GHz, IF: 3M~3GHz
$ 1,318.00 USD

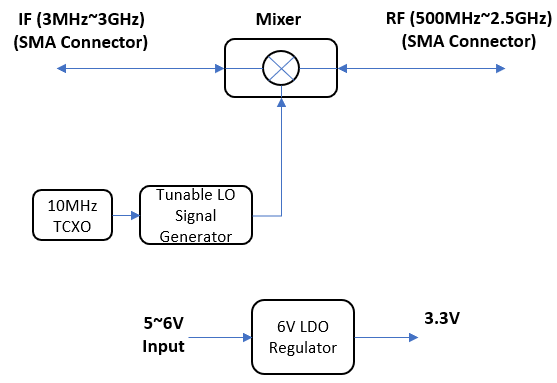

Part Number: BUDC500M2P5G3M3G is a 1 Channel 500M ~ 2.5GHz block up and down converter. IF frequency range is 3MHz to 3GHz. RF frequency range is 500MHz to 2.5GHz. An Integrated low phase noise LO supports tunable LO frequencies.

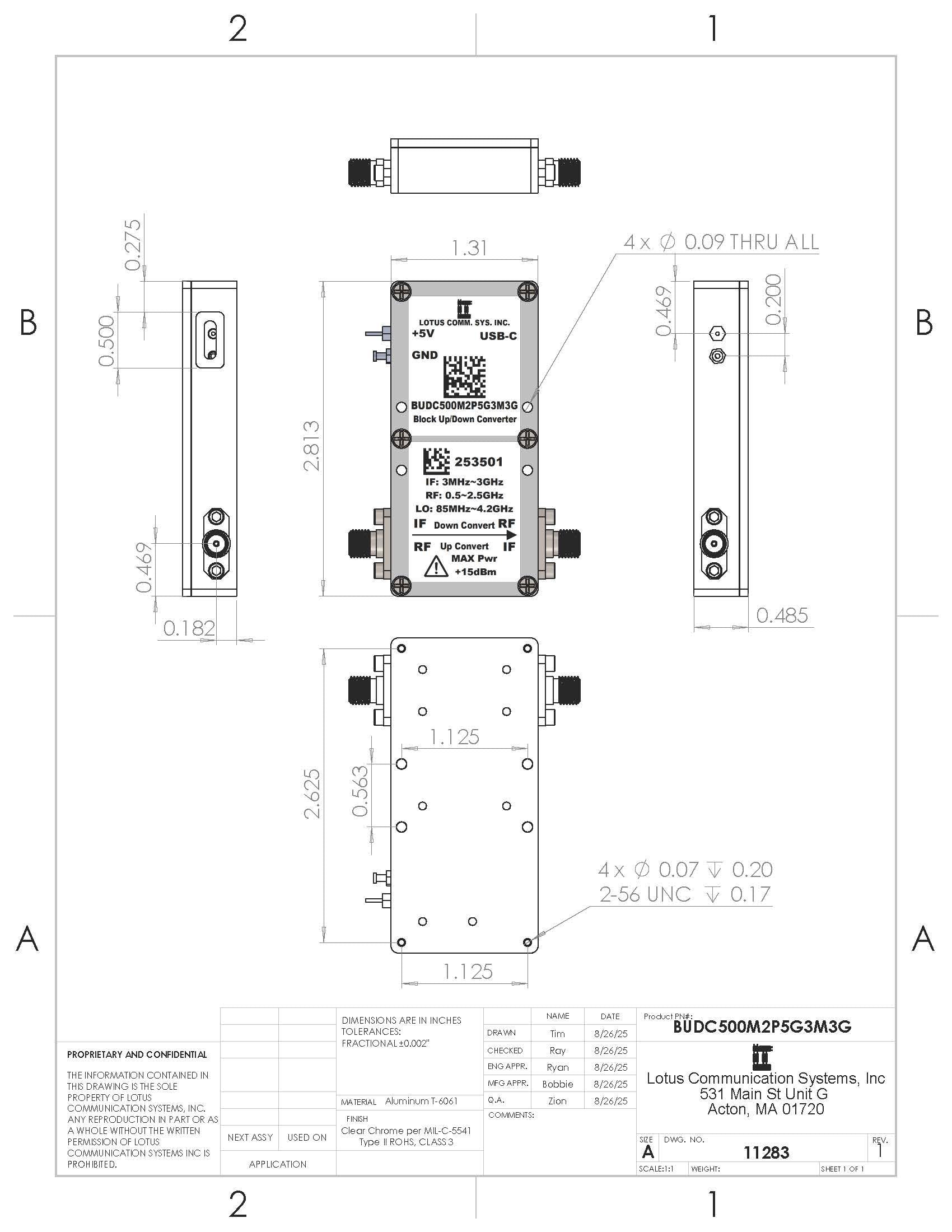

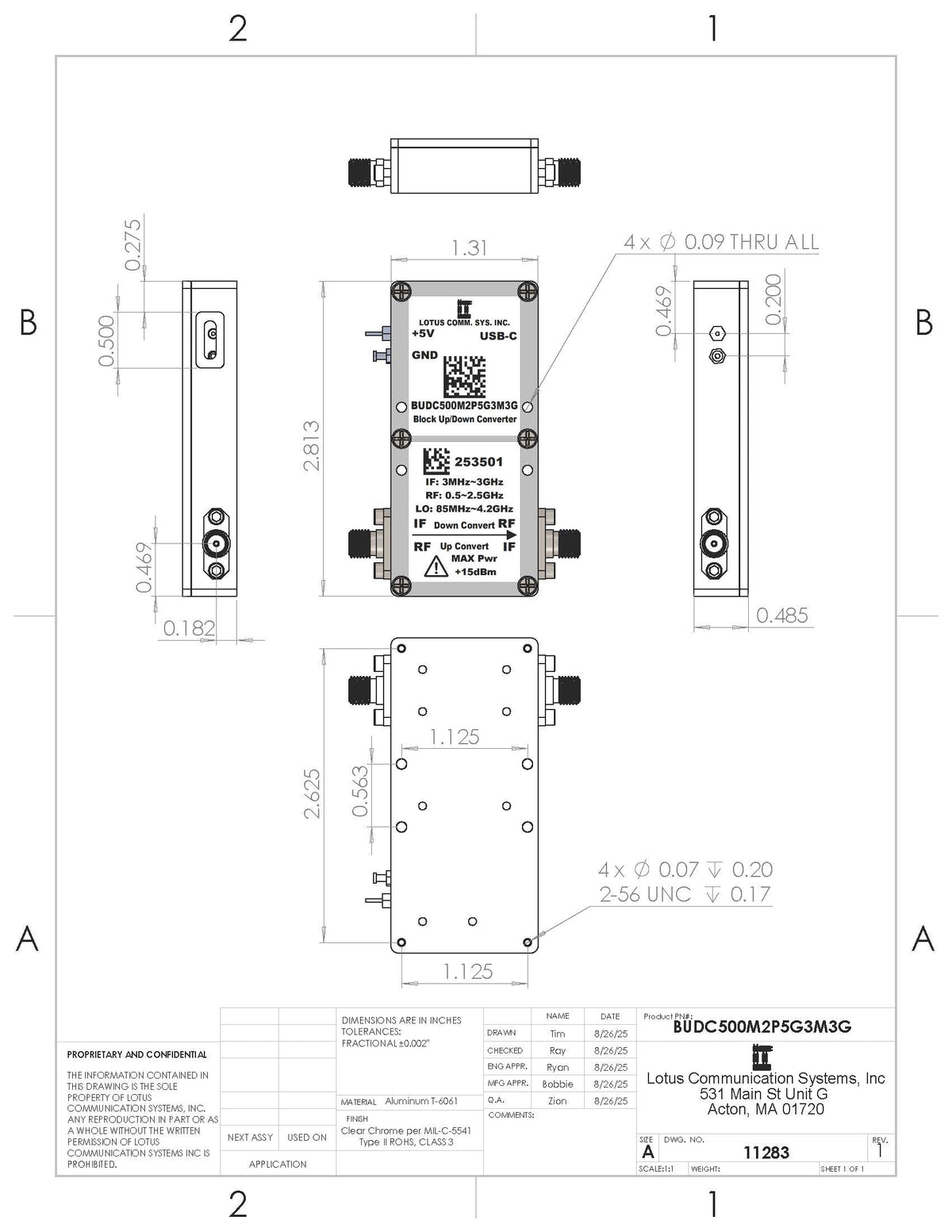

It has 7.0dB conversion loss typical with low LO-RF leakage <-30dBm. It can be powered by +5~6V terminal with 138 mA current draw. It has dimension of 1.313”x2.813x0.52”.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Up-conversion or Down-conversion
- RF Frequency 0.5G~2.5GHz
- IF Frequency 3MHz~3GHz
- Internal 10MHz Ref.
- Integrated LO (no External Reference/LO needed)
- Software Programmable LO Freq. (85MHz~4.2GHz)
- 7.0dB Conversion Loss Typ.
- Low LO‐RF Leakage: <‐30dBm
- Power by USB‐C or +5~6V Terminal/138mA current
- Operating Temperature: ‐40C to +60C
- ROHS Compliant
Applications
- Test Instrumentation
- Satellite Block Up/Down Conversion
- Wireless and Optical Communication
Resources (PDF Datasheet)
BUDC500M2P5G3M3G Datasheet
