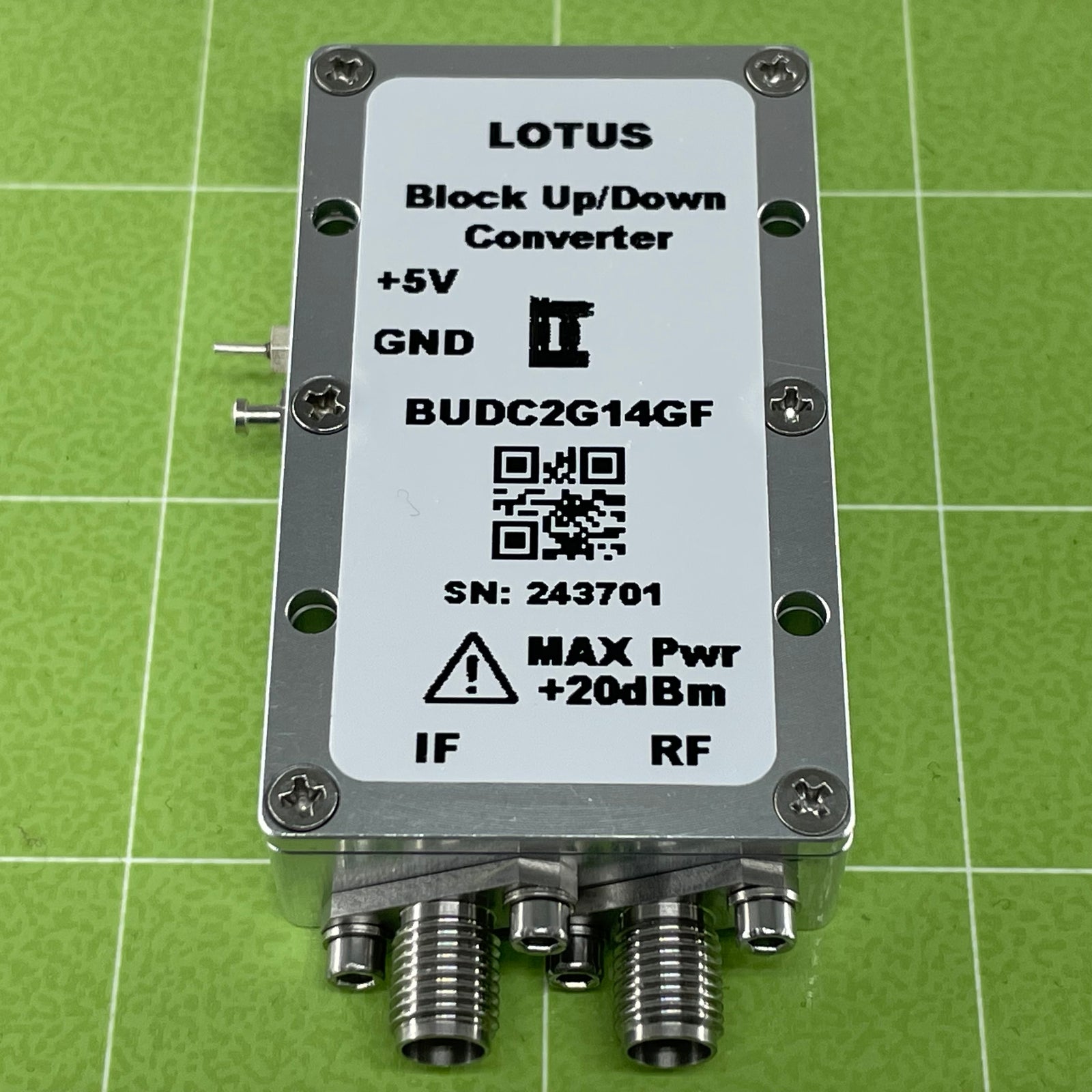

Block Up/Down Converter (2G~14GHz) w/ Fixed LO BUDC2G14GF
$ 1,648.00 USD

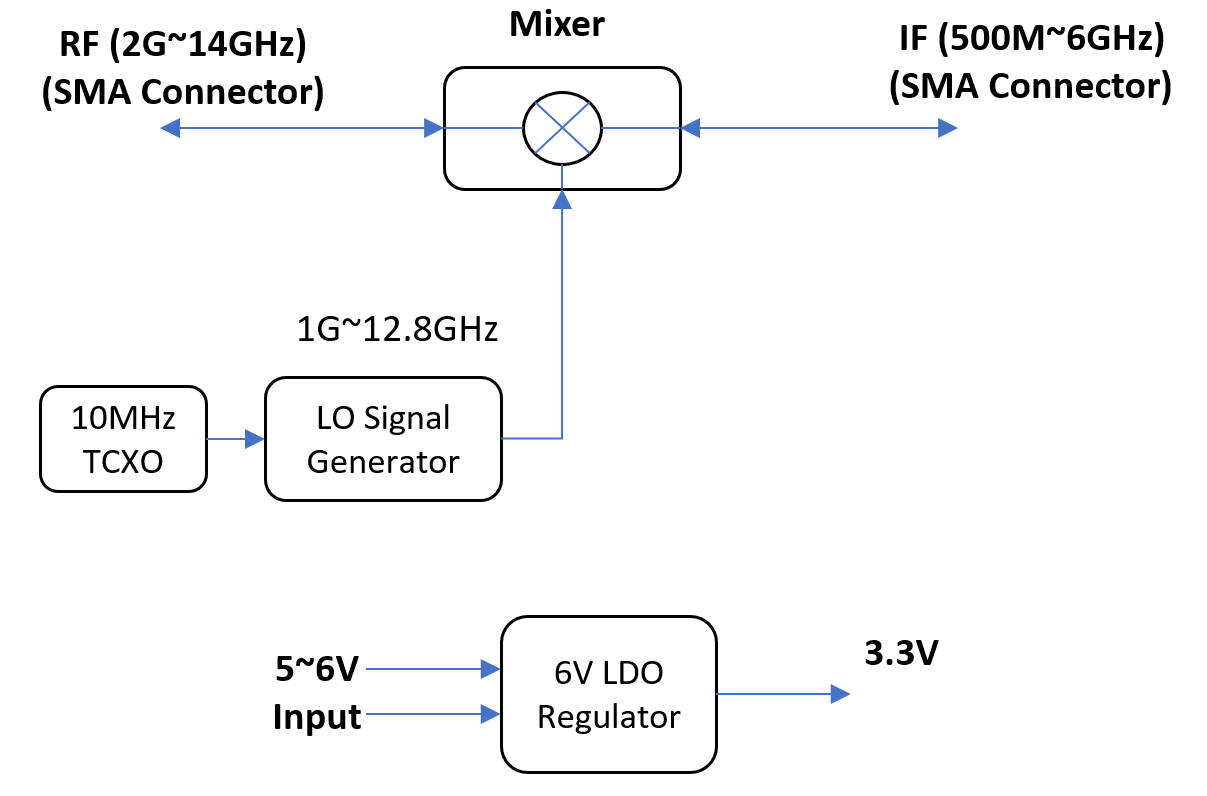

Part Number: BUDC2G14GF is a fixed LO block up/down converter. RF frequency range is 2GHz to 14GHz and IF frequency range is 500MHz to 6GHz. An Integrated low phase noise LO support LO frequencies from 1GHz to 12.8GHz.

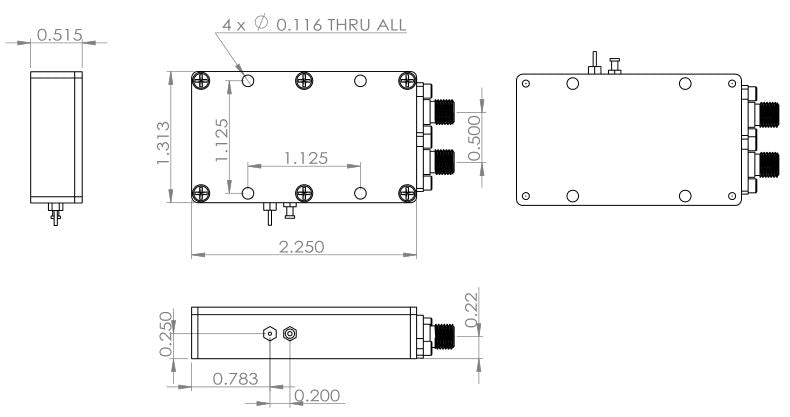

It has 8.0dB conversion loss at 5.8GHz with low LO‐RF leakage <30dBm. It can be powered either by USB‐C or +5~6V terminal with 235mA current draw. It has dimension of 2.25”x1.313”x0.52”.
The converter has broad applications for up/down conversion. SKU#: AK20-022I.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Up-conversion or Down-conversion
- RF Frequency 2GHz to 14 GHz
- IF Frequency 500MHz to 6 GHz
- Integrated LO (no External Reference/LO needed)
- Fixed LO Frequency (1G~12.8GHz)
- Low LO‐RF Leakage: <‐30dBm
- Power by +5~6V Terminal/235mA current
- Operating Temperature: ‐40C to +60C
- ROHS Compliant
Applications
- Microwave Transceivers/Point-to-Point Microwave
- Test Instrument
- Satellite Block Up/Down Conversion
- C, X and Ku Band RADAR
- Software Defined Radio/Ham Radio
Resources (PDF Datasheet)
BUDC2G14GF Datasheet
