  • Power Amplifier 4W 2300 to 2400 MHz 35.5dB Gain 36dBm P3dB SMA

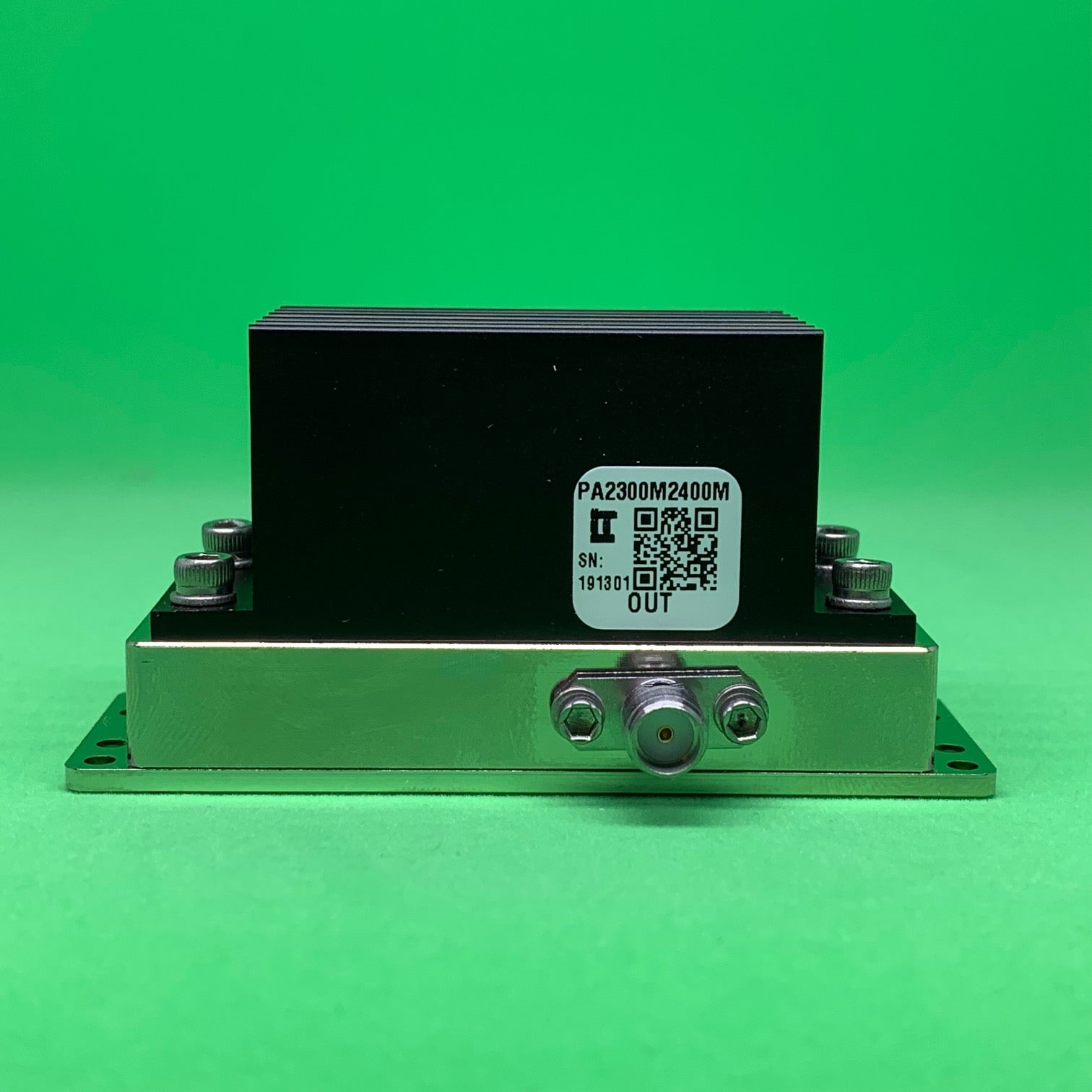

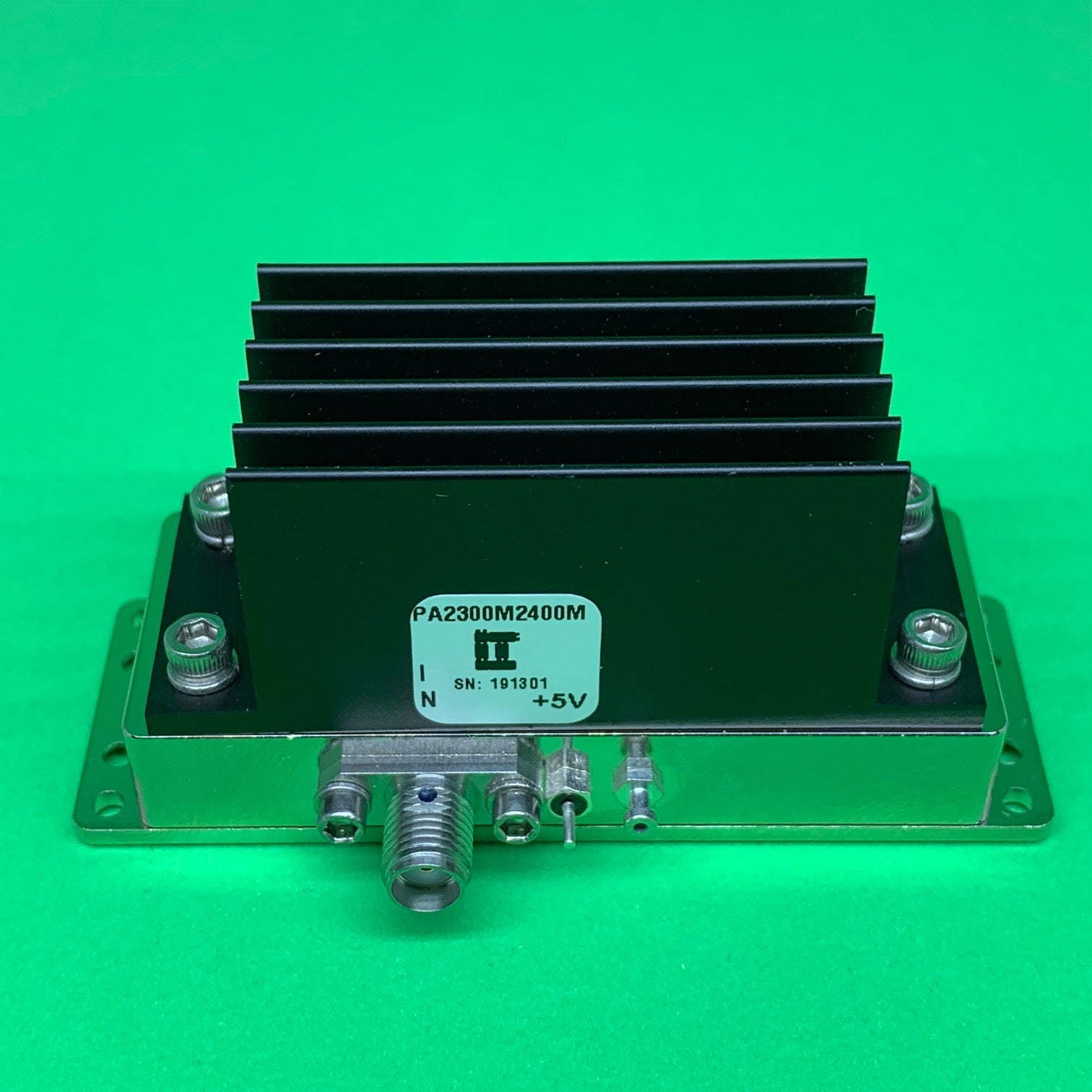

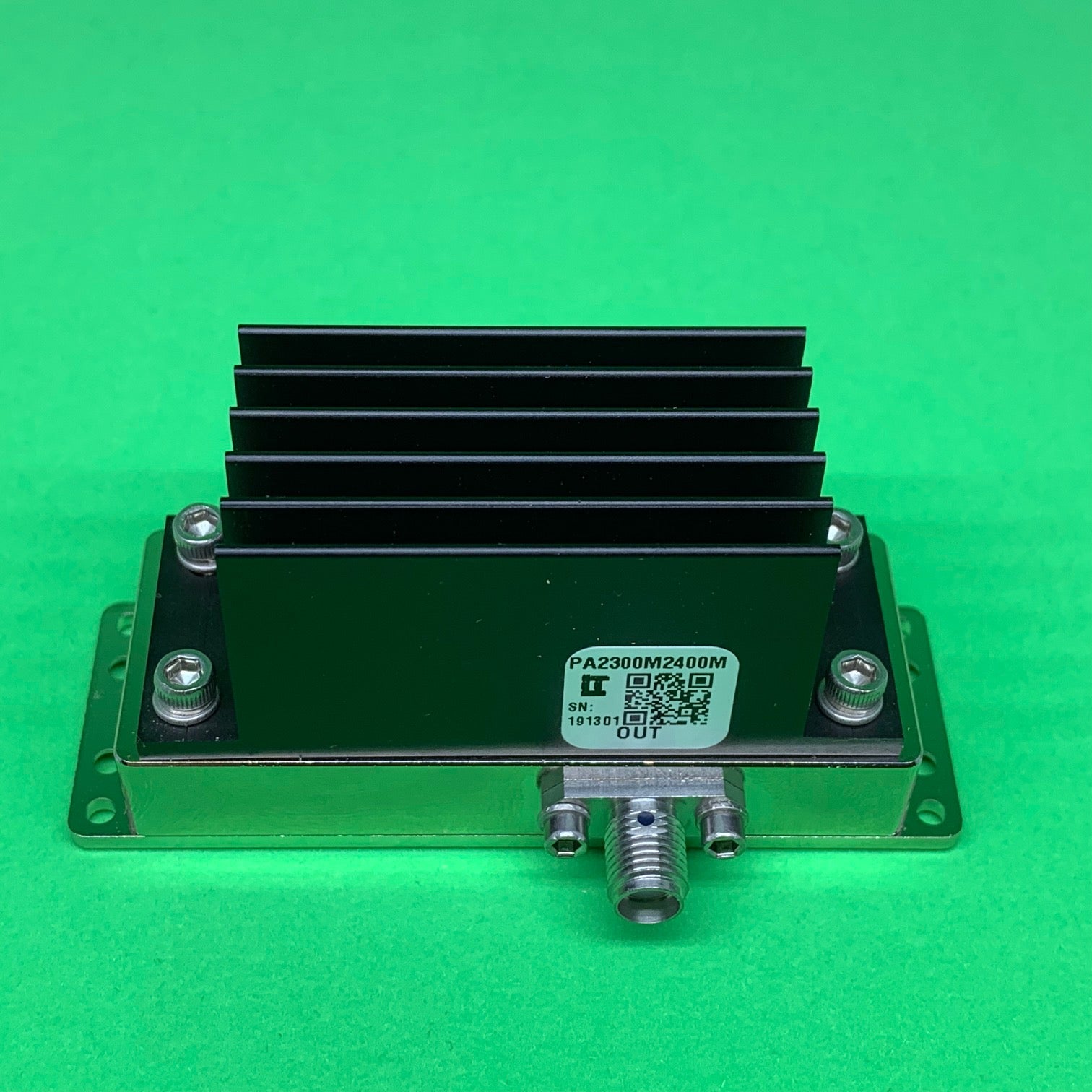

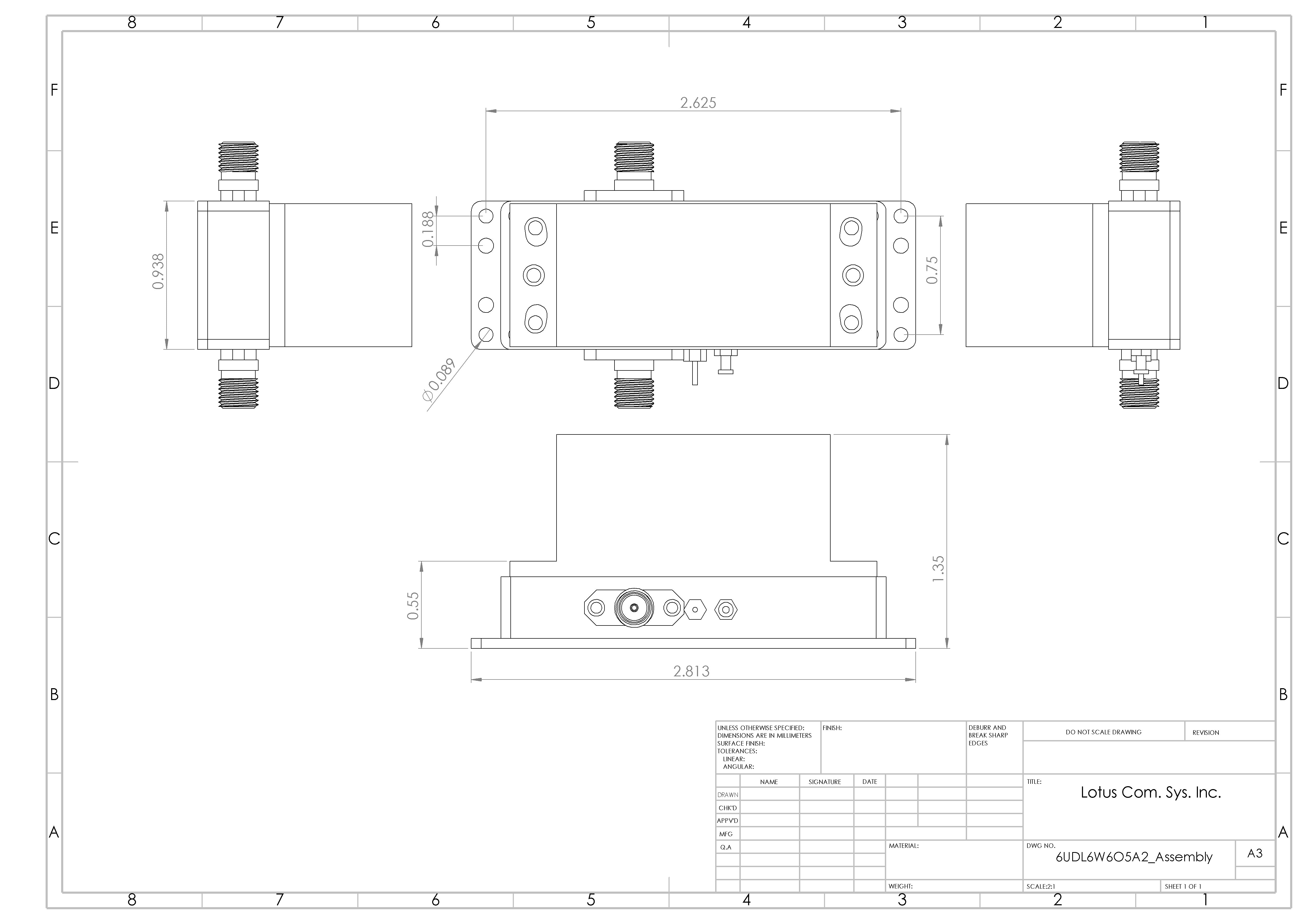

    PA2300M2400M is a high efficiency fully input/output matched power amplifier (PA) with high gain and linearity.  The compact 0.938”x2.813”x1.35” (including heatsink and mounting bracket) makes this 4W PA one of smallest in the market.  This PA is designed for frequency operating from 2300 to 2400 MHz.  The active biasing circuitry is integrated to compensate PA performance over temperature and voltage. The PA has high thermal performance heatsink for optimum operation.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, Massachusetts.

    SKU#: AK20_004S.

    5 items left

    Features

    • High Efficiency: PAE=36.5% @+28dBm
    • Gain @+28dBm output power: 35.5 dB

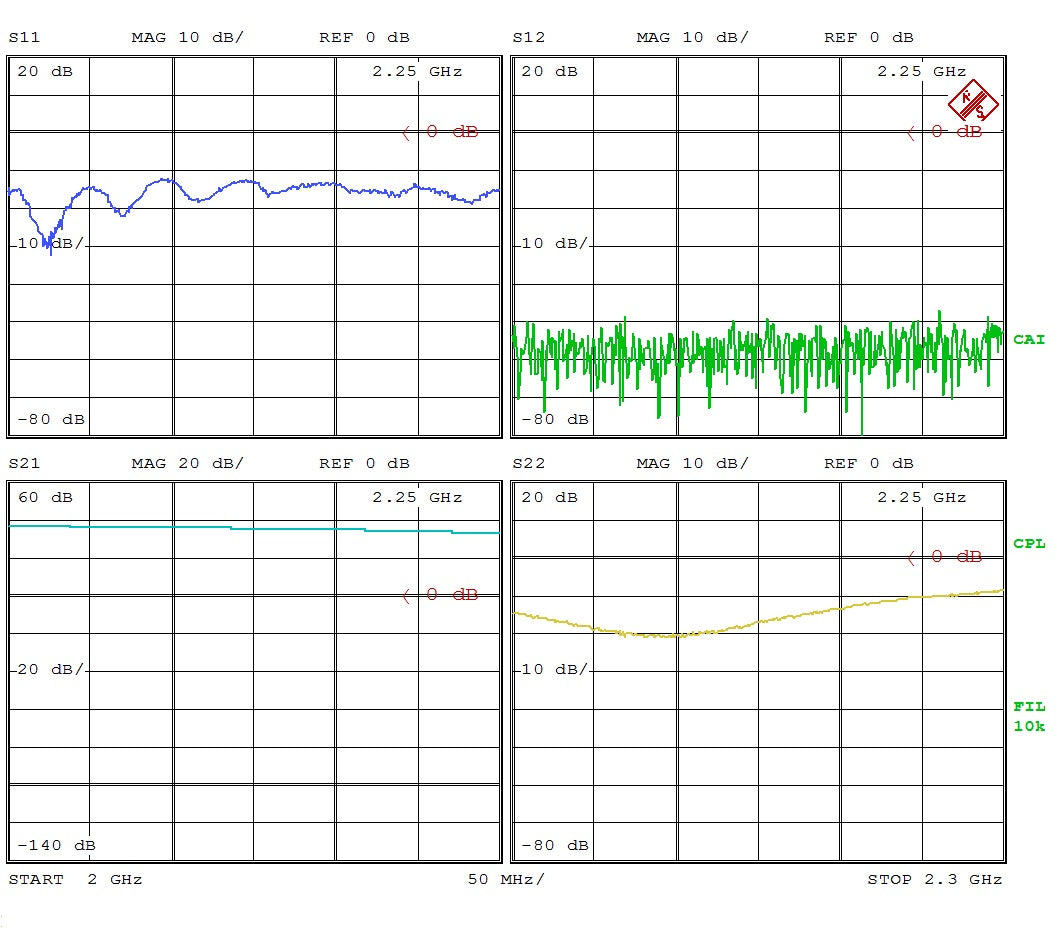

    • Excellent input and output return loss: to 50 Ω system
    • Integrated active bias: temperature compensated
    • Single DC Voltage: +5V
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • LTE Applications
    • General Purpose Wireless
    • Radar & VSAT
    • SDR & Ham Radio

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png PA2300M2400M Datasheet
