Low Pass Filter (LTCC Construction) Pass Band DC-2850MHz
$ 98.00 USD
Part Numbers: LPF2850M is Low Pass Filter with cut off frequency at 2850MHz.

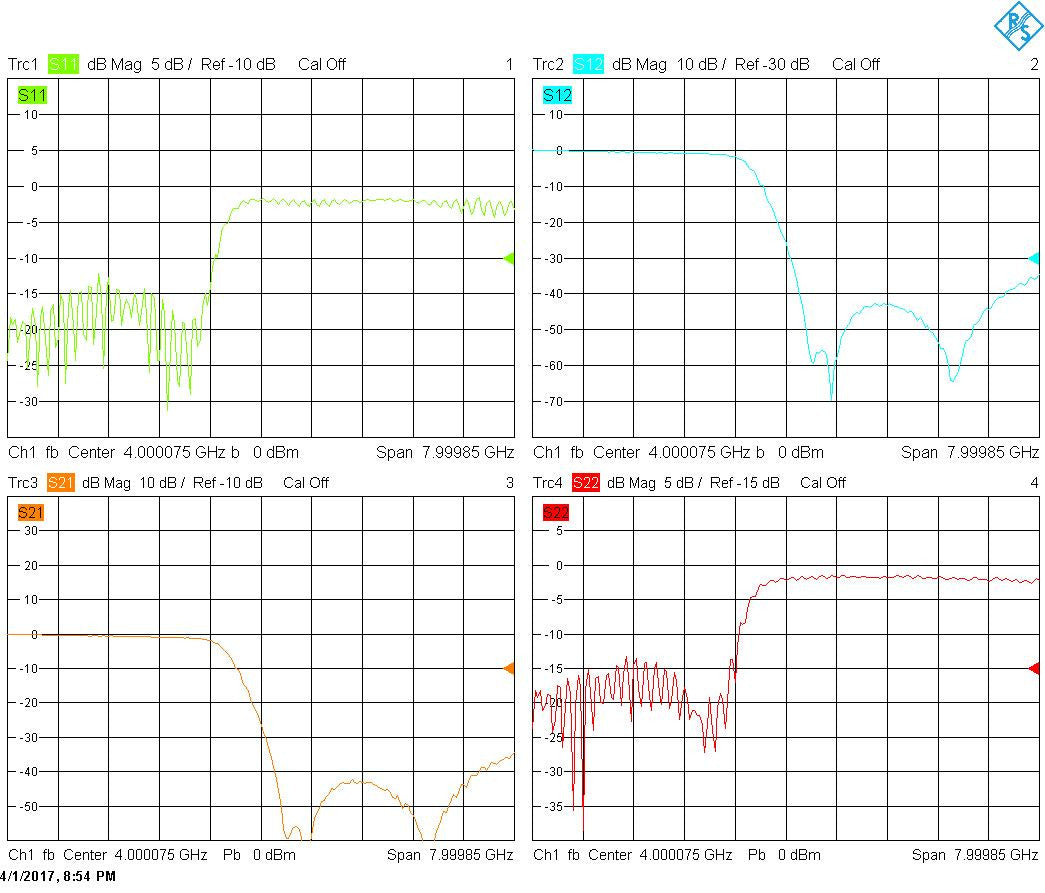

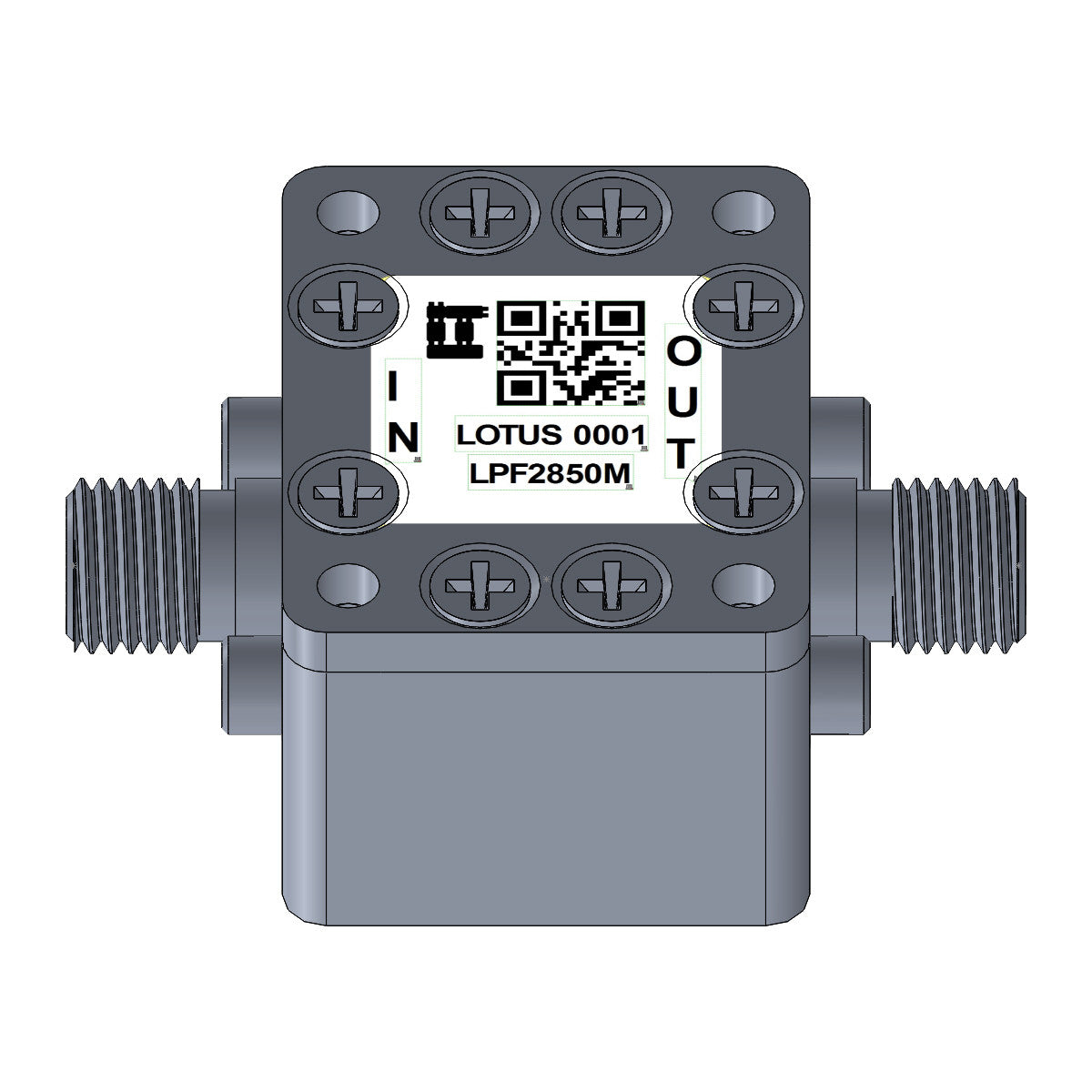

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (0 Hz to 8G Hz) is shown in third picture.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
Features
- Operational Temperature: -55 ~ 100℃
- Temperature Stable
- Cut Off Frequency: 2850M
- RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C
- Insertion Loss in Pass Band: (1.5dB Max)
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Harmonic Rejection
- Transmitters / Receivers / SDR
- Test Instrumentation
Resources (PDF Datasheet)
LPF2850M Datasheet
