Low Pass Filter (LTCC Construction) Pass Band DC-2500MHz
Low Pass Filter (LTCC Construction) Pass Band DC-2500MHz
Low Pass Filter (LTCC Construction) Pass Band DC-2500MHz
Low Pass Filter (LTCC Construction) Pass Band DC-2500MHz
Low Pass Filter (LTCC Construction) Pass Band DC-2500MHz
Low Pass Filter (LTCC Construction) Pass Band DC-2500MHz

Low Pass Filter (LTCC Construction) Pass Band DC-2500MHz

$ 88.95 USD

5 items left

LPF2500M is a Low Pass Filter (LTCC Construction) Pass Band DC-2500 MHz. SKU#: AK28_001AA.

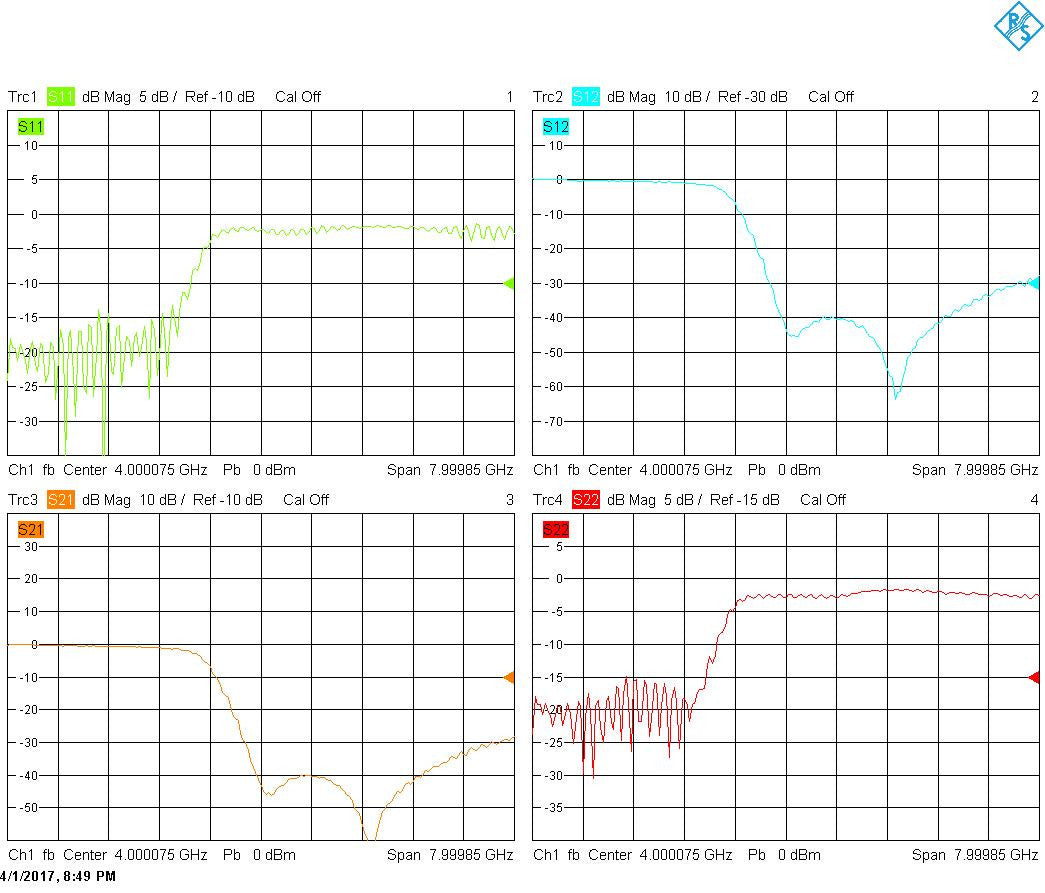

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (0 Hz to 8 GHz) is shown in third picture.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

Collections: Low Pass Filter


Features

  • Operational Temperature: -55 ~ 100C
  • Temperature Stable
  • Cut Off Frequency: 2500M
  • RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C
  • Insertion Loss in Pass Band: (1.5dB Max)
  • High Quality SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Harmonic Rejection
  • Transmitters / Receivers / SDR
  • Test Instrumentation

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LPF2500M Datasheet
