LNA700M6P0G

Amplifier LNA 0.4dB NF 0.7GHz to 6GHz 20dB Gain 20dBm P1dB SMA

20 items left

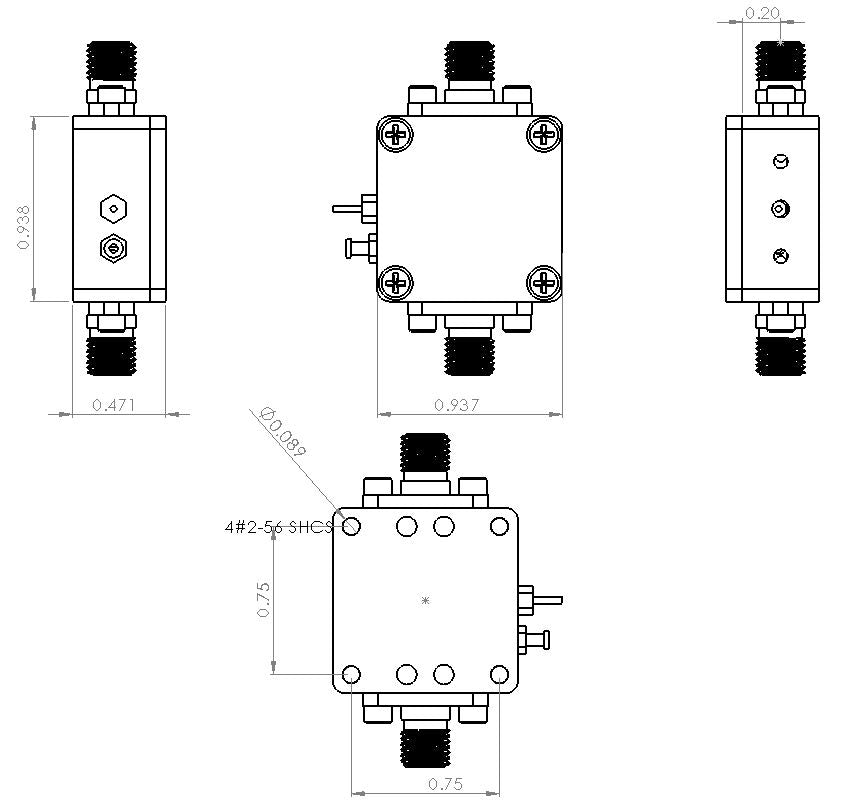

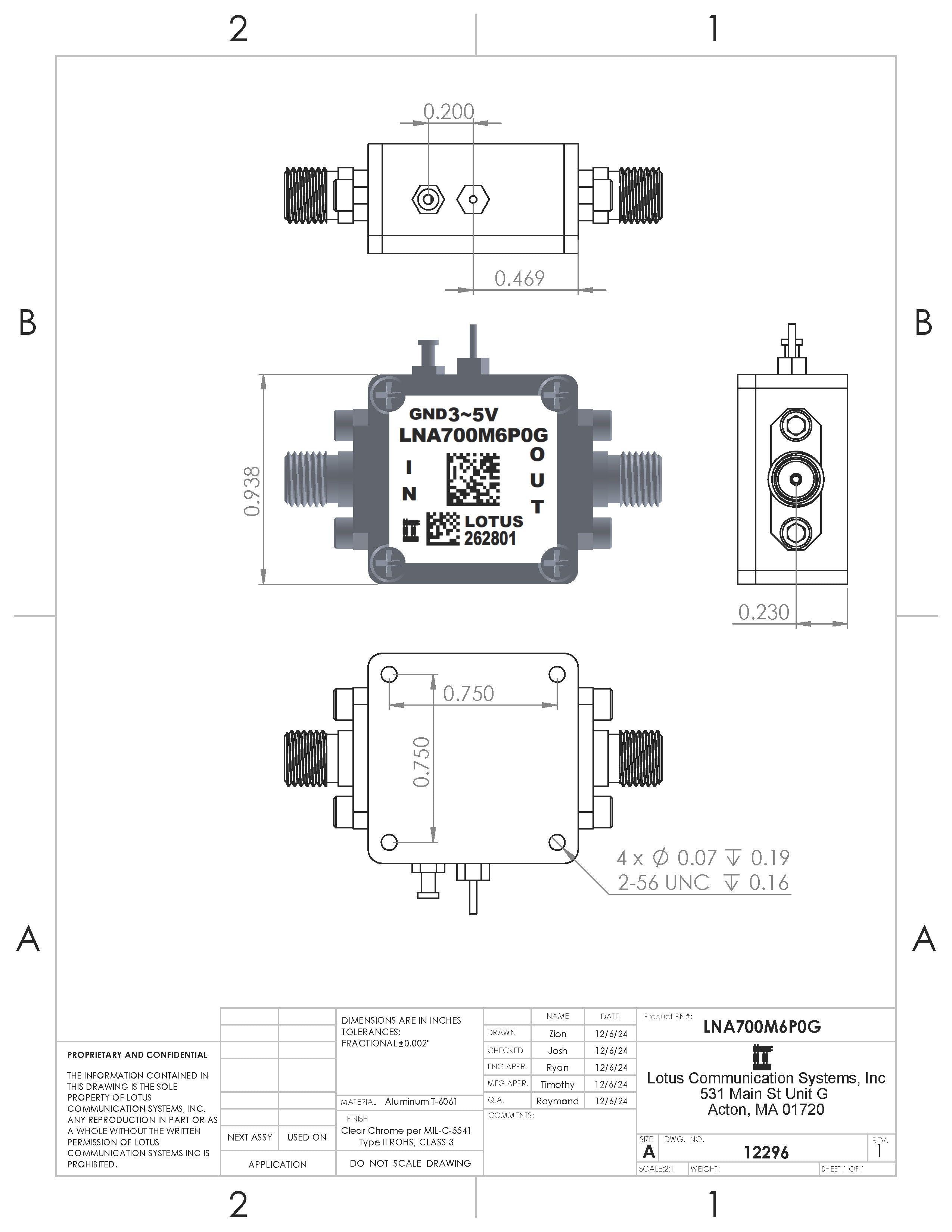

LNA700M6P0G is a high-linearity, ultra low noise amplifier in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2). At 1.95 GHz, the amplifier typically provides 20 dB gain, +35 dBm OIP3 at a 70 mA bias setting, and 0.4 dB noise figure. The LNA can be biased from a single supply +3.3V to +5V.

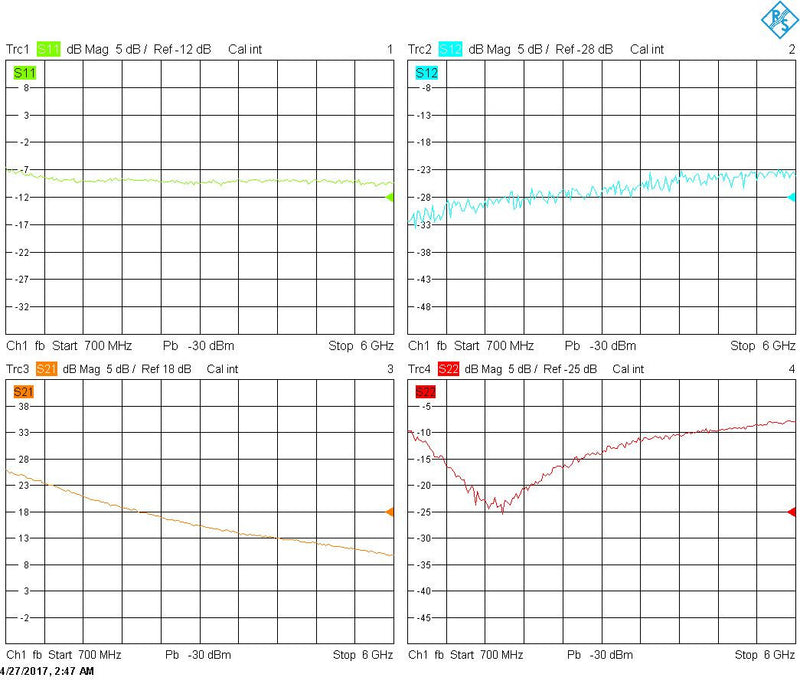

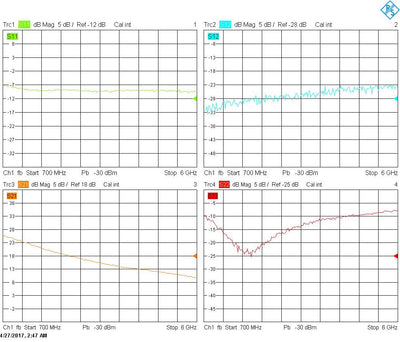

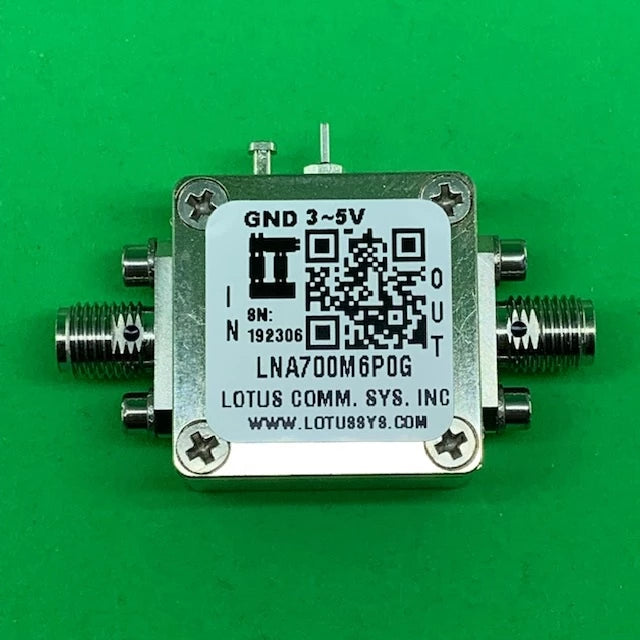

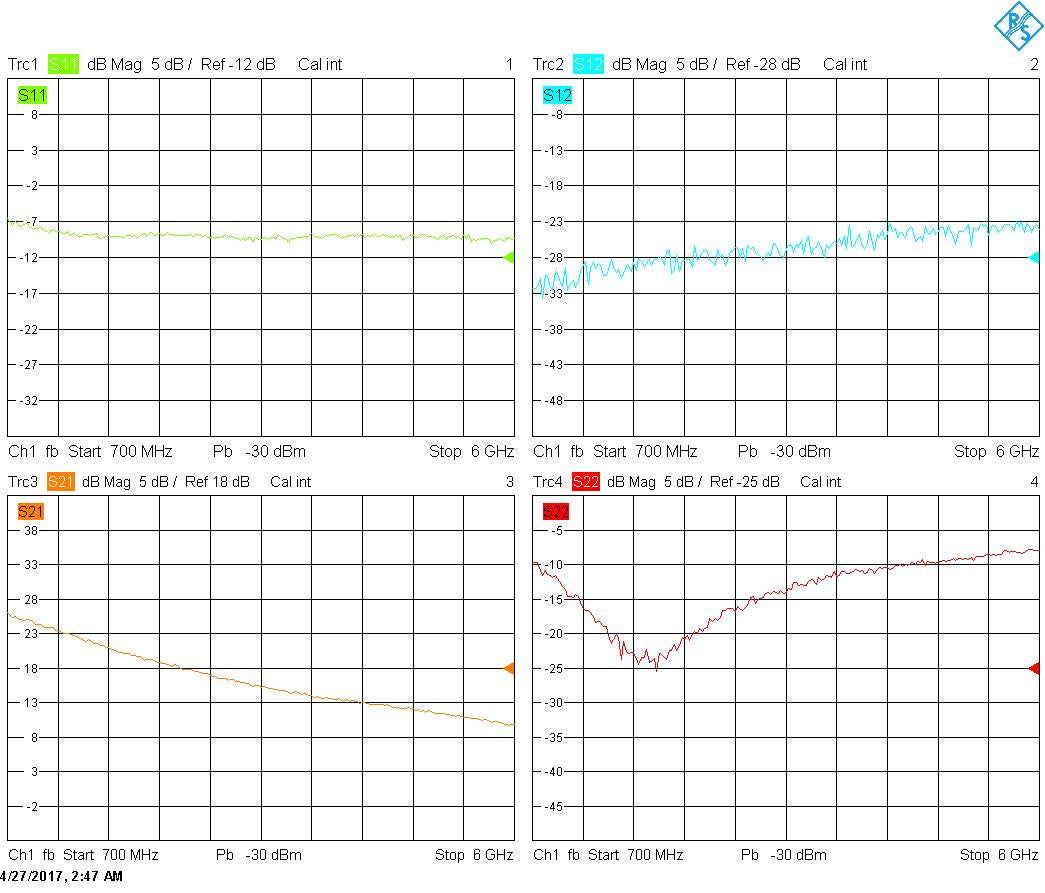

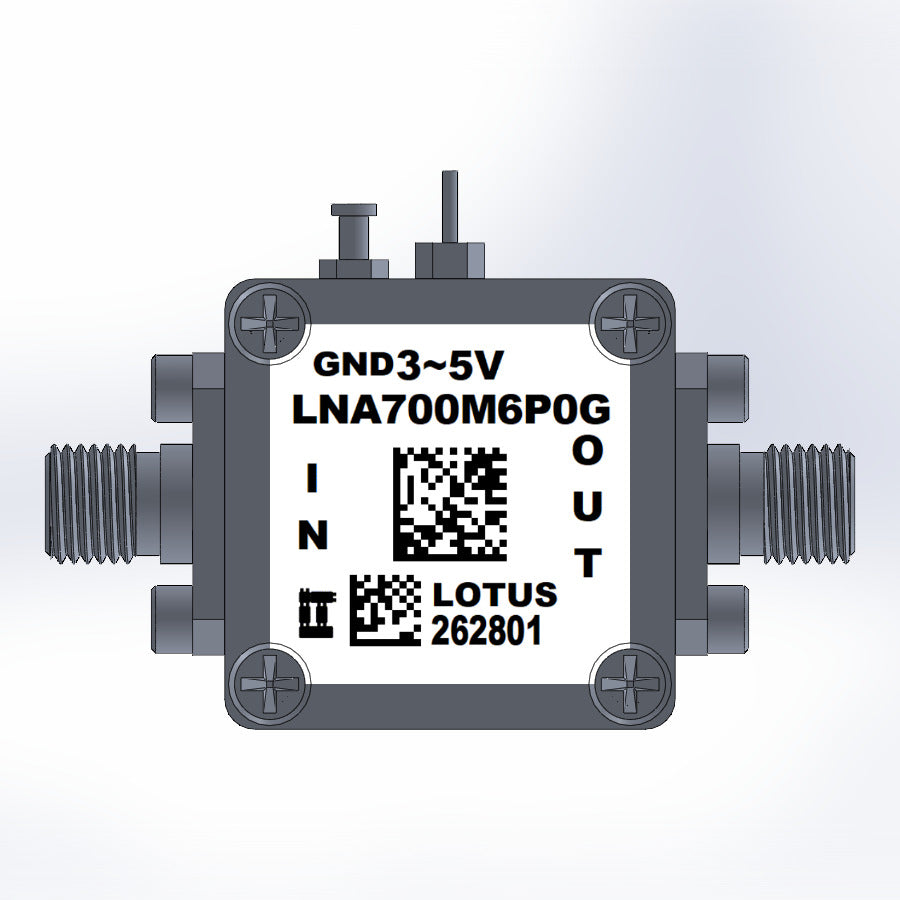

Listed pictures include Product Picture and S Parameter from 700M to 6GHz.

SKU#: AK20-002H


Features

  • Frequency Range: 700 MHz to 6 GHz
  • Noise Figure: typical 0.4 dB @ 1.95 GHz
  • Gain: 20 dB Gain at 1.95 GHz
  • Output P1dB: +22 dBm CW
  • Output IP3: +35 dBm
  • DC Voltage: +3.3 to +5V
  • Operating Current: 70 mA
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Repeaters/DAS
  • Mobile Infrastructure
  • LTE/WCDMA/CDMA/GSM
  • General Purpose Wireless
  • SDR & Ham Radio
  • Test Instrumentation
