LNA6G26P5G

Amplifier LNA 2.5dB NF 6 - 26.5 GHz 20dB Gain 10dBm P1dB 2.92mm

5 items left

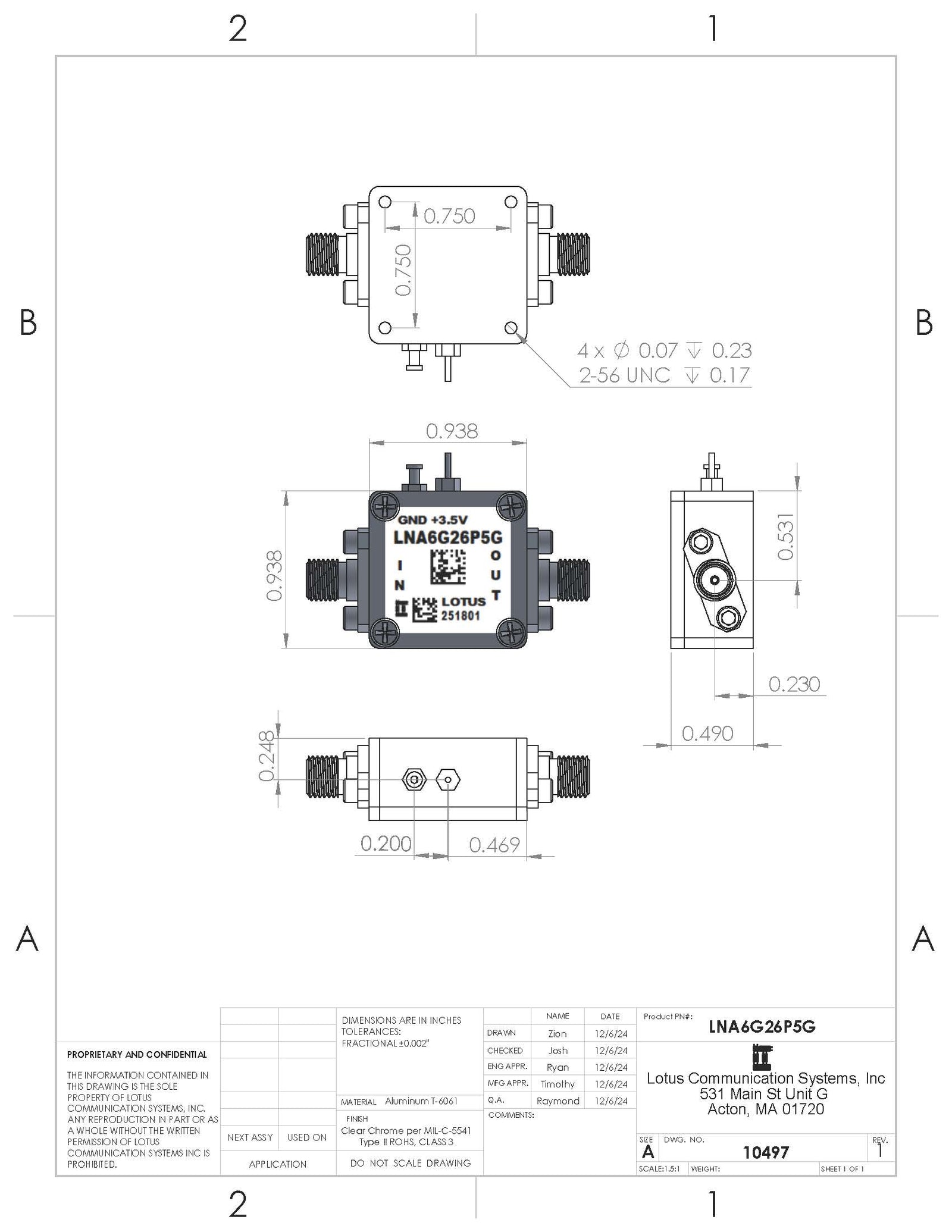

LNA6G26P5G is a broadband, MMIC low noise amplifier with 20 dB typical gain from 6 to 26.5 GHz in a small 15/16”x15/16”x0.47” shielded RF enclosure (PN: 6UDD2W6O5A2). Its output 1dB compression point is +10dBm and third order linearity (OIP3) is typically 18 dBm.

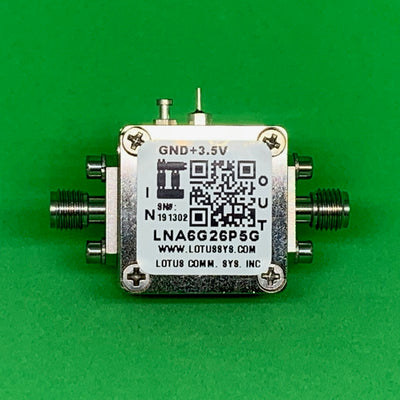

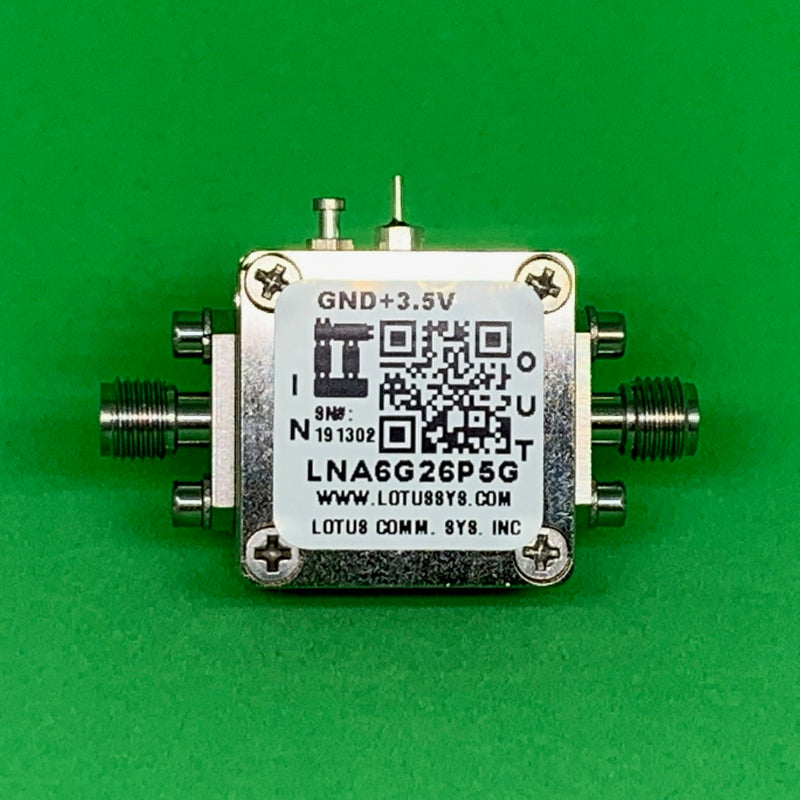

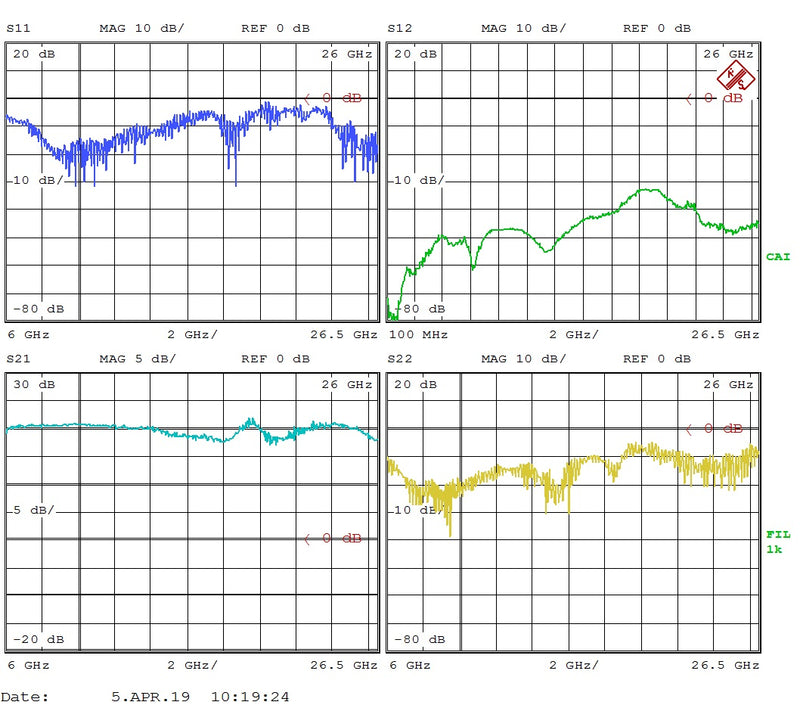

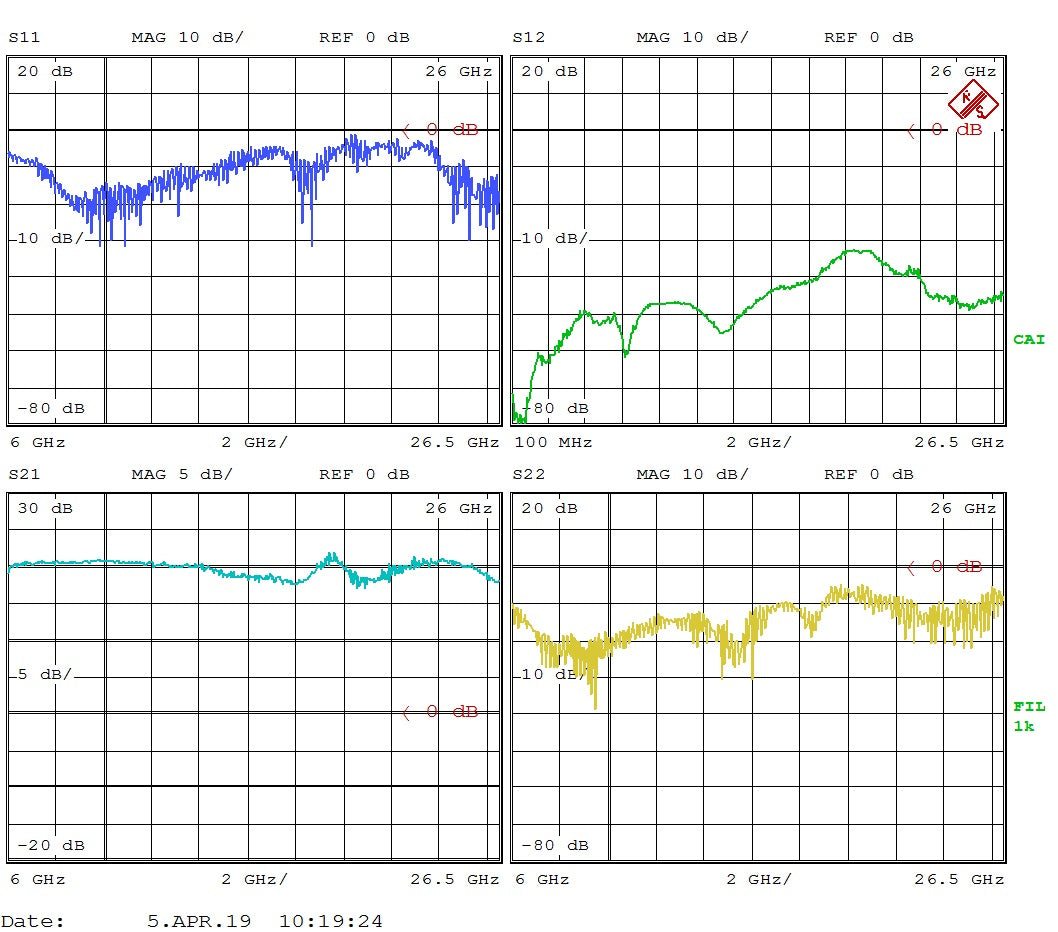

Listed pictures include Product Picture and S Parameter from 6 - 26.5 GHz.

SKU#: AK20_001J


Features

  • Frequency Range: 6 - 26.5 GHz
  • Noise Figure: typical 2.5dB
  • Gain: typical 20dB
  • Output P1dB: 10 dBm
  • Output IP3: 18 dBm
  • DC Voltage: +3.5V
  • Operating Current: 45mA
  • Stainless Steel 2.92mm Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Test Instrumentation
  • Wideband A/D System
  • General Purpose Wireless
  • Radar & VSAT
  • SDR & Ham Radio
