LNA600M6GFG

Amplifier LNA 0.9dB NF 600MHz to 6GHz 21dB Gain 19dBm P1dB 2dB Flat Gain SMA

13 items left

LNA600M6GFG is a flat gain, high-linearity, ultra low noise amplifier in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2). The LNA provides a 2dB flat gain (peak-to-peak) from 3 to 6 GHz. At 5.5 GHz, the amplifier typically provides 21 dB gain, +35.5 dBm OIP3 at a 56 mA bias setting, and 0.95 dB noise figure. The LNA can be biased from a single supply +3.3V to +5V.

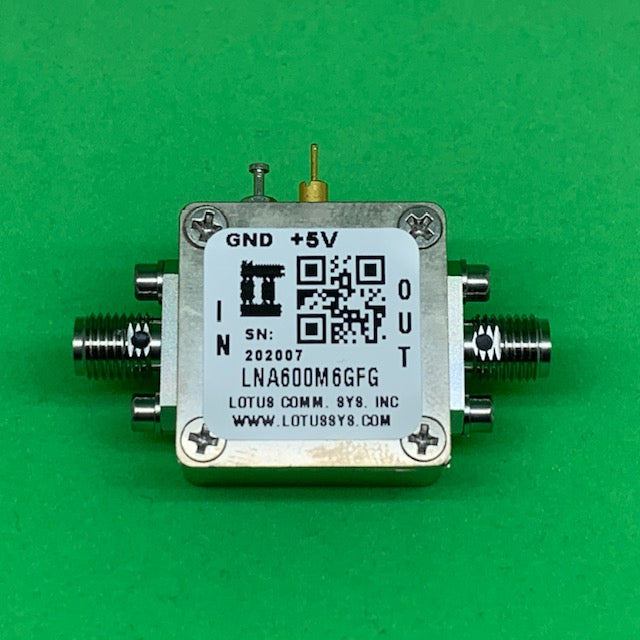

This LNA includes the RF Enclosure as shown in picture.

SKU#: AK20_001S


Features

  • Frequency Range: 600 MHz to 6 GHz
  • Noise Figure: typical 0.95 dB @ 5.5 GHz
  • Gain: 21 dB Gain at 5.5 GHz
  • Output P1dB: +19 dBm CW
  • +35.5 dBm OIP3 at 65mA current
  • DC Voltage: +3.3 to +5V
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • 4.5G, 5G Massive MIMO
  • Repeaters/DAS
  • Mobile Infrastructure
  • LTE/WCDMA/CDMA/GSM
  • General Purpose Wireless
  • SDR & Ham Radio
  • Test Instrumentation

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.pngLNA600M6GFG Datasheet
