LNA6004P2GH

Amplifier LNA 0.67dB NF 600MHz to 4.2GHz 19dB Gain 21dbm P1dB 2dB Flat Gain SMA

2 items left

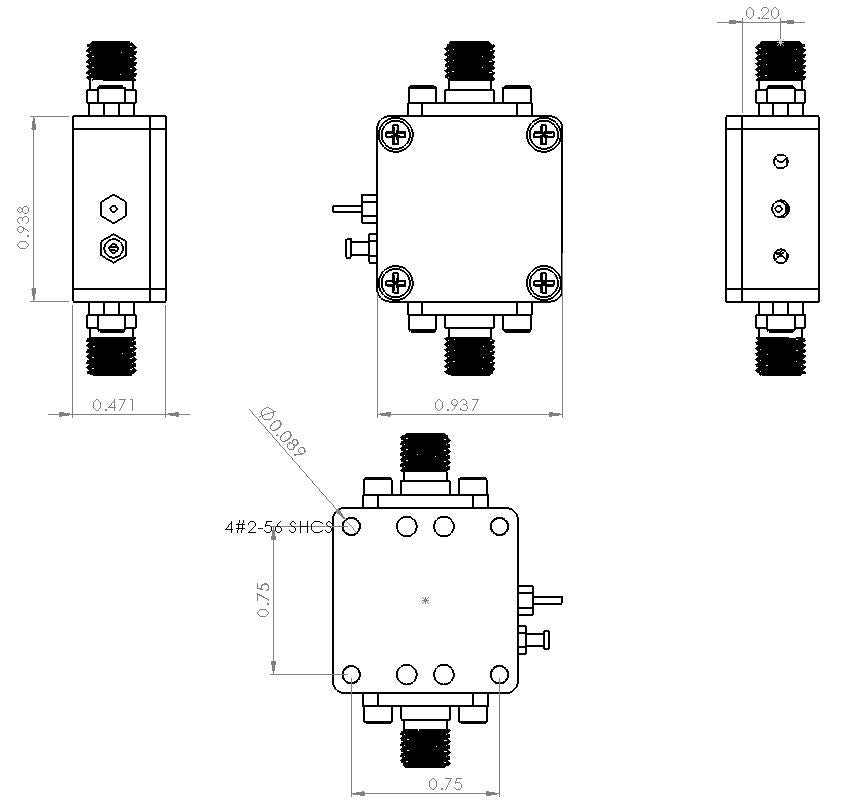

LNA6004P2GH is a flat-gain, high-linearity, ultra low noise amplifier in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2). The LNA provides 2dB flat gain (peak-to-peak) over a wide bandwidth from 1.5 to 4 GHz. At 2.6 GHz, the LNA typically provides 20 dB gain, high +41.5 dBm output IP3 at a 120 mA bias setting, and 0.6 dB noise figure. The LNA can be biased from +3.3V to +5V.

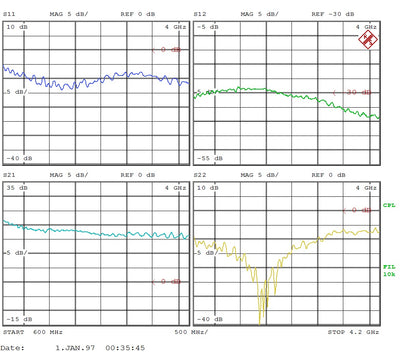

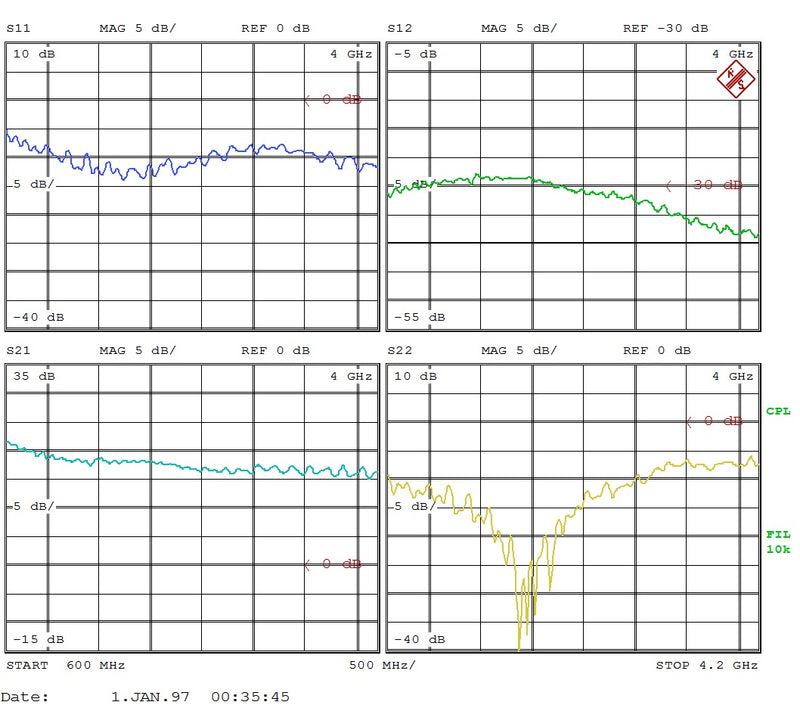

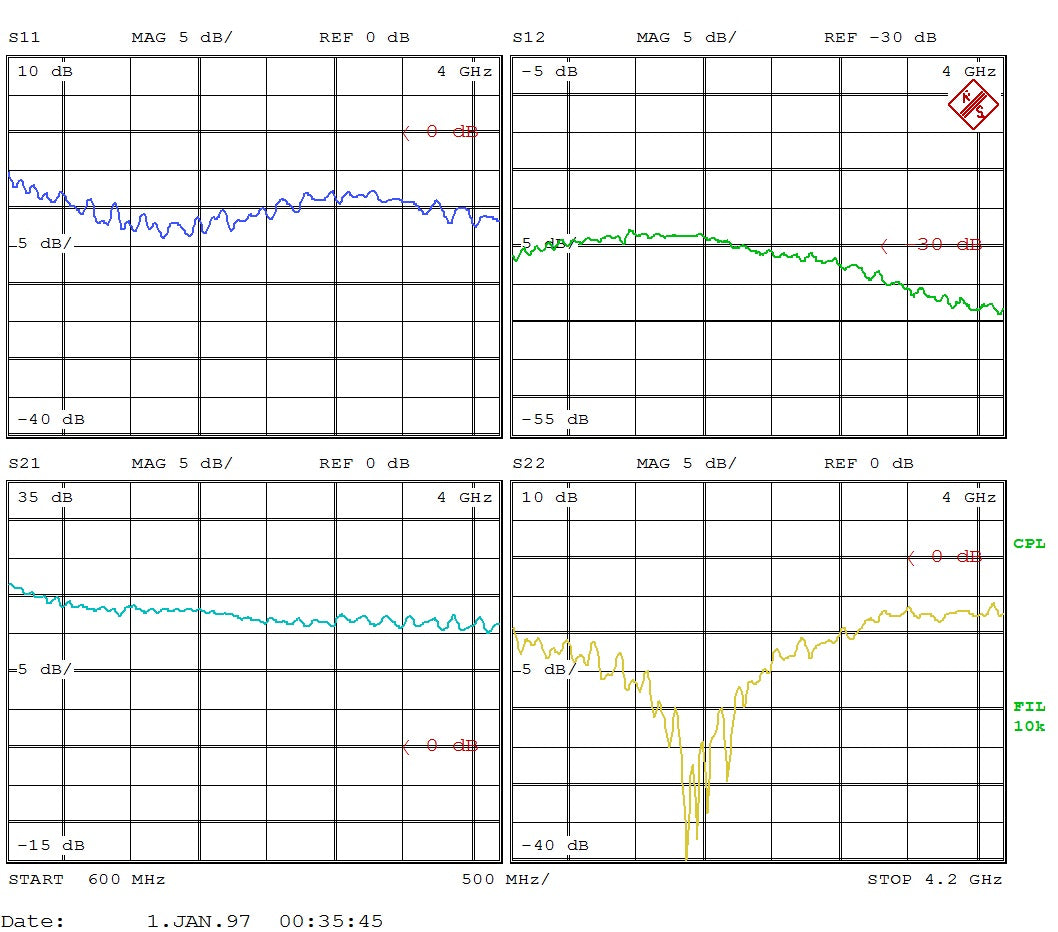

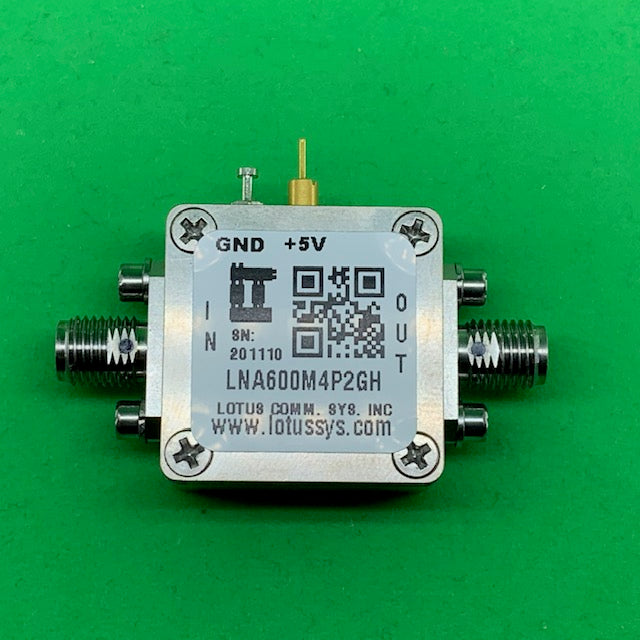

Listed pictures include Product Picture and S Parameter from 600M to 4.2 GHz.

SKU#: AK20_002L


Features

  • Frequency Range: 0.6 - 4.2 GHz
  • Noise Figure: 0.67dB @ 2.6 GHz
  • Gain: >19 dB gain across 1.5 to 4 GHz
  • Output P1dB: +21.7 dBm
  • Output IP3: +41.5 dBm
  • DC Voltage: +3.3V to +5V
  • Operating Current: 120mA
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Repeaters/DAS
  • Mobile Infrastructure
  • LTE/WCDMA/CDMA/GSM
  • General Purpose Wireless
  • SDR & Ham Radio
  • Test Instrumentation
