Low Noise Amplifier 1.3dB NF 0.5G~8GHz 21dB Gain 20dBm P1dB SMA Wide Voltage

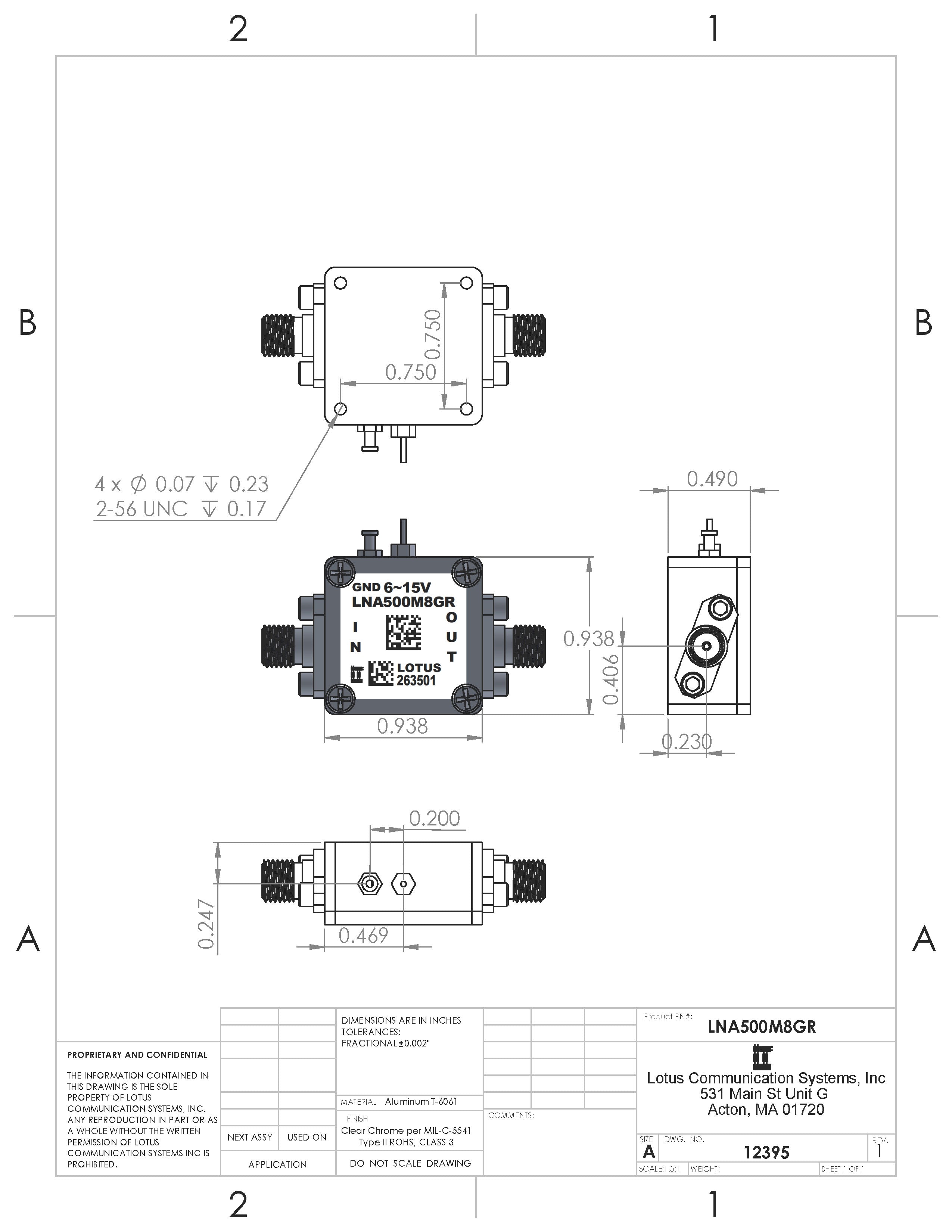

Part Number: LNA500M8GR (SKU#: AK20-019Q) is a PHEMT based wideband, low noise MMIC amplifier with combination of low noise, high output IP3 and flat gain over wideband range in a small 15/16”x15/16”x0.6” shielded RF enclosure. The LNA provides +/-1.5dB flat gain (peak-to-peak) over a wide bandwidth from 0.5 to 8 GHz. The LNA typically provides 21 dB gain, high +35 dBm output IP3 at a 60 mA bias setting, and 1.3 dB noise figure. The LNA can be biased from +6V to +15V.

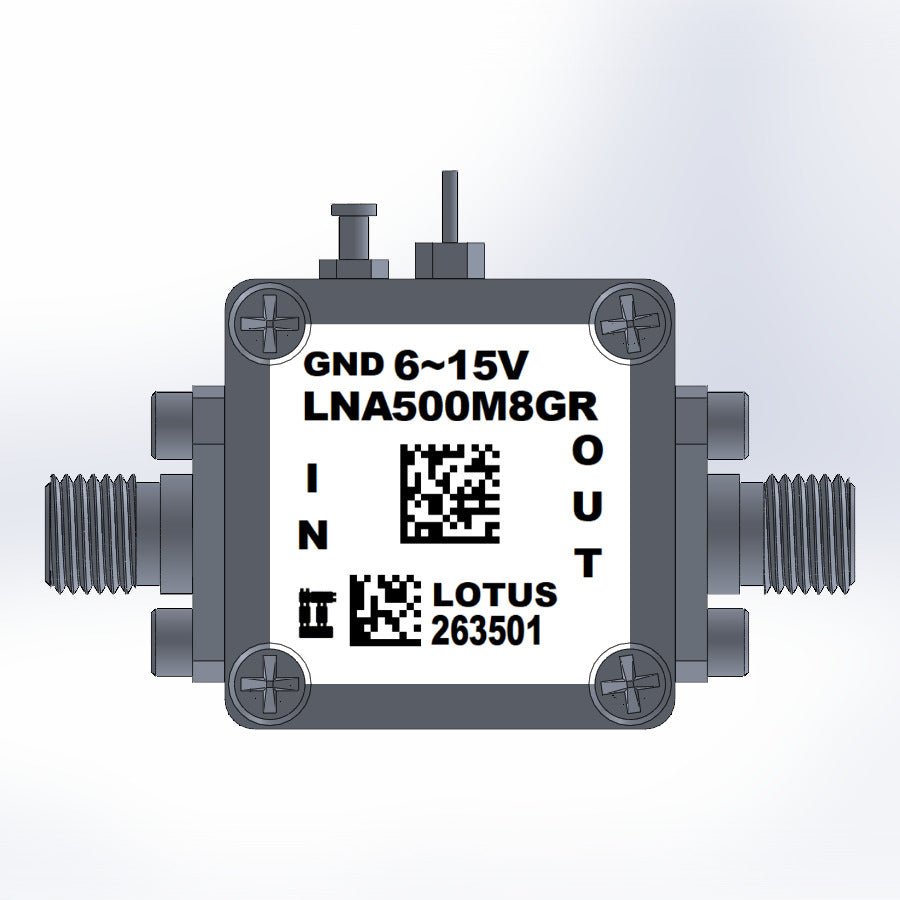

Listed pictures include Product Picture and S Parameter from 500M to 8GHz.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
