  • Low Noise Amplifier 1.3dB NF 0.5GHz to 8GHz 21dB Gain 20dBm P1dB SMA

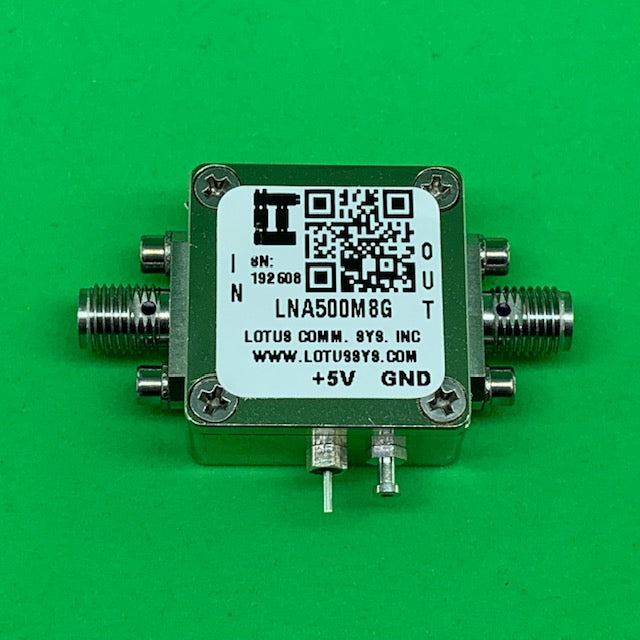

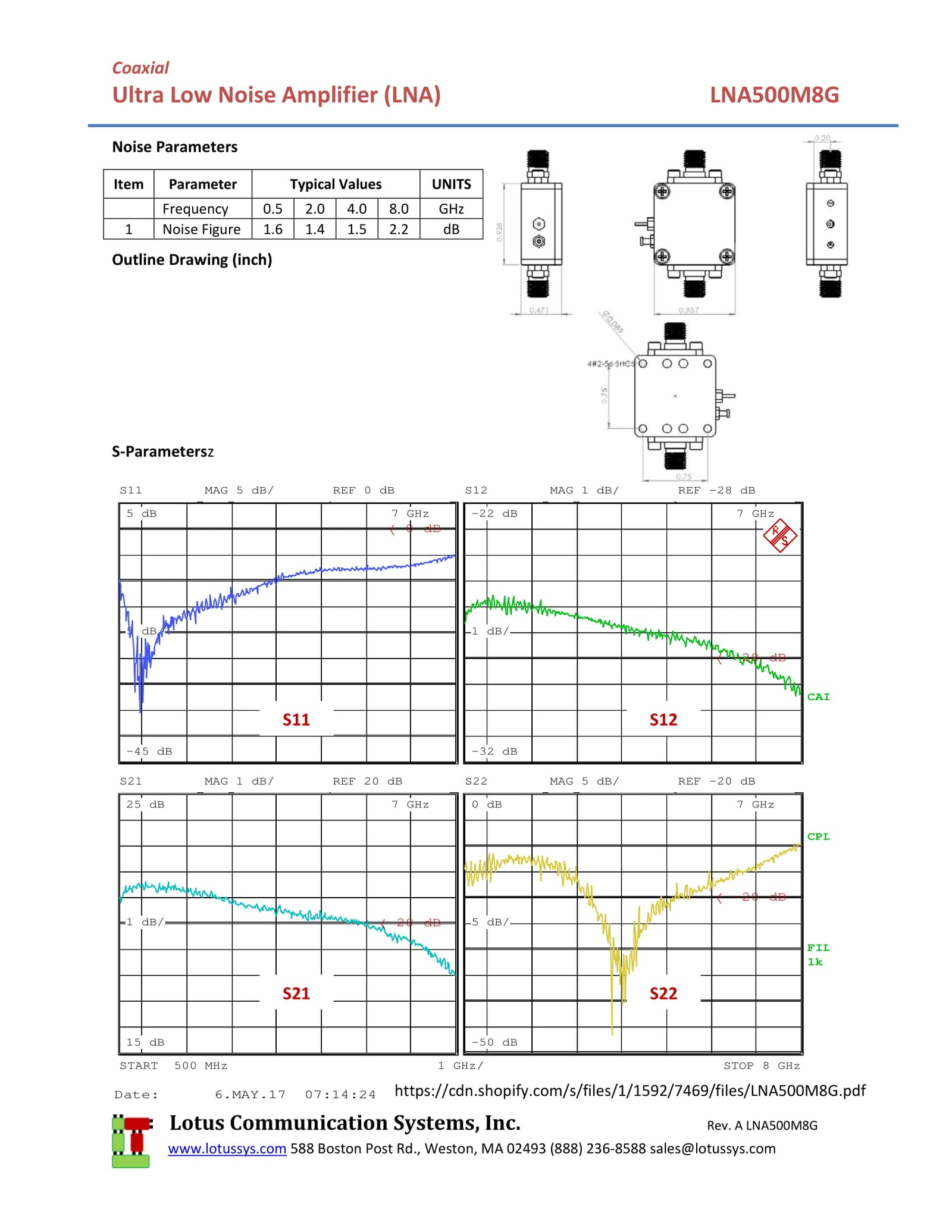

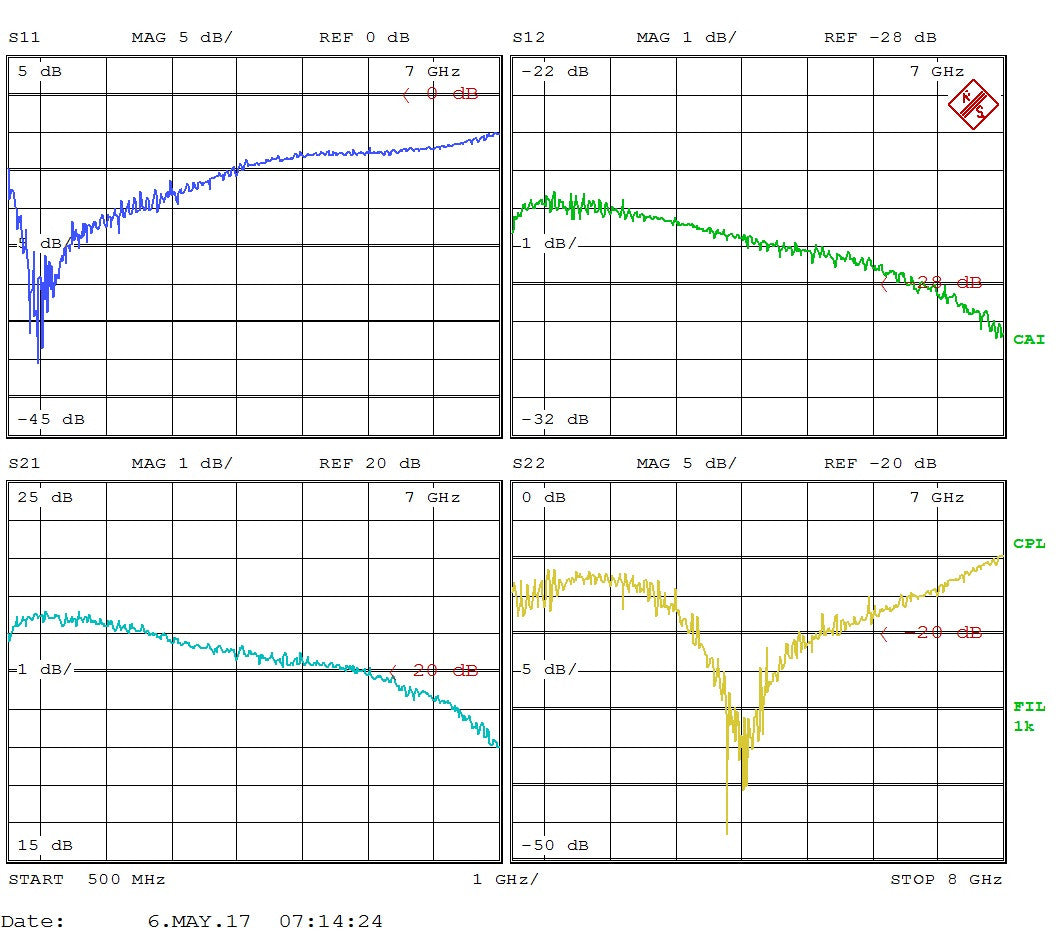

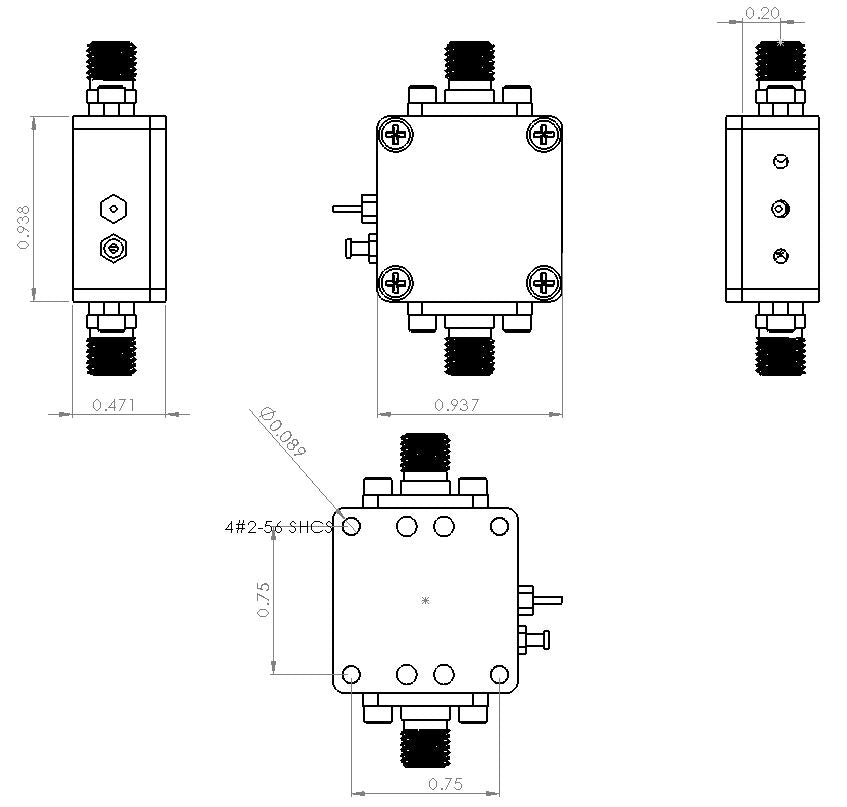

    Part Number: LNA500M8G is a PHEMT based wideband, low noise MMIC amplifier with combination of low noise, high output IP3 and flat gain over wideband range in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2). The LNA provides +/-1.5dB flat gain (peak-to-peak) over a wide bandwidth from 0.5 to 8 GHz. The LNA typically provides 21 dB gain, high +35 dBm output IP3 at a 60 mA bias setting, and 1.3 dB noise figure. The LNA can be biased from +5V or +6V. Listed pictures include Product Picture and S Parameter from 500M to 8 GHz.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20-019T.

    28 items left

    Features

    • Frequency Range: 0.5 - 8 GHz
    • Noise Figure: 1.3dB @ 2 GHz
    • Excellent Gain Flatness: +/-0.9 dB over 0.5 to 7 GHz
    • Output P1dB: +21 dBm typ. @ 2 GHz
    • Output IP3: +35 dBm typ. @ 2 GHz
    • DC Voltage: +5V or +6V
    • Operating Current: 60mA
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • Wide Voltage Option Available (PN#: LNA500M8GR)
    • ROHS Compliant

    Applications

    • WiFi/WLAN
    • S-band Radar/C-band Satcom
    • LTE/WiMAX
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Resources (PDA Datasheet)

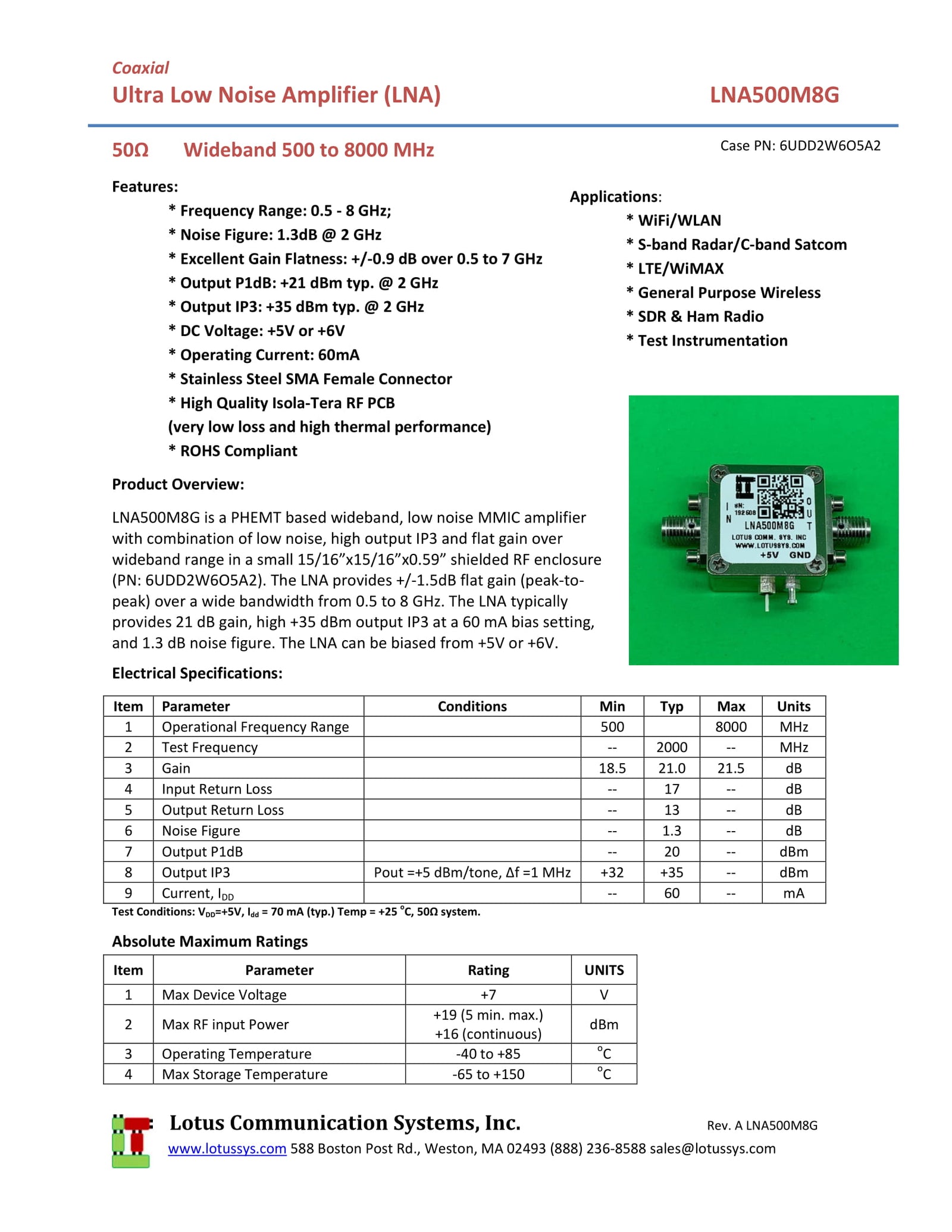

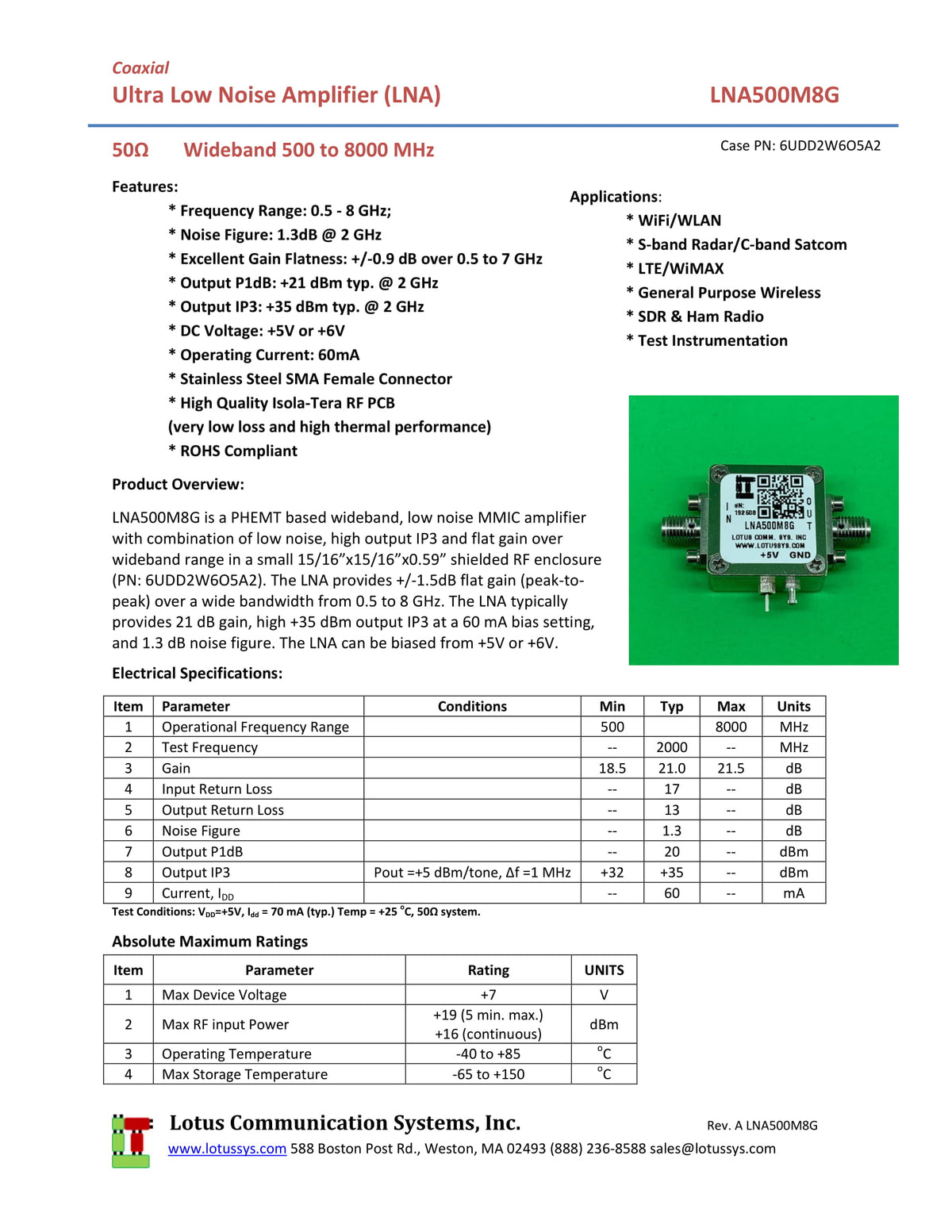

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA500M8G Datasheet
