LNA500M4G

Amplifier LNA 1.3dB NF 500MHz to 4GHz 21dB Gain 22dBm P1dB SMA LNA500M4G

16 items left

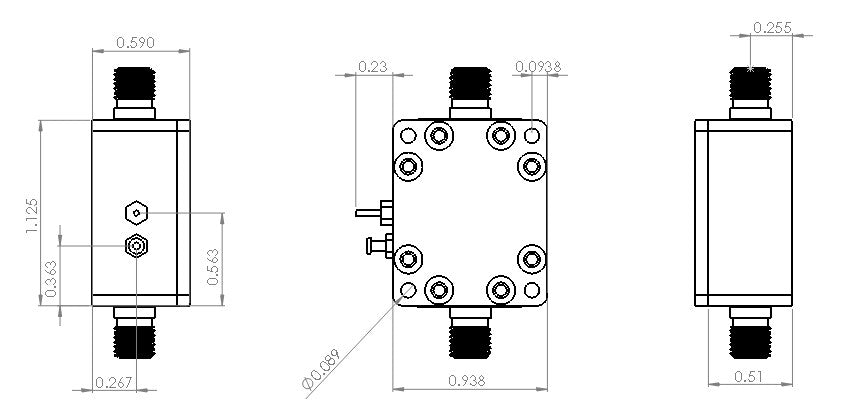

LNA500M4G is a high-linearity, ultra low noise amplifier in a small 1-1/8”x15/16”x0.59” shielded RF enclosure (PN: 6UED2W6S1A2). At 1.9 GHz, the amplifier typically provides 20.6 dB gain, +36 dBm OIP3 at a 85 mA bias setting, and 1.3 dB noise figure. The LNA can be biased from a single supply +5V.

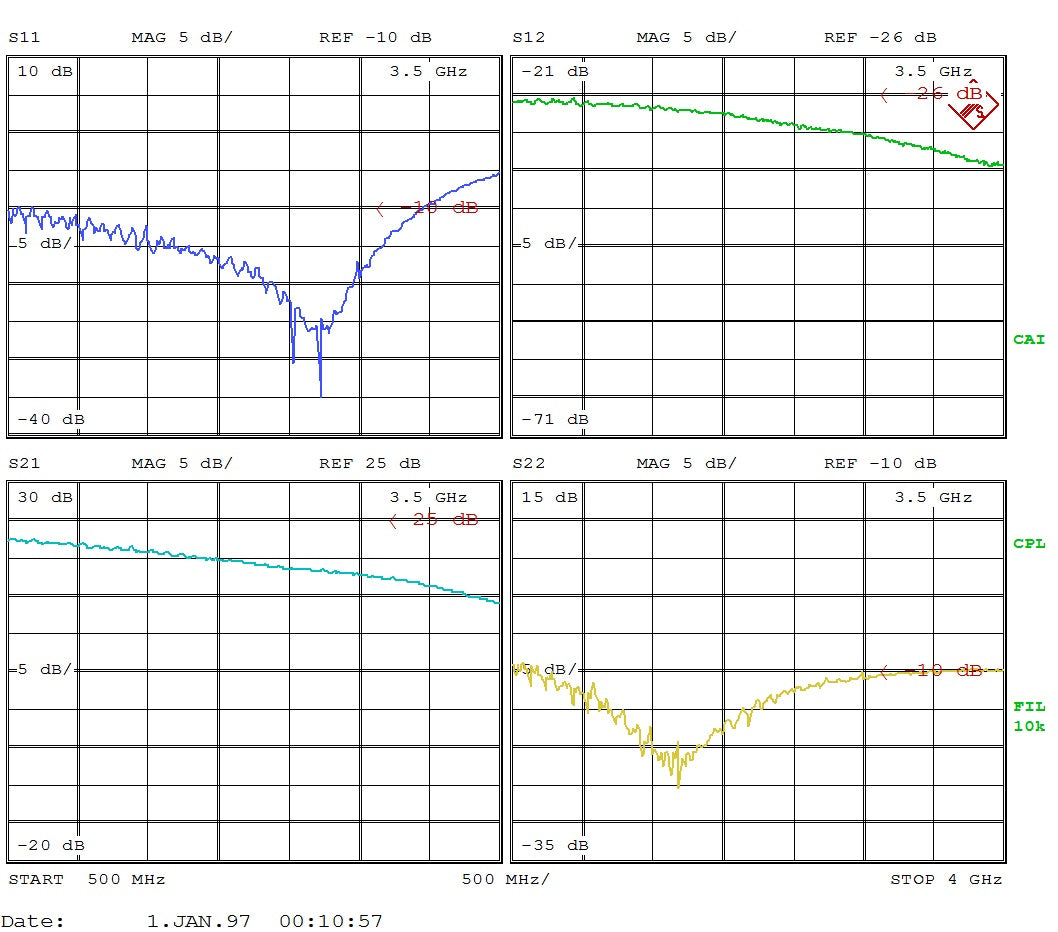

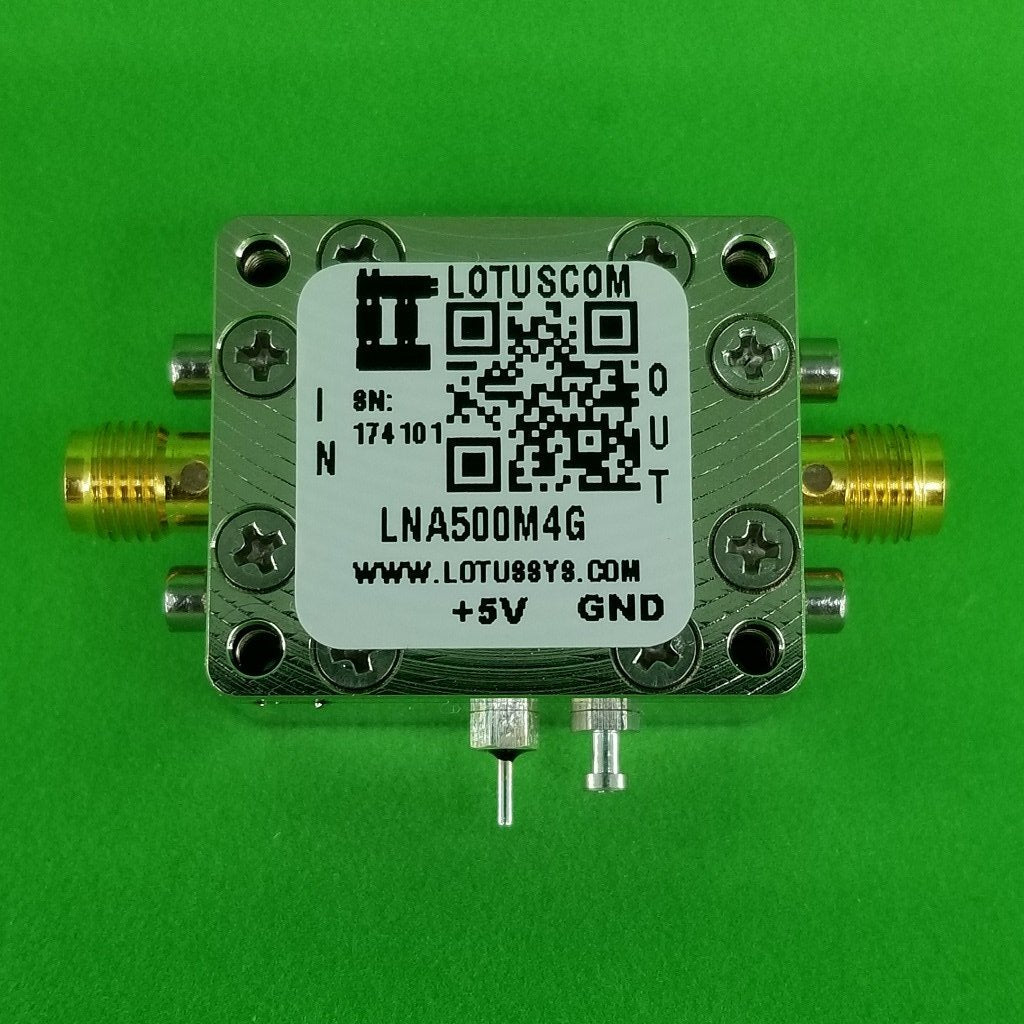

Listed pictures include Product Picture and S Parameter from 500M to 4GHz.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20_002R


Features

  • Frequency Range: 500 MHz to 4 GHz
  • Noise Figure: typical 1.3 dB @ 1.9 GHz
  • Gain: 20.6 dB Gain at 1.9 GHz
  • Output P1dB: +22 dBm CW
  • Output IP3: +36 dBm
  • DC Voltage: +5V
  • Operating Current: 85 mA
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Repeaters/DAS
  • Mobile Infrastructure
  • LTE/WCDMA/CDMA/GSM
  • General Purpose Wireless
  • SDR & Ham Radio
  • Test Instrumentation

Resources (PDF Datasheet)

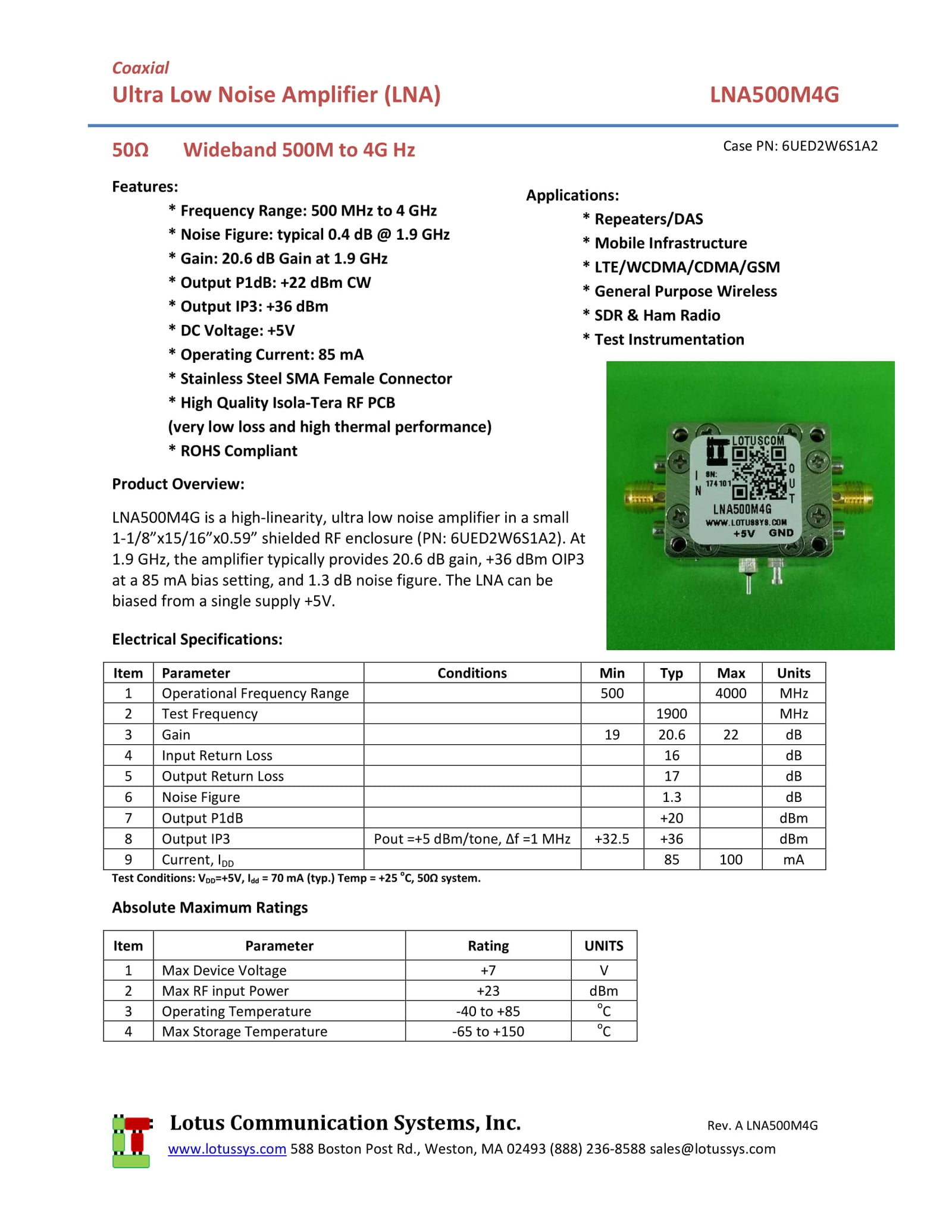

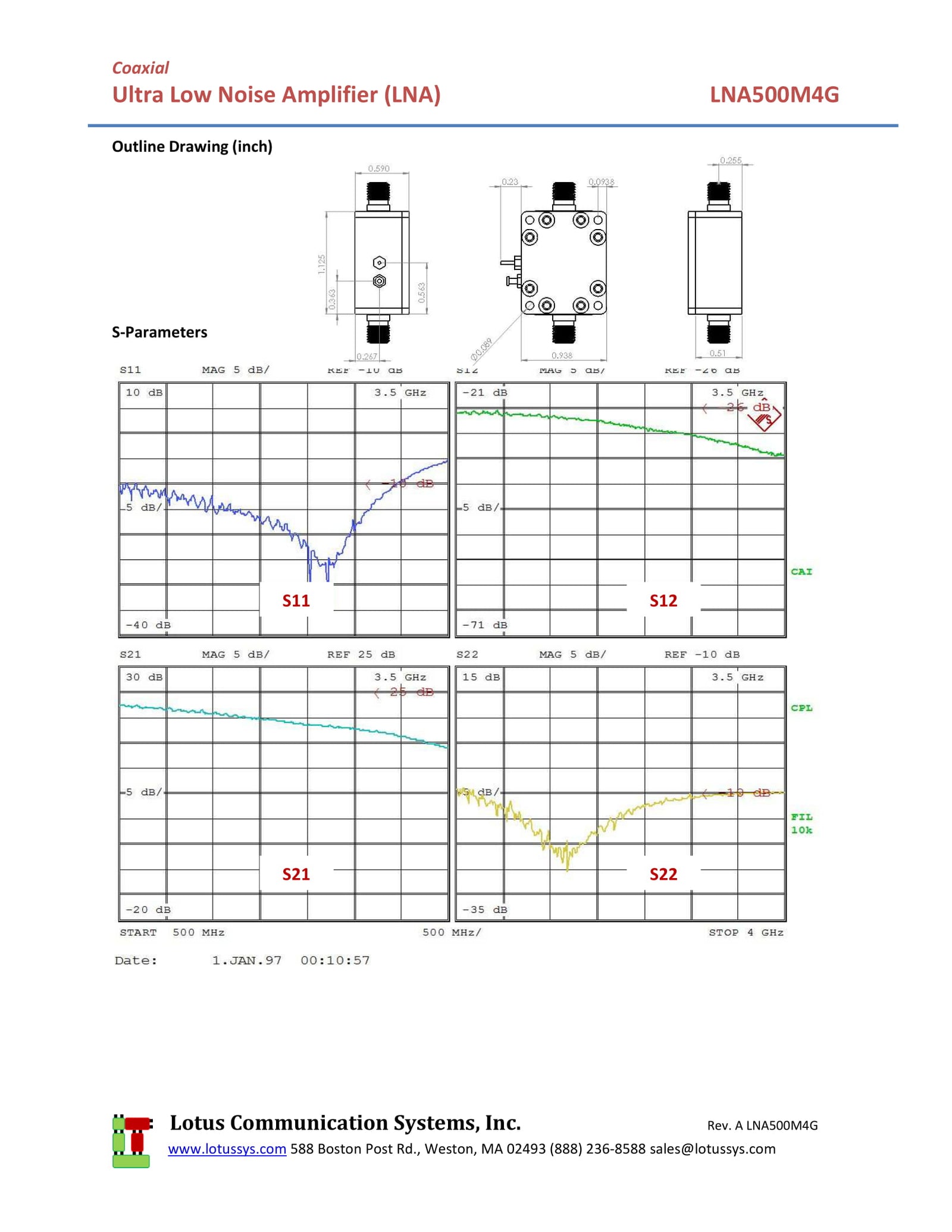

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA500M4G Datasheet
