Low Noise Amplifier 1.4dB NF 2GHz to 18GHz 20dB Gain 13dBm P1dB SMA

15 items left

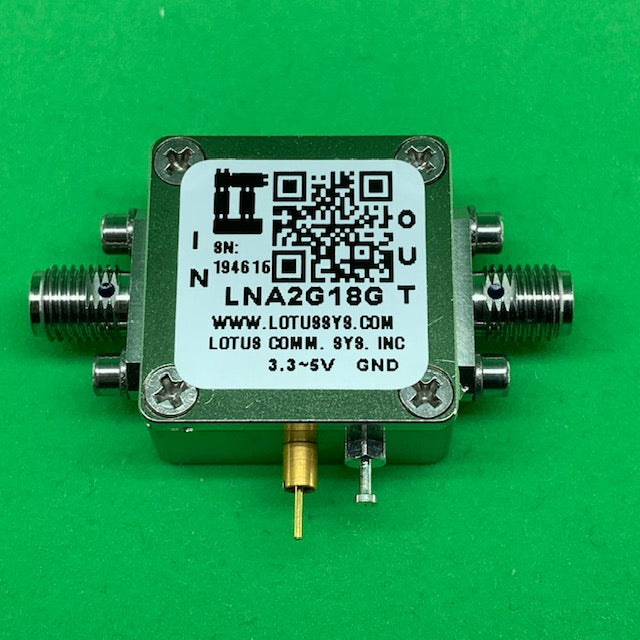

Part Number: LNA2G18G is a broadband, low noise amplifier with 20 dB typical gain from 2 to 18 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2).  Third order linearity (OIP3) is typically 23 dBm and reverse isolation is >35 dB. SKU#: AK20-019K.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).


  • Frequency Range: 2GHz to 18GHz
  • Noise Figure: typical 1.4dB @ 10 GHz
  • Gain: typical 20B @ 10 GHz
  • Output P1dB: 13 dBm
  • Output IP3: 23 dBm
  • DC Voltage: +3.3~+5V
  • Operating Current: 60mA
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant


  • Test Instrumentation
  • Wideband A/D System
  • General Purpose Wireless
  • Radar & VSAT
  • SDR & Ham Radio

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA2G18G Datasheet
