Low Noise Amplifier 2.5dB NF 21 - 29 GHz 13dB Gain 9dBm P1dB 2.92mm
$ 460.90 USD
Part Number: LNA21G29G is a broadband, MMIC low noise amplifier with 13 dB typical gain from 21 to 29 GHz in a small 15/16”x15/16”x0.47” shielded RF enclosure (PN: 6UDD2W6O5A2). Its output 1dB compression point is +9dBm and third order linearity (OIP3) is typically 19 dBm.

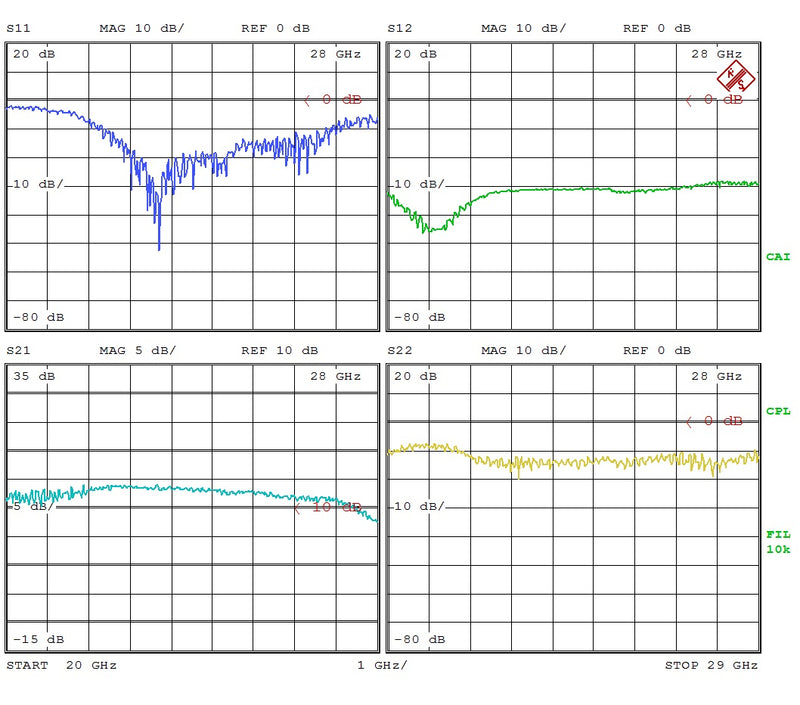

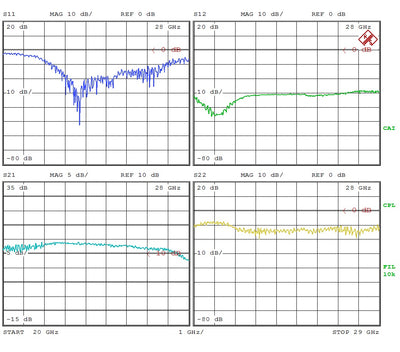

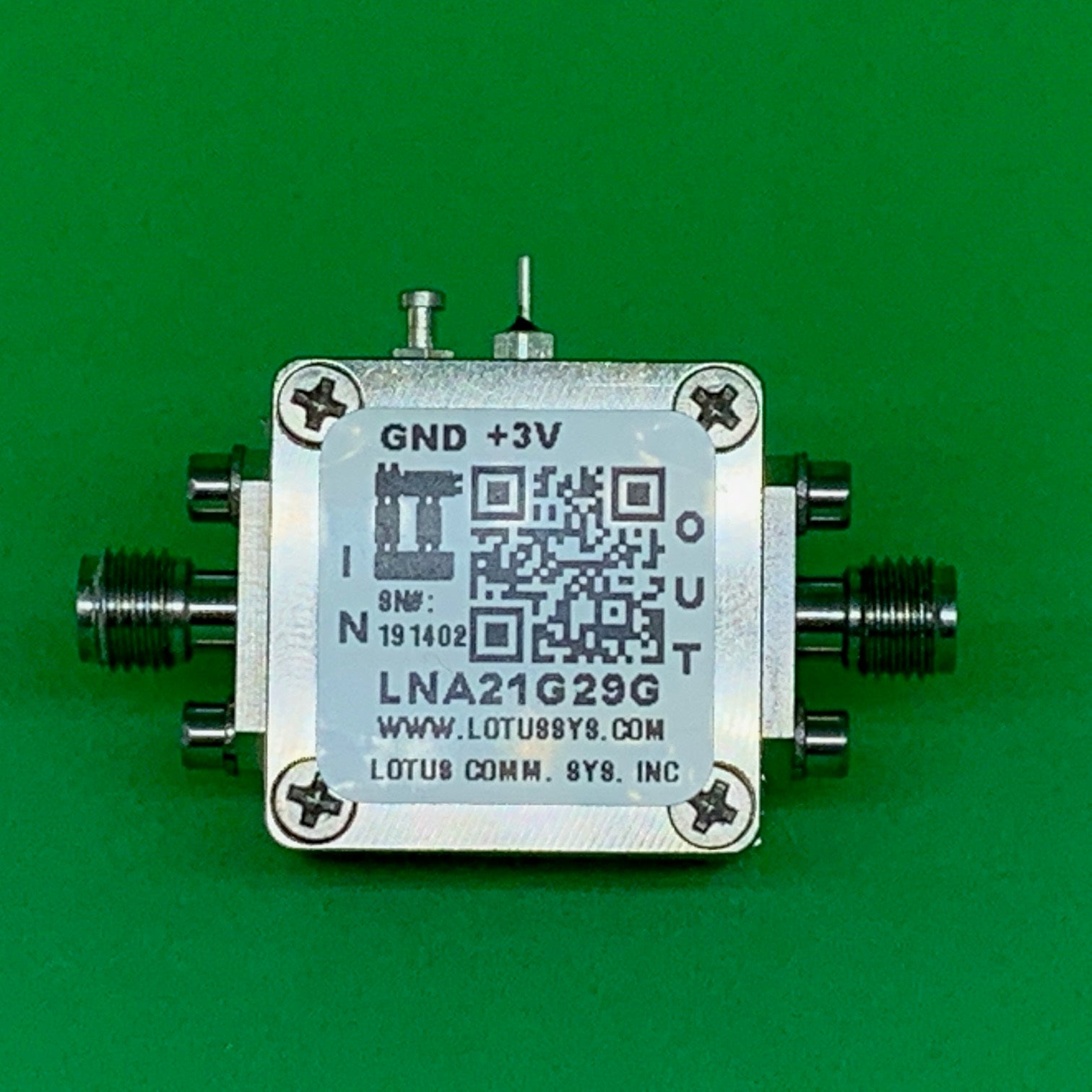

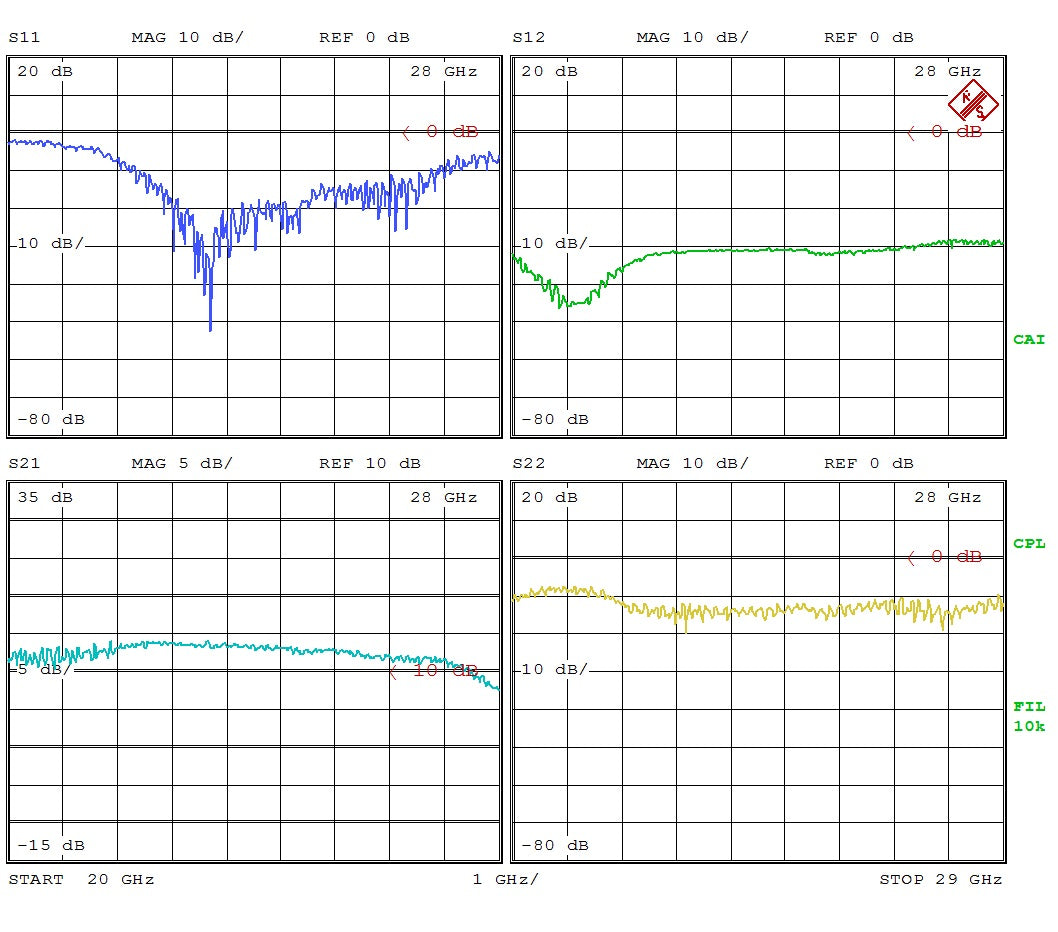

Listed pictures include Product Picture and S Parameter from 20 - 29 GHz.
Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
SKU#: AK20-004L
Features
- Frequency Range: 21 - 29 GHz
- Noise Figure: typical 2.5dB
- Gain: typical 13 dB
- Output P1dB: 9 dBm
- Output IP3: 18 dBm
- DC Voltage: +3V
- Operating Current: 35mA
- Stainless Steel 2.92mm Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Test Instrumentation
- Wideband A/D System
- General Purpose Wireless
- Radar & VSAT
- SDR & Ham Radio
