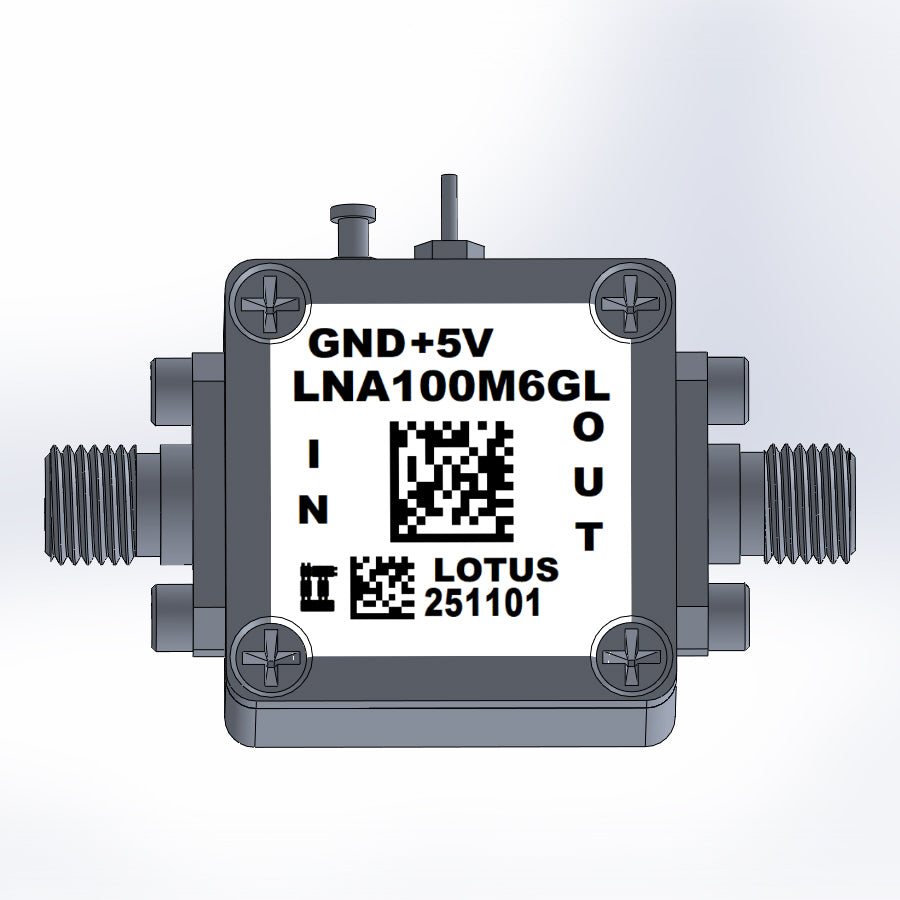

  • Low Noise Amplifier 0.3dB NF 100MHz to 6GHz 20dB Gain 22dBm P1dB SMA

    Part Number: LNA100M6GL is a high-linearity, ultra low noise amplifier in a small 15/16”x15/16”x0.485” shielded RF enclosure. At 1.9GHz, the LNA provides 19.5 dB gain, +39 dBm OIP3 at a 65mA bias setting, and 0.3 dB noise figure. The LNA can be biased from a single supply +3.3V to +5V.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20-019D.

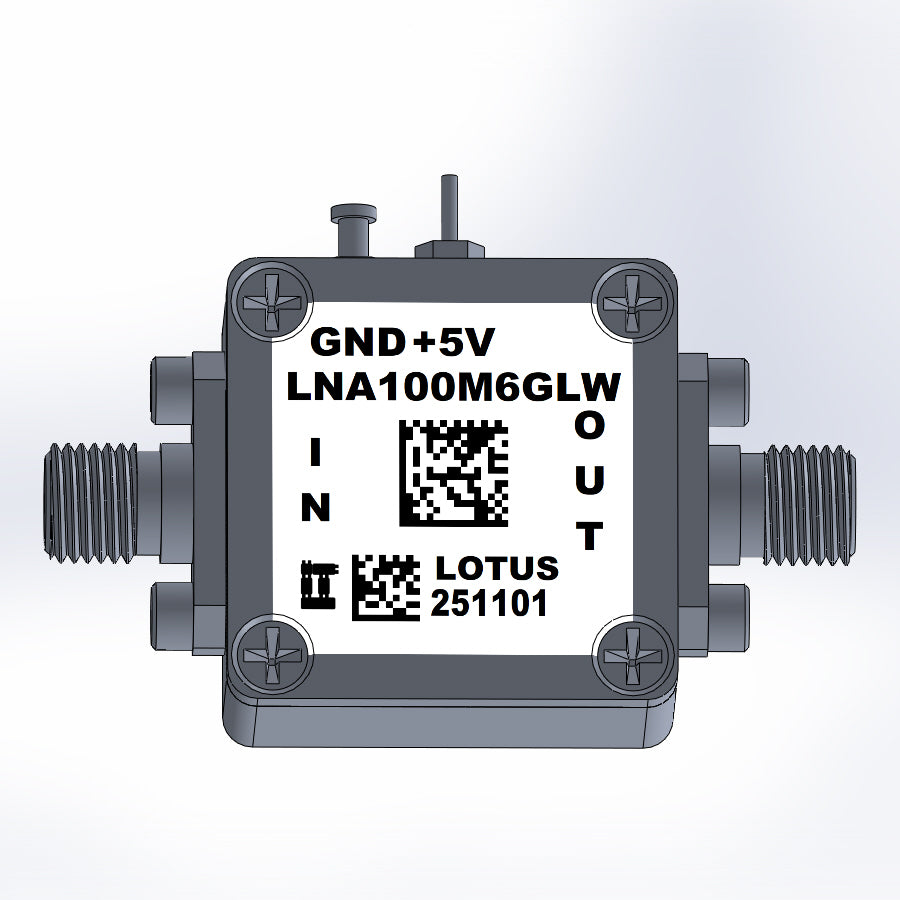

    EMI Shielding (Includes Weatherproofing)

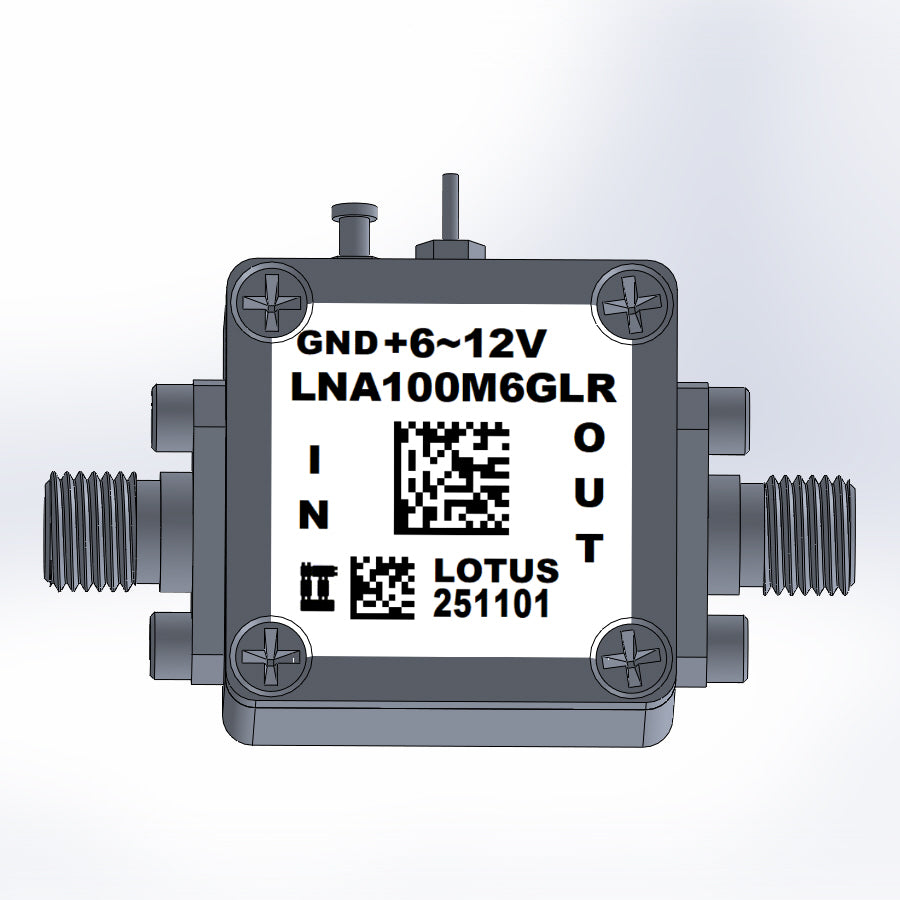

    Wide Voltage Range (+6~15V)
    11 items left

    Features

    • Frequency Range: 100 MHz to 6 GHz
    • Noise Figure: typical 0.3 dB @ 1.9 GHz
    • Gain: 19.5 dB Gain at 1.9 GHz
    • Output P1dB: +22 dBm CW
    • +39 dBm OIP3 at 65mA current
    • DC Voltage: +3.3 to +5V
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • 4.5G, 5G Massive MIMO
    • Repeaters/DAS
    • Mobile Infrastructure
    • LTE/WCDMA/CDMA/GSM
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA100M6GL Datasheet
