LNA100M4G

Amplifier LNA 1.3dB NF 100MHz to 4GHz 13dB Gain 24dBm P1dB SMA

14 items left

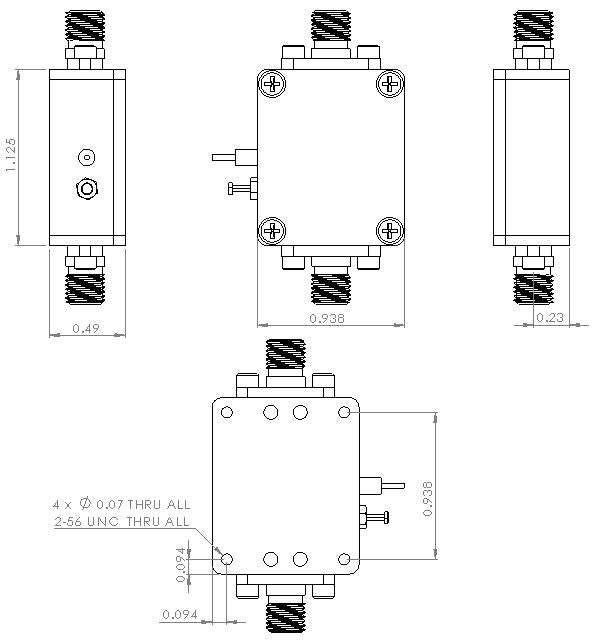

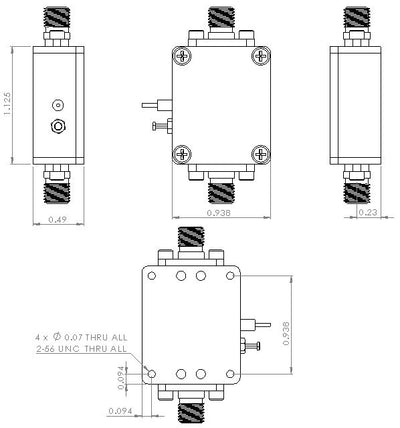

LNA100M4G is a high-linearity, ultra low noise amplifier in a small 1-1/8”x15/16”x0.59” shielded RF enclosure (PN: 6UED2W6S1A2). At 1.9 GHz, the amplifier typically provides 13 dB gain, +41 dBm OIP3 at a 125 mA bias setting, and 1.3 dB noise figure. The LNA can be biased from a single supply +5V.

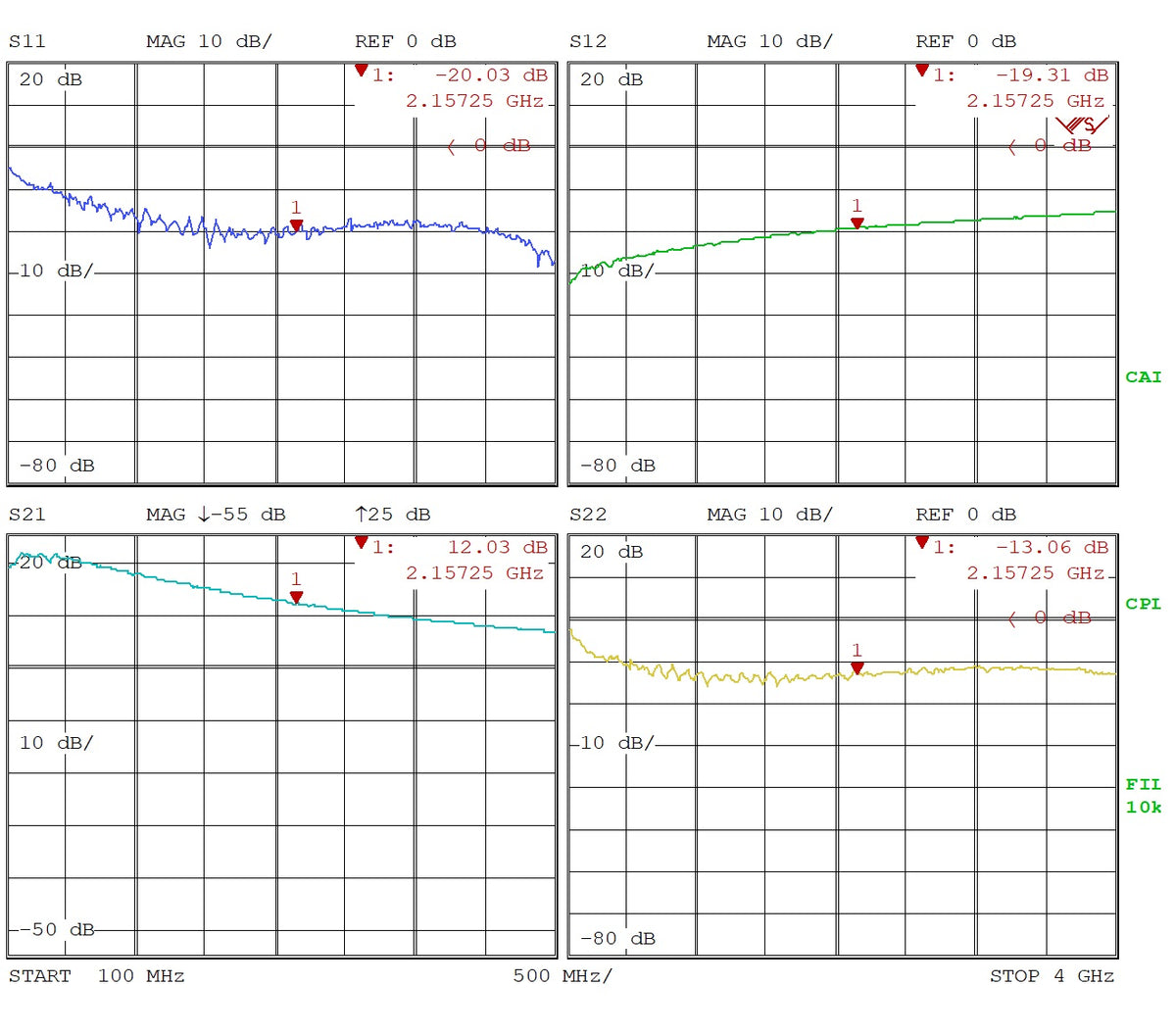

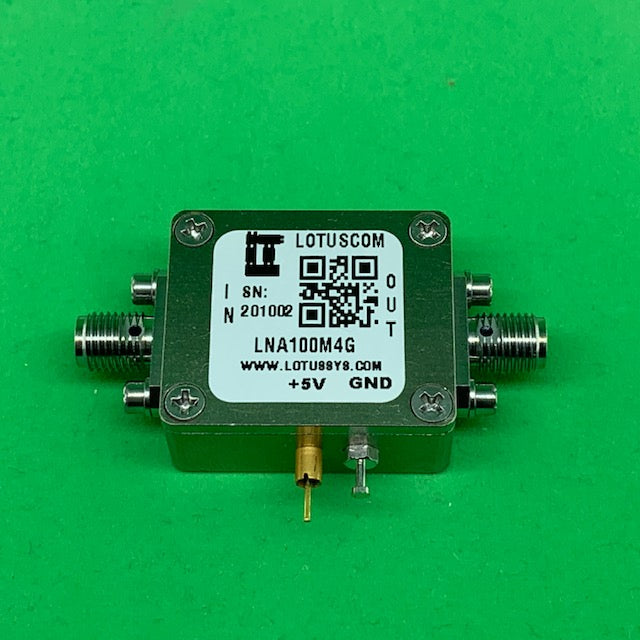

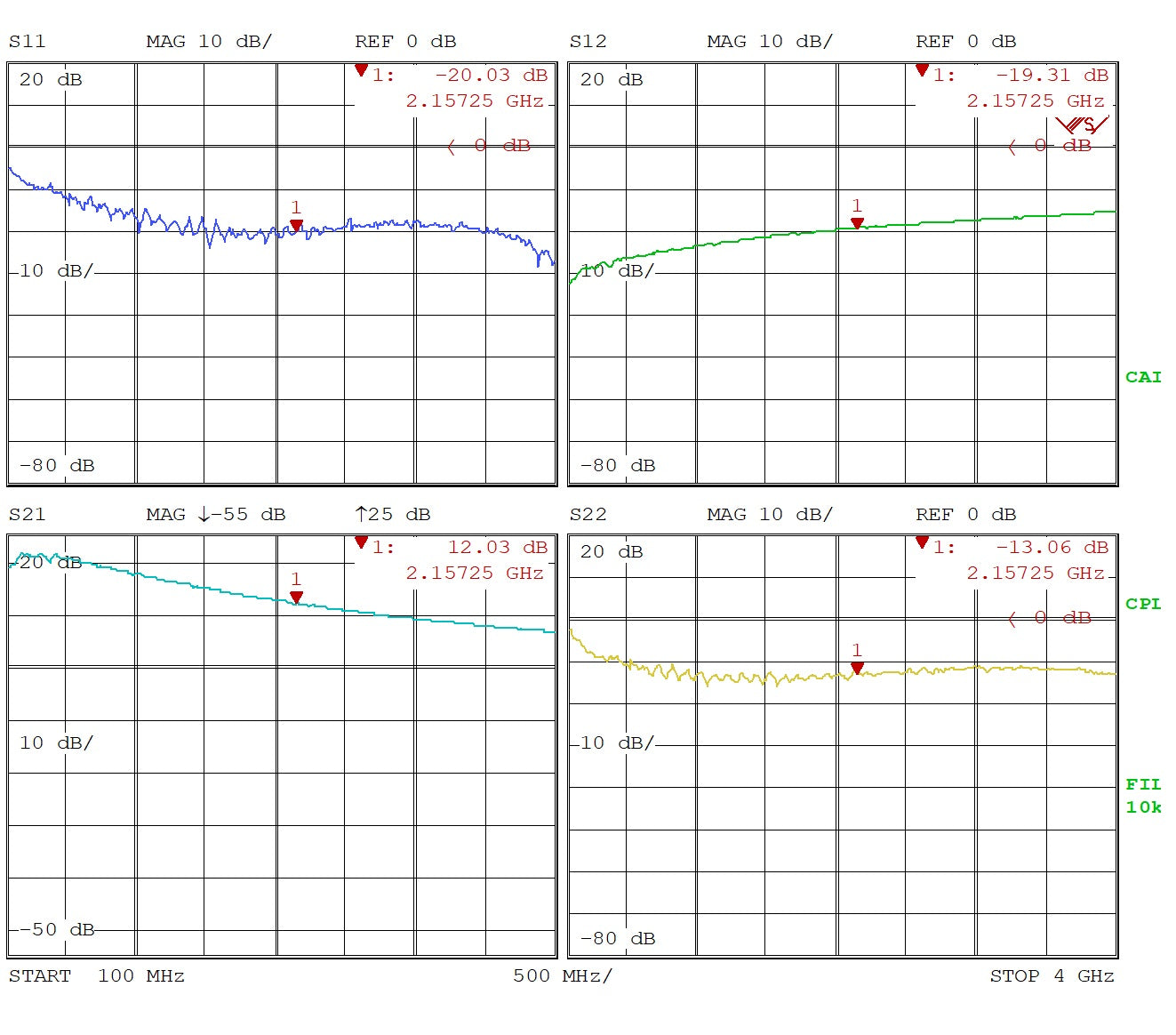

Listed pictures include Product Picture and S Parameter from 100M to 4GHz.

SKU#: AK20_001M


Features

  • Frequency Range: 100 MHz to 4 GHz
  • Noise Figure: typical 1.3 dB @ 1.9 GHz
  • Gain: 13 dB Gain at 1.95 GHz
  • Output P1dB: +23.6 dBm CW
  • Output IP3: +41 dBm
  • DC Voltage: +5V
  • Operating Current: 125 mA
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Repeaters/DAS
  • Mobile Infrastructure
  • LTE/WCDMA/CDMA/GSM
  • General Purpose Wireless
  • SDR & Ham Radio
  • Test Instrumentation
http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA100M4G Datasheet
