Low Noise Amplifier 0.45dB NF 100MHz to 2GHz 20dB Gain 20dBm P1dB SMA

Low Noise Amplifier 0.45dB NF 100MHz to 2GHz 20dB Gain 20dBm P1dB SMA

Low Noise Amplifier 0.45dB NF 100MHz to 2GHz 20dB Gain 20dBm P1dB SMA

Low Noise Amplifier 0.45dB NF 100MHz to 2GHz 20dB Gain 20dBm P1dB SMA

$ 98.00 USD

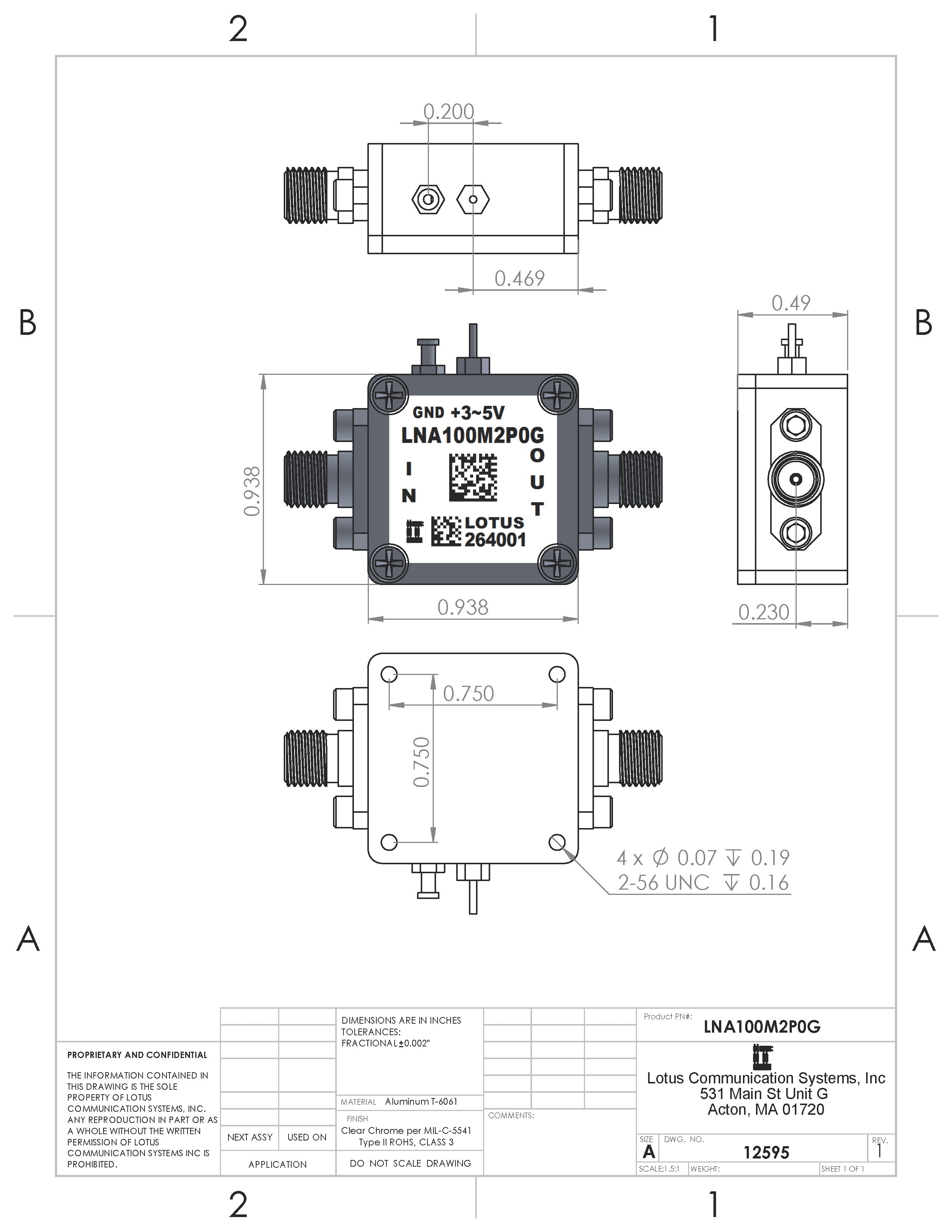

Part Number: LNA100M2P0G is a high-linearity, ultra low noise amplifier in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2). At 900 MHz, the amplifier typically provides 20 dB gain, +36 dBm OIP3 at a 68 mA bias setting, and 0.45 dB noise figure. The LNA can be biased from a single supply +3.3V to +5V.

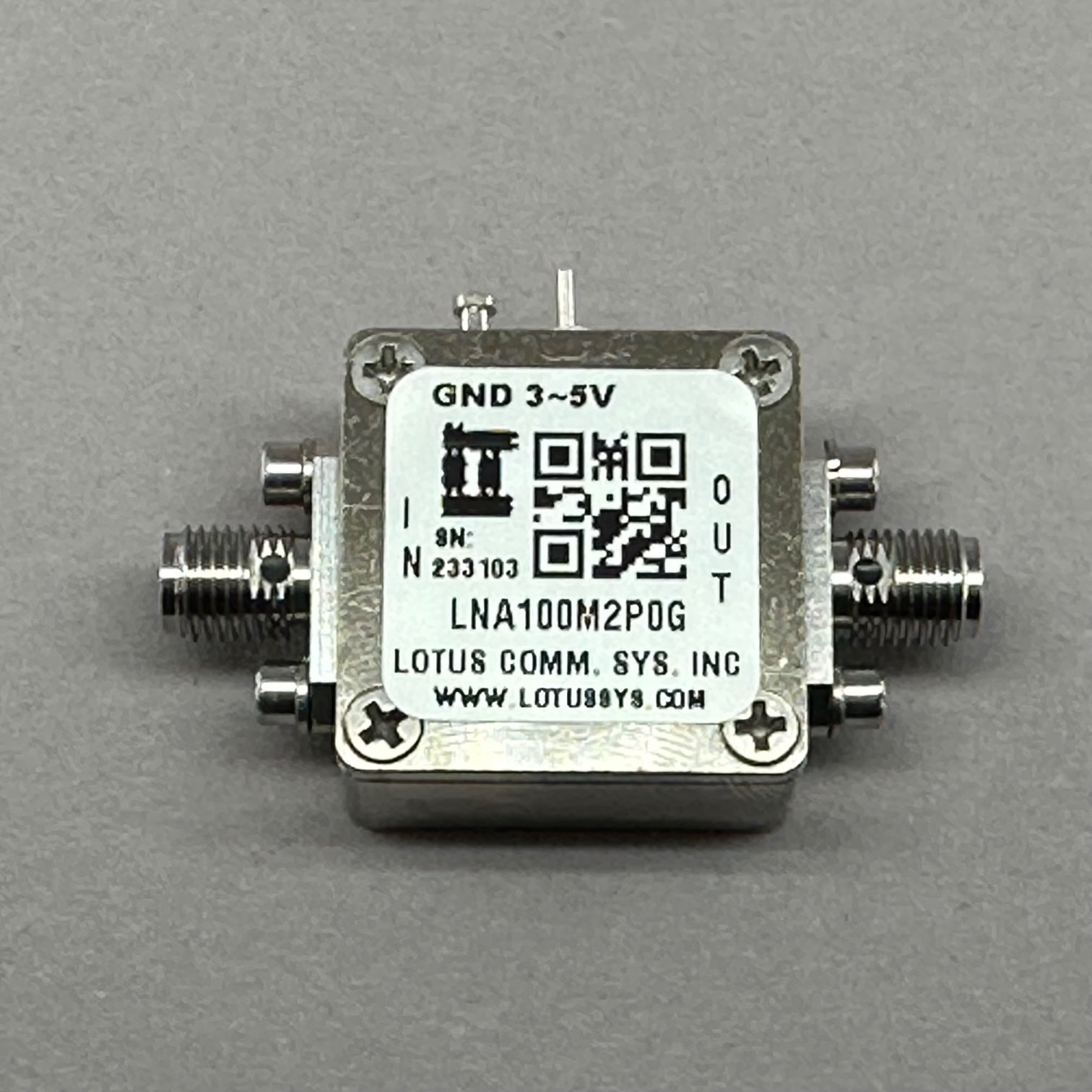

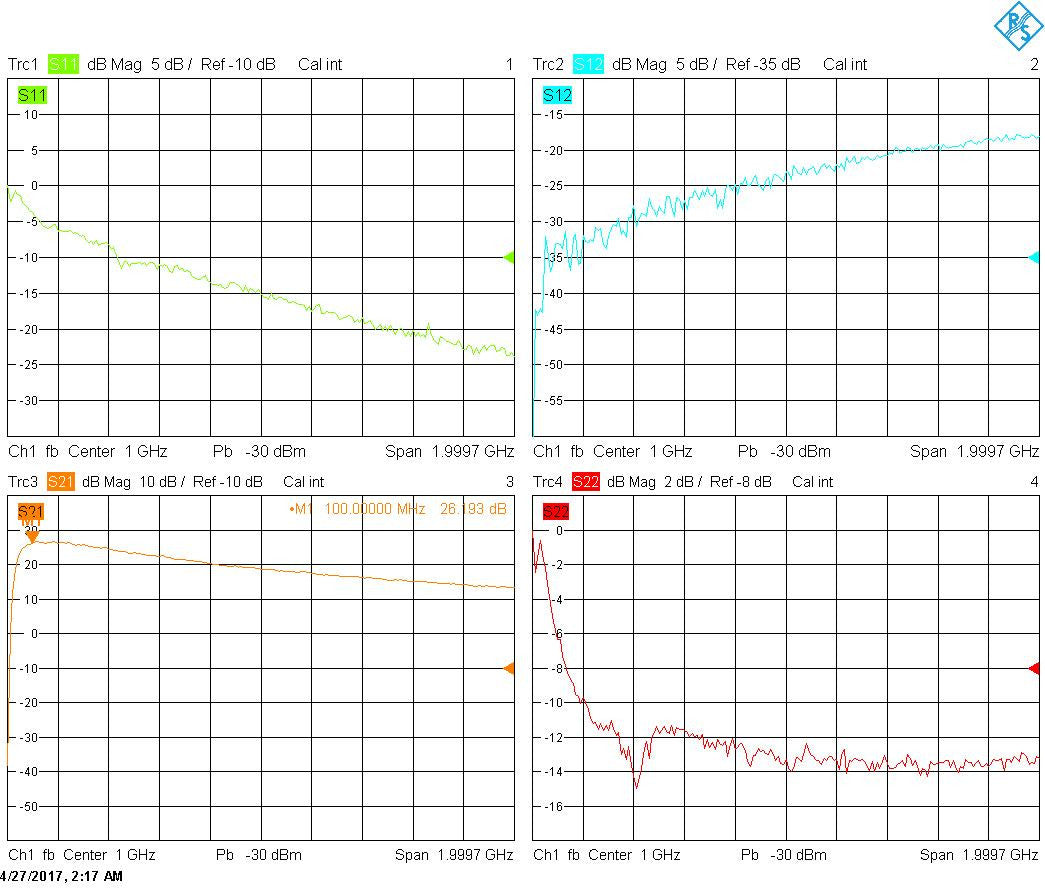

Listed pictures include Product Picture and S Parameter from 100M to 2GHz. SKU#: QT16-001G.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

Collections: Low Noise Amplifier

Features

Frequency Range: 100 MHz to 2 GHz;
Noise Figure: typical 0.45 dB @ 900MHz
Gain: 20 dB Gain at 900 MHz
Output P1dB: +22 dBm CW
Output IP3: +36 dBm
DC Voltage: +3.3 to +5V
Operating Current: 68 mA
Stainless Steel SMA Female Connector
High Quality Rogers RO4350 RF PCB
ROHS Compliant

Applications

Repeaters/DAS
Mobile Infrastructure
LTE/WCDMA/CDMA/GSM
General Purpose Wireless
SDR & Ham Radio
Test Instrumentation

Resources (PDF Datasheet)

LNA100M2P0G Datasheet
