Low Noise Amplifier 2.5dB NF DC~10GHz 15dB Flat Gain 18dBm P1dB SMA

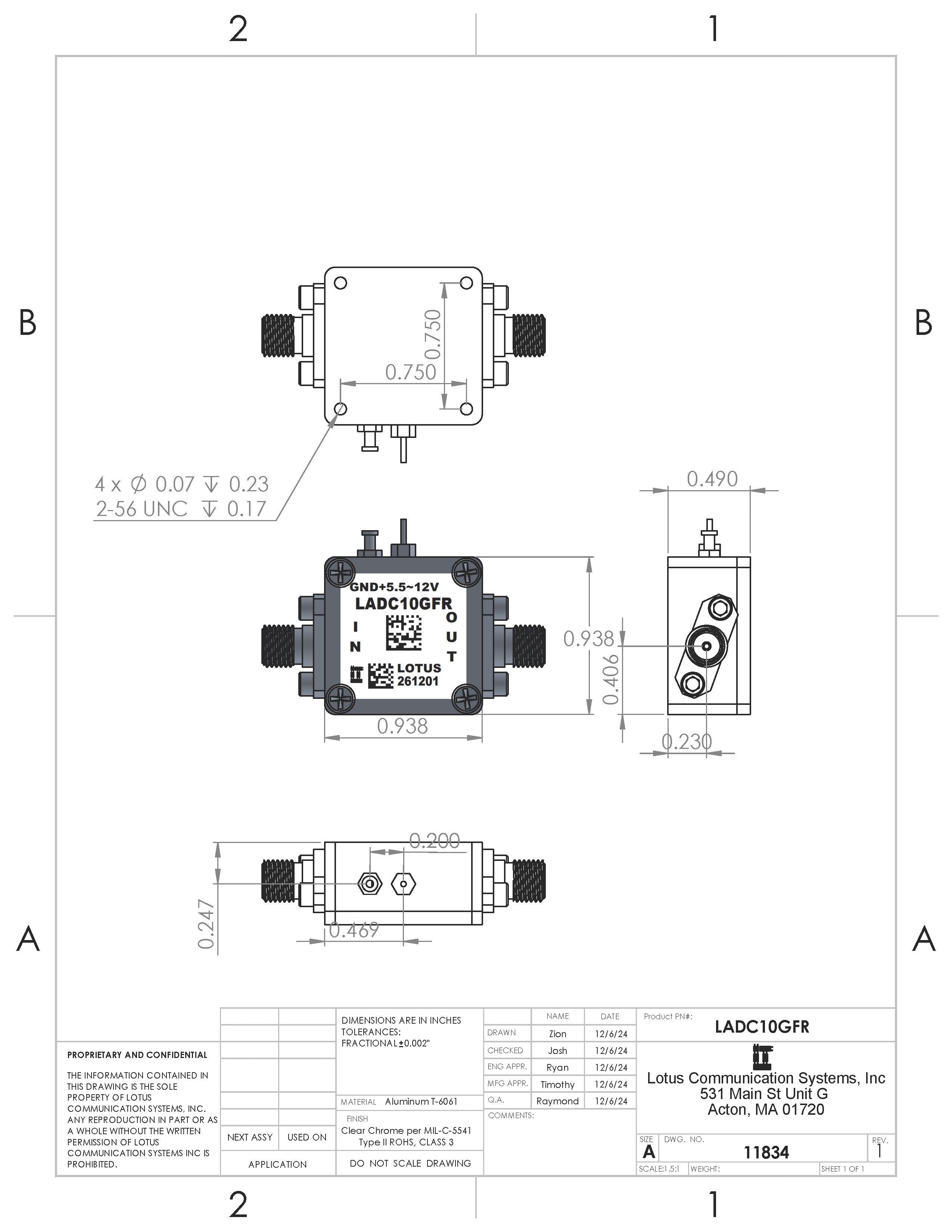

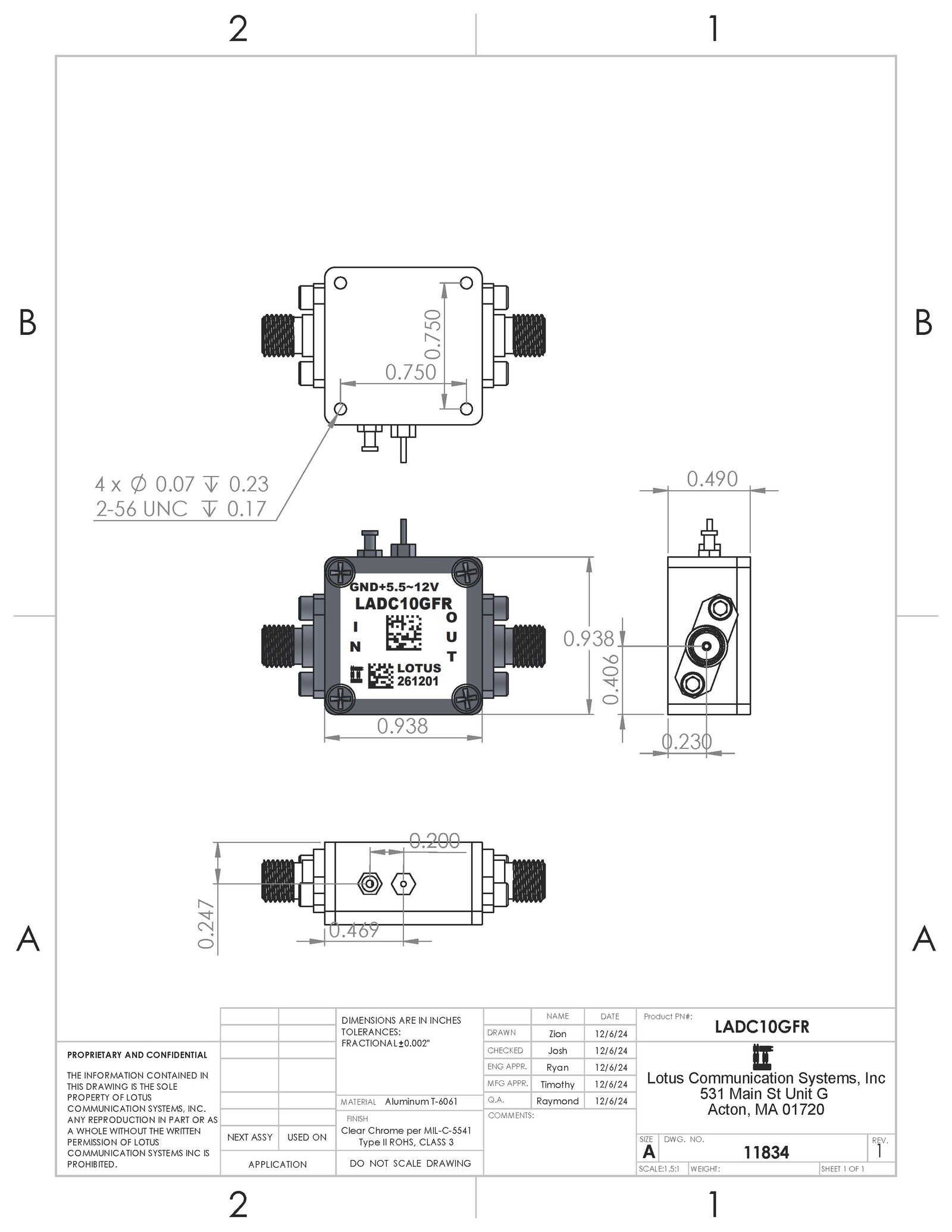

Part Number: LADC10GFR is a flat gain, high-linearity, low noise amplifier covering up to 10GHz. It is in a small 15/16”x15/16”x0.49” shielded RF enclosure. LNA has positive gain slope and provides a +/-1.0 dB flat gain (peak-to-peak) from DC to 10 GHz. At 5 GHz, the amplifier typically provides 15 dB gain, +30 dBm OIP3 at a 72mA bias setting, and 2.5 dB noise figure. The LNA can be biased from a single supply +5.5V~12V. Input & Output ports are DC-coupled.

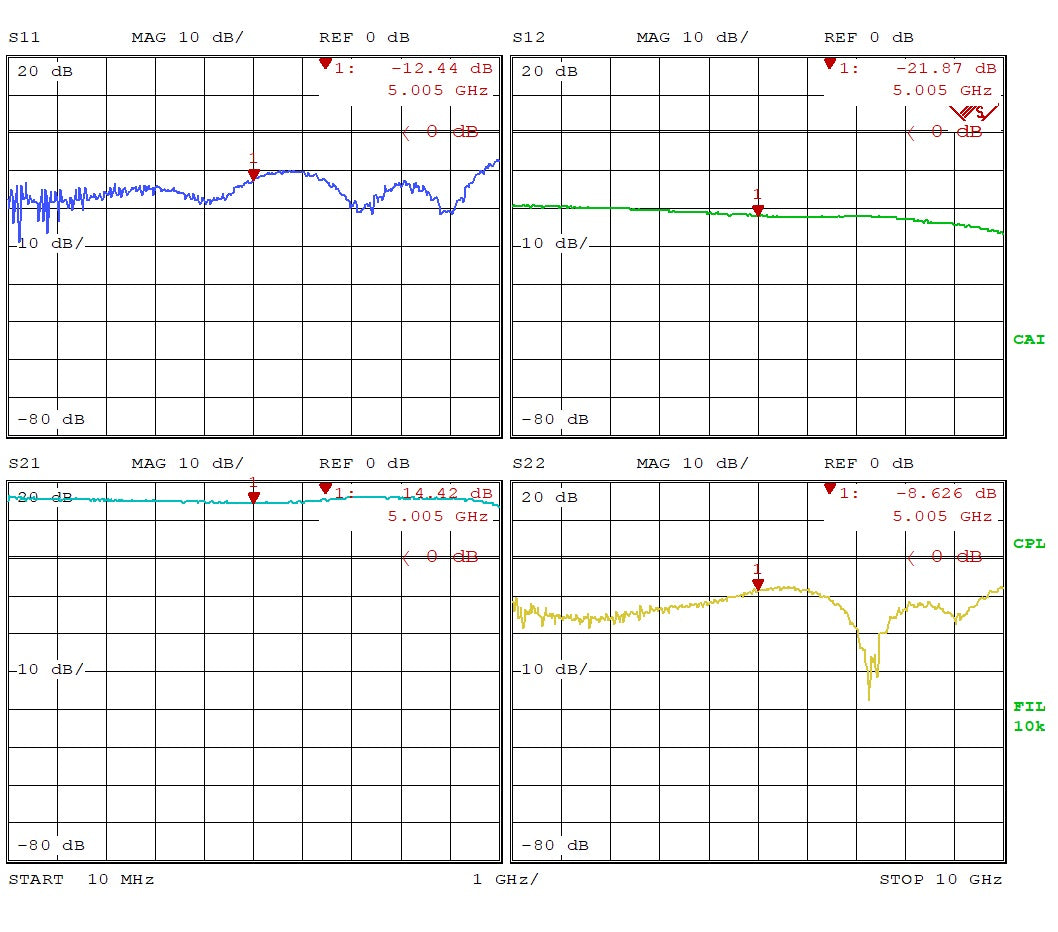

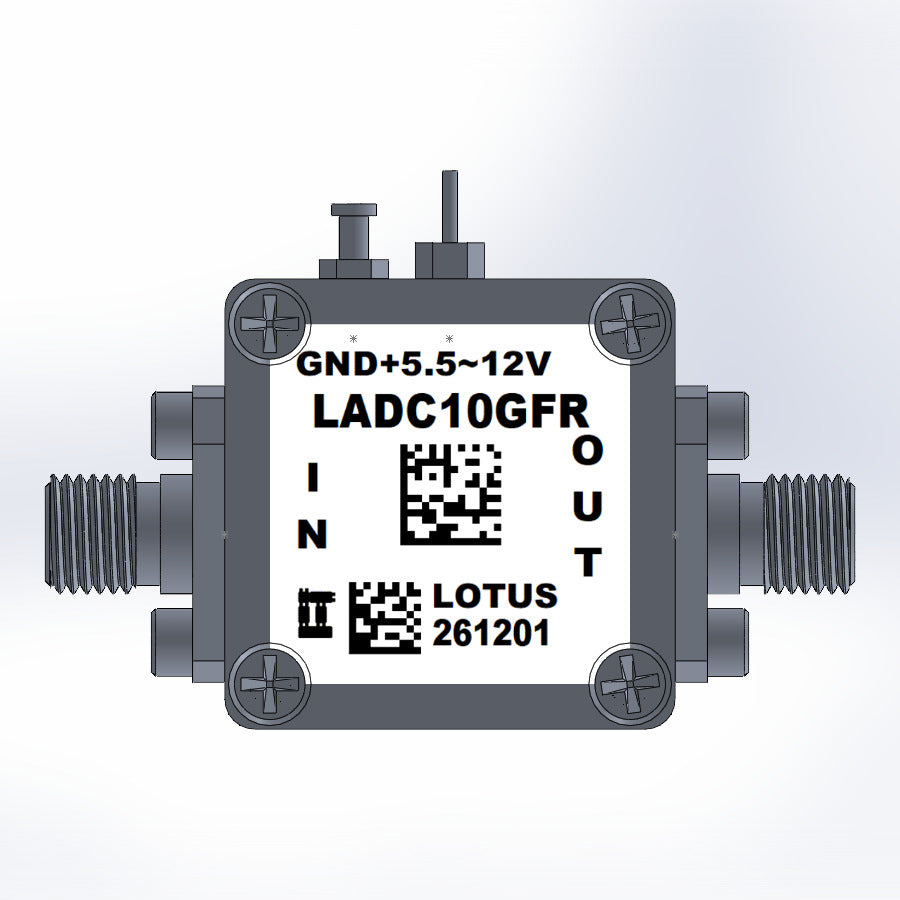

Listed pictures include Product Picture and S Parameter from DC to 10GHz.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-016A.
