Low Noise Amplifier 1.0dB NF 50M~500MHz 23dB Gain 20dBm P1dB SMA

Low Noise Amplifier 1.0dB NF 50M~500MHz 23dB Gain 20dBm P1dB SMA

Low Noise Amplifier 1.0dB NF 50M~500MHz 23dB Gain 20dBm P1dB SMA

$ 158.00 USD

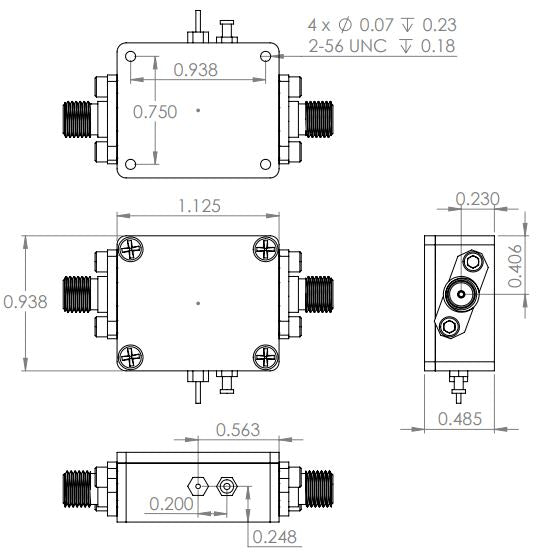

Part Number: LA50M500MR is a high-linearity, ultra low noise amplifier in a small 1-1/8”x15/16”x0.49” shielded RF enclosure. At 250 MHz, the amplifier typically provides 23 dB gain, +36 dBm OIP3 at a 85 mA bias setting, and 1.0 dB noise figure. The LNA can be biased from a single supply +6~15V.

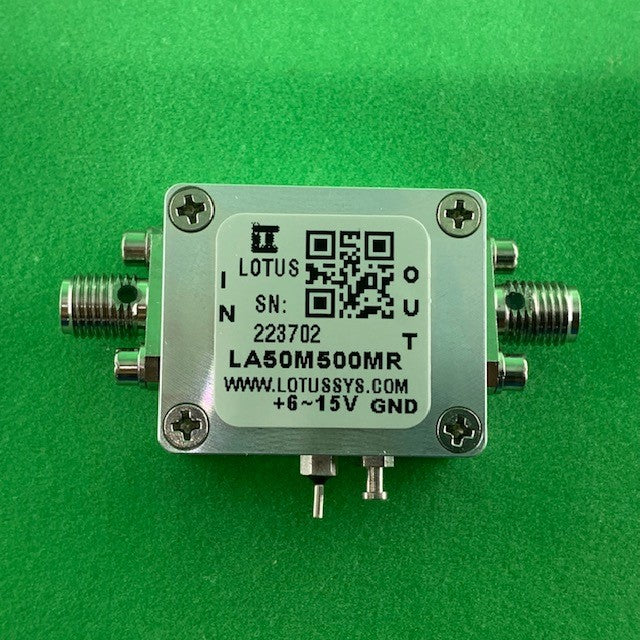

Listed pictures include Product Picture and S Parameter from 50M to 500MHz.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-016B.

Collections: Low Noise Amplifier

Features

Frequency Range: 50 MHz to 500 MHz
Noise Figure: typical 1.0 dB @ 250 MHz
Gain: 20 dB Gain at 1.95 GHz
Output P1dB: +22 dBm CW
Output IP3: +35 dBm
DC Voltage: +6~15V
Operating Current: 85 mA
Stainless Steel SMA Female Connector
High Quality Rogers RO4350 RF PCB
ROHS Compliant
EMI Shield (Waterproof) Option Available (PN#: LA50M500MRW)

Applications

General Purpose Wireless
Mobile Infrastructure
LTE/WCDMA/CDMA/GSM
SDR & Ham Radio
Test Instrumentation

Datasheet & S-Parameter

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

LA50M500MR Datasheet
