LNA 0.3dB NF 100MHz to 6GHz 20dB Gain 22dBm P1dB High Voltage +24V
$ 358.00 USD - $ 448.00 USD

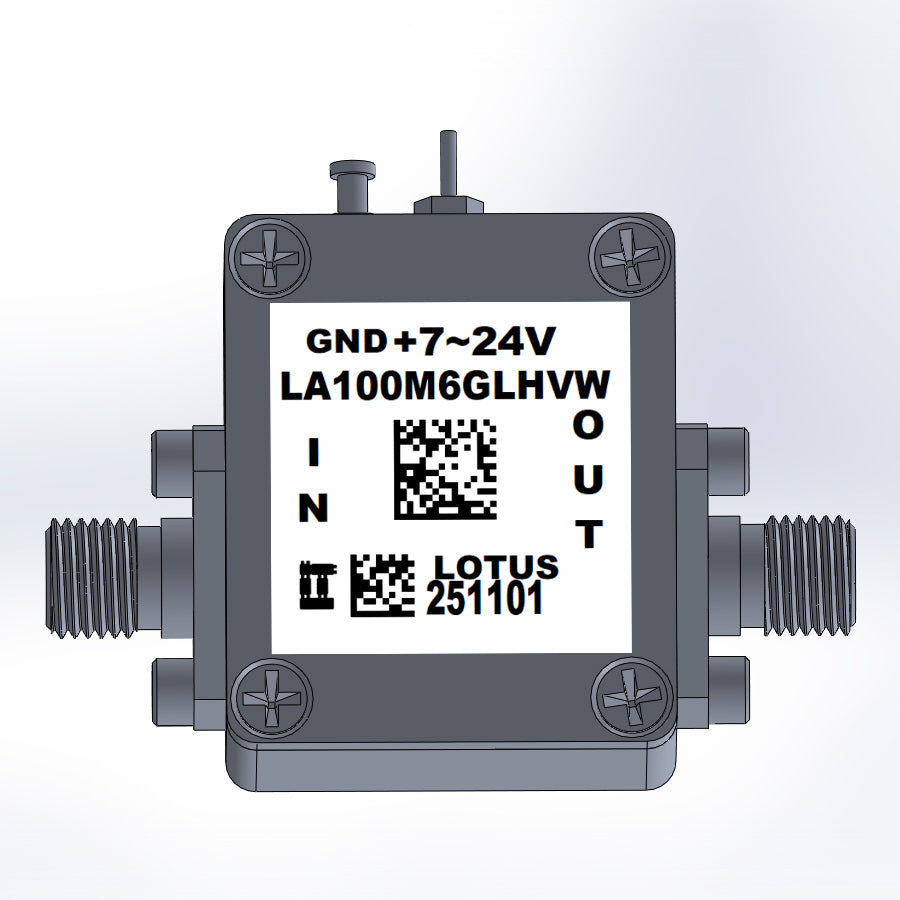

Part Number: LA100M6GLHV is a high-linearity, ultra low noise amplifier in a small 0.938"x1.125"x0.49” shielded RF enclosure. At 1.9GHz, the LNA provides 19.5 dB gain, +39 dBm OIP3 at a 65mA bias setting, and 0.3 dB noise figure. The LNA can be biased from a single supply +7V to +24V.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
Features
- Frequency Range: 100 MHz to 6 GHz
- Noise Figure: typical 0.3 dB @ 1.9 GHz
- Gain: 19.5 dB Gain at 1.9 GHz
- Output P1dB: +22 dBm CW
- +39 dBm OIP3 at 65mA current
- DC Voltage: +7 to +24V
- Stainless Steel SMA Female Connector
- ROHS Compliant
Applications
- 4.5G, 5G Massive MIMO
- Repeaters/DAS
- Mobile Infrastructure
- LTE/WCDMA/CDMA/GSM
- General Purpose Wireless
- SDR & Ham Radio
- Test Instrumentation
