Low Noise Amplifier 600M-6GHz Flat Gain with RF Limiter
$ 518.00 USD - $ 608.00 USD

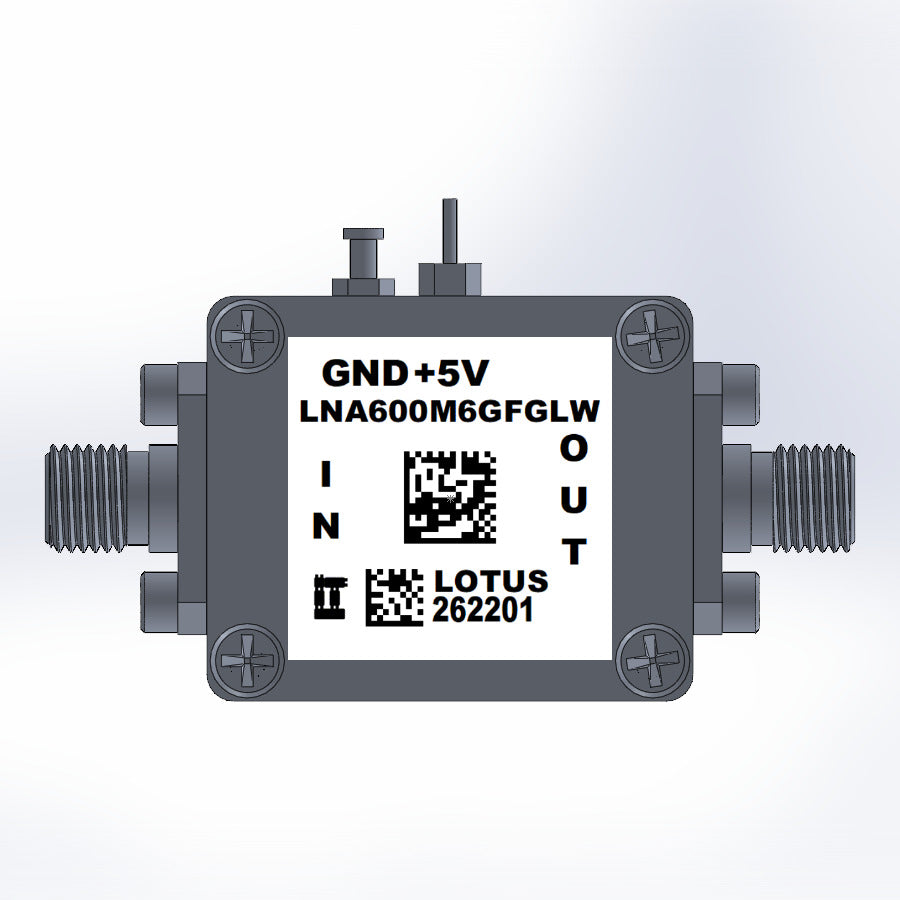

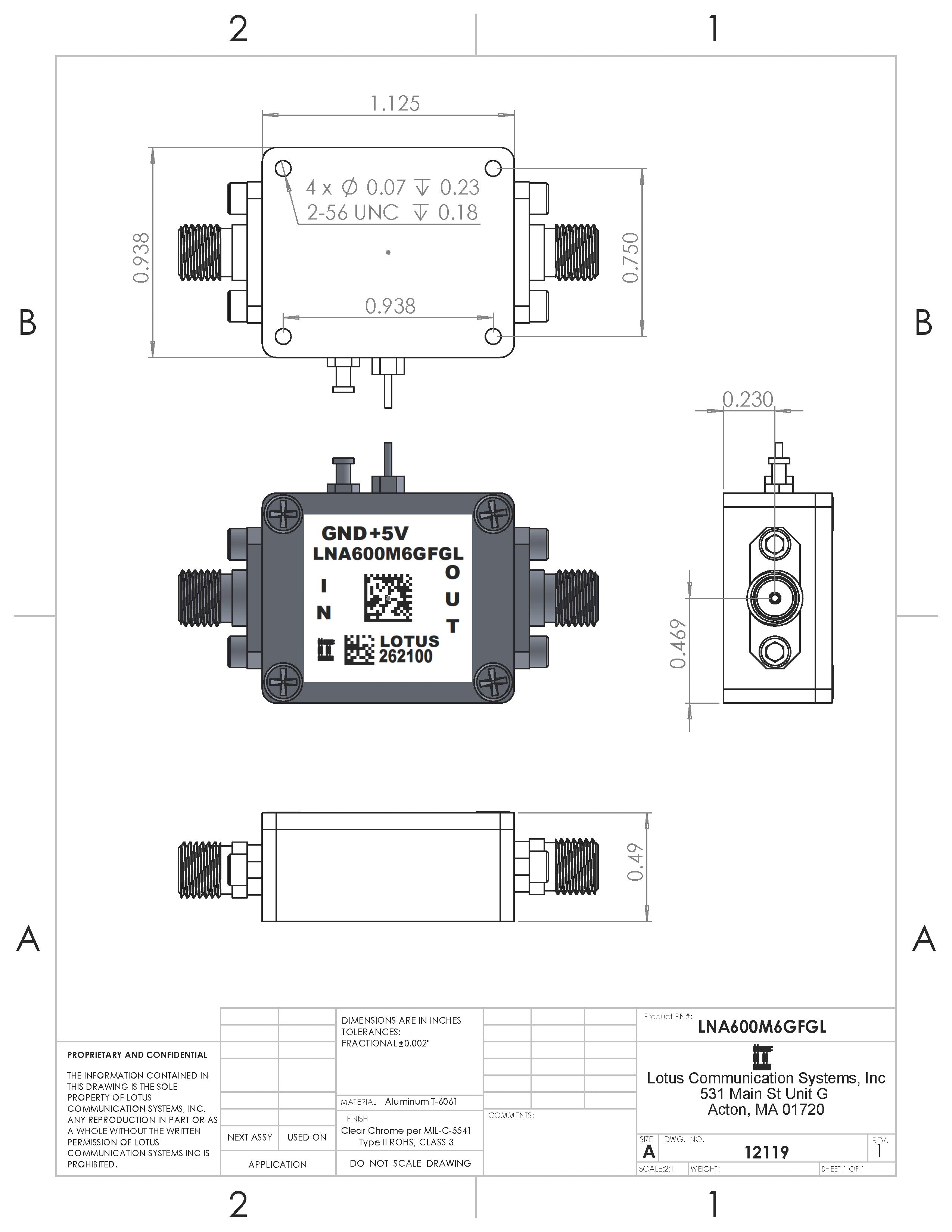

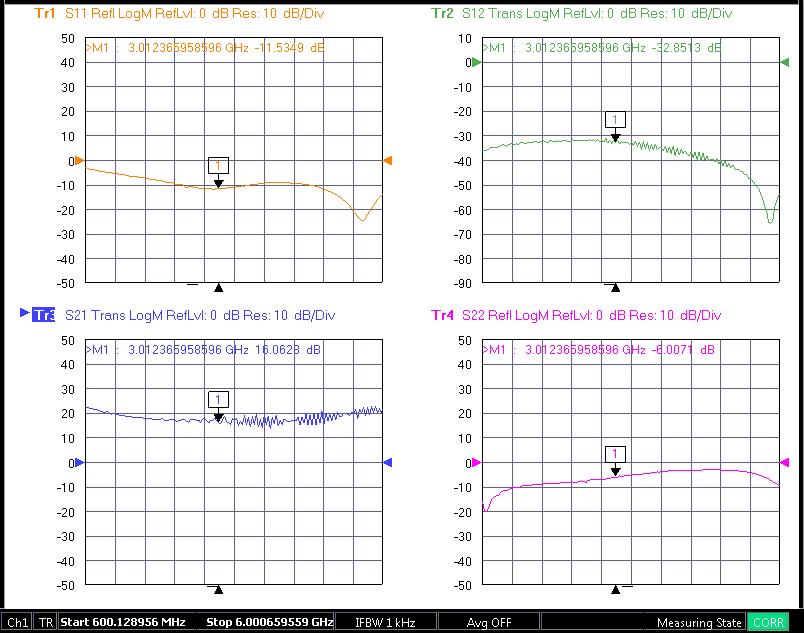

Part Number: LNA600M6GFGL is a flat gain, high-linearity, ultra-low noise amplifier in a small 1-1/8”x15/16”x0.49” shielded RF enclosure. The LNA provides a 2dB flat gain (peak-to-peak) from 3 to 6 GHz. At 5.5 GHz, the amplifier typically provides 21 dB gain, +35.5 dBm OIP3 at a 56mA bias setting, and 1.2 dB noise figure. The LNA can be biased from a single supply +3.3V to +5V. The LNA has integrated RF Limiter that can handle 10W pulsed with flat leakage <18.5dBm.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
Features
- Frequency Range: 600MHz to 6 GHz
- Noise Figure: typical 1.2dB @ 5.5 GHz
- Gain: 21 dB Gain at 5.5 GHz
- Output P1dB: +19 dBm CW
- +35.5 dBm OIP3 at 65mA current
- +3.3 to +5V Supply (+5V recommended)
-
RF Limiter Peak Power Handling: 10 W (Pulsed)
-
RF Limiter Flat Leakage: < 18.5 dBm
-
RF Limiter Recovery Time: < 40nS
-
ROHS Compliant
Applications
- 4.5G, 5G Massive MIMO
-
Repeaters/DAS
-
Mobile Infrastructure
-
LTE/WCDMA/CDMA/GSM
-
General Purpose Wireless
Resources (PDF Datasheet)
LNA600M6GFGL Datasheet
